UR36B-LPD2 Low Profile Refrigerator, Single Section Undercounter, Stainless Drawers
36″ W X 30″ D X 31.9″ H
Volume
8.64
Electrical
115v/60/1
Sections
1
Parts and Service
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 0.69 kwh/day, Amperage: 3, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R290 (2.3 oz.)
Refrigeration Data
Nominal Compres. of 988 BTU/hr at 1/6 HP, Heat Rejection: 184 BTU/hr
Shipping Weight
232 lbs.
Storage Specs
Interior storage capacity: 8.64 ft3, Drawer opening: 25.5″ W x 23″ H, Depth with drawer fully extended: 52″ D, Drawers included: 2
Warranty
7 Years: Labor, 7 Years: Parts, 7 Years: Compressor
Overview and Features

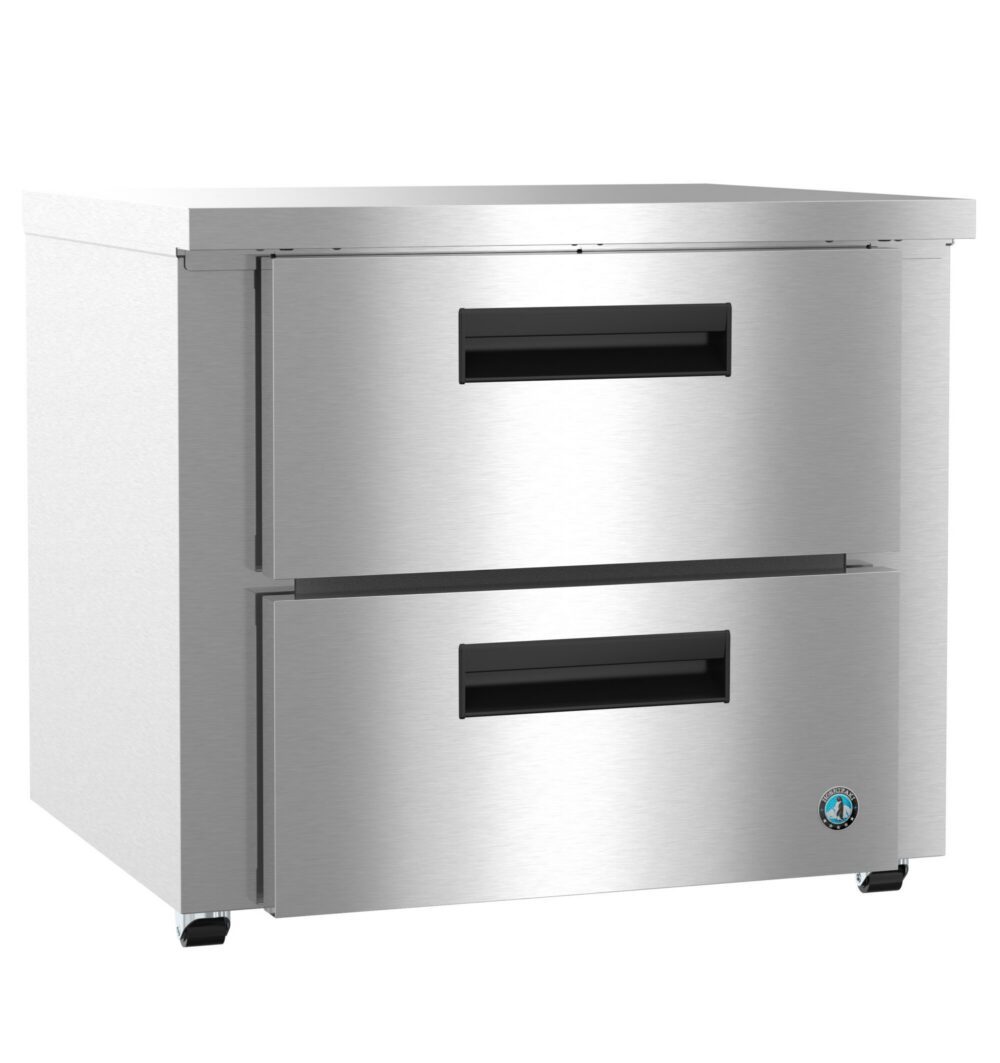

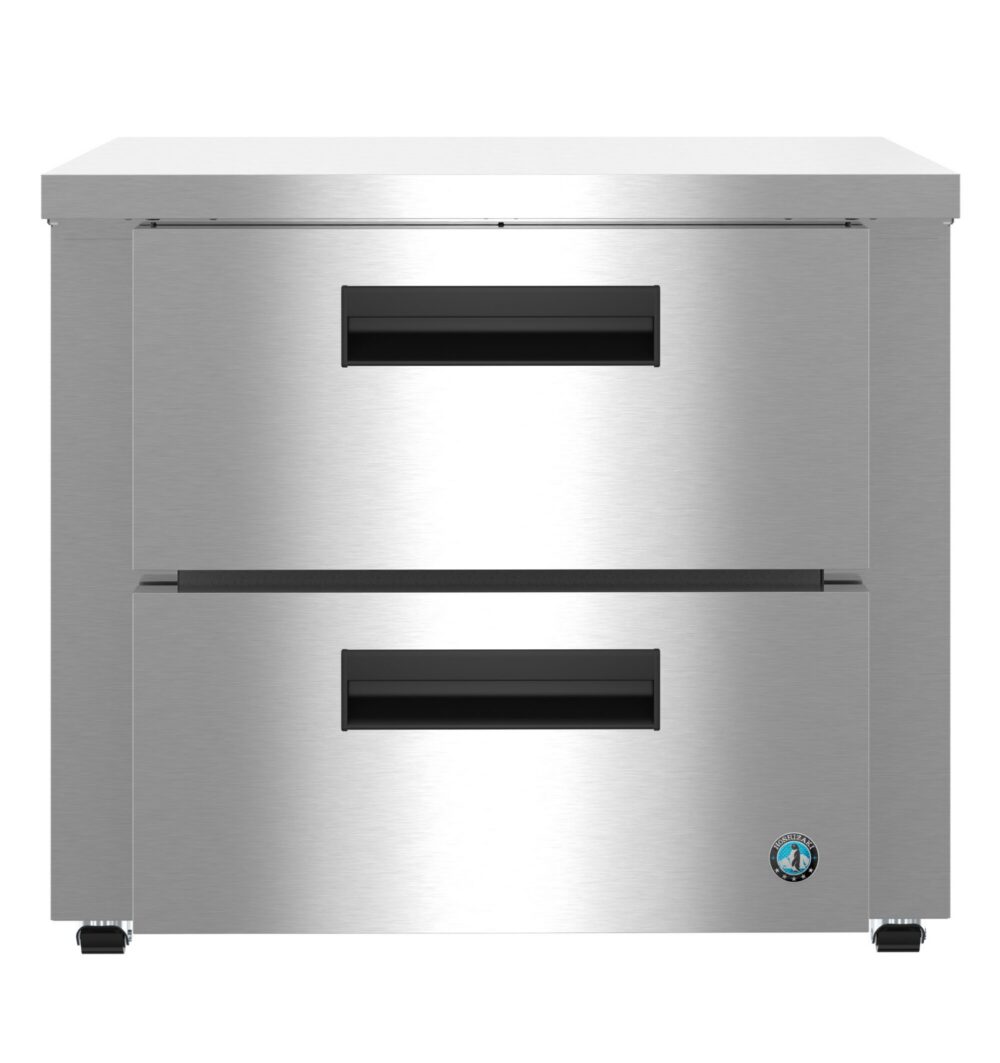

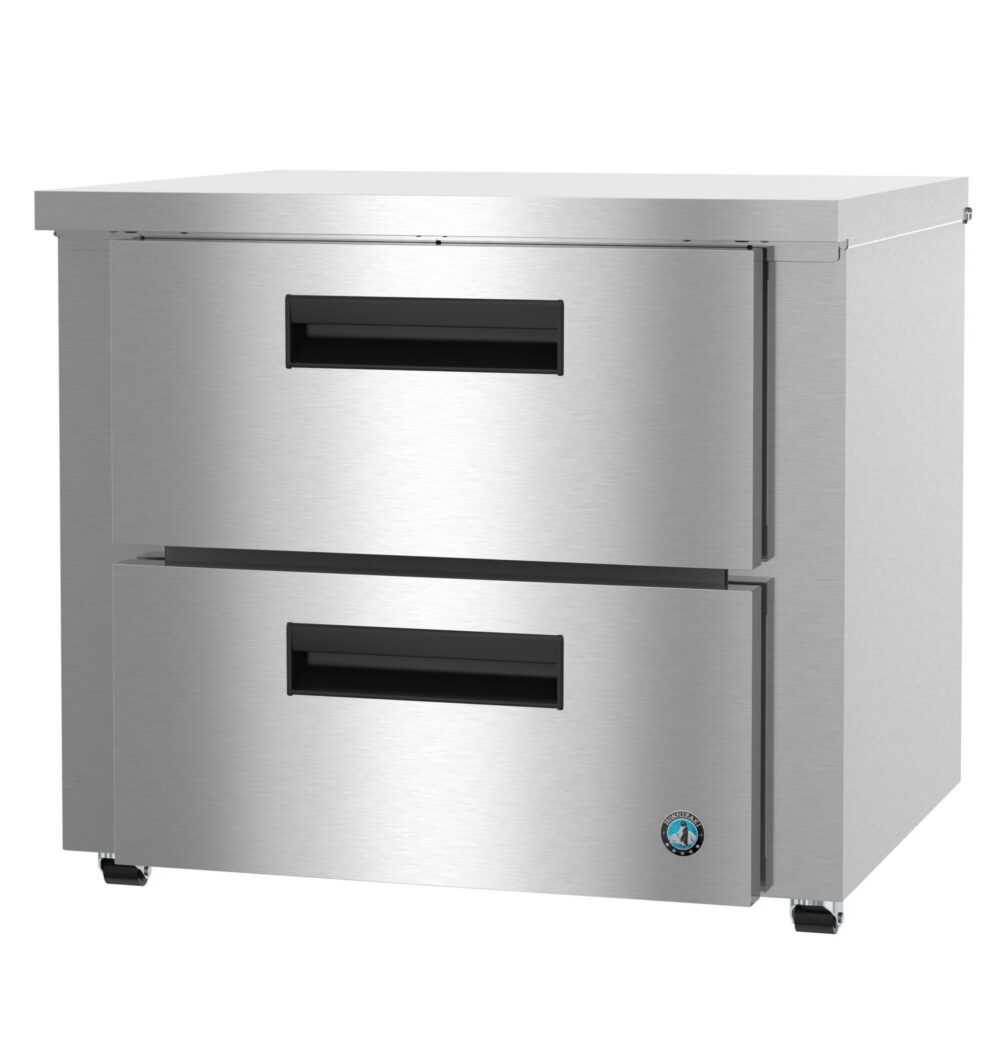

The UR36B-LPD2 Steelheart® Series low profile undercounter two drawer refrigerator provides reliable refrigerated storage in a compact, ADA-compliant design. Engineered to maintain food safe temperatures in 100°F ambient conditions, it delivers consistent performance in busy commercial kitchens. With 8.64 cubic feet of net capacity, its reduced height and front airflow allow flexible installation beneath counters and work surfaces. The UR36B-LPD2 features durable stainless steel construction for long-lasting use and easy cleaning.
- Dimensions: 36″ W x 30″ D x 31.9″ H
- Net capacity of 8.64 cubic feet
- Specifically designed to fit under an ADA-compliant 34” work surface height counter
- Innovative air distribution system distributes air evenly to maintain product temperature
- Engineered to maintain NSF-7 temperatures in 100° F ambient conditions
- Front-breathing air flow design
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Insulated with 2″ CFC-free, foamed in place polyurethane
- (2) stainless steel drawers, fully welded construction and securely fastened in the cabinet
- The drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers
- Drawers have a 150-lb. dynamic load rating
- Drawer capacity: Top: (1) 12″ x 20″ full size pan and (3) 1/6 size pans. Bottom: (1) full size pan (pans by others)
- Extruded aluminum flush mount drawer handles
- Hot gas condensate removal
- Enamel coated evaporator coil for extended life
- Environmentally friendly R290 refrigerant
- (4) 2.25″ stem casters (2 with brakes) are standard
