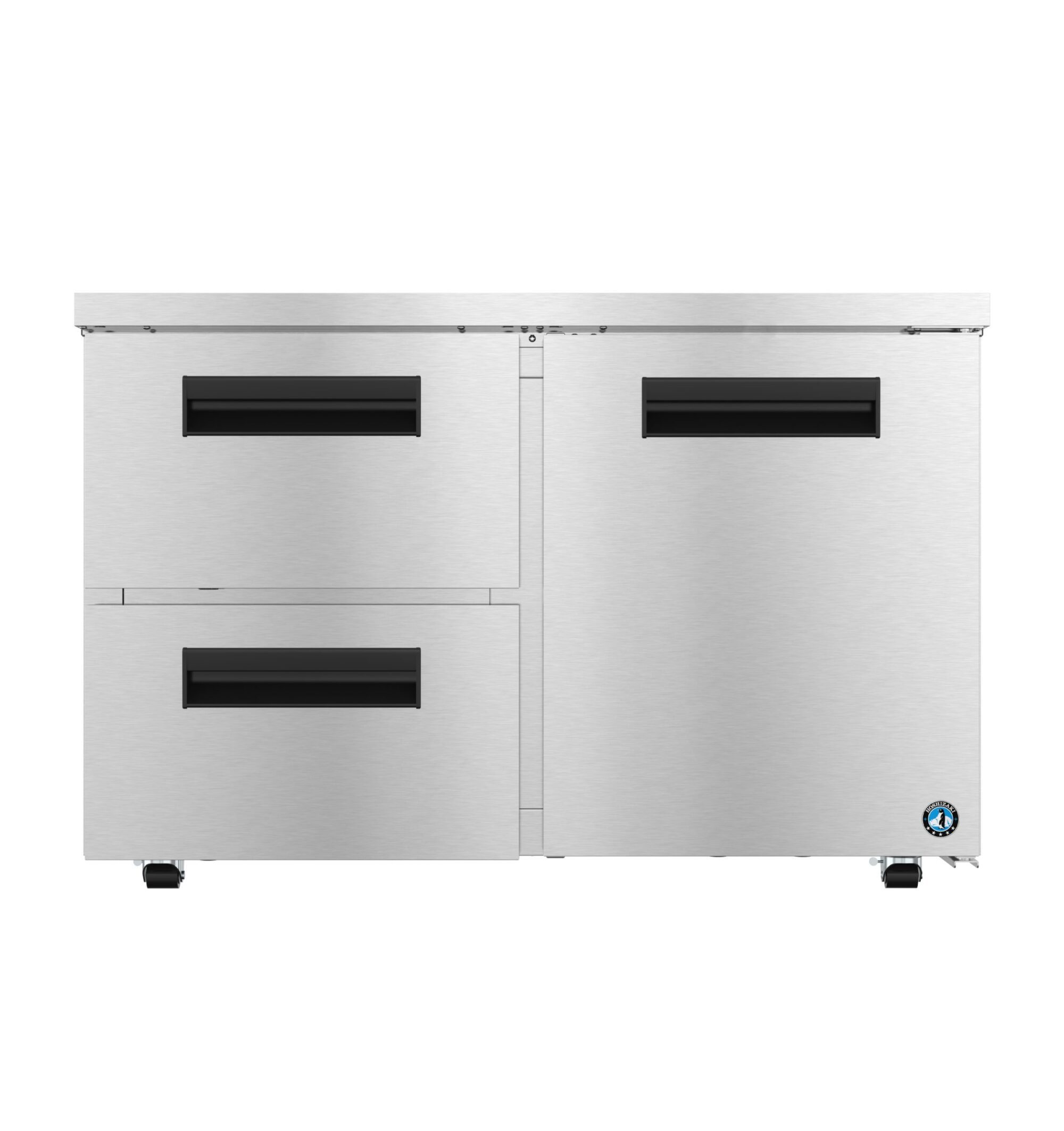

UR48B-LPD2, Low Profile Refrigerator, Two Section Undercounter, Drawer/Door Combo

UR48B-LPD2 Low Profile Refrigerator, Two Section Undercounter, Drawer/Door Combo

48″ W X 30″ D X 31″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.05 kwh/day, Amperage: 3, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R290
Refrigeration Data
Nominal Compres. of 1354 BTU/hr at 1/5 HP, Heat Rejection: 278 BTU/hr
Shipping Weight
282
Storage Specs
Nominal storage capacity: 12 ft3, Interior storage capacity: 12 ft3, Door opening: 19.5″ W x 23″ H, Depth with door fully extended: 51.5″ D, Shelves included: 2
Warranty
Five Years: Labor warranty on entire machine. Seven Years: Parts warranty on Compressor.

Overview and Features

The UR48B-LPD2 Steelheart Series Undercounter two section low profile refrigerator with drawer/door combo is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 12 cubic feet this efficient undercounter low profile refrigerator and front air flow design is perfect for hot/tight kitchens. The UR48B-LPD2 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

The UR48B-LPD2 also includes (1) epoxy coated wire shelves and (2) stainless steel drawers each with (1) divider bar, (4) 2.25″ stem casters (2 with brakes) are standard, plus the drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers. Electrical consumption of 1.05 kWh/day at 3 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 4″ or 6″ casters, Overshelves (single or double), Stainless steel back, Drawer divider bars (vertical or horizontal), Foot pedal kit (left or right hinge), See Spec Sheet for additional options. The unit is ETL Safety (US & C) Listed, ETL Sanitation, ADA Compliant, Georgia Made Certified and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty (visit hoshizakiamerica.com/support/warranty for eligibility information).

  • Dimensions: 48″ W x 30″ D x 31.9″ H
  • Net capacity of 12 cubic feet
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • The drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers
  • Extruded aluminum flush mount drawer/door handles
  • (1) stainless steel door and (2) stainless steel drawers
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • (1) epoxy coated wire shelves and (2) stainless steel drawers each with (1) divider bar
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R290 refrigerant
  • (4) 2.25″ Stem Casters (2 with brakes) are standard
  • At only 31.9″ tall, Low Profile Refrigerator is ADA compliant
  • Optional kits: 4″ or 6″ casters, Overshelves (single or double), Stainless steel back, Drawer divider bars (vertical or horizontal), Foot pedal kit (left or right hinge), See Spec Sheet for additional options
  • Nominal Compres. of 1354 BTU/hr at 1/5 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 52.5″ L x 34″ D x 35.5″ H at 282 lbs
  • Six Years parts warranty, Five Years labor warranty, Seven Years compressor warranty (Visit hoshizakiamerica.com/support/warranty for eligibility information)
