Refrigeration / Steelheart® Reach-Ins / Refrigerators / R2A-FSP, Tamper-Proof Refrigerator, Two Section Upright, Full Stainless Doors

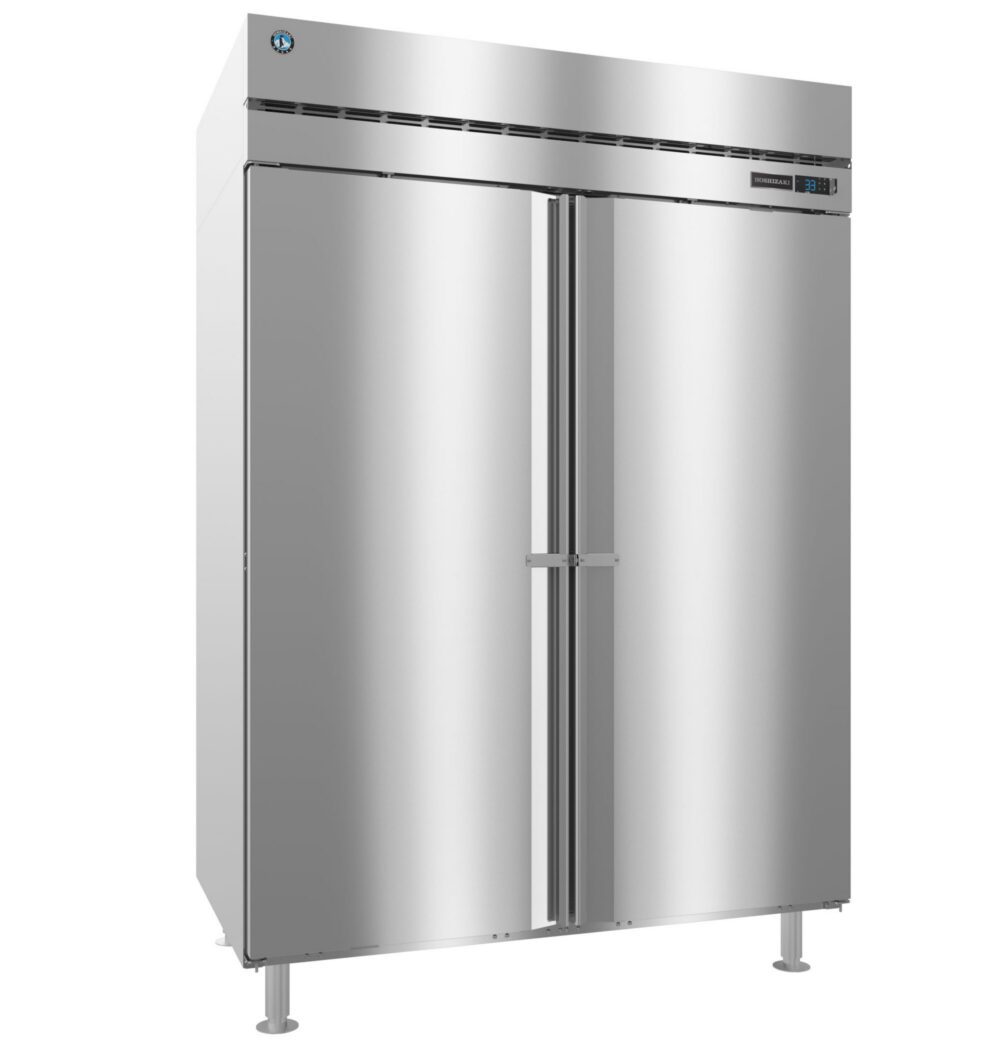

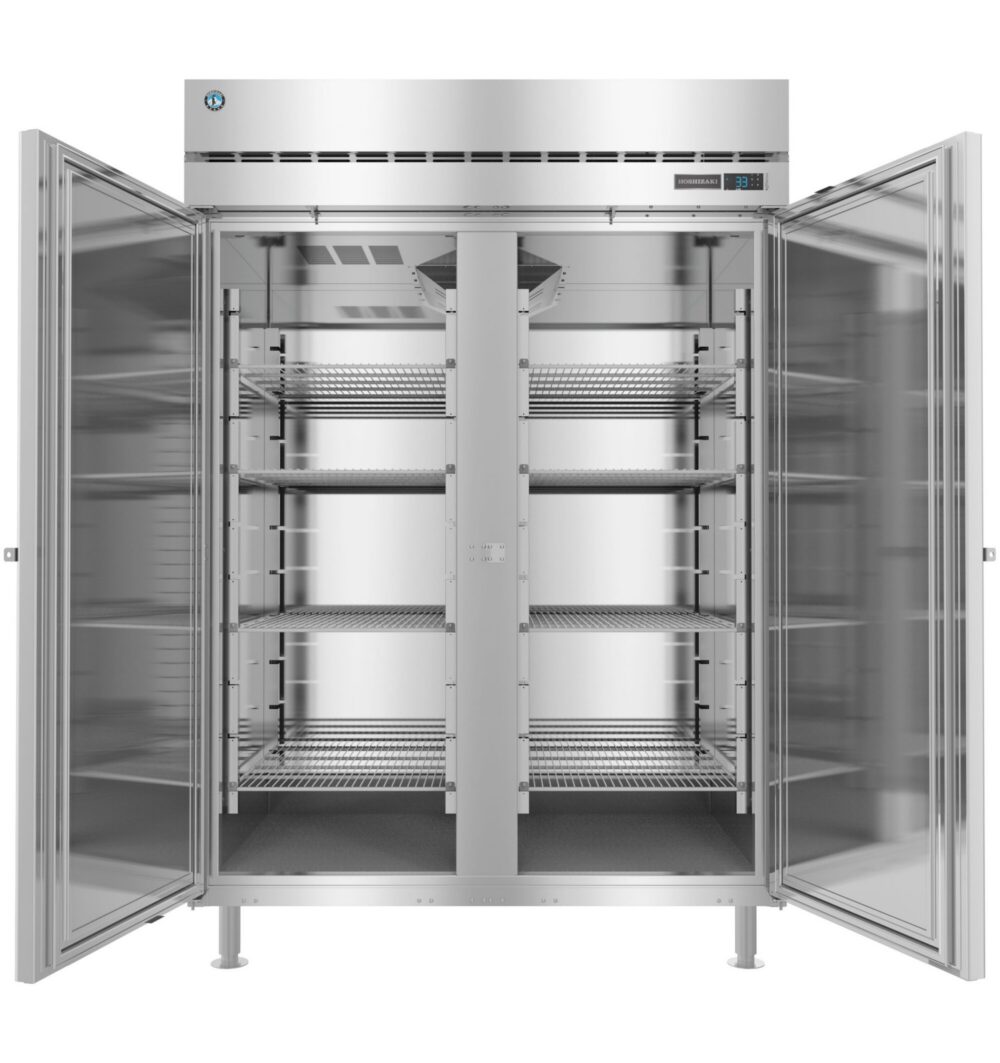

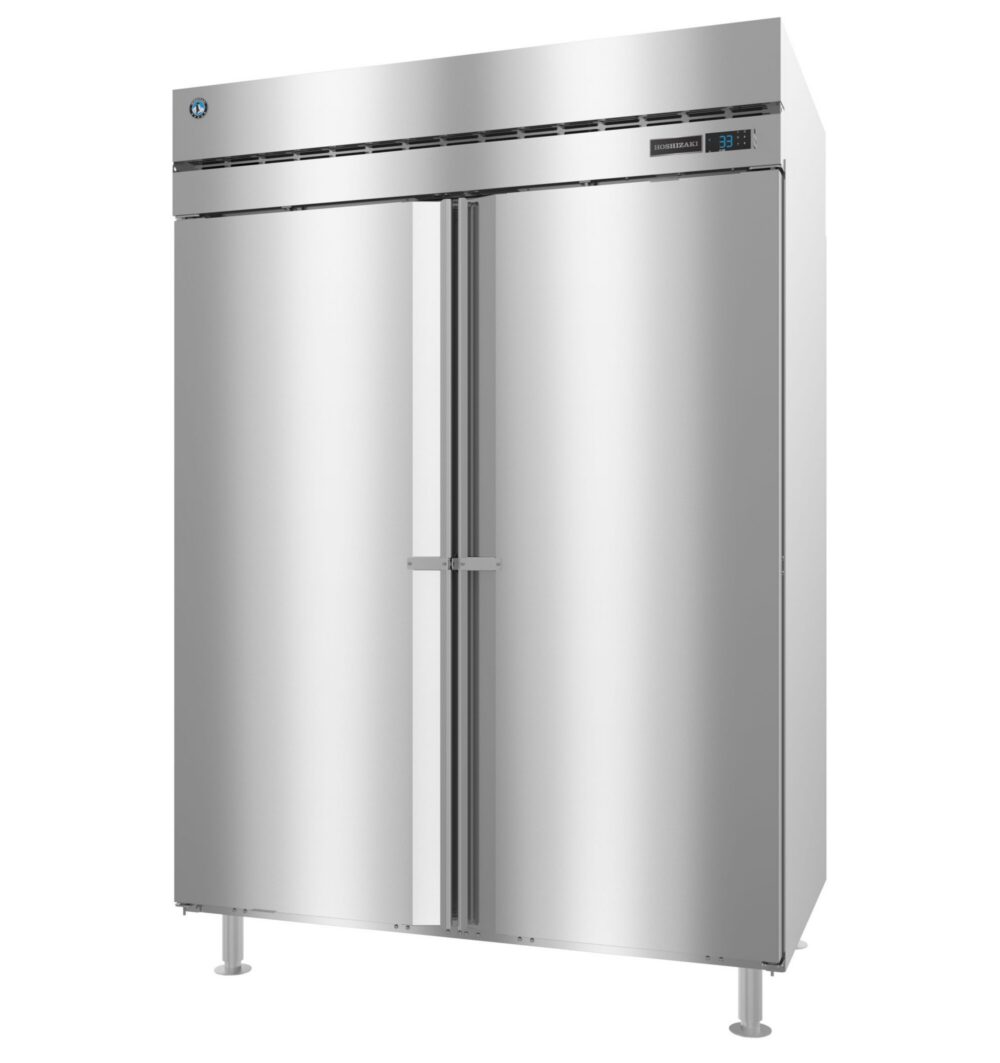

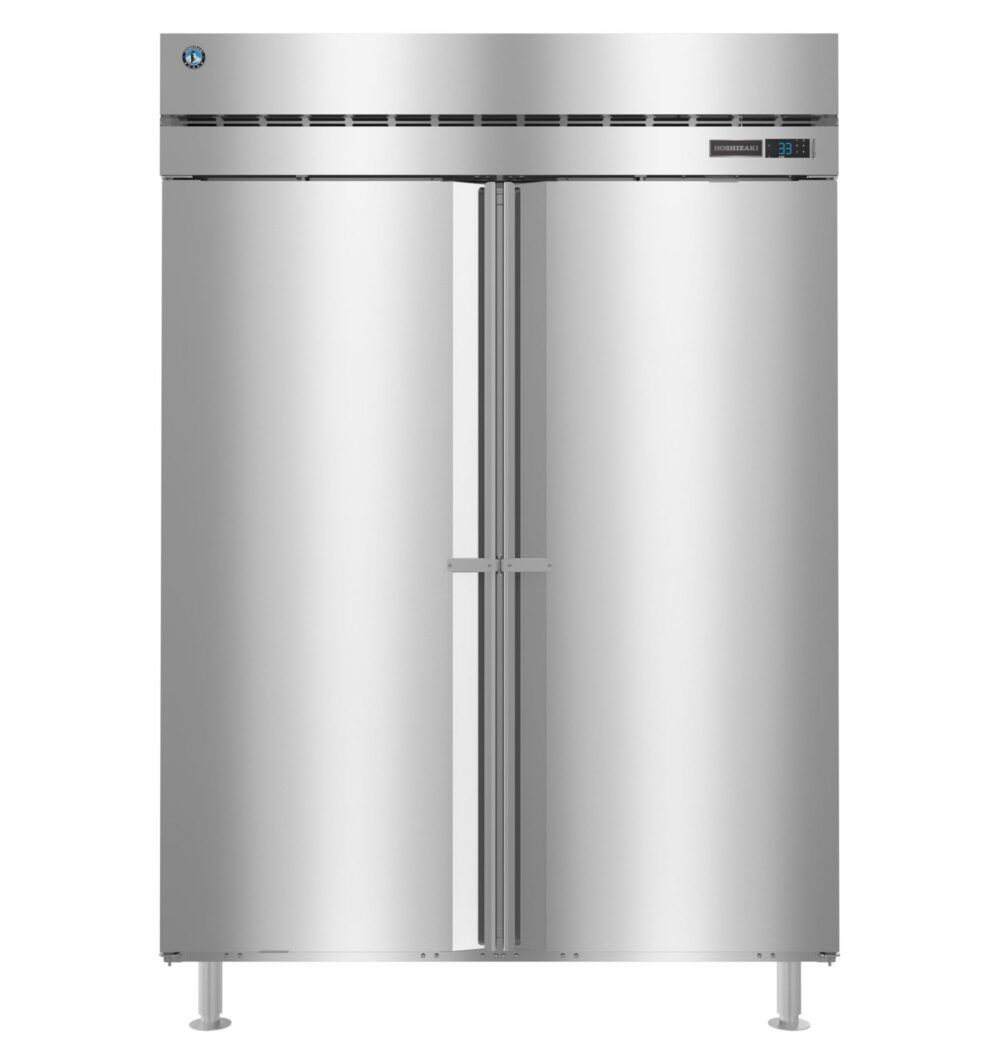

A commercial stainless steel double-door refrigerator with a digital temperature display on the upper right side.Stainless steel commercial refrigerator with two doors, digital display, and four legs, set against a plain white background.Stainless steel commercial double-door refrigerator with digital display, standing on four legs against a plain background.A large, industrial stainless steel refrigerator with both doors open, showing multiple empty wire shelves inside.

R2A-FSP Tamper-Proof Refrigerator, Two Section Upright, Full Stainless Doors

55″ W X 34.25″ D X 81.5″ H
Volume
50.37
Electrical
115v/60/1
Sections
2
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 3.47 kwh/day, Amperage: 8, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 31 – 52°F, Refrigerant: R290 (4.9 oz.)
Refrigeration Data
Nominal Compres. of 1545 BTU/hr at 1/2 HP, Heat Rejection: 513 BTU/hr
Shipping Weight
562 lbs.
Storage Specs
Interior storage capacity: 50.37 ft3, Door opening: 21.75″ W (per door) x 59.25″ H, Depth with door fully extended: 59.25″ D, Shelves included: 8
Warranty
7 Years: Labor, 7 Years: Parts, 7 Years: Compressor

Overview and Features

The R2A-FSP Steelheart® Series two-section tamper-proof reach-in refrigerator is designed for correctional facilities and other secure foodservice environments where durability and security are essential. A solid-state digital control system with temperature alarms and an easy-to-read LED display (°F or °C) helps maintain consistent temperatures. With 50.37 cubic feet of net capacity and a front-breathing airflow design, this refrigerator provides reliable performance while allowing flexible placement in a variety of kitchen layouts. The doors, controller, and all exterior panels are padlockable to help restrict unauthorized access, while seismic legs allow the unit to be securely anchored to the floor. Designed to meet ACFSA guidelines for correctional foodservice equipment, the R2A-FSP combines enhanced security features with durable stainless steel construction that withstands daily use and simplifies cleaning.

  • Dimensions: 55″ W x 34.25″ D x 81.5″ H
  • Net capacity of 50.37 cubic feet
  • Meets ACFSA guidelines for correctional foodservice equipment
  • Doors, controller, and all exterior panels are padlockable
  • Unique ducted airflow ensures even cooling throughout entire cabinet
  • Thermostatic Expansion Valve (TXV) system quickly and effectively regulates refrigerant flow to control temperatures
  • Solid state digital controller with temperature alarms and LED display (°F or °C)
  • Cabinet walls are insulated with 2-3/8” of CFC-free, foamed in place polyurethane
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • Field-reversible, self-closing doors with 90° stay-open feature
  • Extruded aluminum flush mount door handles
  • Energy-efficient interior LED light
  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
  • Energy-efficient automatic hot gas condensate evaporator
  • Top-mount refrigeration comes standard with a condenser filter
  • Environmentally friendly R290 hydrocarbon refrigerant
  • (4) 6″ stainless seismic legs are standard
  • Includes (8) epoxy-coated wire shelves adjustable in 1″ increments on stainless steel supports
