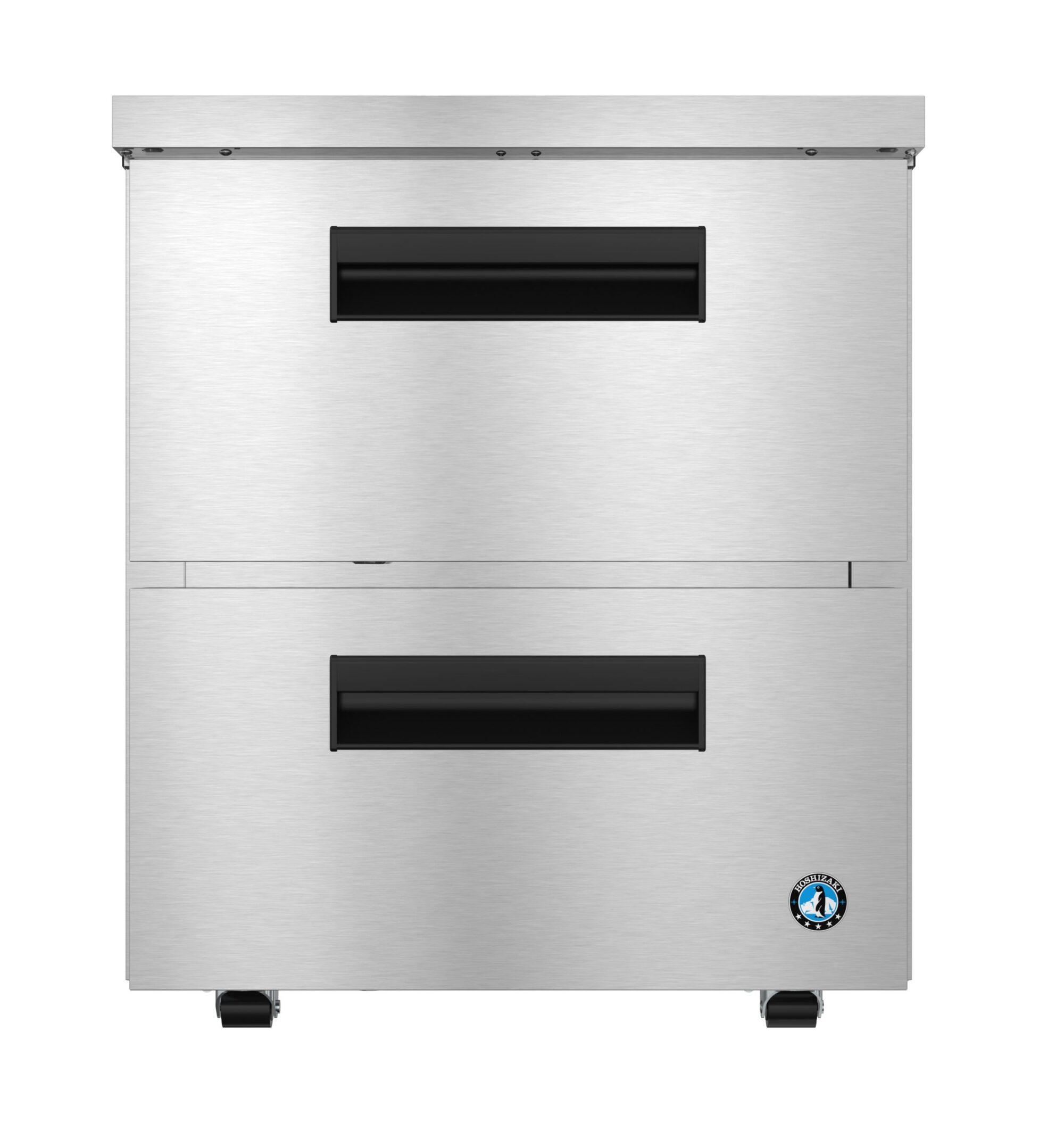

UF27B-LPD2, Low Profile Freezer, Single Section Undercounter, Stainless Drawers

UF27B-LPD2 Low Profile Freezer, Single Section Undercounter, Stainless Drawers

27″ W X 30″ D X 31″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 2.4 kwh/day, Amperage: 3, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -12 – +11°F, Refrigerant: R290
Refrigeration Data
Nominal Compres. of 1354 BTU/hr at 1/5 HP, Heat Rejection: 489 BTU/hr
Shipping Weight
207
Storage Specs
Nominal storage capacity: 6.21 ft3, Interior storage capacity: 6.21 ft3, Drawer opening: 22.75″ W x 23″ H, Depth with drawer fully extended: 51″ D, Drawers included: 2
Warranty
Five Years: Labor warranty on entire machine. Seven Years: Parts warranty on Compressor.

Overview and Features

The UF27B-LPD2 Steelheart Series Undercounter single section low profile freezer with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 6.21 cubic feet this efficient undercounter low profile freezer and front air flow design is perfect for hot/tight kitchens. The UF27B-LPD2 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

The UF27B-LPD2 also includes Drawers capacity: Top: (1) 12″ x 20″ full size pan and (2) 1/4 size pans. Bottom: (1) full size pan (pans by others), (4) 2.25″ stem casters (2 with brakes) are standard, plus the drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers. Electrical consumption of 2.4 kWh/day at 3 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 4″ or 6″ casters, Overshelves (single or double), Stainless steel back, Drawer divider bars (vertical or horizontal), Drawer liner (upper or lower). The unit is ETL Safety (US & C) Listed, ETL Sanitation, ADA Compliant, Georgia Made Certified and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty (visit hoshizakiamerica.com/support/warranty for eligibility information).

  • Dimensions: 27″ W x 30″ D x 31.9″ H
  • Net capacity of 6.21 cubic feet
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • The drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers
  • Extruded aluminum flush mount drawer handles
  • (2) stainless steel drawers, fully welded construction and securely fastened in the cabinet
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • Drawers capacity: Top: (1) 12″ x 20″ full size pan and (2) 1/4 size pans. Bottom: (1) full size pan (pans by others)
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R290 refrigerant
  • (4) 2.25″ Stem Casters (2 with brakes) are standard
  • At only 31.9″ tall, Low Profile Freezer is ADA compliant
  • Optional kits: 4″ or 6″ casters, Overshelves (single or double), Stainless steel back, Drawer divider bars (vertical or horizontal), Drawer liner (upper or lower)
  • Nominal Compres. of 1354 BTU/hr at 1/5 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 34″ L x 31.5″ D x 35.5″ H at 207 lbs
  • Six Years parts warranty, Five Years labor warranty, Seven Years compressor warranty (Visit hoshizakiamerica.com/support/warranty for eligibility information)
