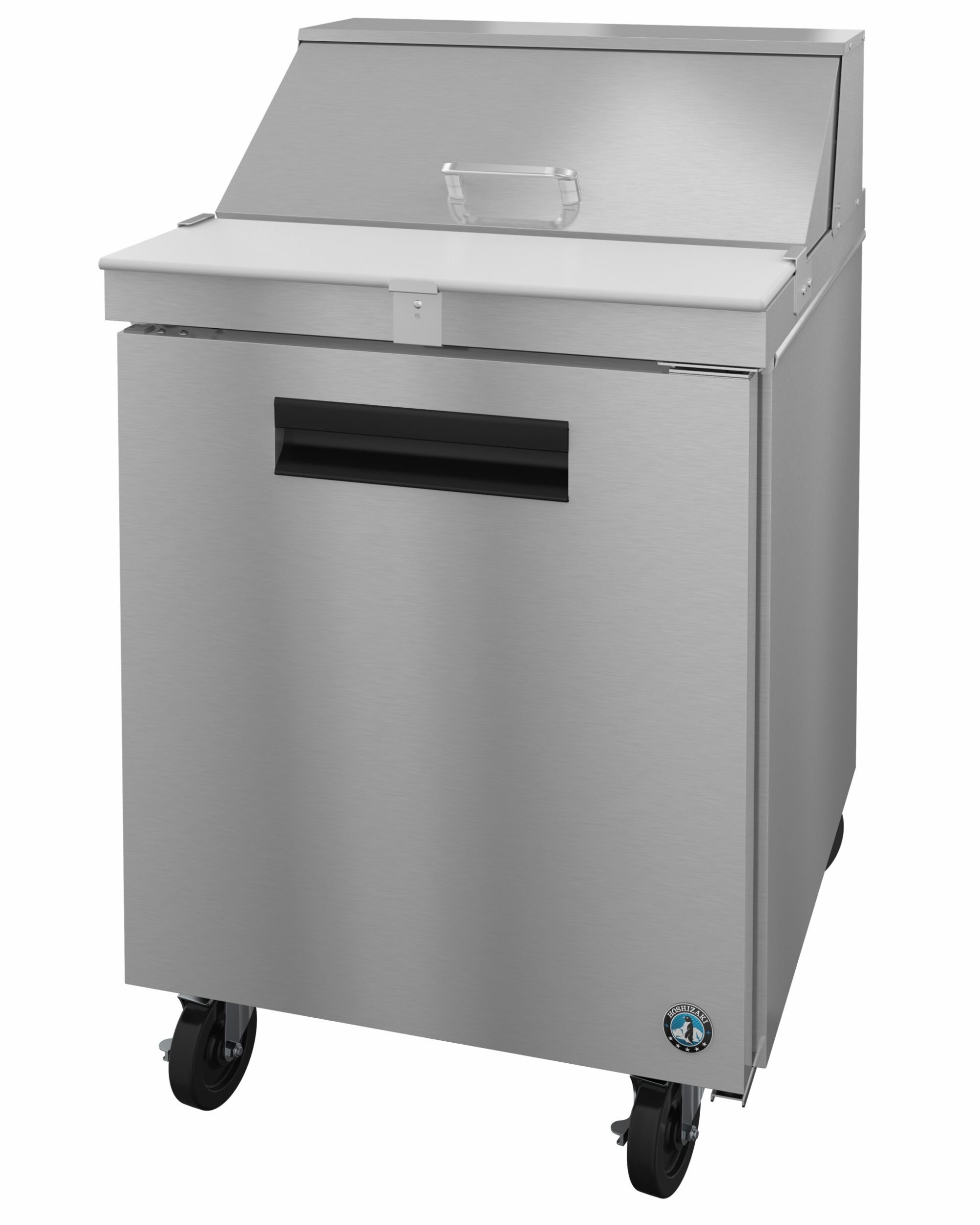

SR27A-8 Refrigerator, Single Section Sandwich Prep Table, Stainless Door

27″ W X 30″ D X 44″ H
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.9 kwh/day, Amperage: 2.4, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R290
Refrigeration Data
Nominal Compres. of 1354 BTU/hr at 1/5 HP, Heat Rejection: 270 BTU/hr
Shipping Weight
210
Storage Specs
Nominal storage capacity: 7.21 ft3, Interior storage capacity: 6.22 ft3, Door opening: 27″ W x 23″ H, Depth with door fully extended: 52.5″ D, Shelves included: 1
Warranty
Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The SR27A-8 Steelheart Series Sandwich single section refrigerator with a stainless door is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 6.22 cubic feet this efficient sandwich refrigerator and front air flow design is perfect for hot/tight kitchens. The SR27A-8 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

The SR27A-8 also includes (1) epoxy coated wire shelf adjustable in 1/2″ increments on anodized aluminum supports, (4) 6″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 1.9 kWh/day at 2.4 Amps, 10 ft long cord with a 5 – 15P NEMA plug. 27″ x 10″ x 0.5″ thick white polyethylene cutting board is standard. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a five years compressor warranty / three years parts and labor warranty.

  • Discontinued – Replaced by SR27B-8
  • Dimensions: 27″ W x 30″ D x 44.25″ H
  • Net capacity of 6.22 cubic feet
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
  • Extruded aluminum flush mount door handle
  • (1) stainless steel door with ABS interior liner
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • (1) epoxy coated wire shelf adjustable in 1/2″ increments on anodized aluminum supports
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R290 refrigerant
  • (4) 6″ Stem Casters (2 with brakes) are standard
  • Includes (8) polycarbonate plastic 1/6th size pans, 4″ deep (can accept 6″ deep pans)
  • 27″ x 10″ x 0.5″ thick white polyethylene cutting board is standard
  • Nominal Compres. of 1354 BTU/hr at 1/5 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 32″ L x 28.75″ D x 46″ H at 210 lbs
  • Automatic time-initiated heated defrost
  • Five Years compressor warranty, Three Years parts and labor warranty
