PTR1SSE-HGHG, Refrigerator, Single Section Pass Thru Upright, Half Glass Doors with Lock / PTR1SSE-HGHG, Refrigerator, Single Section Pass Thru Upright, Half Glass Doors with Lock

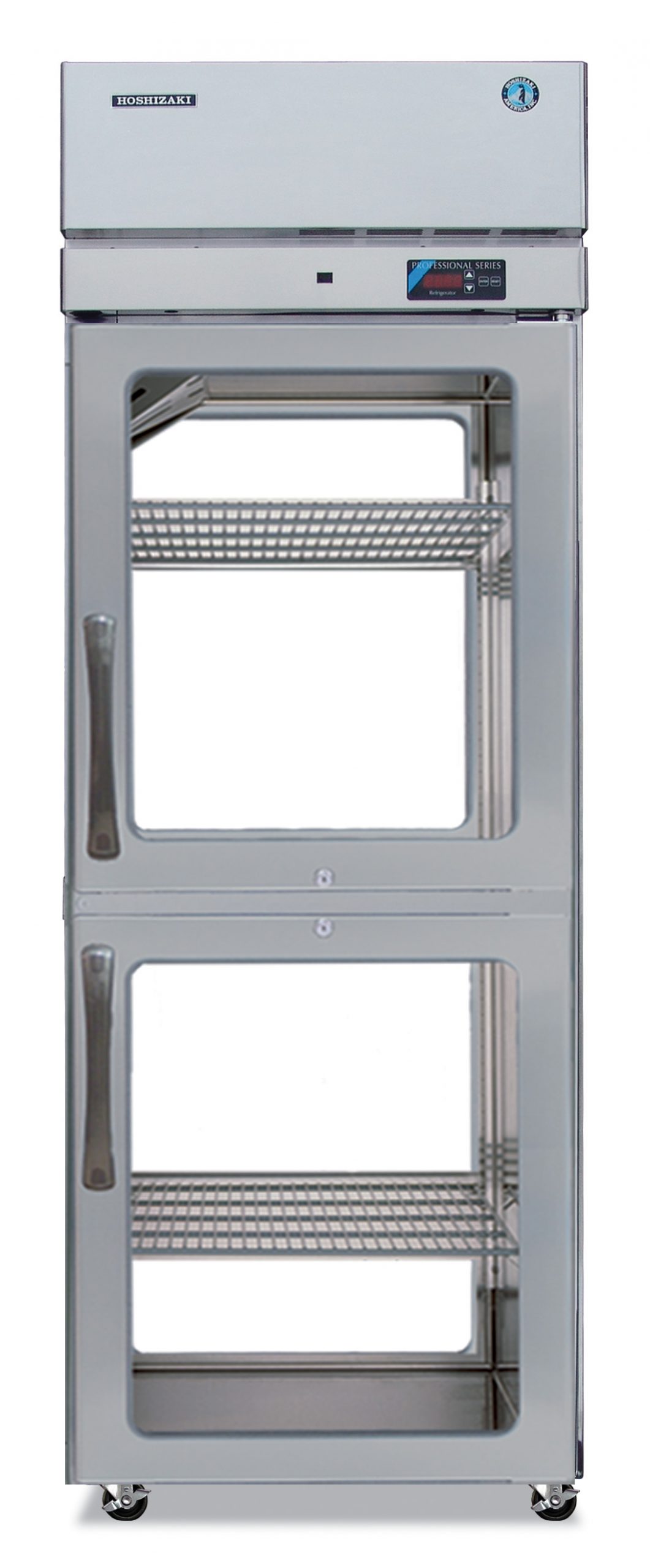

PTR1SSE-HGHG Refrigerator, Single Section Pass Thru Upright, Half Glass Doors with Lock

27″ W X 35″ D X 82″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 4.5 kwh/day, Amperage: 4.3, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 36 – 50°F, , Refrigerant: R-134A
Refrigeration Data
Nominal Compres. of 1481 BTU/hr at 2/5 HP, Heat Rejection: 1025 BTU/hr
Shipping Weight
475
Storage Specs
Nominal Storage Capacity: 23.8ft3, Interior Storage Capacity: 23.8ft3, Door Opening: 21.75″ W x 59.25″ H , Depth with Door fully extended: 85.9″ D, Shelves Included: 3
Warranty
Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The PTR1SSE-HGHG Professional Series Pass Thru Single Section Refrigerator with a Half Glass Doors and Rugged, die cast aluminum door handles is perfect for any professional. The reliable 2/5 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cool air, ensuring a steady constant temperature. The PTR1SSE-HGHG frame is composed of stainless steel, a material that resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The PTR1SSE-HGHG Includes 3 epoxy coated wire coated shelves, and comes Standard with (4) 4″ HD Casters (2 with brakes), it features Spring assisted self closing lockable doors, with stay open feature (field reversible with optional kit). The unit is NSF and includes a Five Years compressor warranty / Three Years parts and labor warranty.

  • Dimensions: 27.5″ W x 35.9″ D x 82.5″ H
  • Net capacity of 23.8 cubic feet
  • Nominal Compres. of 1481 BTU/hr at 2/5 HP
  • Electrical consumption of 4.5 kWh/day at 4.3 Amps, 10 ft long cord with a 5 – 15P NEMA plug
  • Exclusive “stepped” door design to protect recessed door gasket
  • Spring assisted self closing lockable doors, with stay open feature (field reversible with optional kit)
  • Rugged, die cast aluminum door handles
  • Innovative Variable Speed Compressor with “adaptive control” technology
  • Energy efficient thermostatic expansion valve self contained refrigeration system
  • Glass doors are energy efficient Triple Pane, Argon filled with Low-E non reflective coating and locks
  • Stainless steel interior and exterior
  • EverCheck digital control system with audio and visual alarms
  • R-134a refrigerant
  • Dual door frame heaters with energy saving on/off switch
  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
  • Includes 3 epoxy coated wire coated shelves
  • Epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports
  • Standard with (4) 4″ HD Casters (2 with brakes)
  • Unique “ducted” air distribution system
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 39″ L x 32″ D x 85″ H at 475 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Five Years compressor warranty, Three Years parts and labor warranty
