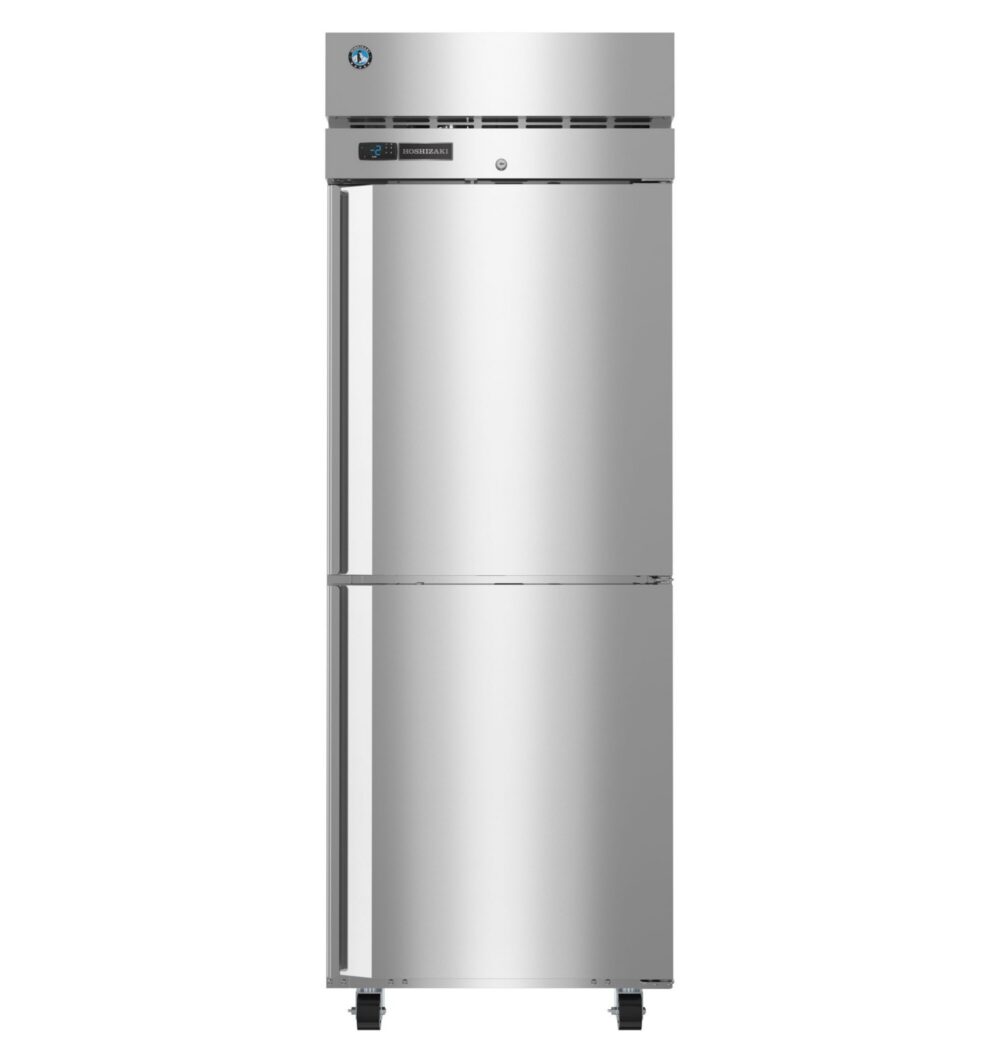

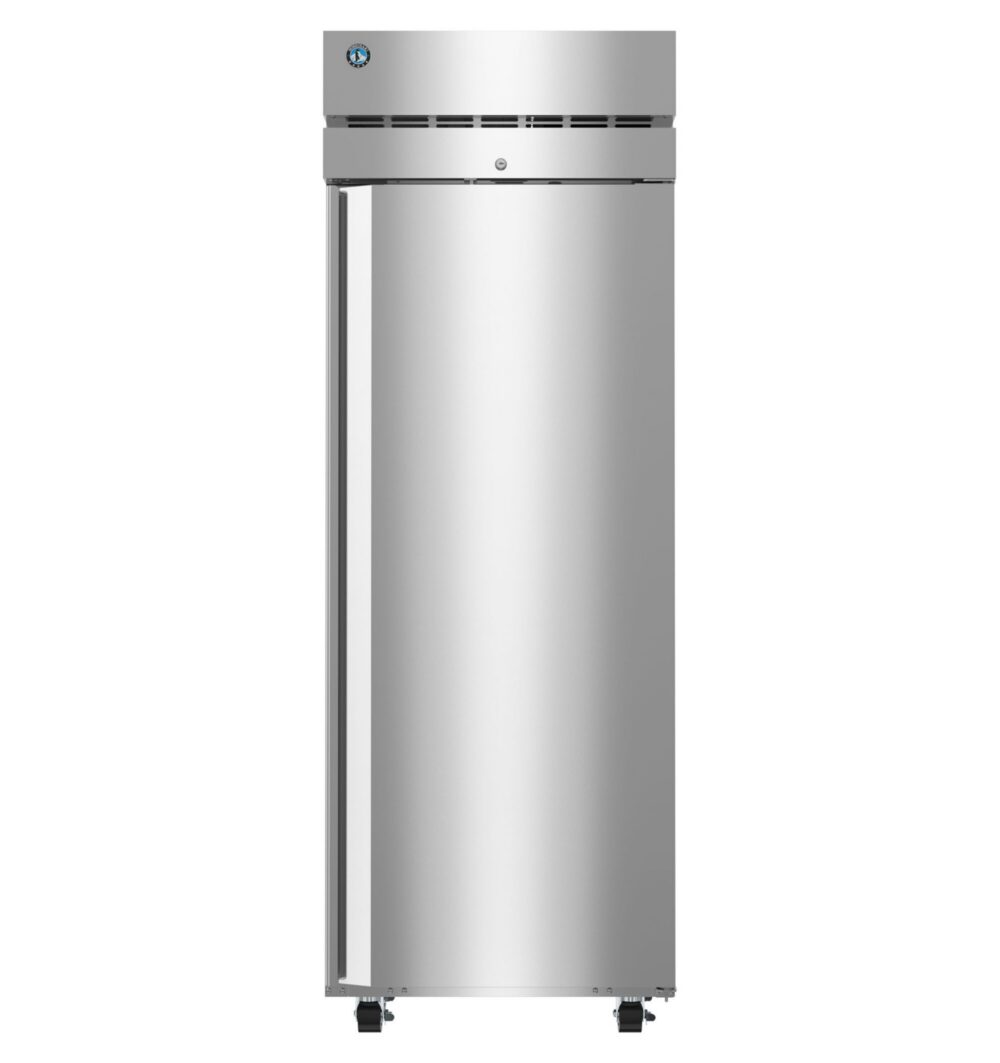

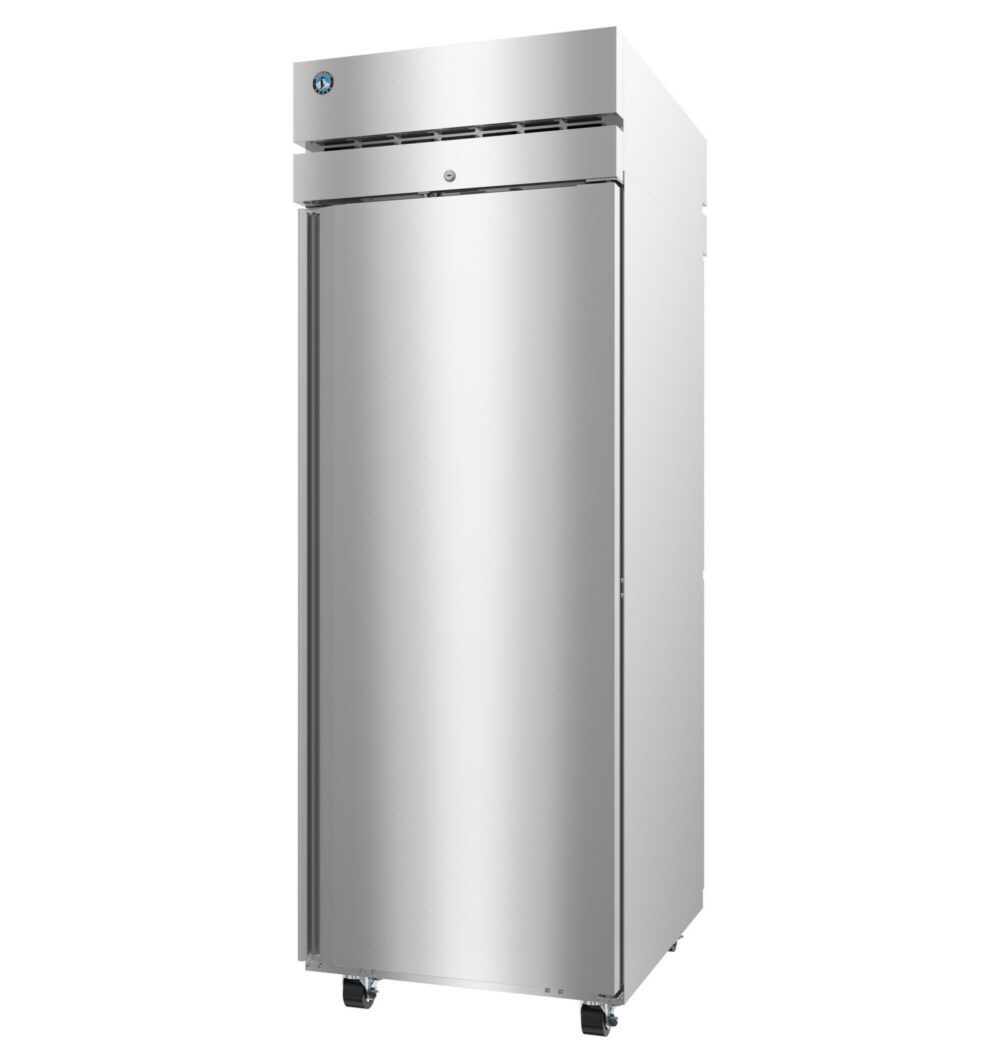

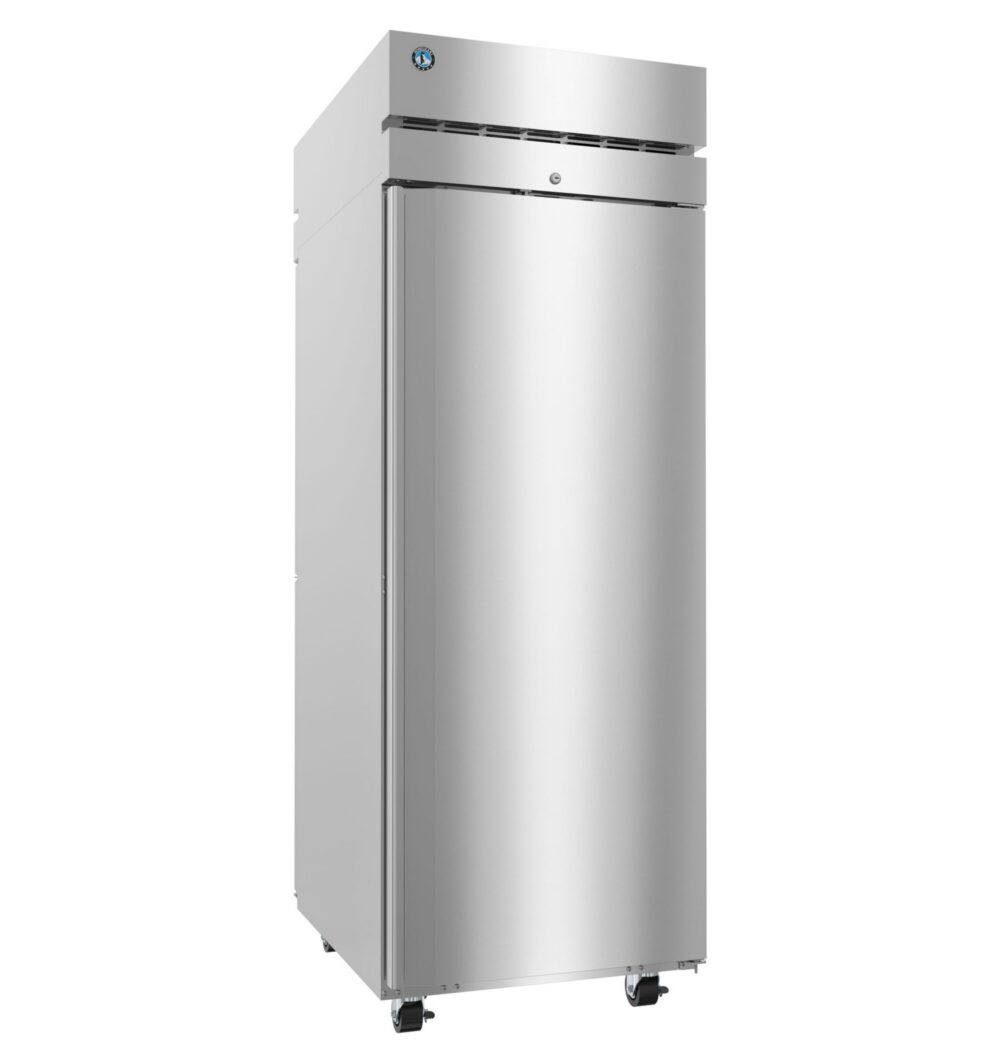

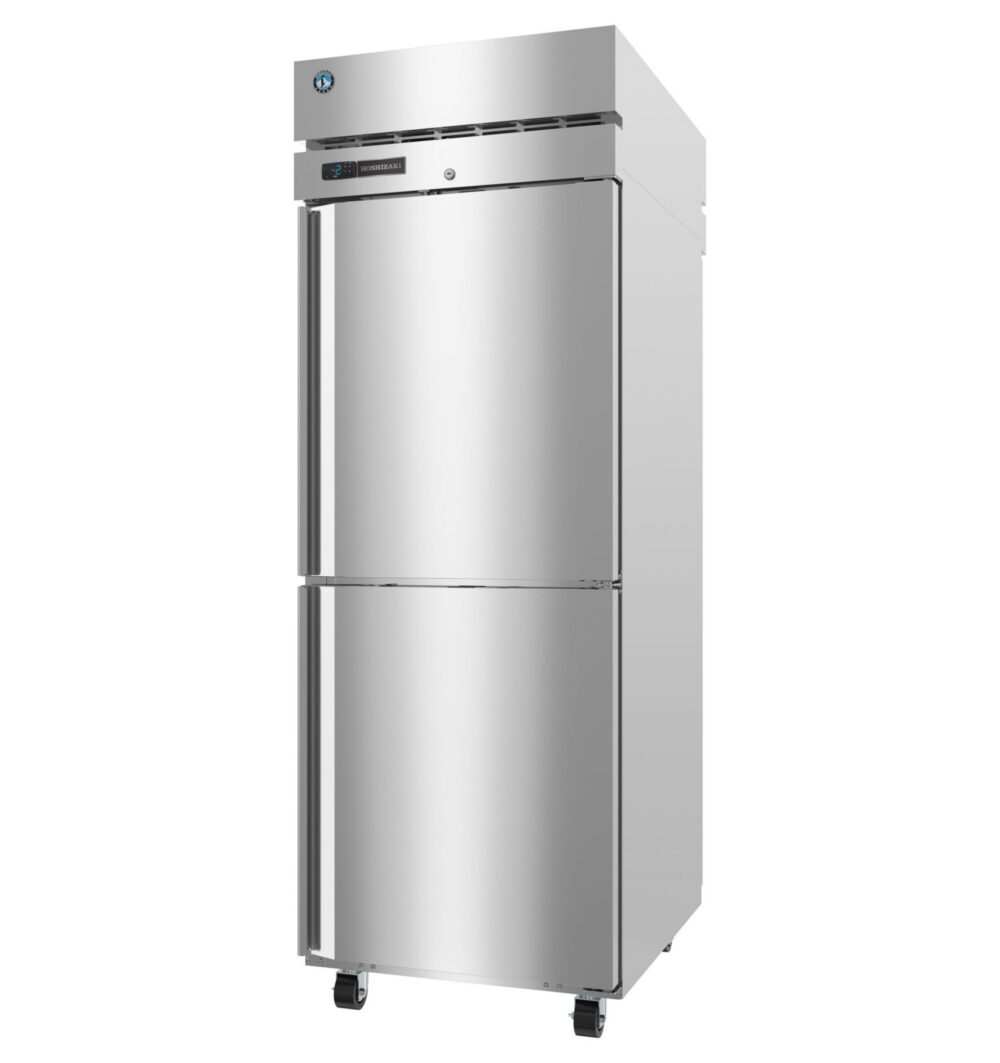

PTF1A-HS-FS Freezer, Single Section Pass Thru Upright, Half and Full Stainless Doors with Lock
27.5″ W X 35.75″ D X 79.5″ H
Volume
24.2
Electrical
115v/60/1
Sections
1
Parts and Service
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 6.51 kwh/day, Amperage: 9, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 80°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – 10°F, Refrigerant: R290 (4.1 oz.)
Refrigeration Data
Nominal Compres. of 1425 BTU/hr at 3/4 HP, Heat Rejection: 1314 BTU/hr
Shipping Weight
357 lbs.
Storage Specs
Interior storage capacity: 24.2 ft3, Door opening: 21.75″ W x 27.75″ H (front) and 21.75″ W x 59.25″ H (back), Depth with front and back doors fully extended: 87.25″ D, Shelves included: 3
Warranty
7 Years: Labor, 7 Years: Parts, 7 Years: Compressor
Overview and Features
The PTF1A-HS-FS Steelheart® Series single-section pass-thru freezer combines dependable temperature performance with convenient dual-sided access to support efficient kitchen workflows. A solid-state digital control system with temperature alarms and an easy-to-read LED display (°F or °C) helps maintain consistent temperatures. Durable stainless steel construction withstands daily use and simplifies cleaning, while the half-door/full-door configuration provides flexible access to frozen products from either side.
- Dimensions: 27.5″ W x 35.75″ D x 79.5″ H
- Interior capacity of 24.2 cubic feet
- Unique ducted airflow ensures even cooling throughout entire cabinet
- Solid state digital controller with temperature alarms and LED display (°F or °C)
- Cabinet walls are insulated with 2-3/8” of CFC-free, foamed in place polyurethane
- Stainless steel exterior and interior
- Field-reversible, self-closing, lockable doors with 90° stay-open feature
- Extruded aluminum flush mount door handles
- Energy-efficient interior LED light
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Energy-efficient automatic hot gas condensate evaporator
- Top-mount refrigeration comes standard with a condenser filter
- Thermostatic Expansion Valve (TXV) system quickly and effectively regulates refrigerant flow to control temperatures
- Environmentally friendly R290 hydrocarbon refrigerant
- (4) 4″ Stem Casters (2 with brakes) are standard

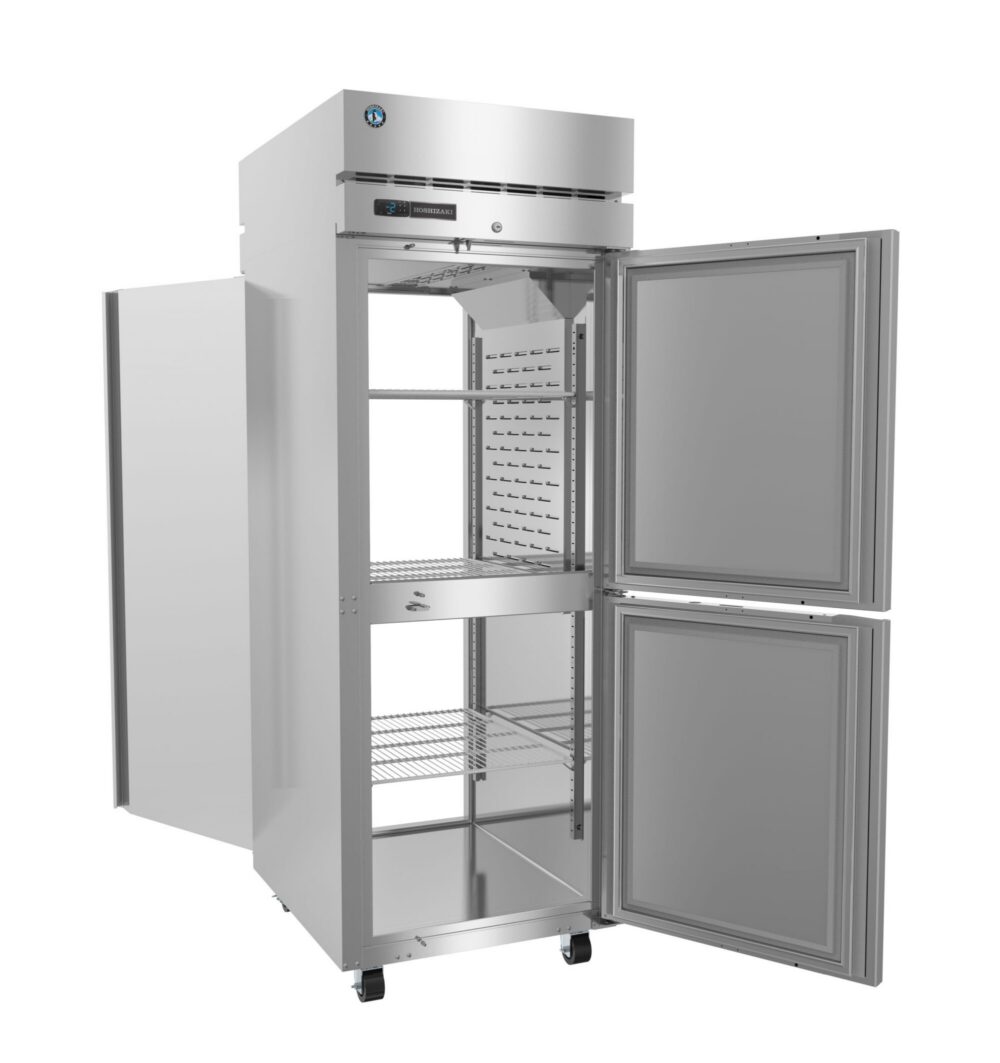

- Includes (3) epoxy-coated wire shelves adjustable in 1″ increments on stainless steel supports
