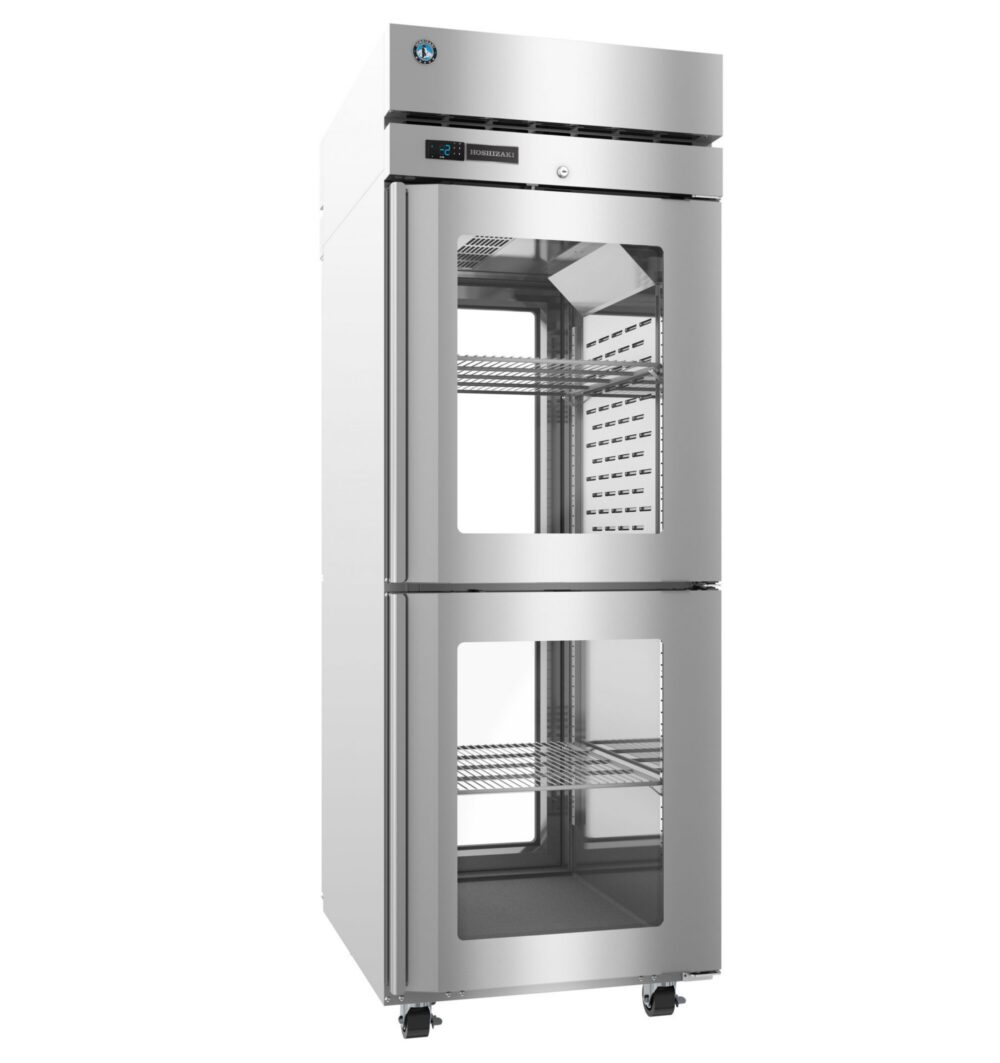

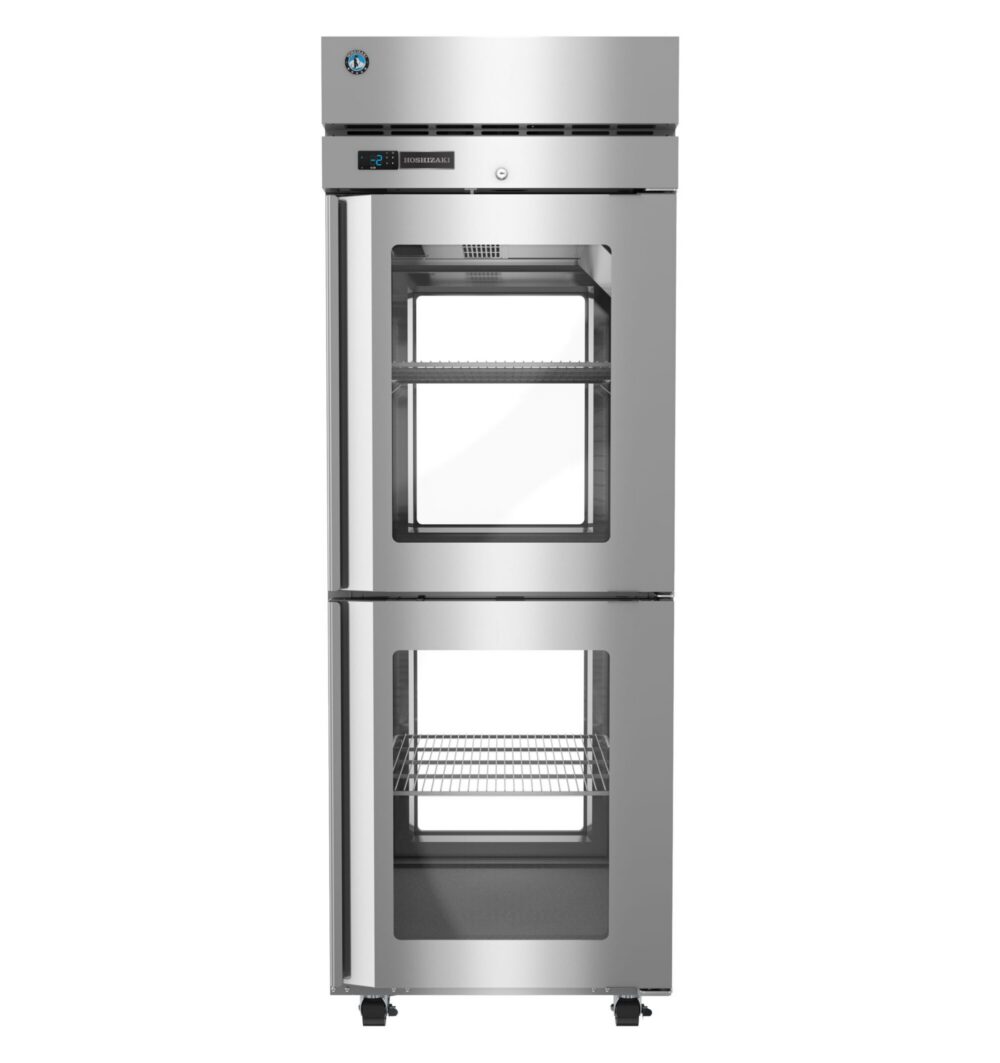

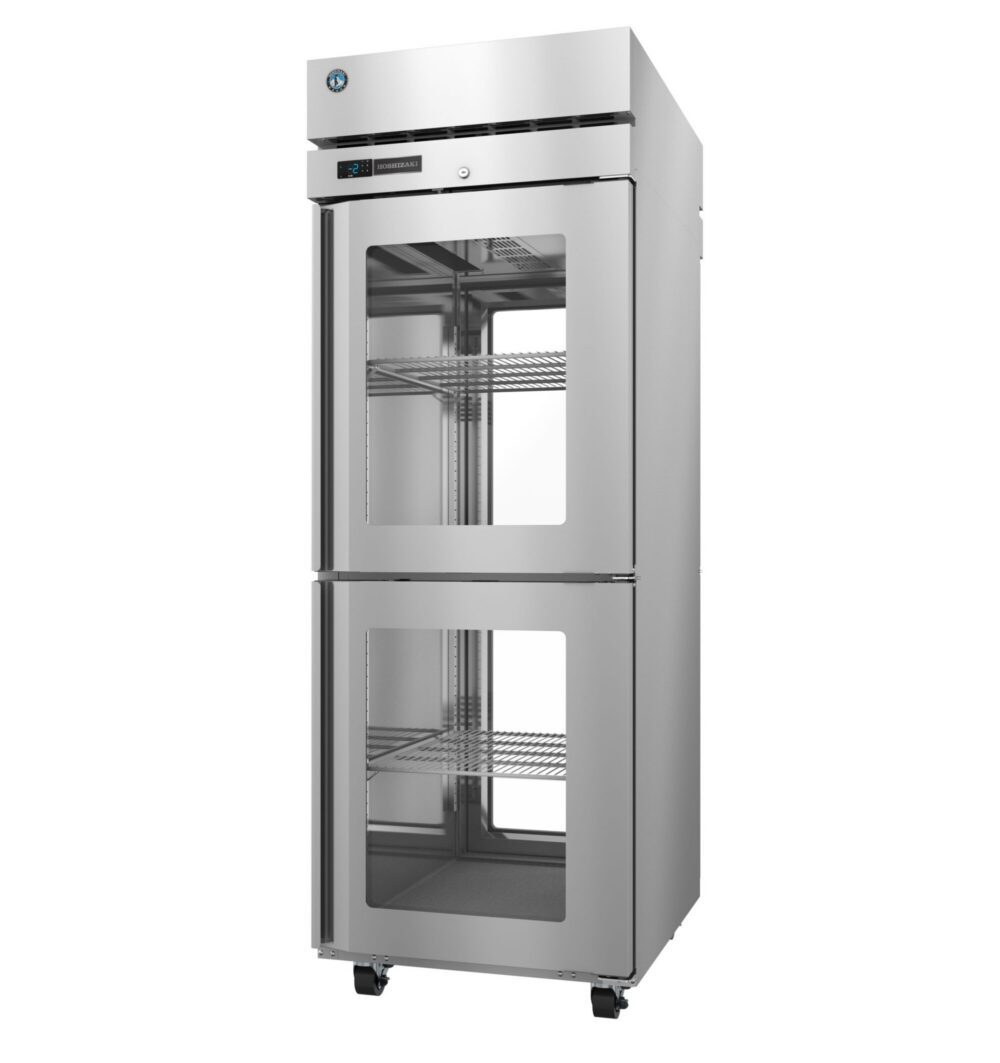

PTF1A-HGE-HGE Freezer, Single Section Pass Thru Upright, Half Glass Doors with Lock
27.5″ W X 35.75″ D X 79.5″ H
Volume
25.8
Electrical
115v/60/1
Sections
1
Parts and Service
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 9.7 kwh/day, Amperage: 8.5, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 80°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – 10°F, Refrigerant: R290 (4.1 oz.)
Refrigeration Data
Nominal Compres. of 1425 BTU/hr at 3/4 HP, Heat Rejection: 1518 BTU/hr
Shipping Weight
367 lbs.
Storage Specs
Interior storage capacity: 25.8 ft3, Door opening: 21.75″ W x 27.75″ H (per door), Depth with front and back doors fully extended: 87.25″ D, Shelves included: 3
Warranty
7 Years: Labor, 7 Years: Parts, 7 Years: Compressor
Overview and Features
The PTF1A-HGE-HGE Steelheart® Series single-section pass-thru freezer combines dependable temperature performance with convenient dual-sided access to support efficient kitchen workflows. A solid-state digital control system with temperature alarms and an easy-to-read LED display (°F or °C) helps maintain consistent temperatures. Durable stainless steel construction withstands daily use and simplifies cleaning, while the half glass door configuration provides flexible access and visibility to frozen products from either side.
- Dimensions: 27.5″ W x 35.75″ D x 79.5″ H
- Interior capacity of 25.8 cubic feet
- Unique ducted airflow ensures even cooling throughout entire cabinet
- Solid state digital controller with temperature alarms and LED display (°F or °C)
- Cabinet walls are insulated with 2-3/8” of CFC-free, foamed in place polyurethane
- Stainless steel exterior and interior
- Field-reversible, self-closing, lockable multi-pane argon-filled glass doors with 90° stay-open feature
- Extruded aluminum flush mount door handles
- Energy-efficient interior LED light
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Energy-efficient automatic hot gas condensate evaporator
- Top-mount refrigeration comes standard with a condenser filter
- Thermostatic Expansion Valve (TXV) system quickly and effectively regulates refrigerant flow to control temperatures
- Environmentally friendly R290 hydrocarbon refrigerant
- (4) 4″ Stem Casters (2 with brakes) are standard
- Includes (3) epoxy-coated wire shelves adjustable in 1″ increments on stainless steel supports
