KML-700MWJ, Crescent Cuber Icemaker, Water-cooled / KML-700MWJ, Crescent Cuber Icemaker, Water-cooled

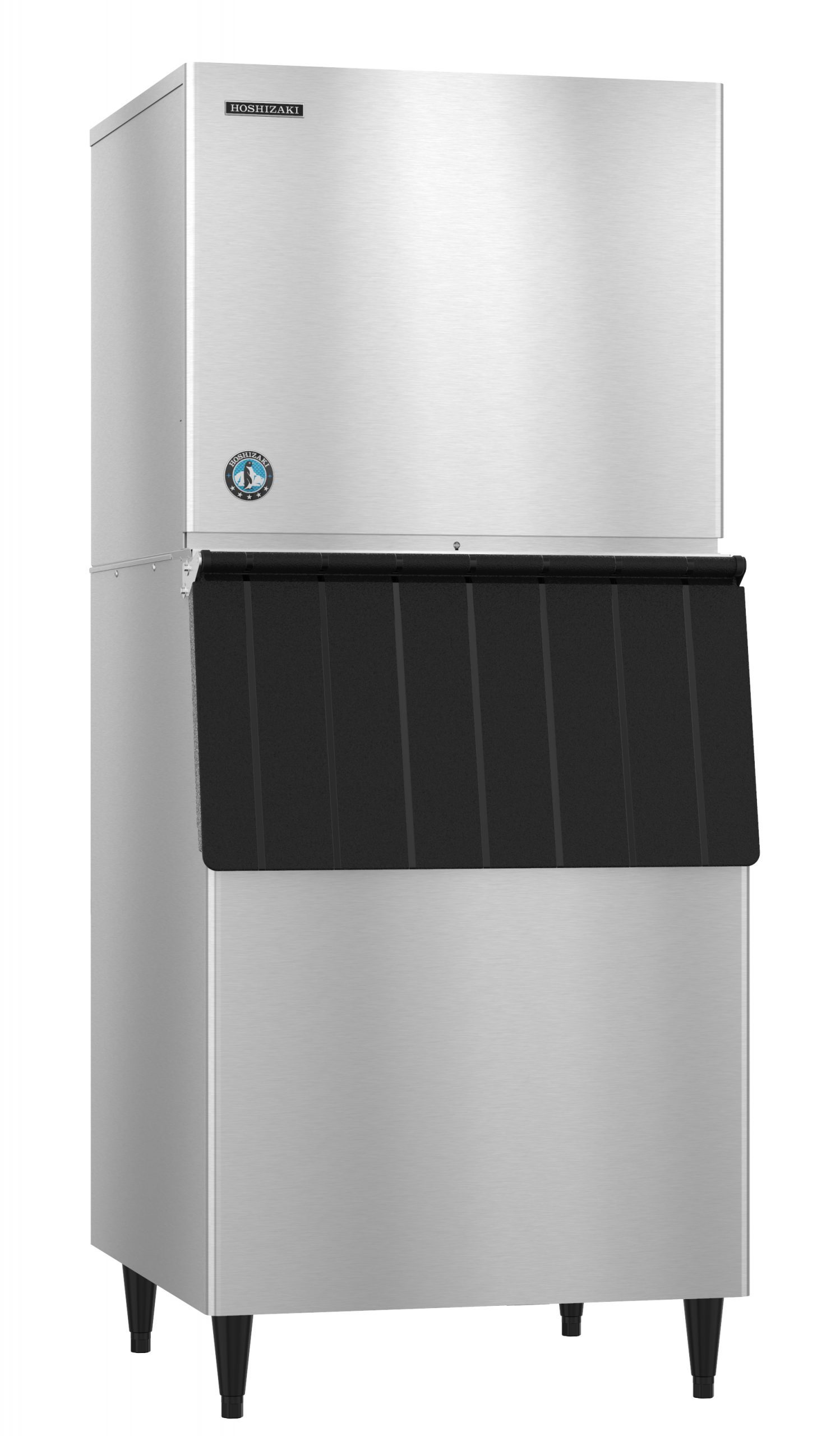

KML-700MWJ Crescent Cuber Icemaker, Water-cooled

30″ W X 27″ D X 26″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 11.9, Max Fuse/HACR Breaker: 20 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 12400 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 6 oz. / 625 g
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 1/4″ Nominal ID Drain Hard Pipe or Equivalent, Minimum 1/4″ Nominal ID Drain Hard Pipe or Equivalen
Shipping Weight
200
Utility Consumption
3.79 kWh per 100 lbs @ 90/70, 19.5 gal of Potable Water per 100 lbs @ 90/70
Warranty
Five Years: Parts warranty on Compressor, air-cooled condenser coil. Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The KML-700MWJ is capable of producing approximately 665 lbs of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Low Profile Modular icemaker features an CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KML-700MWJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, DM-200B. Please consult the Specification Sheet for additional details.

[fusion_button link=”https://hoshizakiamerica.com/product/KMD-705MWJ/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]REPLACED BY KMD-705MWJ[/fusion_button]

  • Dimensions: 30″ W x 27-3/8″ D x 26″ H
  • Up to 665 lbs of ice produced per 24 hours
  • Mount 2 units side-by-side for 2x the ice production
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, DM-200B
  • EverCheck™ alert system
  • CycleSaver™ design
  • R-404A refrigerant (1 lbs. 6 oz. / 625 g)
  • Heat Rejection:12400 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 11.9 amps (20 Amp Max fuse)
  • 3.79 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.
    • <
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.
