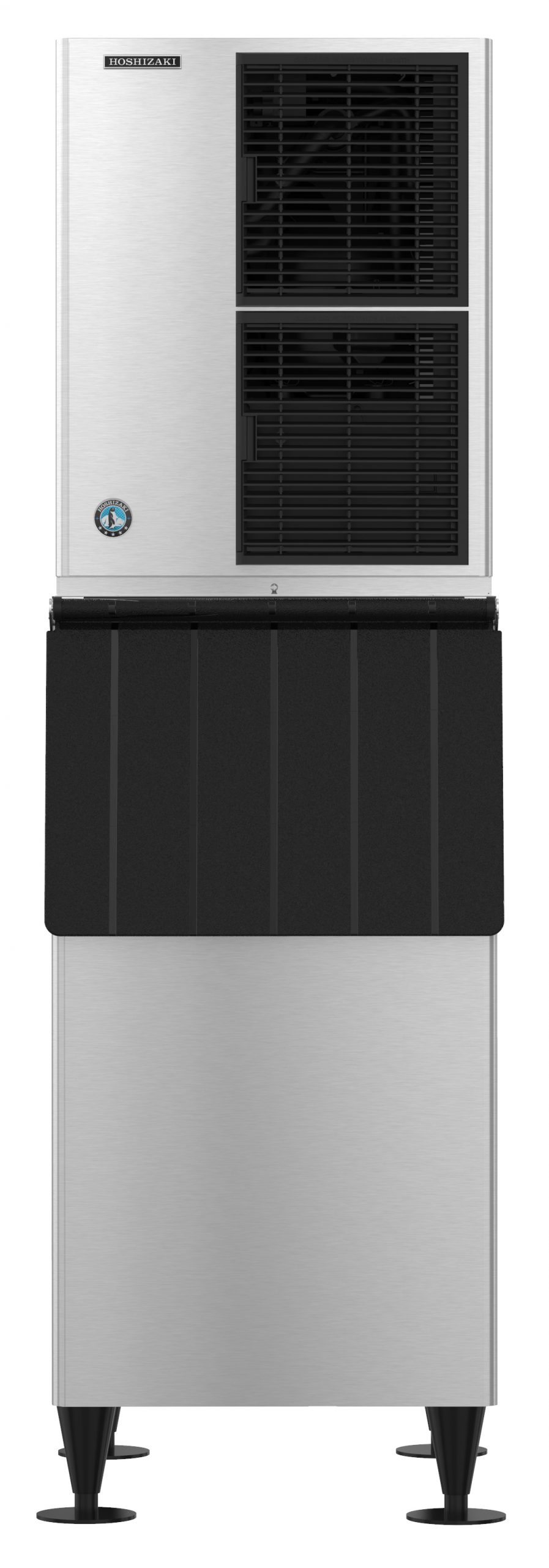

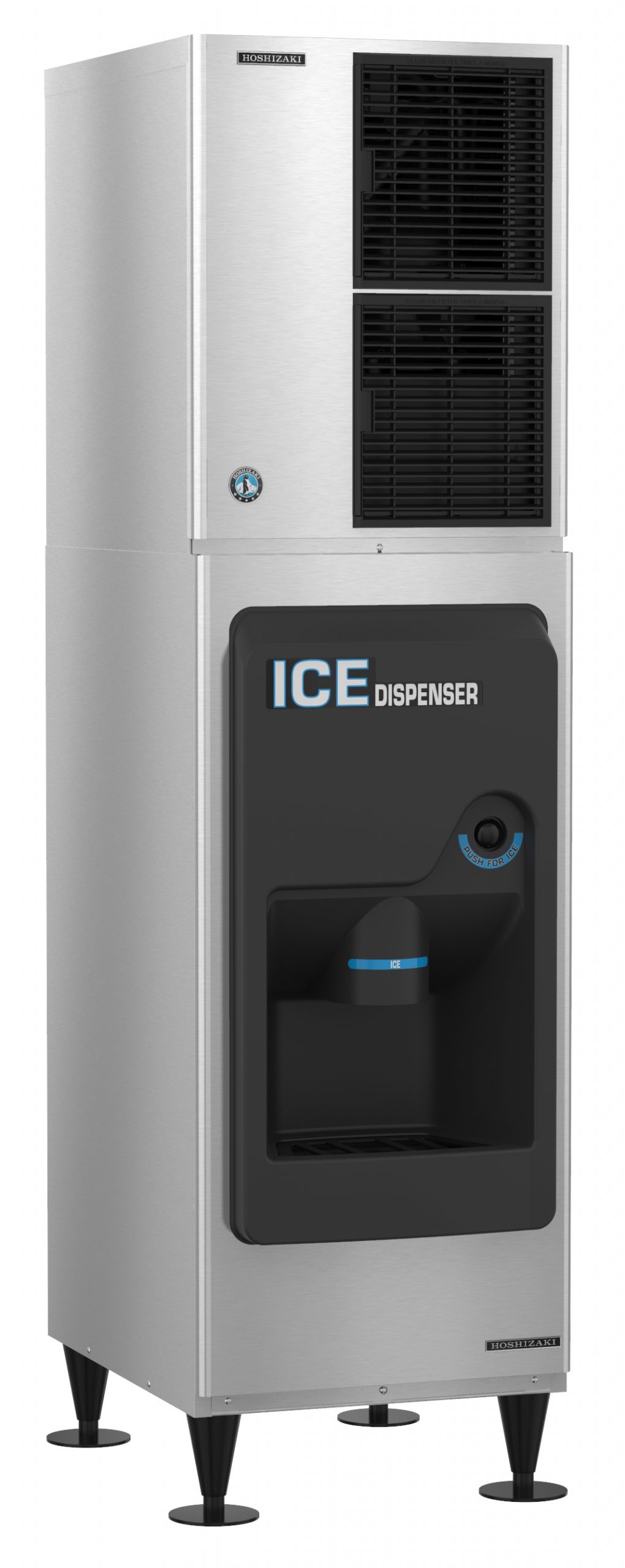

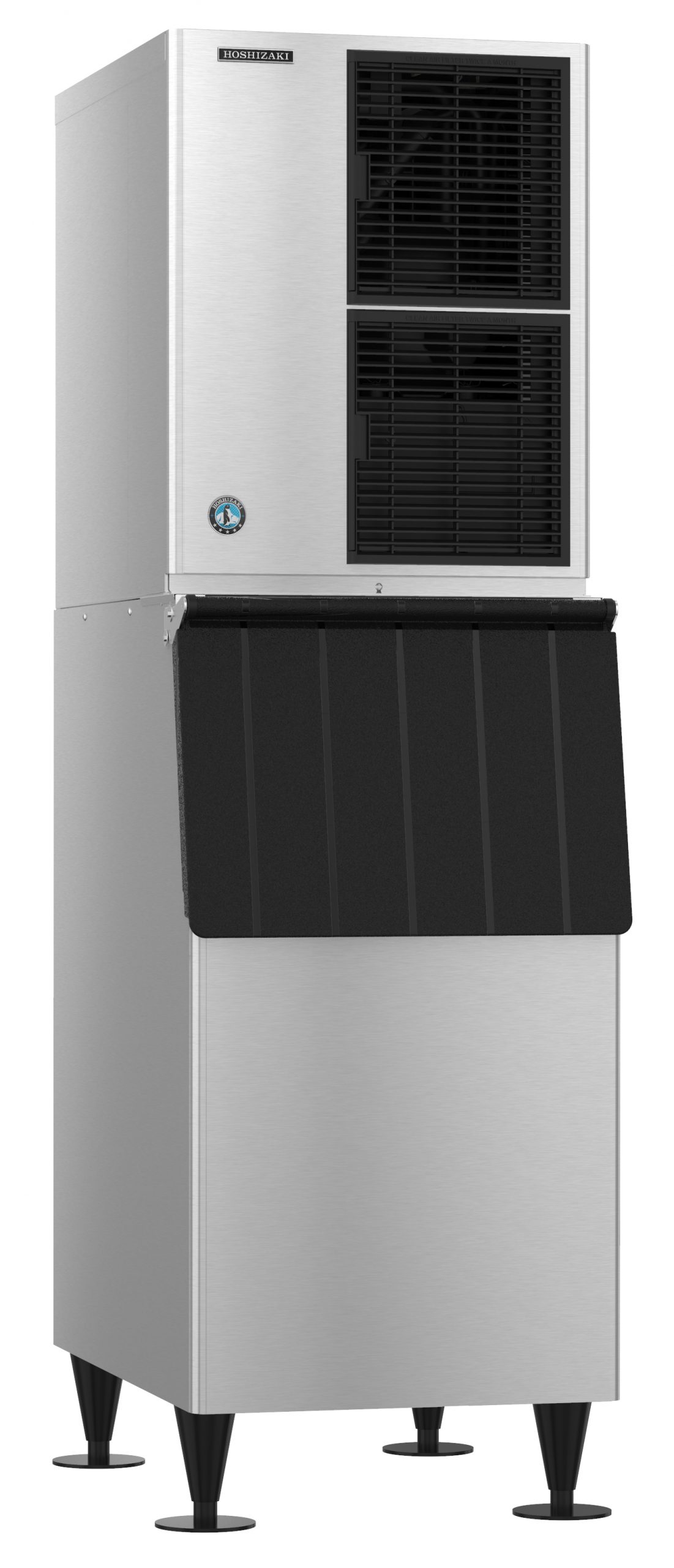

KM-660MAJ-E Crescent® Cuber Icemaker, Air-cooled, 50Hz Electrical
Overview and Features
The KM-660MAJ-E is capable of producing approximately 280 kg (617 lbs.) of crescent cubed ice. Our efficient double-sided KMEdge™ stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Slim Line Modular, 50Hz Electrical icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-660MAJ-E has a 50Hz electrical, 220-240v/50/1, 3000 mm long cord with Type G plug. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. Please consult the Specification Sheet for additional details.
- Dimensions: 559 mm W x 695 mm D x 711 mm H
- Up to 280 kg (617 lbs.) of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
- EverCheck™ alert system
- CycleSaver™ design
- R-404A refrigerant (760 g)
- Heat Rejection: 7300 BTU/hr
- Ambient temperature range: 7 – 38°C
- Water temperature range: 7 – 32°C
- Water pressure: 69 – 779kpa
- Voltage range: 198 – 254V
- 8.4 amps (15 Amp Max fuse)
- 4.85 kwh per 45 kg @ 32/21°C
- 50Hz electrical, 220-240v/50/1, 3000 mm long cord with Type G plug
- Clean ice and easy maintenance lead to longer unit life span
- Warranty: Contact factory for warranty information
- “-E”: 50Hz Electrical Model
