Ice Machines / Crescent Cuber Series / Modular / KM-520MAJ-E, Crescent Cuber Icemaker, Air-cooled, 50Hz Electrical

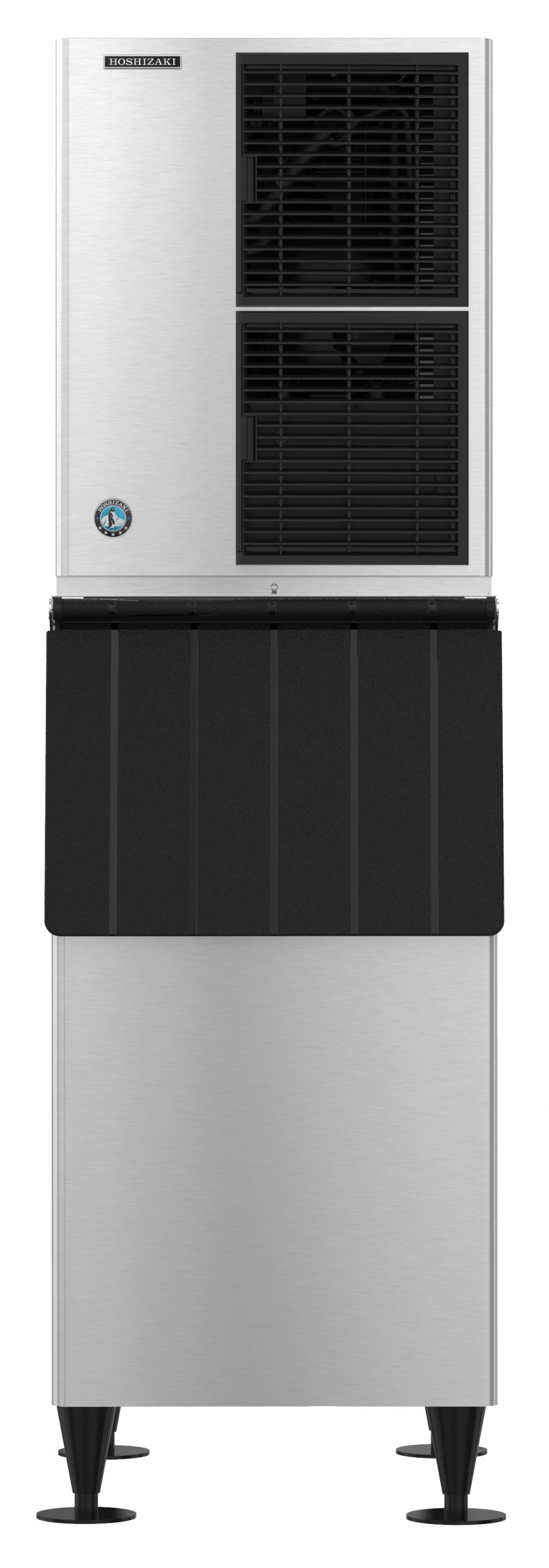

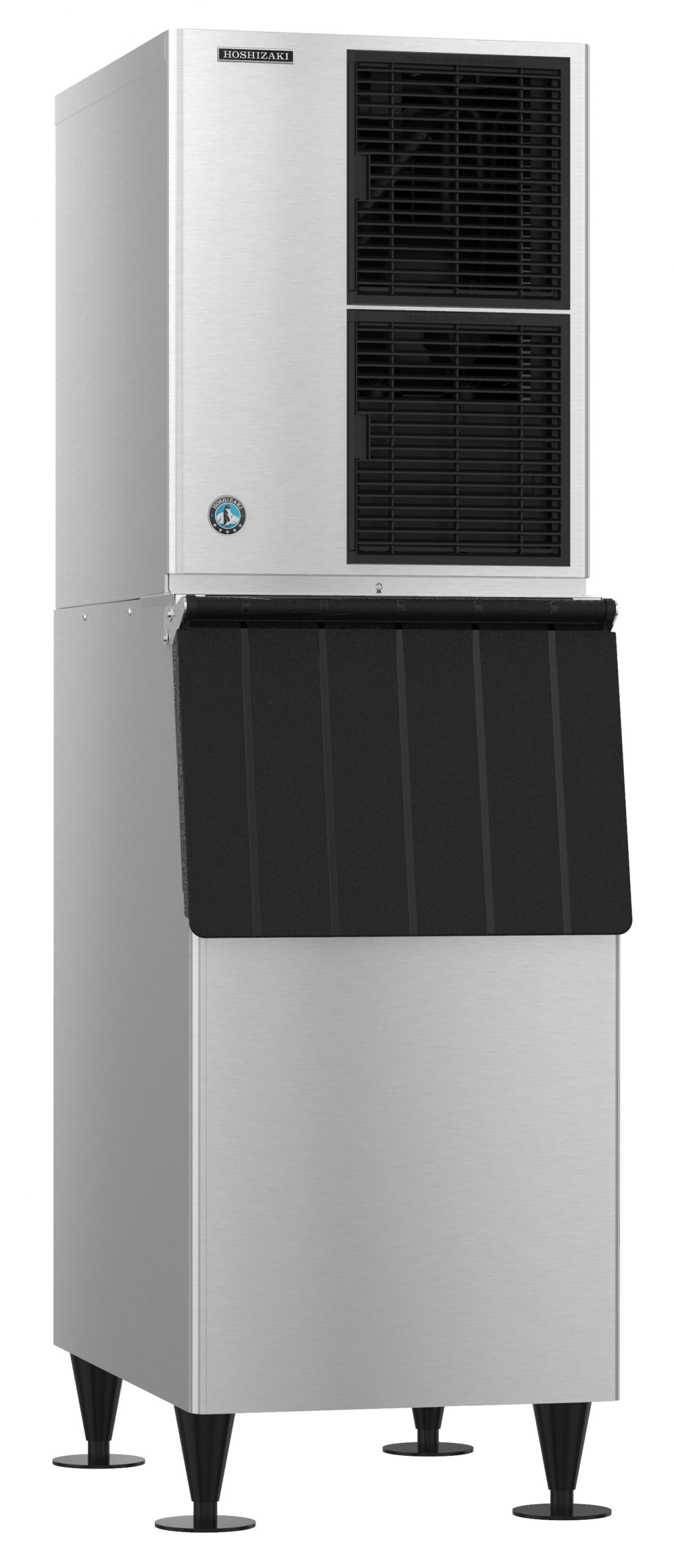

KM-520MAJ-E Crescent Cuber Icemaker, Air-cooled, 50Hz Electrical

22″ W X 27″ D X 28″ H
Cooling Type
Air-Cooled
Electrical
220-240v/50/1
Ice Type
Crescent
Daily Ice
238
Request a Quote Find a Distributor
Parts and Service
Downloads
Alternate Configurations
Electrical Specs
50Hz electrical, 220-240v/50/1, 3000 mm long cord with Type G plug, Amperage: 8.4, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 7 – 38°C, Water Temp Range: 7 – 32°C, Water Pressure: 0.7 – 8 kg/cm2, Voltage Range: 198 – 254V, Heat Rejection: 7300 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 1.6 oz. / 500 g
Plumbing Specs
12.7 mm FPT Inlet, Minimum 6 mm Nominal OD Copper Water Tubing or Equivalent, 19.05 mm FPT Outlet, Minimum 18 mm Nominal OD Hard Pipe or Equivalent
Shipping Weight
185
Utility Consumption
6.52 kWh per 100 lbs @ 90/70, 108 gal of Potable Water per 100 lbs @ 90/70
Warranty
Warranty: Contact factory for warranty information.

Overview and Features

The KM-520MAJ-E is capable of producing approximately 238 kg of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Slim Line Modular, 50Hz Electrical icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-520MAJ-E has a 50Hz electrical, 220-240v/50/1, 3000 mm long cord with Type G plug. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. Please consult the Specification Sheet for additional details. KMD-52052MAJ.

  • Dimensions: 559 mm W x 695 mm D x 711 mm H
  • Up to 238 kg of ice produced per 24 hours
  • Mount 2 units side-by-side for 2x the ice production
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
  • EverCheck™ alert system
  • CycleSaver™ design
  • R-404A refrigerant (500 g)
  • Heat Rejection:7300 BTU/hr
  • Ambient temperature range: 7 – 38°C
  • Water temperature range: 7 – 32°C
  • Water pressure: 0.7 – 8 kg/cm2
  • Voltage range: 198 – 254V
  • 8.4 amps (15 Amp Max fuse)
  • 6.52 kwh/100 lbs.@ 90/70
  • 50Hz electrical, 220-240v/50/1, 3000 mm long cord with Type G plug
  • Clean ice and easy maintenance lead to longer unit life span
  • Warranty: Contact factory for warranty information.
  • “-E”: 50Hz Electrical Model
