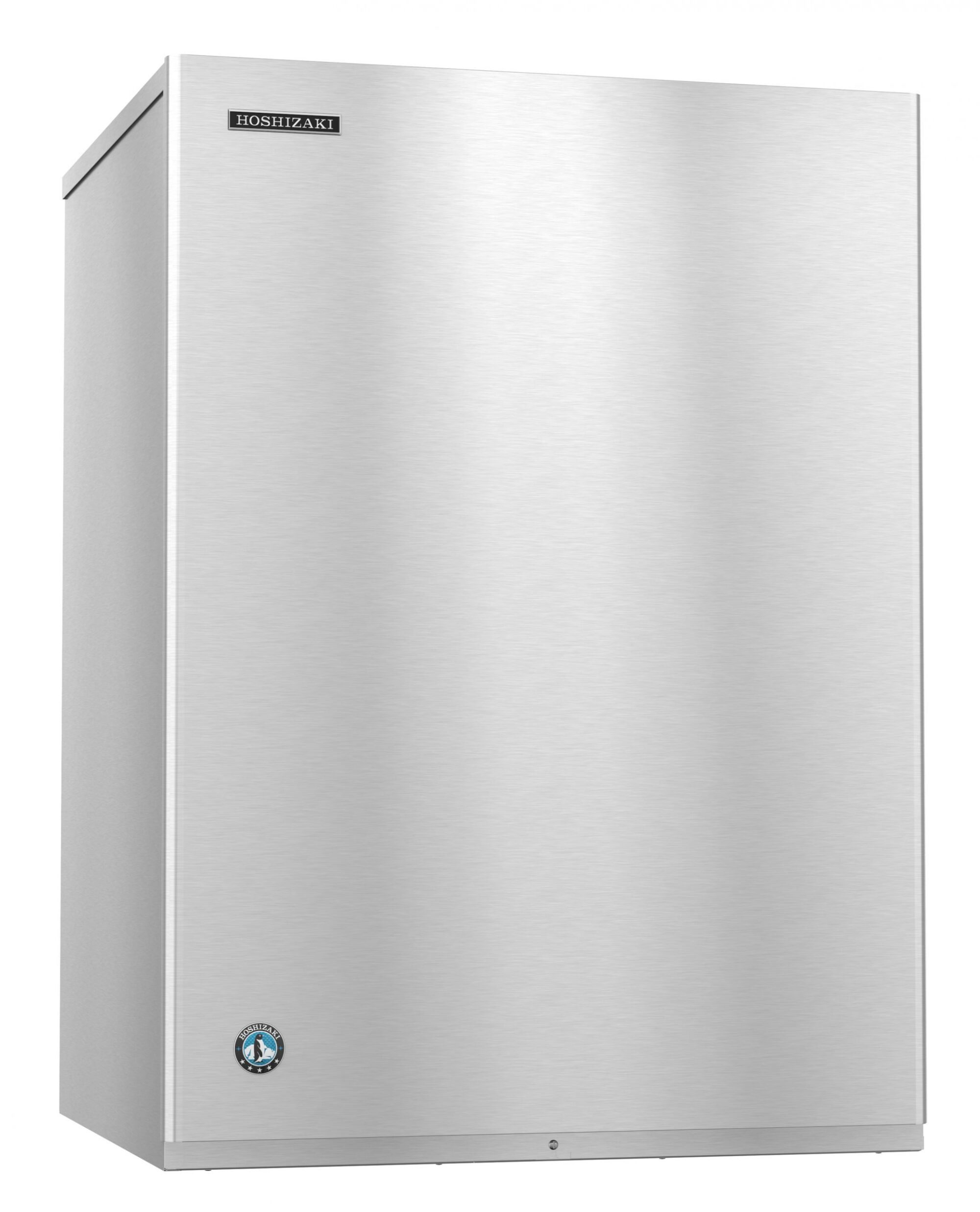

KM-1340MRJ3 with URC-14F, Crescent Cuber Icemaker, Remote-cooled, 3 Phase

30″ W X 27″ D X 41″ H
Electrical Specs
Three phase, 208-230v/60/3, 7 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required, Amperage: 12.5, Max Fuse/HAC
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 18000 BTU/hr, Refrigerant Charge: R-404A, (6 lbs. 9.8 oz. / 300
Plumbing Specs
1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
300
Utility Consumption
4.16 kWh per 100 lbs @ 90/70, 17.5 gal of Potable Water per 100 lbs @ 90/70
Warranty
Five Years: Parts warranty on Compressor, air-cooled condenser coil. Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The KM-1340MRJ3 is capable of producing approximately 1428 lbs of crescent cubed ice. Hoshizaki’s efficient double-sided stainless steel evaporators create the unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-14F icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1340MRJ3 requires a Three phase, 208-230v/60/3, 7 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details. KM-1340MRJZ3.

  • Discontinued – Replaced by KM-1340MRJZ3
  • Dimensions: 30″ W x 27-3/8″ D x 41-1/2″ H
  • Up to 1428 lbs of ice produced per 24 hours
  • Mount 2 units side-by-side for 2x the ice production
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
  • EverCheck™ alert system
  • CycleSaver™ design
  • R-404A refrigerant (6 lbs. 9.8 oz. / 3000 g)
  • Heat Rejection:18000 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 187 – 253V
  • 12.5 amps (20 Amp Max fuse)
  • 4.16 kwh/100 lbs.@ 90/70
  • Three phase, 208-230v/60/3, 7 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required
  • ENERGY STAR® qualified
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.
