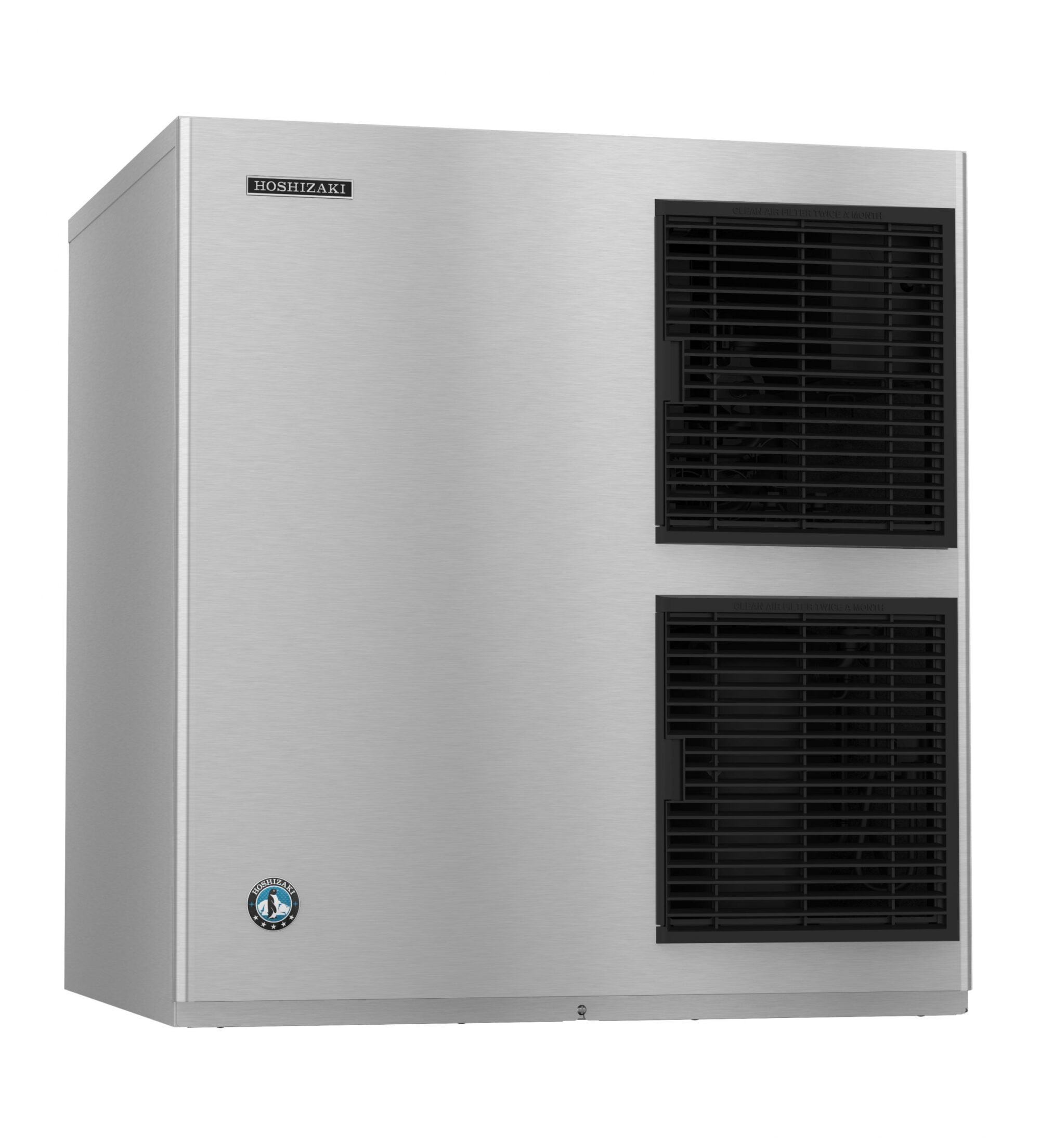

KM-1100MAH Crescent Cuber Icemaker, Air-cooled
30″ W X 27″ D X 32″ H
Parts and Service
Electrical Specs
Single phase, 208-230v/60/1 , Amperage: 10.8, Max Fuse/HACR Breaker: 20 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 18400 BTU/hr, Refrigerant Charge: R-404A, (3 lbs. 15.5 oz. / 18
Plumbing Specs
1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
290
Utility Consumption
5.02 kWh per 100 lbs @ 90/70, 17.3 gal of Potable Water per 100 lbs @ 90/70
Warranty
Five Years: Parts warranty on Compressor, air-cooled condenser coil. Three Years: Parts & Labor warranty on entire machine.
Overview and Features
The KM-1100MAH is capable of producing approximately 1184 lbs of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1100MAH requires a Single phase, 208-230v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.
- Discontinued – Replaced by KM-1100MAJ
- Dimensions: 30″ W x 27-3/8″ D x 32-1/2″ H
- Up to 1184 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
- EverCheck™ alert system
- CycleSaver™ design
- R-404A refrigerant (3 lbs. 15.5 oz. / 1800 g)
- Heat Rejection:18400 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 10.8 amps (20 Amp Max fuse)
- 5.02 kwh/100 lbs.@ 90/70
- Single phase, 208-230v/60/1
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts & Labor warranty on evaporator.
