HWR96A, Refrigerator, Three Section Worktop, Stainless Doors with Lock / HWR96A, Refrigerator, Three Section Worktop, Stainless Doors with Lock

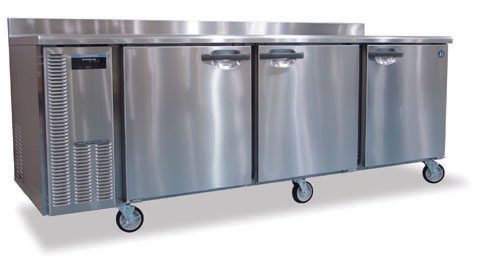

HWR96A Refrigerator, Three Section Worktop, Stainless Doors with Lock

95″ W X 32″ D X 33″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 4.5 kwh/day, Amperage: 6, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 21 – 53°F, , Refrigerant: R-134A
Refrigeration Data
Nominal Compres. of 2010 BTU/hr at 1/4 HP, Heat Rejection: 740 BTU/hr
Shipping Weight
558
Storage Specs
Nominal Storage Capacity: 29.1ft3, Interior Storage Capacity: 29.1ft3, Door Opening: 22.5″ W x 24.3″ H , Depth with Door fully extended: 56.8″ D, Shelves Included: 6
Warranty
Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The HWR96A Professional Series Worktop Three Section Refrigerator with a Stainless Doors and Cartridge-style refrigeration system is easily removed from the main unit is perfect for any professional. The reliable 1/4 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cool air, ensuring a steady constant temperature. The HWR96A frame is composed of stainless steel, a material that resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The HWR96A Includes 6 epoxy coated wire coated shelves, and comes Standard with (6) 6″ HD Casters (3 with brakes), it features Self closing door, with stay open feature with locks (reversible at factory – no charge). The unit is NSF and includes a Five Years compressor warranty / Three Years parts and labor warranty.

  • Dimensions: 95.8″ W x 32.3″ D x 33.9″ H
  • Net capacity of 29.1 cubic feet
  • Nominal Compres. of 2010 BTU/hr at 1/4 HP
  • Electrical consumption of 4.5 kWh/day at 6 Amps, 10 ft long cord with a 5 – 15P NEMA plug
  • Exclusive “stepped” door design to protect recessed door gasket
  • Self closing door, with stay open feature with locks (reversible at factory – no charge)
  • Cartridge-style refrigeration system is easily removed from the main unit
  • Magnetic door gasket is easily removable for cleaning
  • Defrost is time initiated temperature terminated
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Stainless steel interior and exterior top, front and sides
  • EverCheck digital control system with audio and visual alarms
  • R-134a refrigerant
  • Dual door frame heaters with energy saving on/off switch
  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
  • Includes 6 epoxy coated wire coated shelves
  • Epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports
  • Standard with (6) 6″ HD Casters (3 with brakes)
  • Front breathing air flow design with Zero clearance
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 99.75″ L x 36.25″ D x 43.25″ H at 558 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Five Years compressor warranty, Three Years parts and labor warranty
