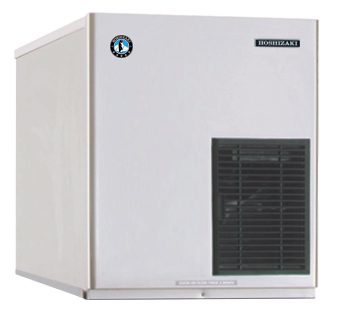

F-1001MLJ Flaker Icemaker, Low Side Remote-cooled
22″ W X 27″ D X 25″ H
Parts and Service
Electrical Specs
Single phase, 115v/60/1 , Amperage: 3.5, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, ( / )
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
150
Utility Consumption
1.9 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Warranty
Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Overview and Features
The F-1001MLJ is capable of producing approximately 1150 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Low Side Remote, Modular, Low-Side Series icemaker features the Advanced CleanCycle12™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1001MLJ requires a Single phase, 115v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1150, B-1300. Please consult the Specification Sheet for additional details.
- Discontinued – Replaced by F-1002MLJ
- Dimensions: 22″ W x 27-3/8″ D x 25-15/16″ H
- Up to 1150 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces flaked ice
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1150, B-1300
- Every 12 hrs, it performs 15 min purge to clean itself
- Advanced CleanCycle12™ design
- Designed for long life dependability
- R-404A refrigerant ( / )
- Heat Rejection: BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 3.5 amps (15 Amp Max fuse)
- 1.9 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
