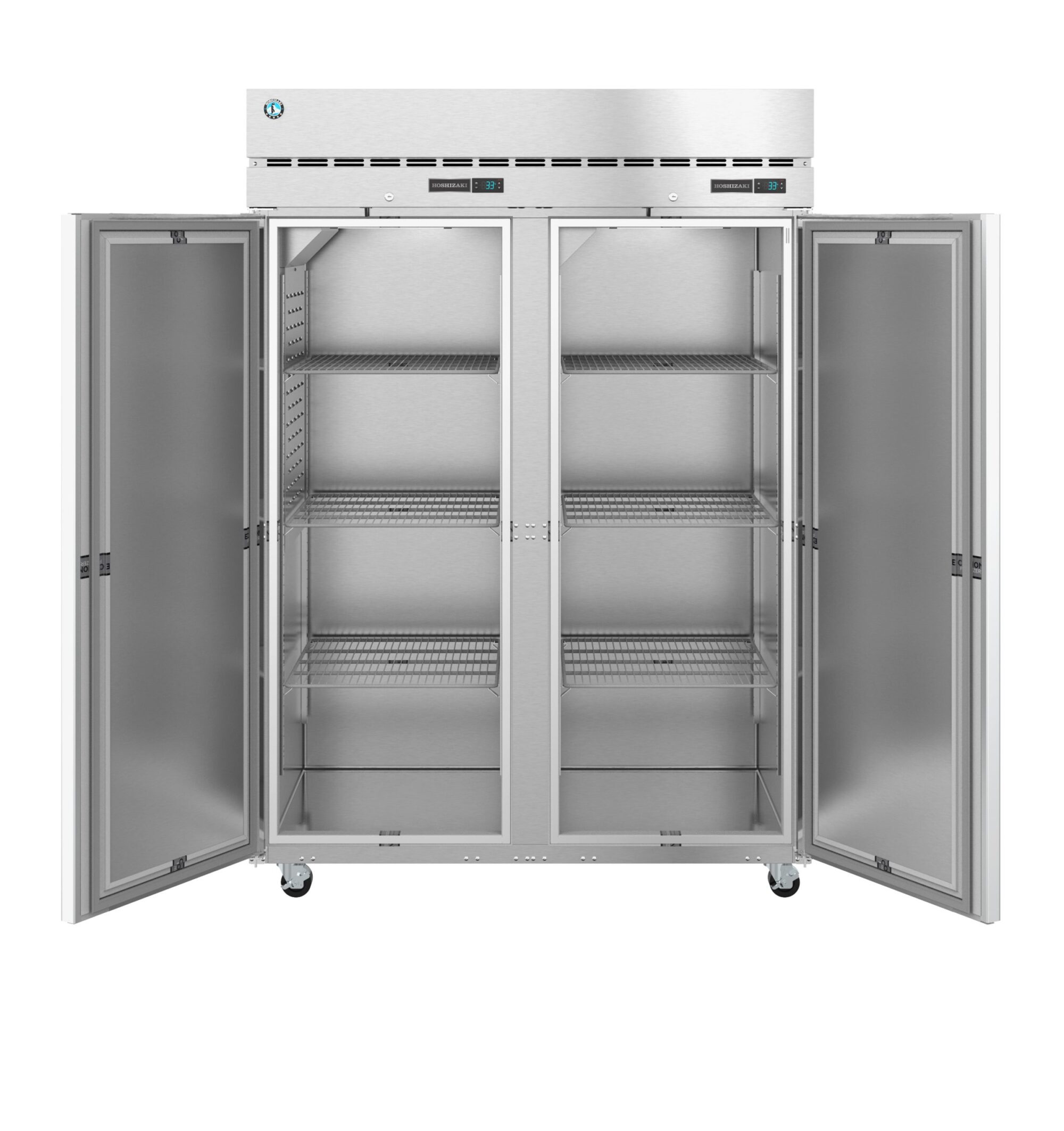

DT2A-FS Refrigerator and Freezer, Two Section Dual Temp Upright, Full Stainless Doors with Lock

55″ W X 35″ D X 79″ H
Volume
23.1
Electrical
115v/60/1
Sections
2
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 20P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 8.59 kwh/day, Amperage: 14, Max Fuse/HACR Breaker: 20 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 33 – 52°F,-10 – +10°F, Refrigerant: R-290
Refrigeration Data
Nominal Compres. of 770 BTU/hr at 1/4 HP refrigerator and 1425 BTU/hr at 3/4 HP freezer, Heat Rejection: 376/1401 BTU/hr
Shipping Weight
634
Storage Specs
Interior storage capacity: 23.1 ft3, Door opening: 21.75″ W x 59.25″ H, Depth with both doors fully extended: 59.25″ D, Shelves included: 6
Warranty
Five Years: Labor warranty on entire machine. Seven Years: Parts warranty on Compressor.

Overview and Features

The DT2A-FS Steelheart Series Dual Temp two section refrigerator and freezer with full stainless doors is a space saving workhorse. EverCheck digital control system with audio and visual alarms. With a interior capacity of 23.1 cubic feet refrigerator, 23.1 cubic feet freezer this efficient dual temp refrigerator and freezer and front air flow design is perfect for hot/tight kitchens. The DT2A-FS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

The DT2A-FS also includes Interior LED light bar is mounted horizontally on the ceiling, standard with (4) 4″ stem casters (2 with brakes), plus a field reversible, spring assisted self closing doors with stay open feature (no kit req’d). Electrical consumption of 8.59 kWh/day at 14 Amps, 10 ft long cord with a 5 – 20P NEMA plug. Optional kits: 6″ Legs ,Epoxy or stainless steel shelves ,Tray/pan slides ,Foot pedal door opener ,Stainless Steel Back. The unit is UL Listed, Conformité Européenne and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty (visit hoshizakiamerica.com/support/warranty for eligibility information).

  • Dimensions: 55″ W x 35″ D x 79.5″ H
  • Interior capacity of 23.1 cubic feet refrigerator, 23.1 cubic feet freezer
  • Exclusive “stepped” door design to protect recessed door gasket
  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life for extended life
  • Stainless steel interior and exterior
  • Field reversible, spring assisted self closing doors with stay open feature (no kit req’d)
  • One piece, full door length, extruded aluminum flush mount door handle
  • Energy efficient thermostatic expansion valve self contained refrigeration system
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Interior LED light bar is mounted horizontally on the ceiling
  • EverCheck digital control system with audio and visual alarms
  • R-290 refrigerant
  • Standard with (4) 4″ Stem Casters (2 with brakes)
  • Includes 6 epoxy coated wire coated shelves
  • Optional kits: 6″ Legs ,Epoxy or stainless steel shelves ,Tray/pan slides ,Foot pedal door opener ,Stainless Steel Back
  • Nominal Compres. of 770 BTU/hr at 1/4 HP refrigerator and 1425 BTU/hr at 3/4 HP freezer
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 58.25″ L x 36.5″ D x 81″ H at 634 lbs
  • Top mounted energy efficient non-electric evaporation system
  • Six Years parts warranty, Five Years labor warranty, Seven Years compressor warranty (Visit hoshizakiamerica.com/support/warranty for eligibility information)
