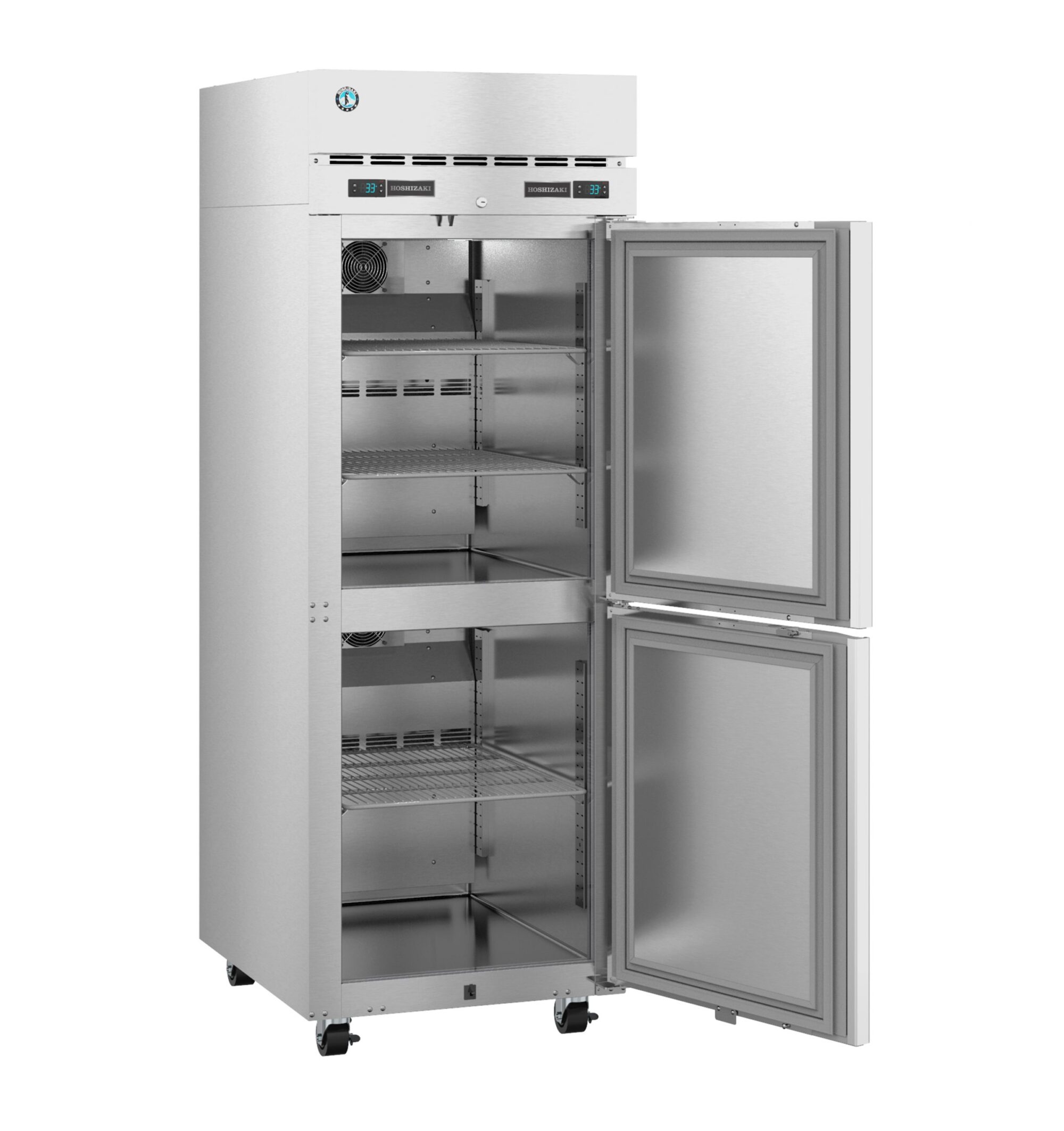

DT1A-HS Refrigerator and Freezer, Single Section Dual Temp Upright, Half Stainless Doors with Lock

27″ W X 35″ D X 79″ H
Volume
10.19
Electrical
115v/60/1
Sections
1
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 4.49 kwh/day, Amperage: 5.5, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 33 – 52°F,-10 – +10°F, Refrigerant: R-290
Refrigeration Data
Nominal Compres. of 988 BTU/hr at 1/6 HP refrigerator and 1354 BTU/hr at 1/5 HP freezer, Heat Rejection: 168/439 BTU/hr
Shipping Weight
415
Storage Specs
Interior storage capacity: 10.19 ft3, Door opening: 21.75″ W x 27.75″ H, Depth with both doors fully extended: 58.5″ D, Shelves included: 3
Warranty
Five Years: Labor warranty on entire machine. Seven Years: Parts warranty on Compressor.

Overview and Features

The DT1A-HS Steelheart Series Dual Temp single section refrigerator and freezer with a half stainless doors is a space saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C). With a interior capacity of 10.19 cubic feet refrigerator, 10.9 cubic feet freezer this efficient dual temp refrigerator and freezer and front air flow design is perfect for hot/tight kitchens. The DT1A-HS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

The DT1A-HS also includes Interior LED light bar is mounted horizontally on the ceiling, standard with (4) 4″ stem casters (2 with brakes), plus a field reversible, spring assisted self closing doors with stay open feature (no kit req’d). Electrical consumption of 4.49 kWh/day at 5.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs ,Epoxy or stainless steel shelves ,Tray/pan slides ,Foot pedal door opener ,Stainless Steel Back. The unit is UL Listed, Conformité Européenne and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty (visit hoshizakiamerica.com/support/warranty for eligibility information).

  • Dimensions: 27.5″ W x 35″ D x 79.5″ H
  • Interior capacity of 10.19 cubic feet refrigerator, 10.9 cubic feet freezer
  • Exclusive “stepped” door design to protect recessed door gasket
  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • Field reversible, spring assisted self closing doors with stay open feature (no kit req’d)
  • One piece, full door length, extruded aluminum flush mount door handle
  • Lockable Half Stainless Doors
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Interior LED light bar is mounted horizontally on the ceiling
  • Solid state digital controller with temperature alarms and LED display (°F or °C)
  • R-290 refrigerant
  • Standard with (4) 4″ Stem Casters (2 with brakes)
  • Includes 3 epoxy coated wire coated shelves
  • Optional kits: 6″ Legs ,Epoxy or stainless steel shelves ,Tray/pan slides ,Foot pedal door opener ,Stainless Steel Back
  • Nominal Compres. of 988 BTU/hr at 1/6 HP refrigerator and 1354 BTU/hr at 1/5 HP freezer
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 36″ L x 31.5″ D x 81″ H at 415 lbs
  • Top mounted energy efficient non-electric evaporation system
  • Six Years parts warranty, Five Years labor warranty, Seven Years compressor warranty (Visit hoshizakiamerica.com/support/warranty for eligibility information)
