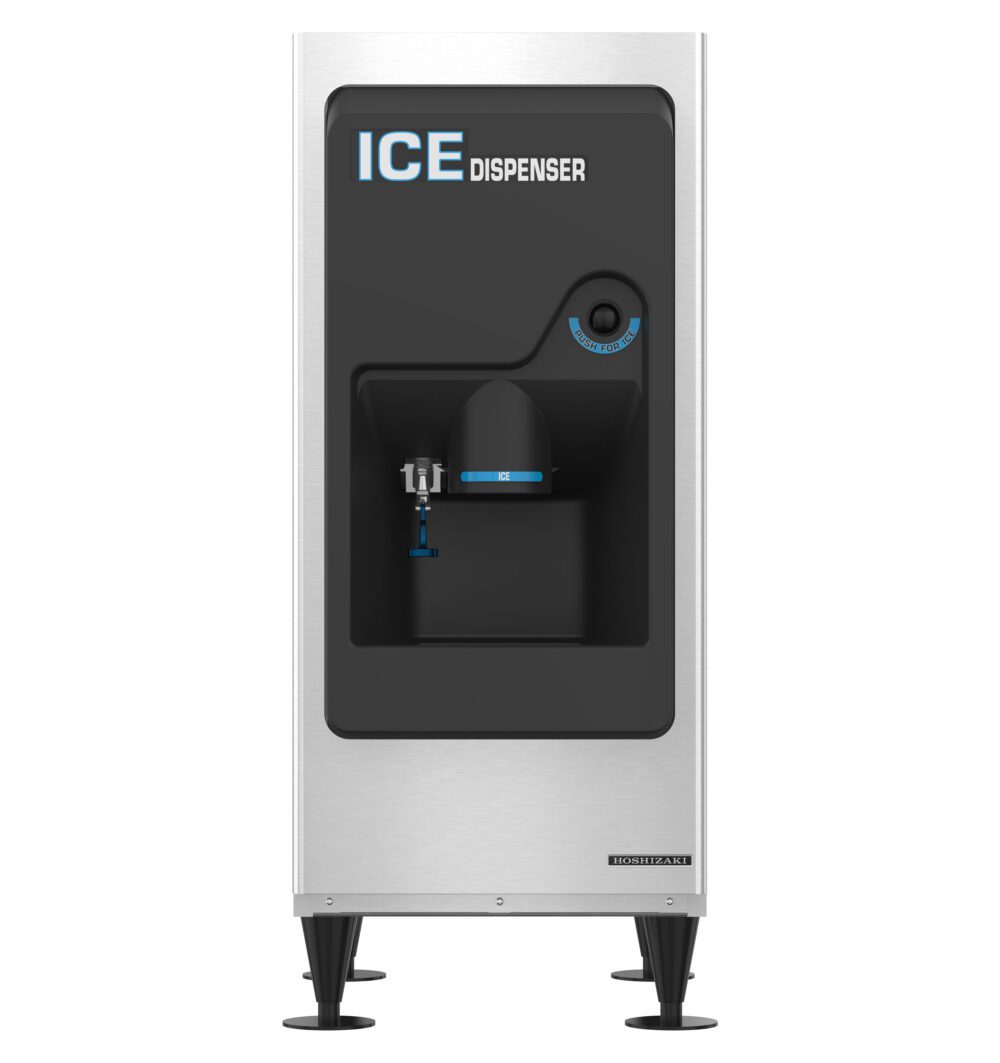

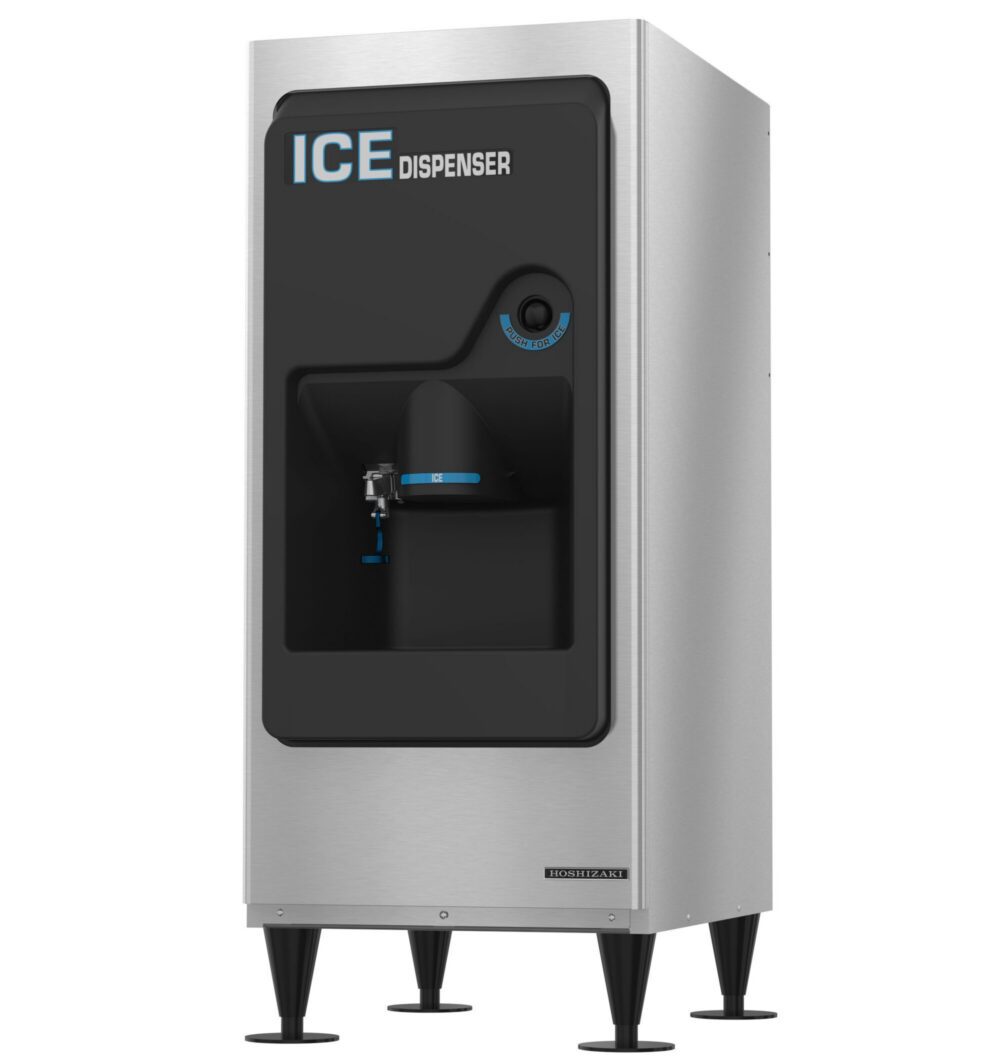

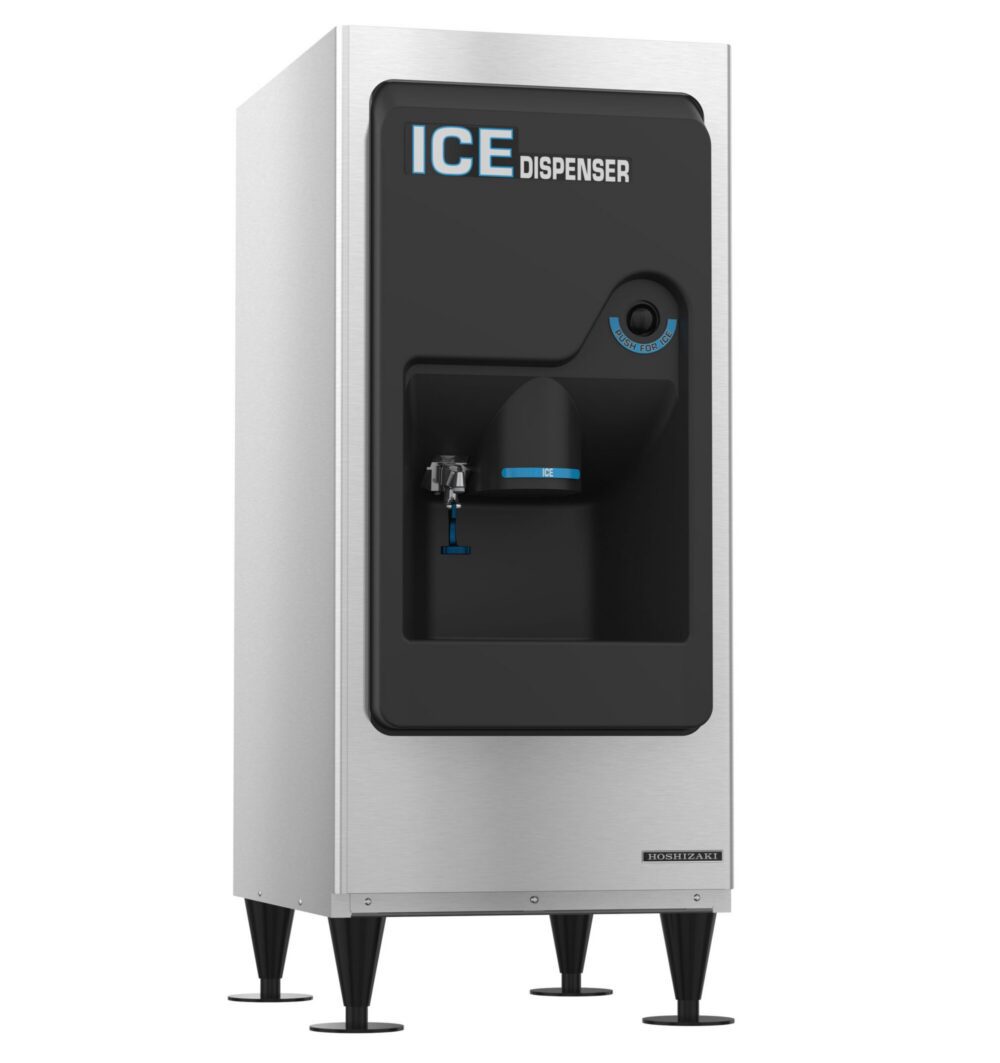

DBW-130H Hotel Ice and Water Dispenser, Built-in Storage Bin
22″ W X 30″ D X 53″ H
Electrical
115v/60/1
Parts and Service
Alternate Configurations
Compatible Ice Machines

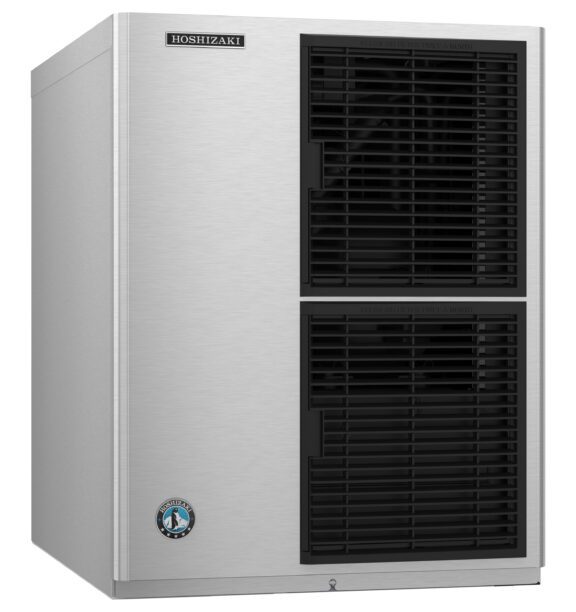

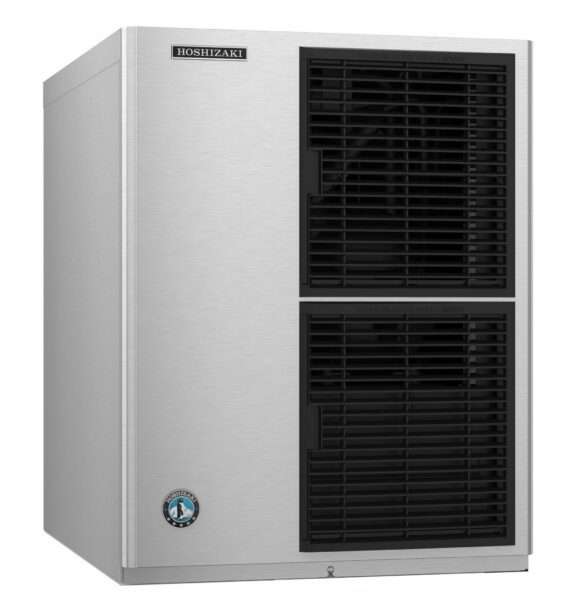

KM-322, KM-522, KM-622
Electrical Specs
Single phase, 115v/60/1, Hardwired connection (no cord/plug included), Amperage: 1.4
Ice Storage Capacity
130 lbs., Cubic Volume: 3.7 ft3
Shipping Weight
195 lbs.
Warranty
Three Years: Parts & Labor warranty on entire machine.
Overview and Features
The DBW-130H hotel ice and water dispenser features a built-in storage bin that holds up to 130 lbs. of ice*, providing guests with convenient access to ice and water from a single unit. Designed for hotels, motels, resorts, and other hospitality environments, it helps keep ice clean and readily available for guests. The durable stainless steel exterior is built to withstand daily use and simplify cleaning, while push-button ice dispensing, an easy-to-use water dispensing lever, and an ADA-compliant dispensing area provide a convenient guest experience.
*Capacity based on 100% of total volume x 30 lb./ft³ average ice density.
- Dimensions: 22″ W x 30″ D x 53″ H
- Stores up to 130 lbs. of ice
- Push-button single auger agitator dispenses ice at 20 lbs. per minute
- Seamless polyethylene bin liner

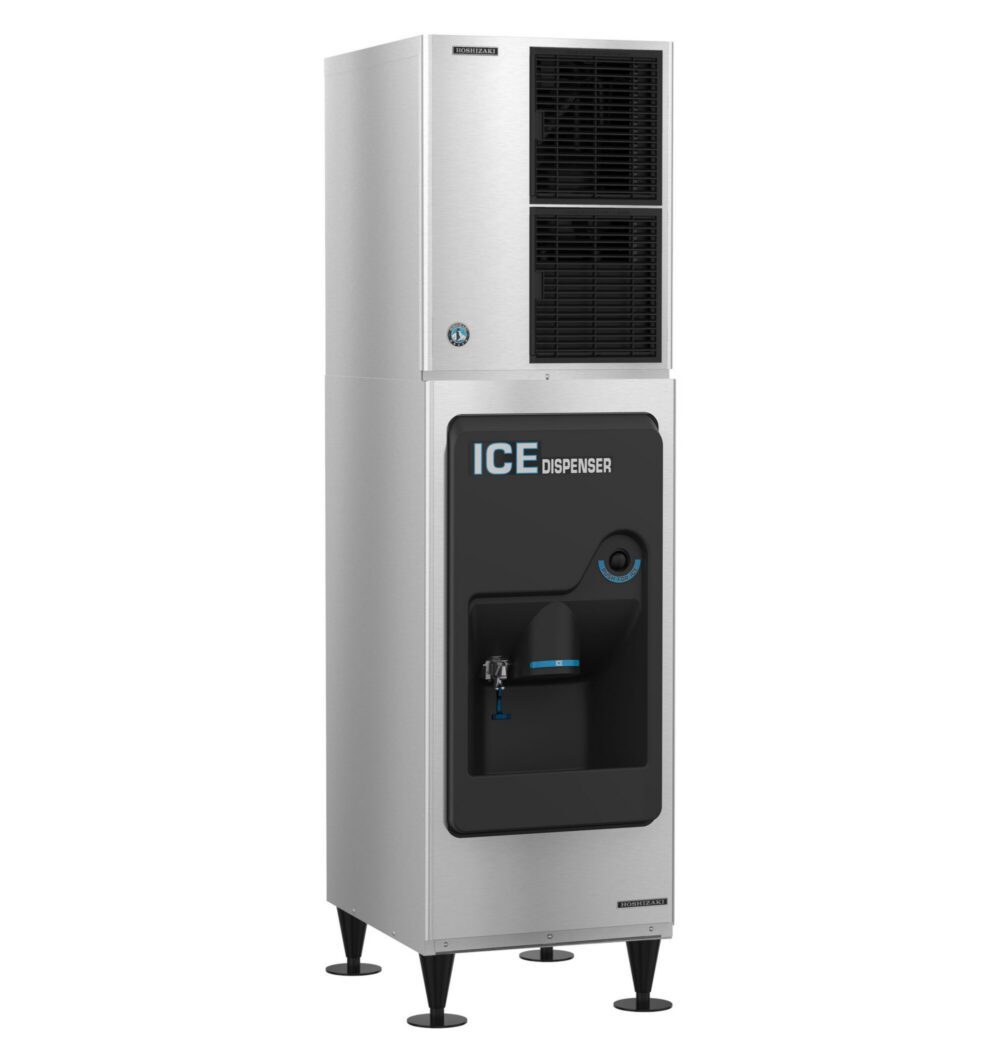

- Accommodates select top-mounted KM cuber ice machines (sold separately; see specification sheet for details)
- Ice and water dispensing area is ADA compliant
- (4) 6″ painted flange legs are standard
