CRMR72-30MD6, Refrigerator, Three Section Mega Top Prep Table, Stainless Drawers / CRMR72-30MD6, Refrigerator, Three Section Mega Top Prep Table, Stainless Drawers

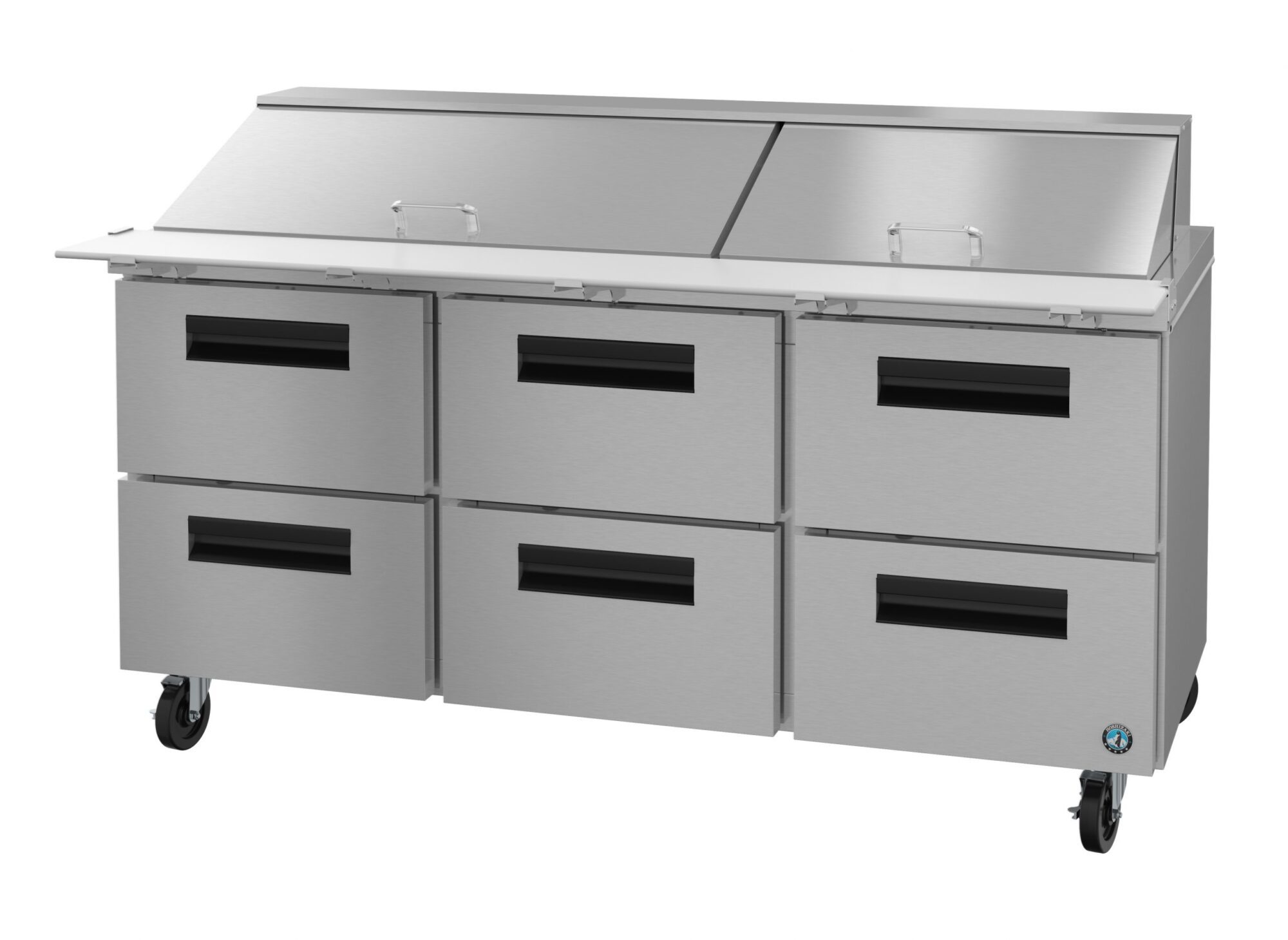

CRMR72-30MD6 Refrigerator, Three Section Mega Top Prep Table, Stainless Drawers

72″ W X 30″ D X 45″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 5.1 kwh/day, Amperage: 4.9, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 86°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, , Refrigerant: R-134A
Refrigeration Data
Nominal Compres. of 2607 BTU/hr at 1/3 HP, Heat Rejection: 726 BTU/hr
Shipping Weight
377
Storage Specs
Nominal Storage Capacity: 19.7ft3, Interior Storage Capacity: 19.7ft3, Drawer Opening: 19.5″ W x 22.9″ H , Depth with Drawer fully extended: 50.25″ D, Drawers Included: 6
Warranty
Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The CRMR72-30MD6 Commercial Series Mega Top Three Section Refrigerator with Stainless Drawers is an attractive addition in any kitchen. With a Net capacity of 19.7 cubic feet this front breathing Mega Top Refrigerator is perfect for tight spaces.

The CRMR72-30MD6 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean. The CRMR72-30MD6 Includes 6 stainless steel drawers with 175 lbs dynamic load rating and 30 polycarbonate plastic 1/6th size pans, 4″ deep pans, each of its Each drawer accommodates: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others). 72″ x 10″ x 1/2″ thick white polyethylene cutting board is standard. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a Five Years compressor warranty / Three Years parts and labor warranty.

  • Discontinued – Replaced by SR72A-30MD6
  • Dimensions: 72″ W x 30″ D x 45.2″ H
  • Net capacity of 19.7 cubic feet
  • Nominal Compres. of 2607 BTU/hr at 1/3 HP
  • Electrical consumption of 5.1 kWh/day at 4.9 Amps, 10 ft long cord with a 5 – 15P NEMA plug
  • Drawer slides are constructed of 16 gauge stainless steel with acetal rollers
  • Each drawer accommodates: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others)
  • Extruded aluminum flush mount drawer handle
  • Magnetic drawer gasket is easily removable for cleaning
  • Stainless steel exterior drawer with stainless steel interior
  • Cabinet and drawers are insulated with 2″ CFC free, foamed in place polyurethane
  • Stainless steel exterior front, sides and top with stainless steel interior
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R-134a refrigerant
  • Provided with a full complement of plastic 1/6th size pans, 4″ deep and adapter bars
  • Enamel coated evaporator coil for extended life
  • Includes 6 stainless steel drawers with 175 lbs dynamic load rating and 30 polycarbonate plastic 1/6th size pans, 4″ deep pans
  • Drawer frames are formed of 14 gauge stainless steel and securely fastened in the cabinet
  • Standard with (4) 6″ Stem Casters (2 with brakes)
  • 72″ x 10″ x 1/2″ thick white polyethylene cutting board is standard
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 74″ L x 34″ D x 46.2″ H at 377 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Five Years compressor warranty, Three Years parts and labor warranty
