CRMR60-D2, Refrigerator, Two Section Undercounter, Drawer/Door Combo / CRMR60-D2, Refrigerator, Two Section Undercounter, Drawer/Door Combo

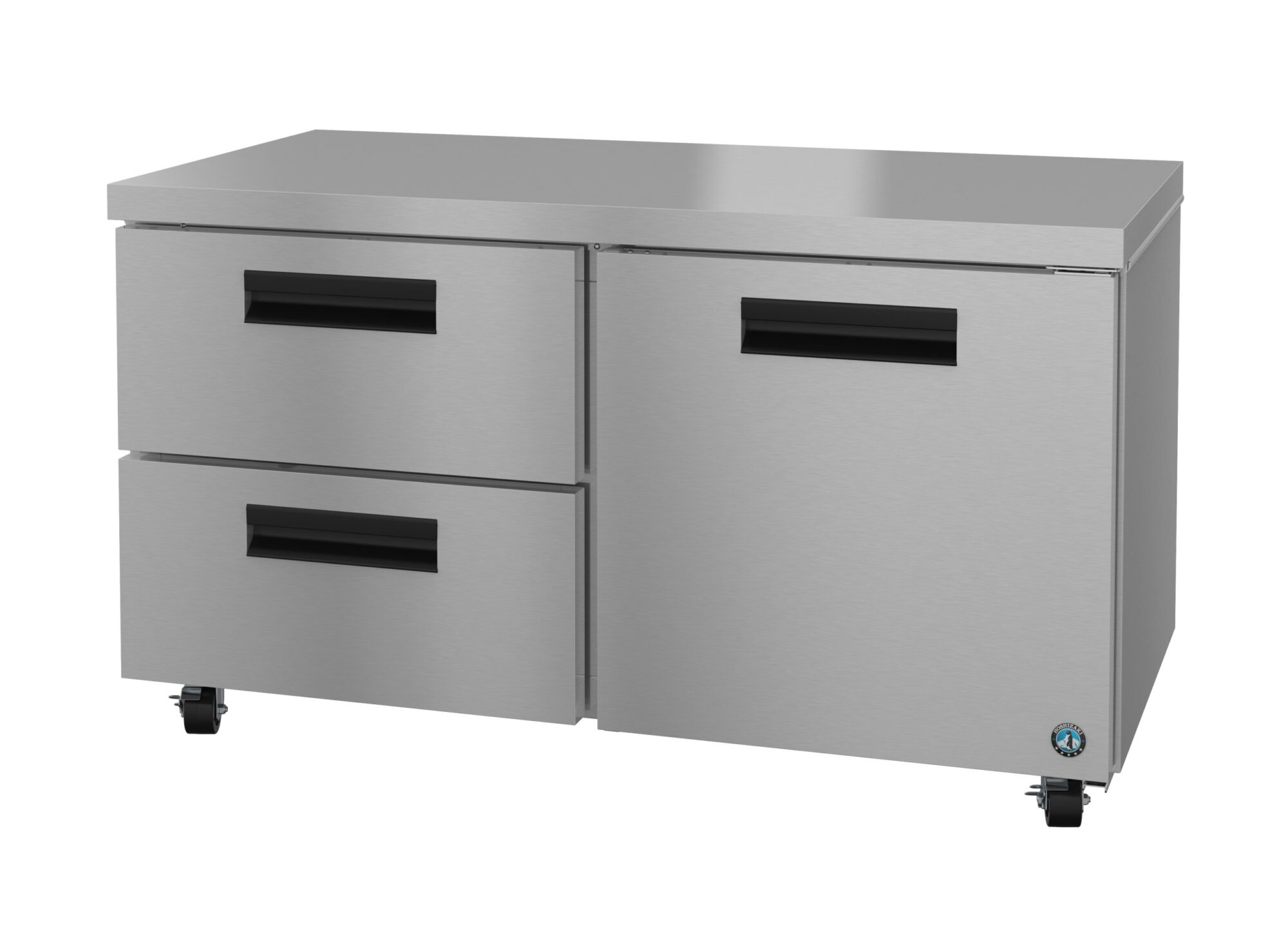

CRMR60-D2 Refrigerator, Two Section Undercounter, Drawer/Door Combo

60″ W X 30″ D X 33″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 3.3 kwh/day, Amperage: 4.2, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R-134A
Refrigeration Data
Nominal Compres. of 1386 BTU/hr at 1/5 HP, Heat Rejection: 473.5 BTU/hr
Shipping Weight
288
Storage Specs
Nominal Storage Capacity: 17.55ft3, Interior Storage Capacity: 16.6ft3, Door Opening: 25.5″ W x 23″ H , Depth with Door fully extended: 58.5″ D, Shelves Included: 1 epoxy coated shelf
Warranty
Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The CRMR60-D2 Commercial Series Two Section Undercounter Refrigerator is a Drawer/Door Combo cabinet. Engineered to maintain food safe temperatures in 100°F ambient conditions and with a Net capacity of 19.9 cubic feet this front breathing Undercounter Refrigerator is the right choice for hot kitchens.

The CRMR60-D2 is constructed of stainless steel, which protects this unit from minor damage and rust. Plus, it is easy to clean. The CRMR60-D2 Includes 2 stainless steel drawers,1 epoxy coated shelf. Each drawer accommodates: (1) 12″ x 20″ x 6″ deep pan (pans by others). Optional kits: 2.25″ or 6″ casters, drawer adapter bars, epoxy shelves, overshelves. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a Five Years compressor warranty / Three Years parts and labor warranty. Drawer/Door units are made to order. Allow 4-6 weeks.

  • Discontinued – Replaced by UR60A-D2
  • Dimensions: 60″ W x 30″ D x 33.63″ H
  • Net capacity of 16.6 cubic feet
  • Nominal Compres. of 1386 BTU/hr at 1/5 HP
  • Electrical consumption of 3.3 kWh/day at 4.2 Amps, 10 ft long cord with a 5 – 15P NEMA plug
  • Drawer slides are constructed of 16 gauge stainless steel with acetal rollers
  • Each drawer accommodates: (1) 12″ x 20″ x 6″ deep pan (pans by others)
  • Extruded aluminum flush mount drawer/door handles
  • Magnetic drawer and door gaskets are easily removable for cleaning
  • Stainless steel exterior door with ABS interior liner
  • Cabinet, doors, and drawers are insulated with 2″ CFC free, foamed in place polyurethane
  • Stainless steel exterior front, sides and top with stainless steel interior
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R-134a refrigerant
  • Enamel coated evaporator coil for extended life
  • Includes 2 stainless steel drawers,1 epoxy coated shelf
  • Spring assisted self closing door, with stay open feature (field reversible)
  • Standard with (4) 4″ Stem Casters (2 with brakes)
  • Optional kits: 2.25″ or 6″ casters, drawer adapter bars, epoxy shelves, overshelves
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 62″ L x 34″ D x 36.75″ H at 288 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Five Years compressor warranty, Three Years parts and labor warranty
  • Drawer/Door units are made to order. Allow 4-6 weeks
