CRMF48-D4, Freezer, Two Section Undercounter, Stainless Drawers / CRMF48-D4, Freezer, Two Section Undercounter, Stainless Drawers

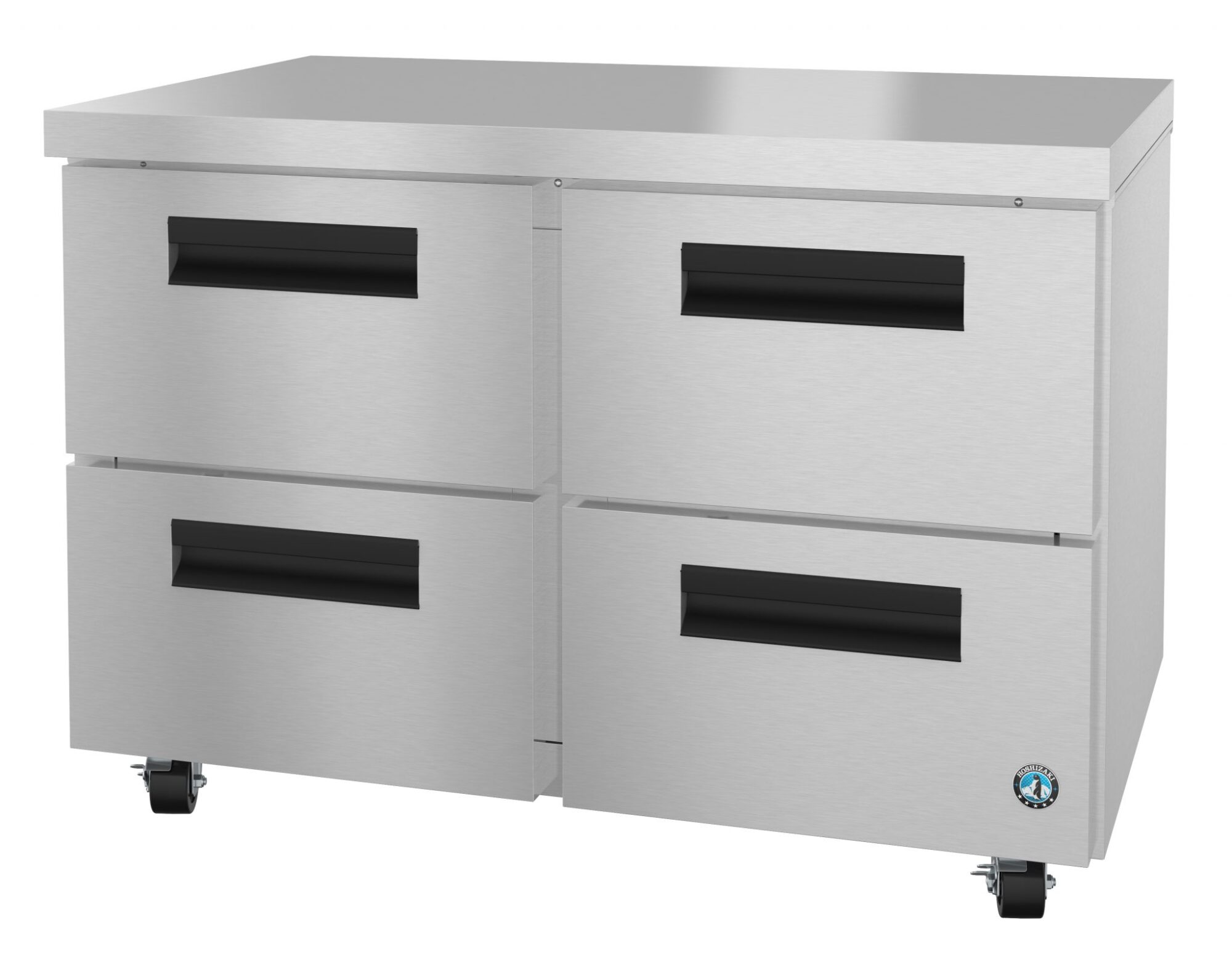

CRMF48-D4 Freezer, Two Section Undercounter, Stainless Drawers

48″ W X 30″ D X 33″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 6.6 kwh/day, Amperage: 6, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +10°F, , Refrigerant: R-134A
Refrigeration Data
Nominal Compres. of 1527 BTU/hr at 1/3 HP, Heat Rejection: 945 BTU/hr
Shipping Weight
262
Storage Specs
Nominal Storage Capacity: 13.66ft3, Interior Storage Capacity: 11.95ft3, Drawer Opening: 19.5″ W x 22.9″ H , Depth with Drawer fully extended: 50.25″ D, Drawers Included: 4
Warranty
Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The CRMF48-D4 Commercial Series Undercounter Two Section Freezer with Stainless Drawers is an attractive addition in any kitchen. With a Net capacity of 11.95 cubic feet this front breathing Undercounter Freezer is perfect for tight spaces.

The CRMF48-D4 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean. The CRMF48-D4 Includes 4 stainless steel drawers with 175 lbs dynamic load rating, each of its Each drawer accommodates: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others). Optional kits: 2.25″ Casters – to meet ADA, 6″ Casters, Stainless steel back, Drawer divider bars. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a Five Years compressor warranty / Three Years parts and labor warranty.

  • Discontinued – Replaced by UF48A-D4
  • Dimensions: 48″ W x 30″ D x 33.63″ H
  • Net capacity of 11.95 cubic feet
  • Nominal Compres. of 1527 BTU/hr at 1/3 HP
  • Electrical consumption of 6.6 kWh/day at 6 Amps, 10 ft long cord with a 5 – 15P NEMA plug
  • Drawer slides are constructed of 16 gauge stainless steel with acetal rollers
  • Each drawer accommodates: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others)
  • Extruded aluminum flush mount drawer handle
  • Magnetic drawer gasket is easily removable for cleaning
  • Stainless steel exterior drawer with stainless steel interior
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • Stainless steel exterior front, sides and top with stainless steel interior
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R-134a refrigerant
  • Automatic defrost
  • Enamel coated evaporator coil for extended life
  • Includes 4 stainless steel drawers with 175 lbs dynamic load rating
  • Drawer frames are formed of 14 gauge stainless steel and securely fastened in the cabinet
  • Standard with (4) 4″ Stem Casters (2 with brakes)
  • Optional kits: 2.25″ Casters – to meet ADA, 6″ Casters, Stainless steel back, Drawer divider bars
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 52.5″ L x 34″ D x 36.5″ H at 262 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Five Years compressor warranty, Three Years parts and labor warranty
