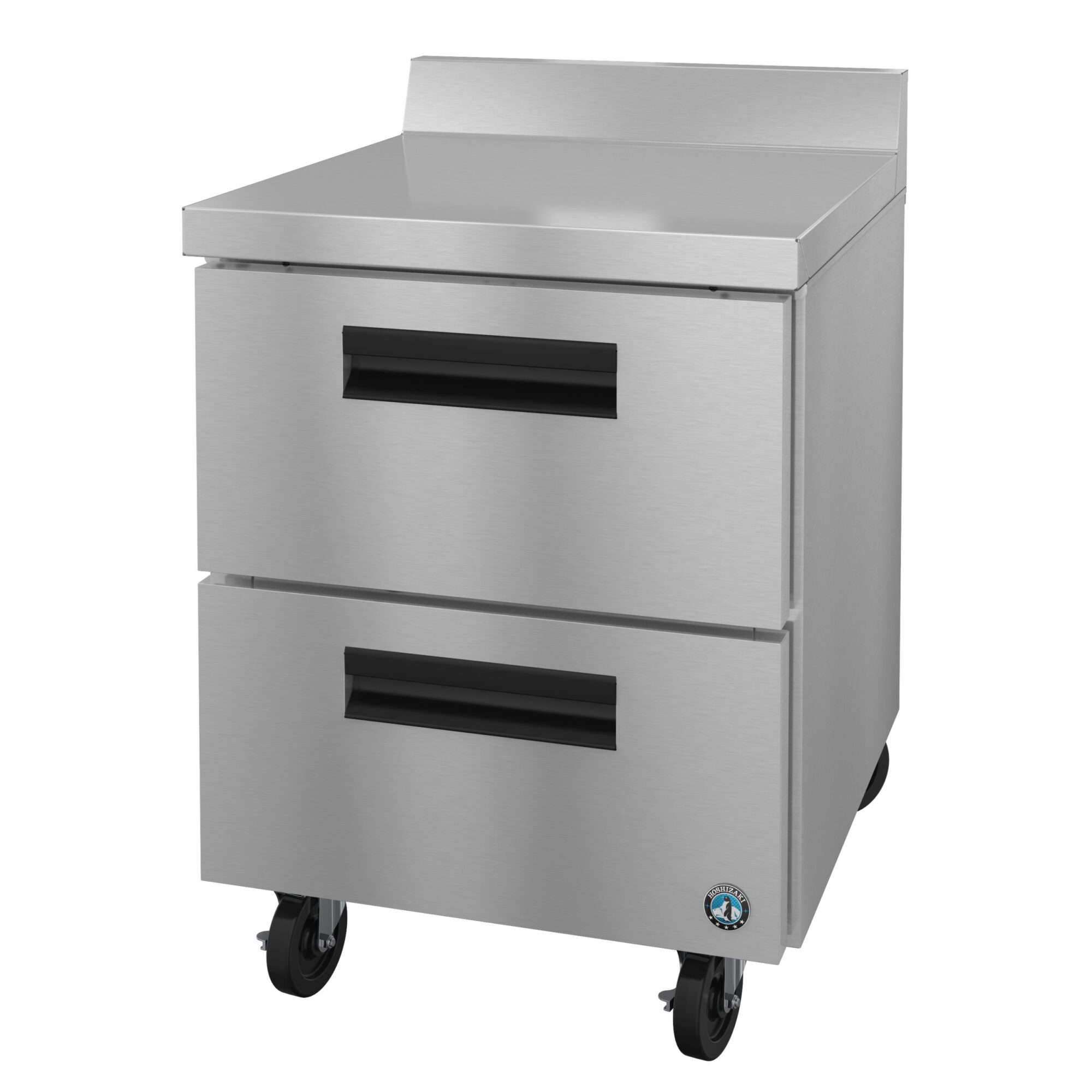

CRMF27-WD Freezer, Single Section Worktop, Stainless Drawers
27″ W X 30″ D X 40″ H
Parts and Service
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 3.9 kwh/day, Amperage: 3.4, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +10°F, , Refrigerant: R-134A
Refrigeration Data
Nominal Compres. of 841 BTU/hr at 1/5 HP, Heat Rejection: 560 BTU/hr
Shipping Weight
176
Storage Specs
Nominal Storage Capacity: 7.2ft3, Interior Storage Capacity: 6.22ft3, Drawer Opening: 22.6″ W x 22.9″ H , Depth with Drawer fully extended: 43.25″ D, Drawers Included: 2
Warranty
Three Years: Parts & Labor warranty on entire machine.
Overview and Features
The CRMF27-WD Commercial Series Worktop Single Section Freezer with Stainless Drawers is an attractive addition in any kitchen. With a Net capacity of 6.22 cubic feet this efficient Worktop Freezer is perfect for tight kitchens.
The CRMF27-WD is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean. The CRMF27-WD also inlcudes Includes 2 stainless steel drawers coated shelves, and comes Standard with (4) 6″ Stem Casters (2 with brakes), each Each drawer accommodates: (1) 12″ x 20″ x 6″ deep pan (pans by others). Includes drawers (-D). The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a Five Years compressor warranty / Three Years parts and labor warranty.
- Discontinued – Replaced by WF27A-D2
- Dimensions: 27″ W x 30″ D x 40″ H
- Net capacity of 6.22 cubic feet
- Nominal Compres. of 841 BTU/hr at 1/5 HP
- Electrical consumption of 3.9 kWh/day at 3.4 Amps, 10 ft long cord with a 5 – 15P NEMA plug
- Drawer slides are constructed of 16 gauge stainless steel with acetal rollers
- Each drawer accommodates: (1) 12″ x 20″ x 6″ deep pan (pans by others)
- Extruded aluminum flush mount door handle
- Magnetic drawer gasket is easily removable for cleaning
- Stainless steel exterior drawer with stainless steel interior
- Insulated with 2″ CFC free, foamed in place polyurethane
- Stainless steel exterior front, sides and top with stainless steel interior
- Engineered to maintain food safe temperatures in 100°F ambient conditions
- R-134a refrigerant
- Automatic defrost
- Enamel coated evaporator coil for extended life
- Includes 2 stainless steel drawers coated shelves
- Drawer frames are formed of 14 gauge stainless steel and securely fastened in the cabinet
- Standard with (4) 6″ Stem Casters (2 with brakes)
- Includes drawers (-D)
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 34″ L x 31.5″ D x 40.5″ H at 176 lbs
- Energy efficient automatic hot gas condensate evaporator
- Five Years compressor warranty, Three Years parts and labor warranty
