CRMF27-LP, Freezer, Single Section Undercounter, Stainless Door / CRMF27-LP, Freezer, Single Section Undercounter, Stainless Door

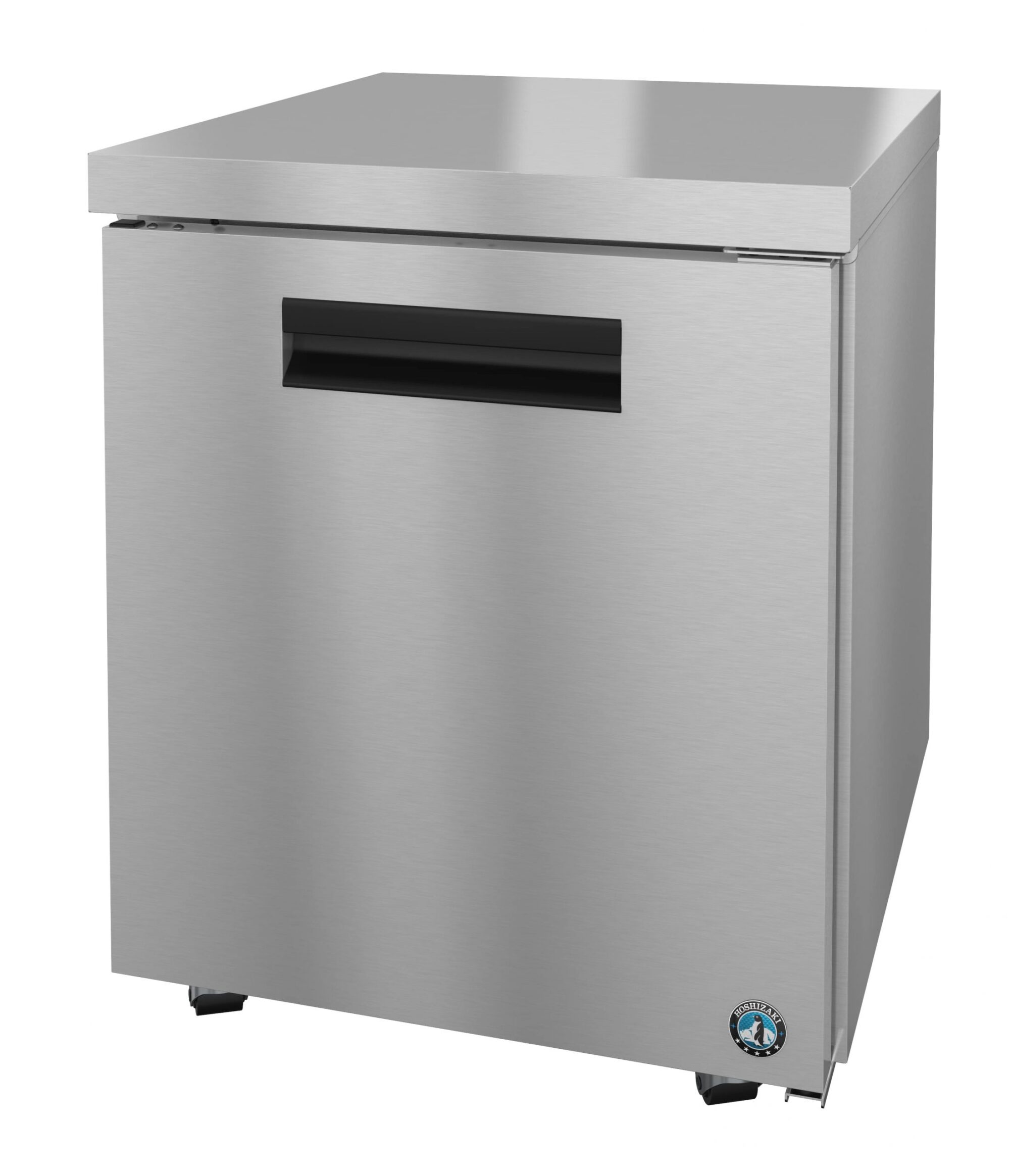

CRMF27-LP Freezer, Single Section Undercounter, Stainless Door

27″ W X 30″ D X 32″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 2.66 kwh/day, Amperage: 3.4, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +10°F, , Refrigerant: R-134A
Refrigeration Data
Nominal Compres. of 841 BTU/hr at 1/5 HP, Heat Rejection: 442 BTU/hr
Shipping Weight
160
Storage Specs
Nominal Storage Capacity: 7.2ft3, Interior Storage Capacity: 6.22ft3, Door Opening: 22.6″ W x 22.9″ H , Depth with Door fully extended: 54.5″ D, Shelves Included: 1
Warranty
Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The CRMF27-LP Commercial Series Undercounter Single Section Freezer with a Low Profile design that is ADA compliant. With a Net capacity of 6.22 cubic feet this efficient Undercounter Freezer is perfect for tight kitchens.

The CRMF27-LP is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean. The CRMF27-LP also Includes 1 epoxy coated wire coated shelf, and comes Standard with (4) 2.25″ Stem Casters (2 with brakes), it features Spring assisted self closing door, with stay open feature (field reversible without kit). Includes 2.25″ Casters (-LP) (ADA compliant). The unit is ETL Safety (US & C) Listed, ETL Sanitation, ADA Compliant, ADA Compliant and includes a Five Years compressor warranty / Three Years parts and labor warranty.

  • Discontinued – Replaced by UF27A-LP
  • Dimensions: 27″ W x 30″ D x 32.3″ H
  • Net capacity of 6.22 cubic feet
  • Nominal Compres. of 841 BTU/hr at 1/5 HP
  • Electrical consumption of 2.66 kWh/day at 3.4 Amps, 10 ft long cord with a 5 – 15P NEMA plug
  • Exclusive “stepped” door design to protect recessed door gasket
  • Spring assisted self closing door, with stay open feature (field reversible without kit)
  • Extruded aluminum flush mount door handle
  • Magnetic door gasket is easily removable for cleaning
  • Stainless steel exterior door with ABS interior liner
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • Stainless steel exterior front, sides and top with stainless steel interior
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R-134a refrigerant
  • Automatic defrost
  • Enamel coated evaporator coil for extended life
  • Includes 1 epoxy coated wire coated shelf
  • Epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
  • Standard with (4) 2.25″ Stem Casters (2 with brakes)
  • Includes 2.25″ Casters (-LP) (ADA compliant)
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 34″ L x 31.5″ D x 36.5″ H at 160 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Five Years compressor warranty, Three Years parts and labor warranty
