CF2S-FGE, Freezer, Two Section Upright, Full Glass Doors with Lock / CF2S-FGE, Freezer, Two Section Upright, Full Glass Doors with Lock

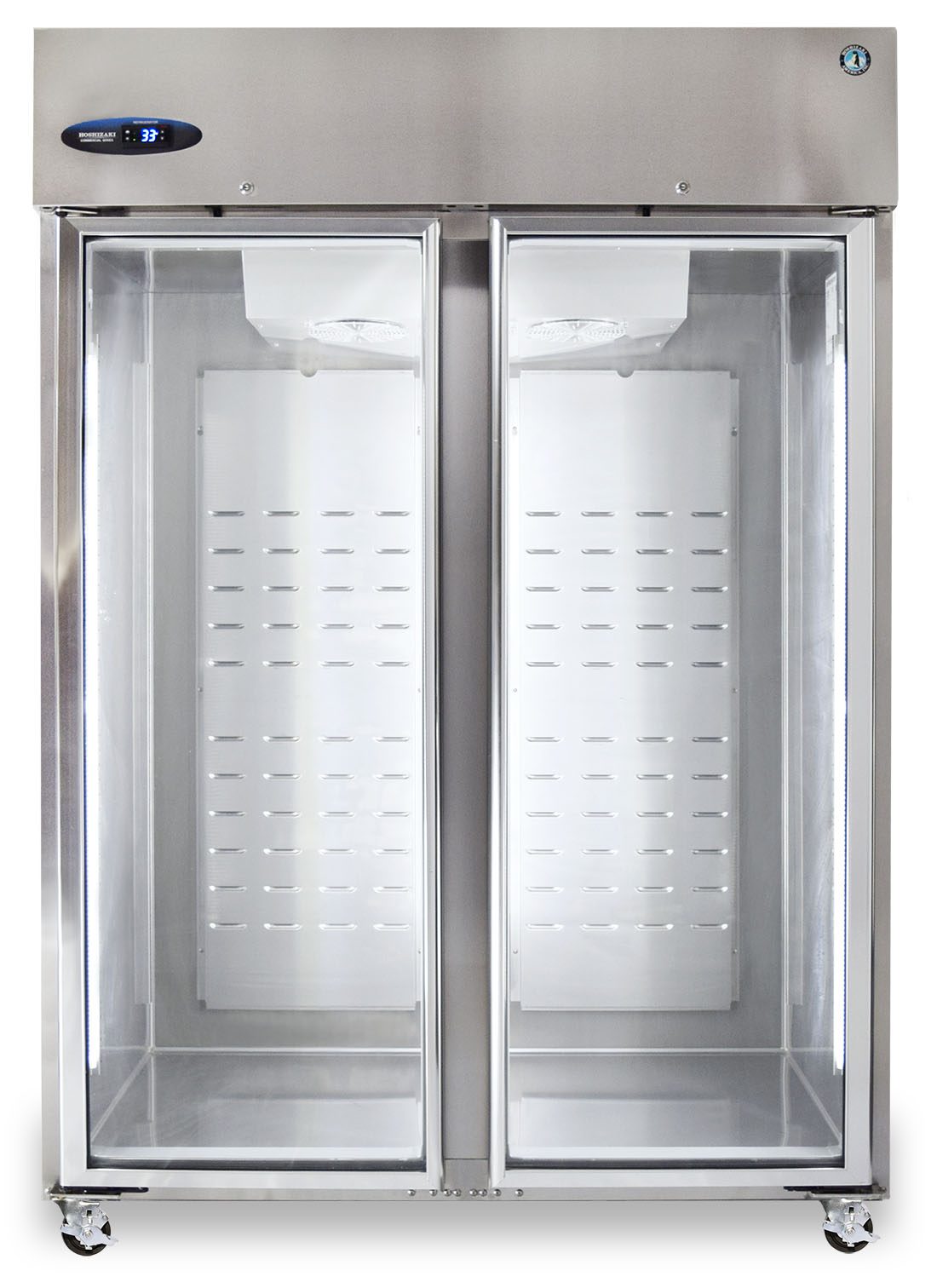

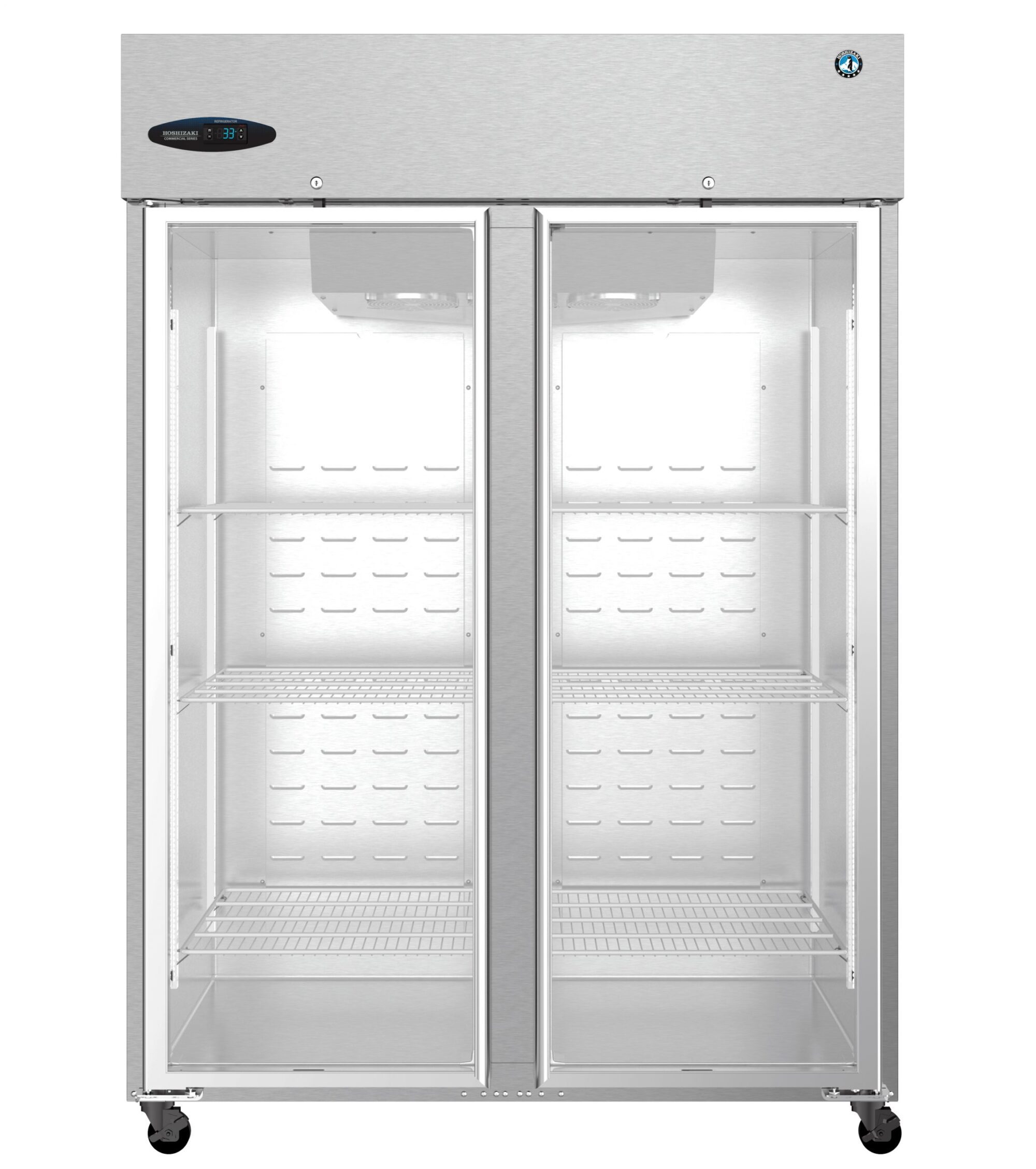

CF2S-FGE Freezer, Two Section Upright, Full Glass Doors with Lock

55″ W X 34″ D X 79″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 14.21 kwh/day, Amperage: 11, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 80°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +12°F, Refrigerant: R-404A
Refrigeration Data
Nominal Compres. of 3000 BTU/hr at 5/8 HP, Heat Rejection: 2122.5 BTU/hr
Shipping Weight
545
Storage Specs
Nominal Storage Capacity: 50.5ft3, Interior Storage Capacity: 47.2ft3, Door Opening: 22″ W x 59.5″ H , Depth with Door fully extended: 57.25″ D, Shelves Included: 6
Warranty
Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The CF2S-FGE Commercial Series Upright Two Section Freezer with a Full Glass Doors and One piece, full door length, chrome door handle is an attractive workhorse for any business. The Electrical consumption of 14.21 kWh/day at 11 Amps, 10 ft long cord with a 5 – 15P NEMA plug. The durable 5/8 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cold air through its unique ‘ducted’ air distribution system, which ensures a steady constant temperature – even when fully loaded!

The durable Stainless steel interior with stainless steel exterior front and sides resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean! The CF2S-FGE Includes 6 epoxy coated wire coated wire shelves, and comes with Factory installed (4) 4″ Stem Casters (2 with brakes), it features Spring assisted self closing lockable doors with stay open feature (field reversible with optional kit). Optional kits: Additional epoxy or stainless steel shelves, universal tray/pan slides, door reversal kit, air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a Five Years compressor warranty / Three Years parts and labor warranty.

  • Discontinued – Replaced by F2A-FG
  • Dimensions: 55″ W x 34.75″ D x 79.75″ H
  • Net capacity of 47.2 cubic feet
  • Nominal Compres. of 3000 BTU/hr at 5/8 HP
  • Electrical consumption of 14.21 kWh/day at 11 Amps, 10 ft long cord with a 5 – 15P NEMA plug
  • Sturdy 8 gauge stainless steel hinge plate with welded hinge pin
  • Spring assisted self closing lockable doors with stay open feature (field reversible with optional kit)
  • One piece, full door length, chrome door handle
  • Unique “ducted” air distribution system
  • Full glass doors are energy efficient multi pane, argon filled, and come standard with locks
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Stainless steel interior with stainless steel exterior front and sides
  • Solid state digital controller with temperature alarms and LED display (°F or °C)
  • R-404a refrigerant
  • Refrigerant flow is controlled with a thermostatic expansion valve (TXV)
  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
  • Includes 6 epoxy coated wire coated wire shelves
  • Epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports
  • Factory installed (4) 4″ Stem Casters (2 with brakes)
  • Optional kits: Additional epoxy or stainless steel shelves, universal tray/pan slides, door reversal kit, air filter
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 58″ L x 37.5″ D x 83″ H at 545 lbs
  • Energy efficient non-electric evaporation system
  • Five Years compressor warranty, Three Years parts and labor warranty
