WR48A-D4, Refrigerator, Two Section Worktop, Stainless Drawers / WR48A-D4, Refrigerator, Two Section Worktop, Stainless Drawers

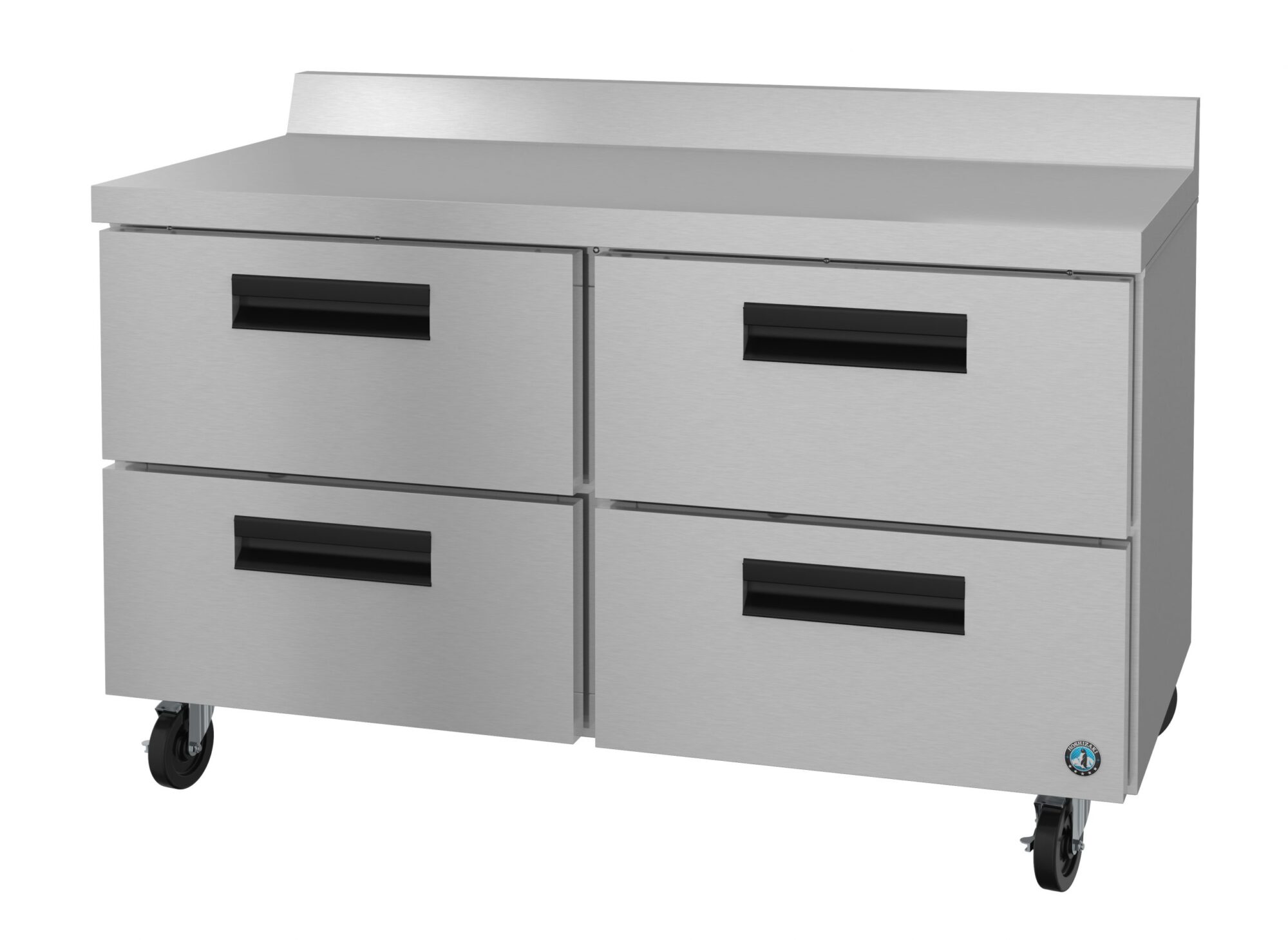

WR48A-D4 Refrigerator, Two Section Worktop, Stainless Drawers

48″ W X 30″ D X 40″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.4 kwh/day, Amperage: 2.6, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R290
Refrigeration Data
Nominal Compres. of 928 BTU/hr at 1/6 HP, Heat Rejection: 203 BTU/hr
Shipping Weight
263
Storage Specs
Nominal storage capacity: 13.66 ft3, Interior storage capacity: 12 ft3, Drawer opening: 19.5″ W x 23″ H, Depth with drawer fully extended: 50.25″ D, Drawers included: 4
Warranty
Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The WR48A-D4 Steelheart Series Worktop two section refrigerator with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 12 cubic feet this efficient worktop refrigerator and front air flow design is perfect for hot/tight kitchens. The WR48A-D4 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

The WR48A-D4 also includes Drawers capacity: Top: (1) 1/2 size and (1) 1/3 size pans, 4″ deep. Bottom: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others), (4) 6″ stem casters (2 with brakes) are standard, plus a the drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers. Electrical consumption of 1.4 kWh/day at 2.6 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Includes drawers (-D), Each top drawer: (1) 1/2 size and (3) 1/9 size pans, 4″ deep. Each bottom drawer: (1) 1/2 size and (1) 1/3 size, 6″ deep pans. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a five years compressor warranty / three years parts and labor warranty.

[fusion_button link=”https://hoshizakiamerica.com/product/WR48B-D4/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]REPLACED BY WR48B-D4[/fusion_button]

  • Dimensions: 48″ W x 30″ D x 40″ H
  • Net capacity of 12 cubic feet
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • The drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers
  • Extruded aluminum flush mount drawer handle
  • (4) stainless steel drawers, fully welded construction and securely fastened in the cabinet
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • Drawers capacity: Top: (1) 1/2 size and (1) 1/3 size pans, 4″ deep. Bottom: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others)
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R290 refrigerant
  • (4) 6″ Stem Casters (2 with brakes) are standard
  • Includes drawers (-D), Each top drawer: (1) 1/2 size and (3) 1/9 size pans, 4″ deep. Each bottom drawer: (1) 1/2 size and (1) 1/3 size, 6″ deep pans
  • Nominal Compres. of 928 BTU/hr at 1/6 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 52.5″ L x 34″ D x 40.5″ H at 263 lbs
  • Automatic off-cycle defrost
  • Five Years compressor warranty, Three Years parts and labor warranty
