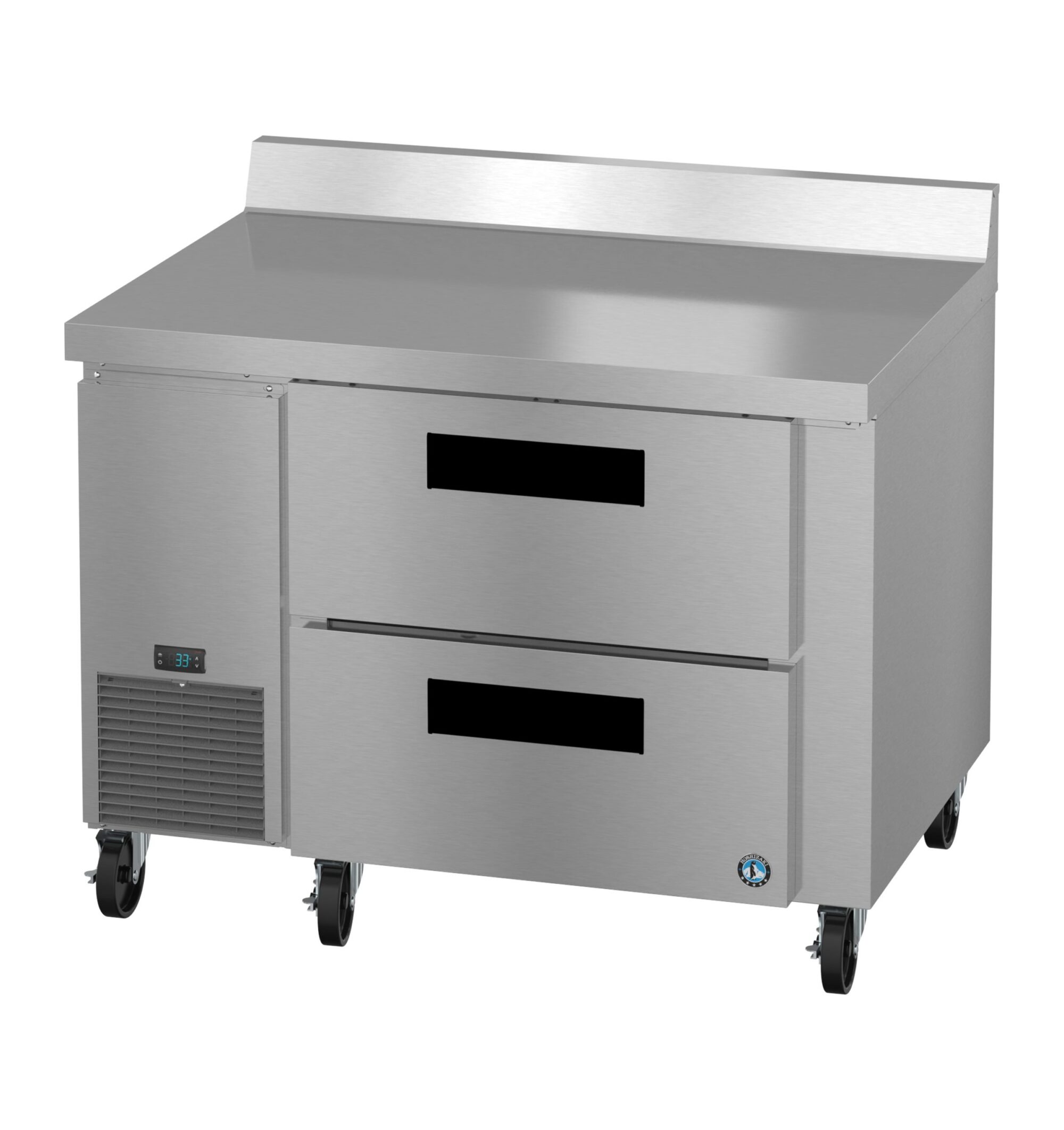

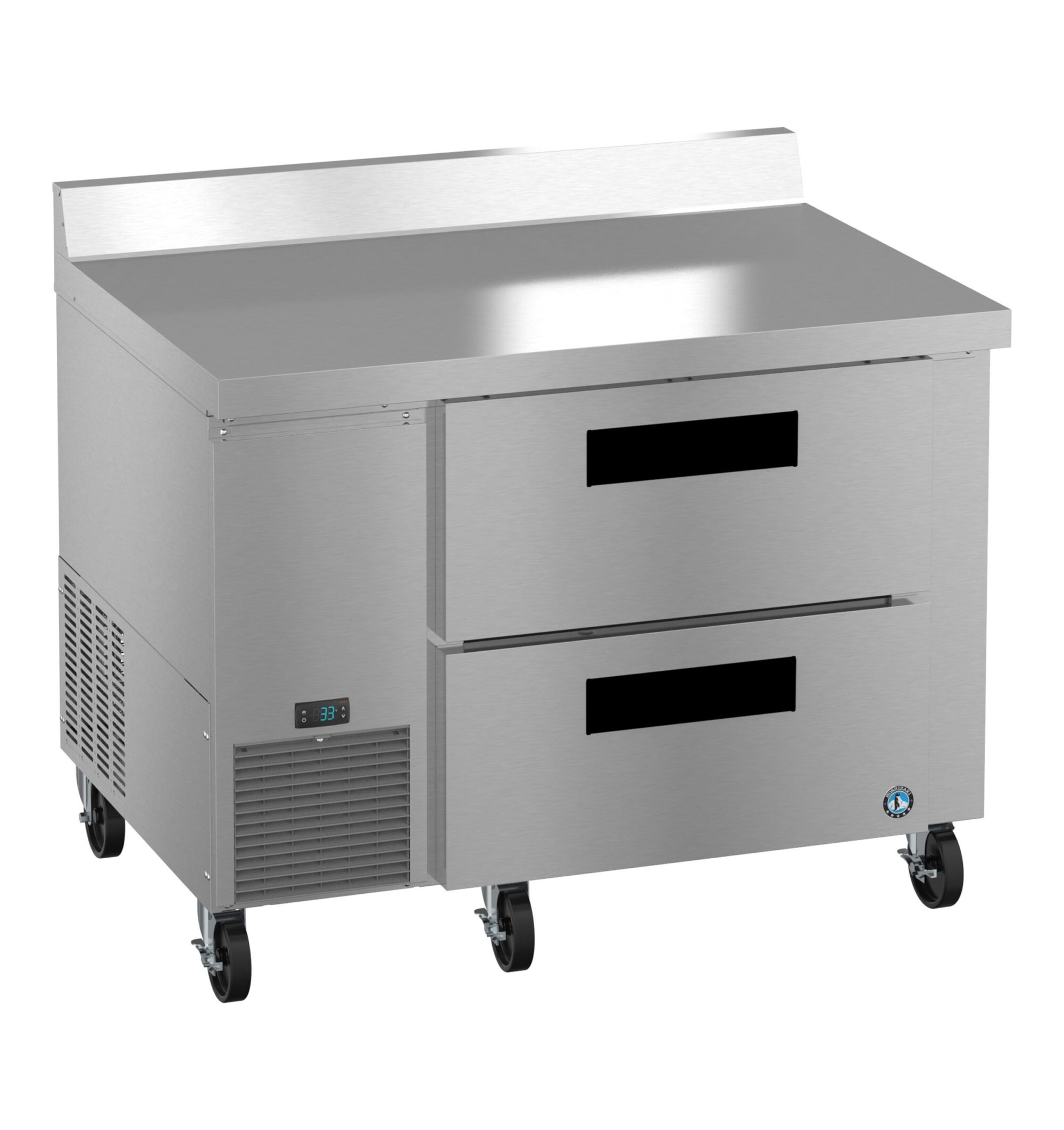

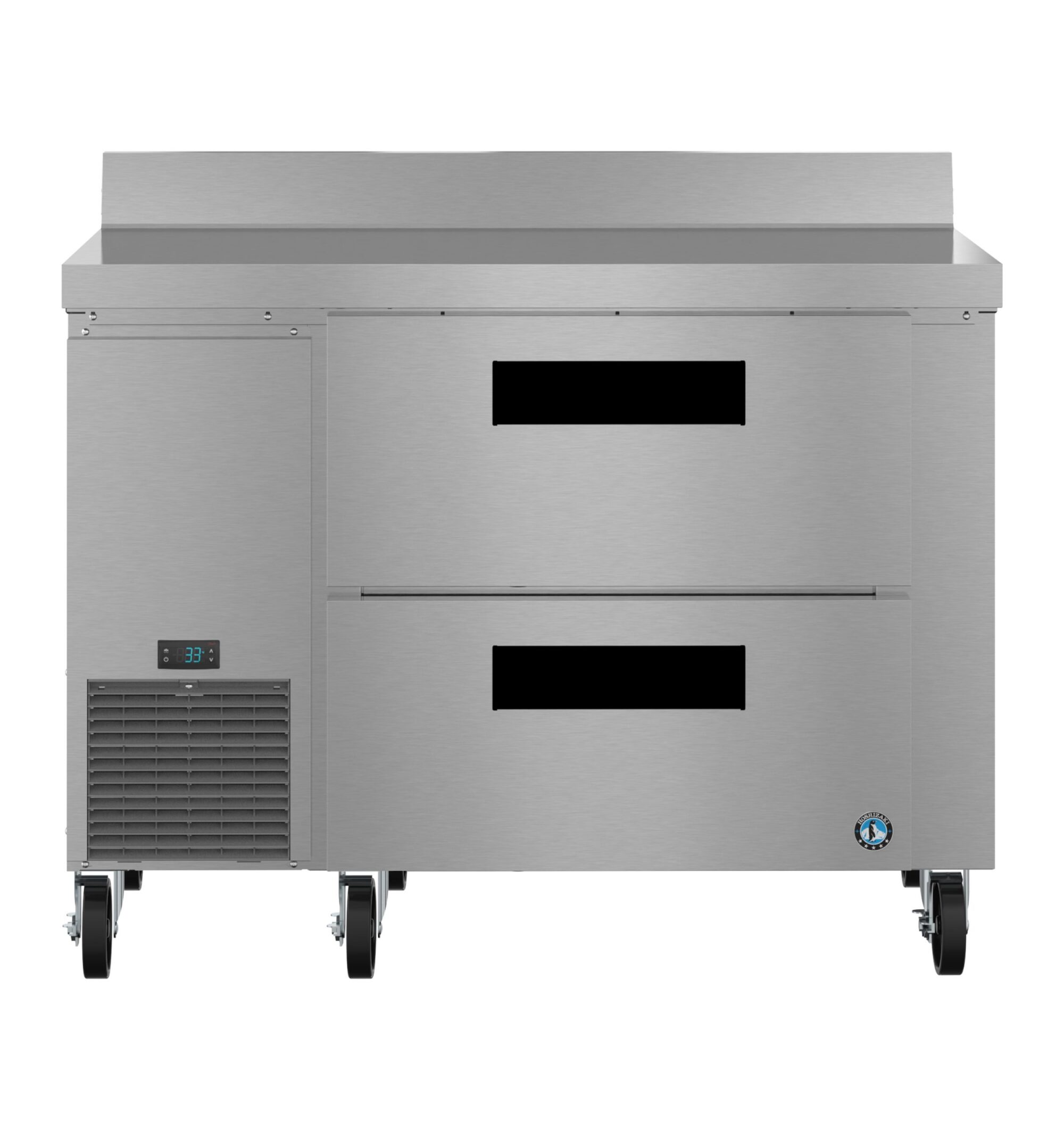

WLR46B-D2 Side Mount Refrigerator, Single Section Worktop, Stainless Drawers

46″ W X 33″ D X 40″ H
Volume
11.78
Electrical
115v/60/1
Sections
1
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 0.92 kwh/day, Amperage: 3, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 28 – 45°F, Refrigerant: R290
Refrigeration Data
Nominal Compres. of 1354 BTU/hr at 1/5 HP, Heat Rejection: 333 BTU/hr
Shipping Weight
328
Storage Specs
Nominal storage capacity: 11.78 ft3, Interior storage capacity: 11.78 ft3, Drawer opening: 25.5″ W x 9″ H, Depth with drawer fully extended: 57.5″ D, Drawers included: 2
Warranty
Five Years: Labor warranty on entire machine. Seven Years: Parts warranty on Compressor.

Overview and Features

The WLR46B-D2 Steelheart Series Worktop single section side mount refrigerator with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 11.78 cubic feet this efficient worktop side mount refrigerator and front air flow design is perfect for hot/tight kitchens. The WLR46B-D2 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

The WLR46B-D2 also includes Drawers capacity: (2) 12″ x 20″ full size, 6″ deep pans (pans by others), (4) 6″ stem casters (2 with brakes) are standard, plus a the drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers. Electrical consumption of 0.92 kWh/day at 3 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2″ or 4″ casters, Overshelves (single or double), Stainless steel back, Drawer divider bars (vertical or horizontal), Drawer locks. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty (visit hoshizakiamerica.com/support/warranty for eligibility information).

  • Dimensions: 46″ W x 33.25″ D x 40.25″ H
  • Net capacity of 11.78 cubic feet
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • The drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers
  • Extruded aluminum flush mount drawer handles
  • (2) stainless steel drawers, fully welded construction and securely fastened in the cabinet
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • Drawers capacity: (2) 12″ x 20″ full size, 6″ deep pans (pans by others)
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R290 refrigerant
  • (4) 6″ Stem Casters (2 with brakes) are standard
  • Optional kits: 2″ or 4″ casters, Overshelves (single or double), Stainless steel back, Drawer divider bars (vertical or horizontal), Drawer locks
  • Nominal Compres. of 1354 BTU/hr at 1/5 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 48.75″ L x 34.75″ D x 40″ H at 328 lbs
  • Six Years parts warranty, Five Years labor warranty, Seven Years compressor warranty (Visit hoshizakiamerica.com/support/warranty for eligibility information)
