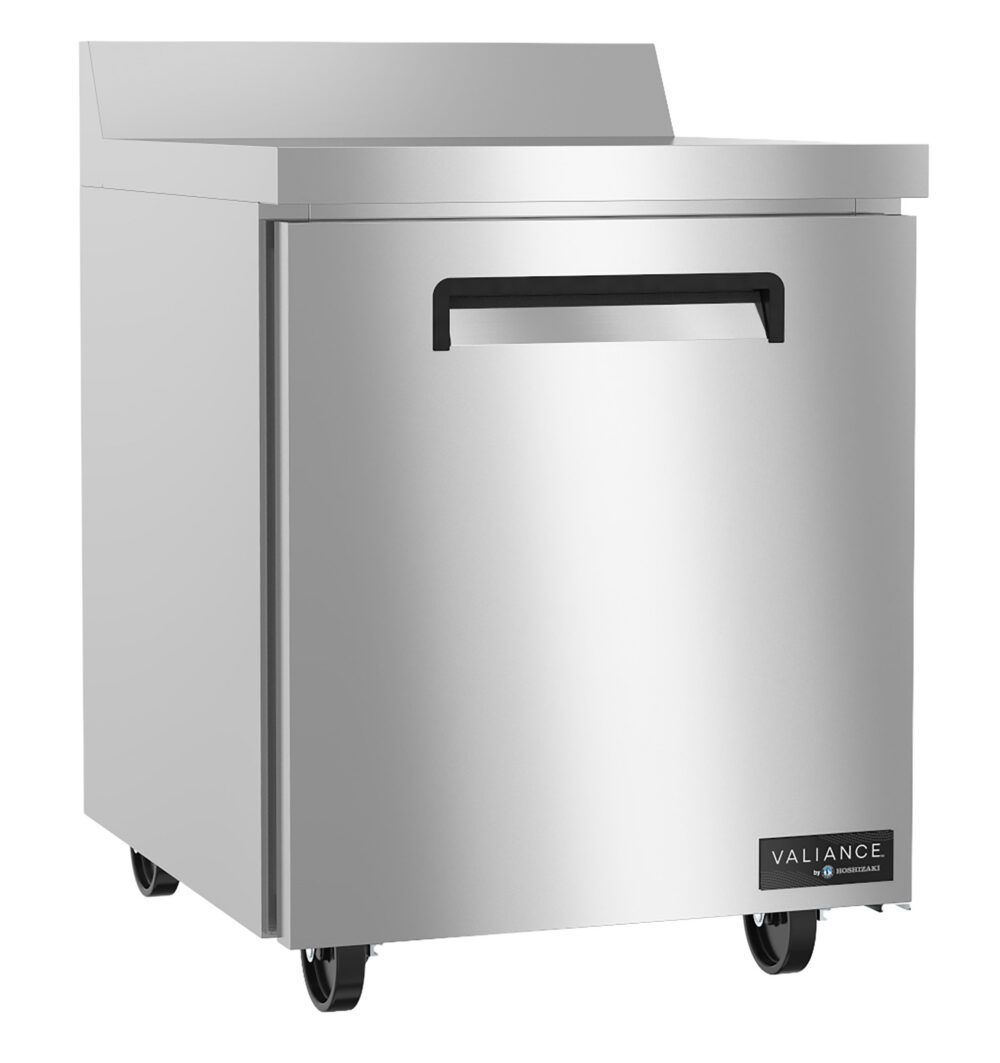

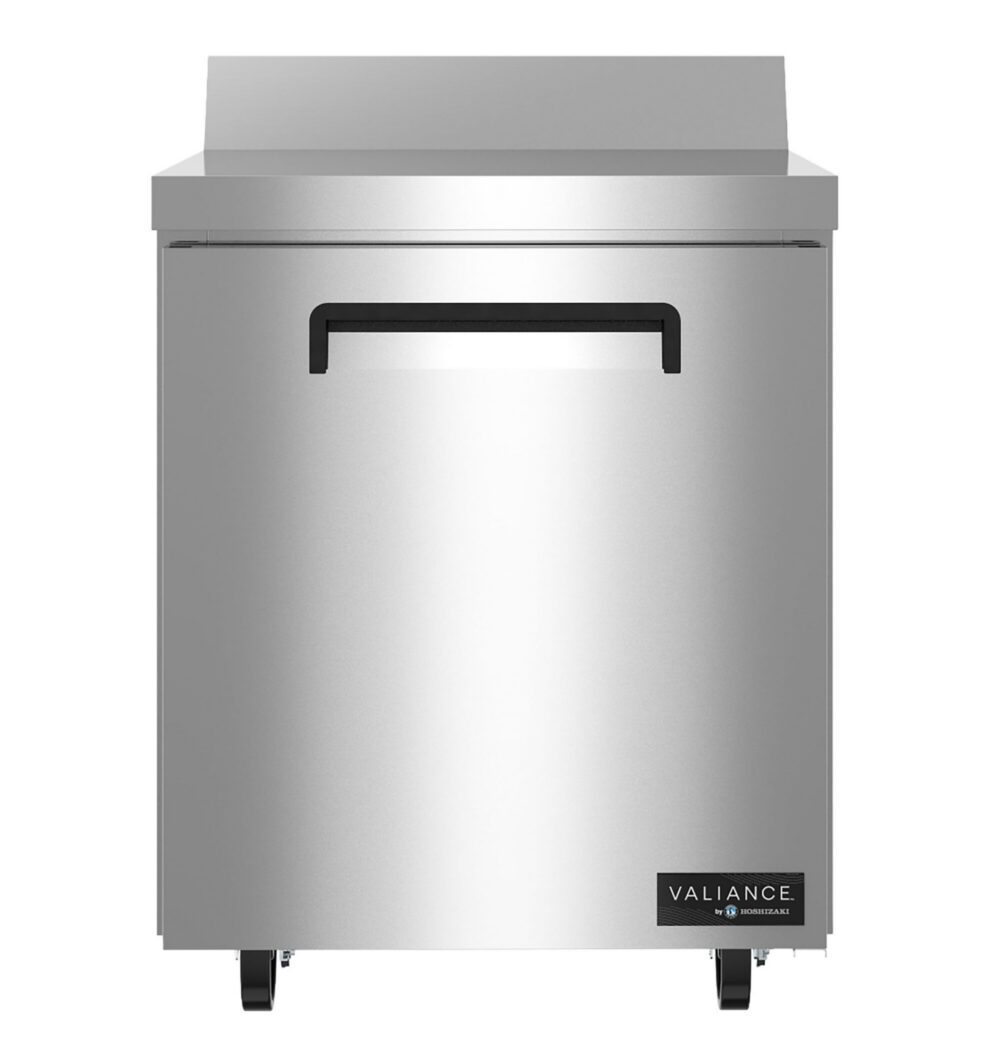

VWF27A Freezer, Single Section Worktop, Stainless Door
27″ W X 30″ D X 40.75″ H
Volume
6.33
Electrical
115v/60/1
Sections
1
Parts and Service
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 9 ft. cord and plug, Energy Consumption: 1.92 kwh/day, Amperage: 1.2, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 115 – 127V, Control Setpoint Range: -5 – 5°F, Refrigerant: R290 (1.9 oz.)
Refrigeration Data
Nominal Compres. of 993 BTU/hr at 1/5 HP
Shipping Weight
200 lbs.
Storage Specs
Interior storage capacity: 6.33 ft3, Door opening: 22.6″ W x 22.75″ H, Depth with door fully extended: 55.75″ D, Shelves included: 1
Warranty
3 Years: Labor, 4 Years: Parts, 5 Years: Compressor
Overview and Features
The VWF27A Valiance™ Series worktop freezer combines dependable frozen storage with a durable stainless steel work surface for added prep flexibility. Designed for commercial kitchens, it maintains food safe temperatures in 100°F ambient conditions for reliable performance throughout demanding service. With 6.33 cubic feet of net capacity and a front airflow design, this unit fits easily into a variety of kitchen layouts. Durable stainless steel exterior construction helps protect against corrosion while remaining easy to clean, providing practical frozen storage and workspace in one streamlined unit.
- Dimensions: 27″ W x 30″ D x 40.75″ H
- Net capacity of 6.33 cubic feet
- Engineered to maintain food safe temperatures in 100°F ambient conditions
- Stainless steel exterior; Stainless steel floor with aluminum interior sides, rear, and top
- Front breathing airflow design
- Field reversible, spring assisted self-closing door with stay open feature (no kit req’d)
- Includes (1) heavy duty grey epoxy coated wire shelf adjustable in 1/2″ increments on anodized aluminum supports
- Environmentally friendly R290 refrigerant
- (4) 6″ Stem Casters (2 with brakes) are standard
