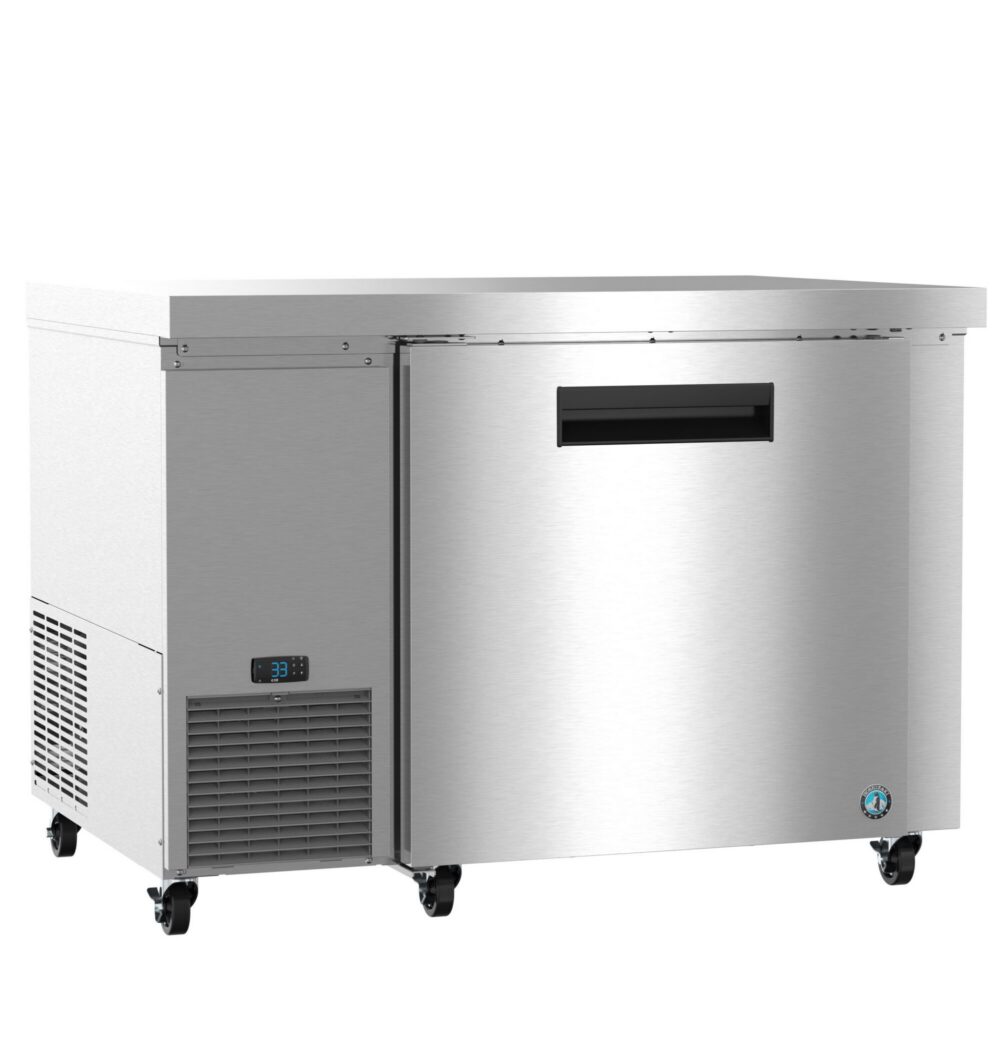

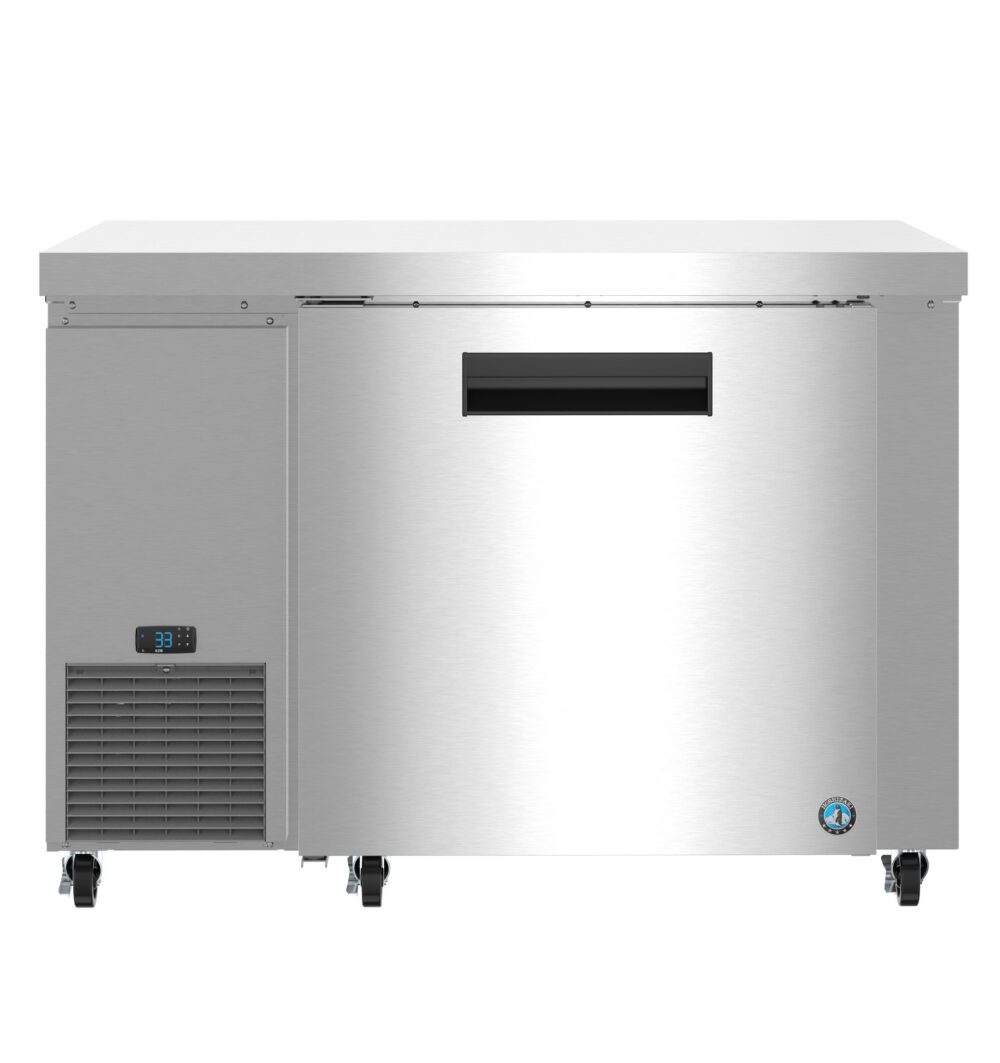

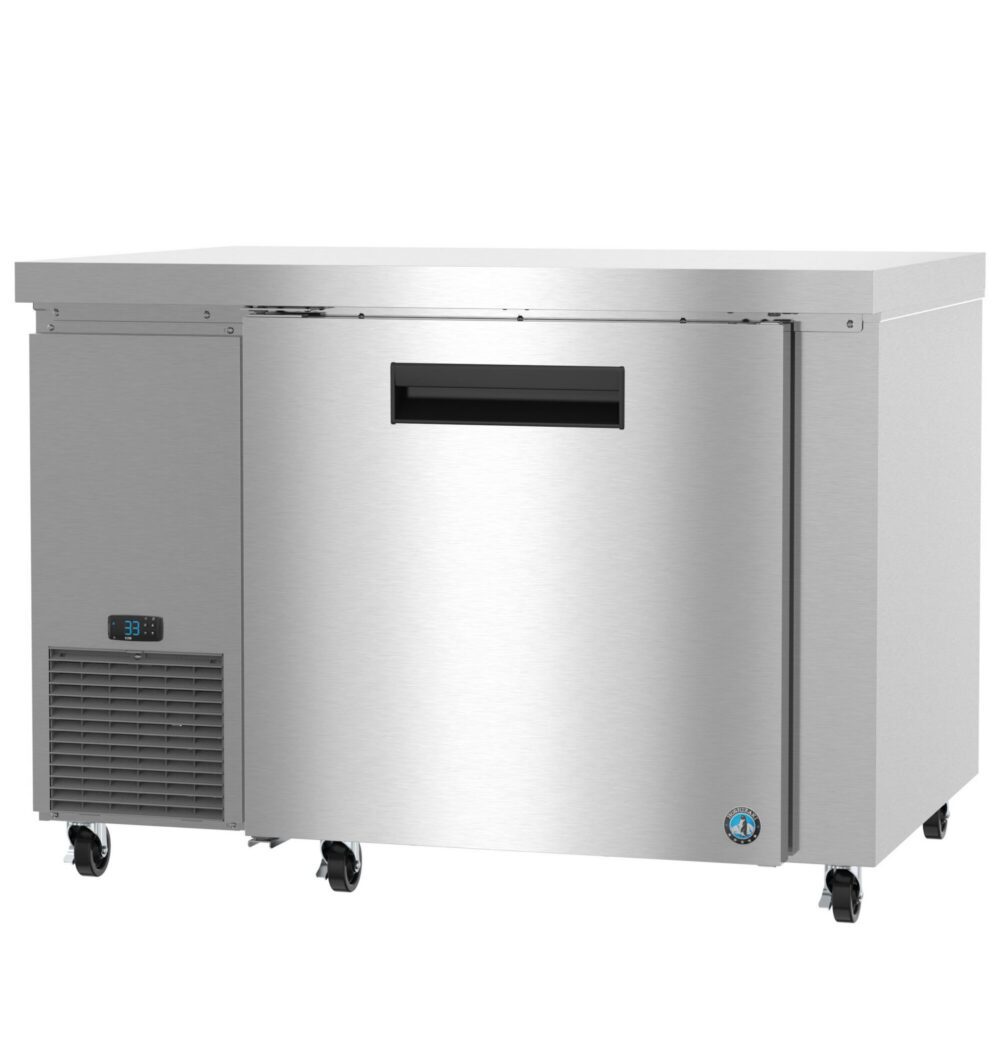

ULR46B-L Side Mount Refrigerator, Single Section Undercounter, Stainless Door – Left Hinge
46″ W X 33.25″ D X 33.875″ H
Volume
11.78
Electrical
115v/60/1
Sections
1
Parts and Service
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 0.92 kwh/day, Amperage: 3, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 28 – 45°F, Refrigerant: R290 (2.2 oz.)
Refrigeration Data
Nominal Compres. of 1354 BTU/hr at 1/5 HP, Heat Rejection: 333 BTU/hr
Shipping Weight
263 lbs.
Storage Specs
Interior storage capacity: 11.78 ft3, Door opening: 25.5″ W x 23″ H, Depth with door fully extended: 60.5″ D, Shelves included: 2
Warranty
7 Years: Labor, 7 Years: Parts, 7 Years: Compressor
Overview and Features
The ULR46B-L Steelheart® Series single section side mount undercounter refrigerator provides dependable refrigerated storage in a compact footprint. Designed for commercial kitchens, it maintains food safe temperatures in 100°F ambient conditions for reliable performance during demanding service. With 11.78 cubic feet of net capacity and a front airflow design, this side mount unit fits easily into a variety of kitchen layouts. Durable stainless steel construction helps protect against corrosion while remaining easy to clean, and a left-hinged door configuration offers added installation flexibility.
- Dimensions: 46″ W x 33.25″ D x 33.875″ H
- Interior capacity of 11.78 cubic feet
- Innovative air distribution system distributes air evenly to maintain product temperature
- Engineered to maintain NSF-7 temperatures in 100°F ambient conditions
- Front-breathing air flow design
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Insulated with 2” of CFC-free, foamed in place polyurethane
- Field reversible, self-closing door with 90° stay-open feature
- Extruded aluminum flush mount door handle
- Magnetic door gasket is easily removable for cleaning
- Hot gas condensate removal
- E-coated evaporator coil for extended life
- Includes (2) epoxy-coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
- Environmentally friendly R290 hydrocarbon refrigerant
- (6) 4″ stem casters (3 with brakes) are standard
