Refrigeration / Steelheart® Reach-Ins / Roll-Ins & Roll-Thrus / RN2A-FS, Refrigerator, Two Section Roll-In Upright, Full Stainless Doors with Lock

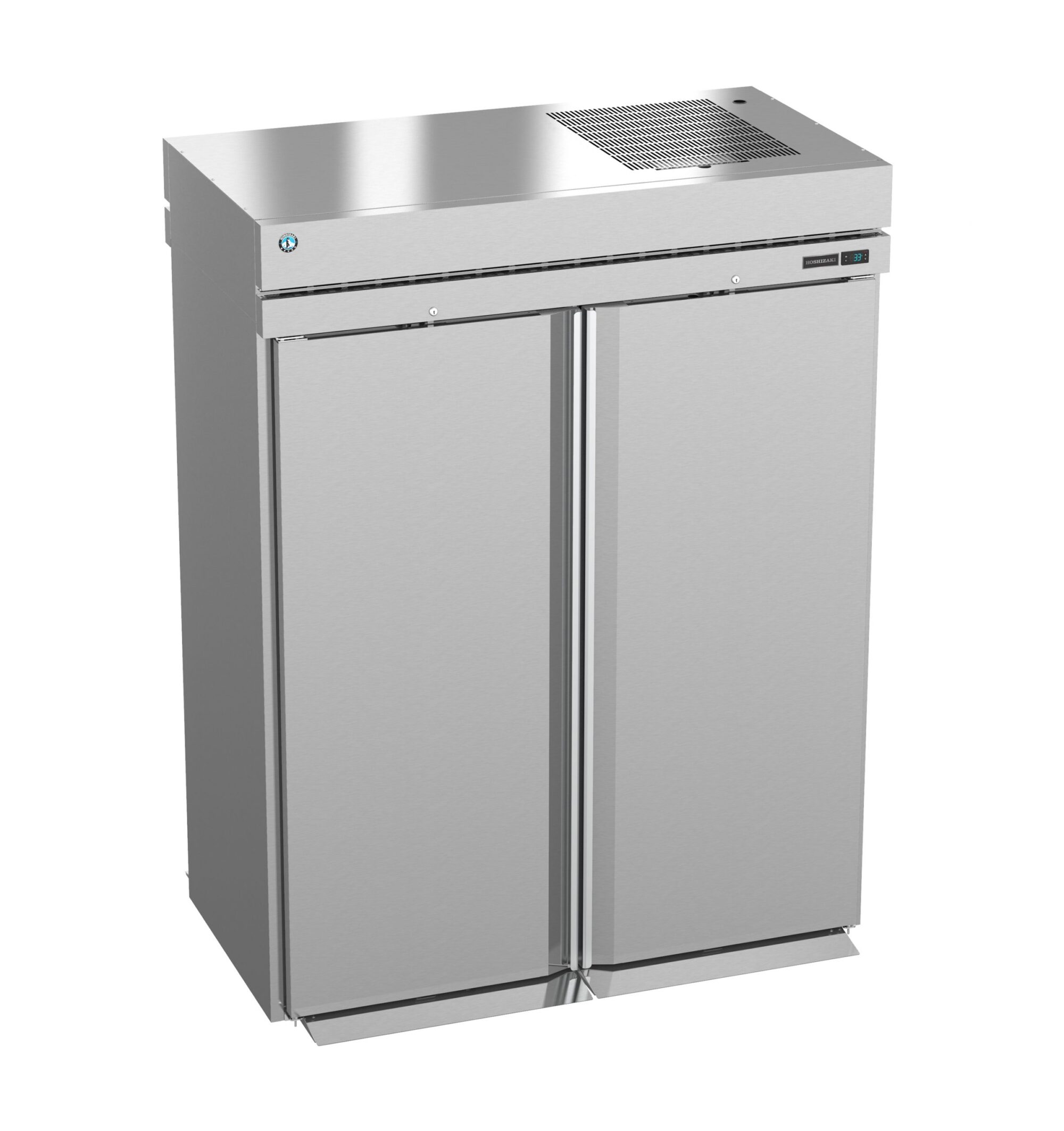

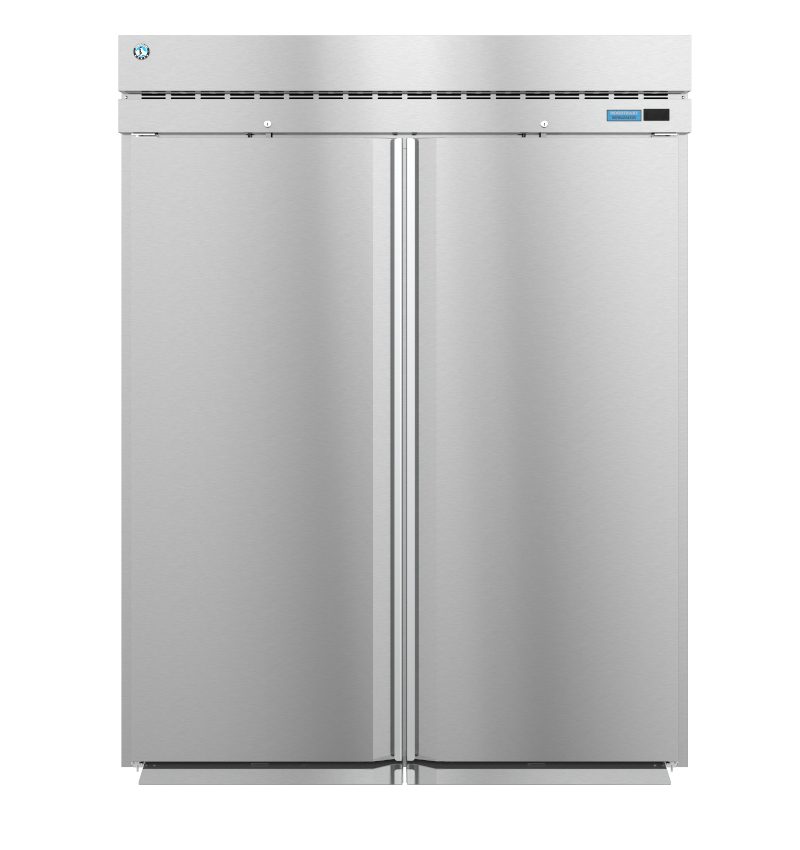

RN2A-FS Refrigerator, Two Section Roll-In Upright, Full Stainless Doors with Lock

68″ W X 34″ D X 87″ H
Volume
78.35
Electrical
115v/60/1
Sections
2
Request a Quote Find a Distributor
Parts and Service
Downloads
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 5.06 kwh/day, Amperage: 8.2, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 46 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R290
Refrigeration Data
Nominal Compres. of 3730 BTU/hr at 1 HP, Heat Rejection: 1376 BTU/hr
Shipping Weight
676
Storage Specs
Nominal Storage Capacity: 78.35ft3, Interior Storage Capacity: 78.35ft3, Door Opening: 29.25″ W x 72.75″ H , Depth with Door fully extended: 65.25″ D, Shelves Included: 2
Warranty
Five Years: Labor warranty on entire machine. Seven Years: Parts warranty on Compressor.

Overview and Features

The RN2A-FS Steelheart Series Roll-In two section refrigerator with full stainless doors is a space saving workhorse. Stainless steel ramp, stainless steel interior rack guides, and insulated stainless steel floor. With a net capacity of 78.35 cubic feet this efficient roll-in refrigerator and front air flow design is perfect for hot/tight kitchens. The RN2A-FS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

The RN2A-FS also includes Interior LED light bar is mounted horizontally on the ceiling, standard with 4″ ramps, plus a sturdy 8 gauge stainless steel door hinges with welded pins are spring assisted self-closing and include a stay open feature. Electrical consumption of 5.06 kWh/day at 8.2 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Unique “ducted” air distribution system. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty (visit hoshizakiamerica.com/support/warranty for eligibility information).

  • Dimensions: 68″ W x 34.5″ D x 87.5″ H
  • Net capacity of 78.35 cubic feet
  • Exclusive “stepped” door design to protect recessed door gasket
  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
  • Stainless steel interior and exterior
  • Sturdy 8 gauge stainless steel door hinges with welded pins are spring assisted self-closing and include a stay open feature
  • One piece, full door length, extruded aluminum flush mount door handle
  • Energy efficient thermostatic expansion valve self contained refrigeration system
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Interior LED light bar is mounted horizontally on the ceiling
  • Stainless steel ramp, stainless steel interior rack guides, and insulated stainless steel floor
  • R290 refrigerant
  • Standard with 4″ ramps
  • Unique “ducted” air distribution system
  • Nominal Compres. of 3730 BTU/hr at 1 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 72″ L x 40.5″ D x 93.75″ H at 676 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Six Years parts warranty, Five Years labor warranty, Seven Years compressor warranty (Visit hoshizakiamerica.com/support/warranty for eligibility information)
