RFH2-SSB, Refrigerator and Freezer, Two Section Dual Temp Upright, Full Stainless Doors with Lock / RFH2-SSB, Refrigerator and Freezer, Two Section Dual Temp Upright, Full Stainless Doors with Lock

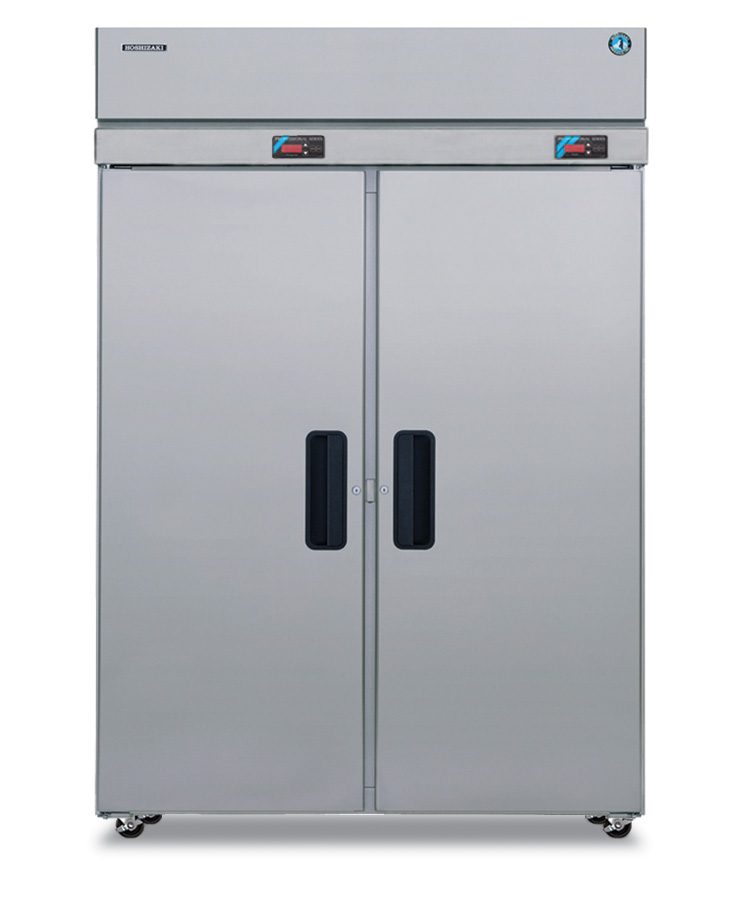

RFH2-SSB Refrigerator and Freezer, Two Section Dual Temp Upright, Full Stainless Doors with Lock

55″ W X 33″ D X 82″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: Hard-Wired Junction Box NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 12.9 kwh/day, Amperage: 17, Max Fuse/HACR Breaker: 30 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 36 – 50°F,-10 – +25°F, , Refrigerant: R-134A
Refrigeration Data
Nominal Compres. of 1490 BTU/hr at 1/5 HP refrigerator and 2671 BTU/hr at 2/3HP freezer, Heat Rejection: 2580 BTU/hr
Shipping Weight
625
Storage Specs
Nominal Storage Capacity: 22.3ft3, Interior Storage Capacity: 22.3ft3, Door Opening: 21.75″ W x 59.25″ H , Depth with Door fully extended: 58.5″ D, Shelves Included: 6
Warranty
Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The RFH2-SSB Professional Series Dual Temp Two Section Refrigerator and Freezer with a Full Stainless Doors and Flush mount door handles is perfect for any professional. The reliable 1/5 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cool air, ensuring a steady constant temperature. The RFH2-SSB frame is composed of stainless steel, a material that resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The RFH2-SSB Includes 6 epoxy coated wire coated shelves, and comes Standard with (4) 4″ HD Casters (2 with brakes), it features All metal torsion spring hinge design with stay open feature (field reversible with optional kit). The unit is NSF and includes a Five Years compressor warranty / Three Years parts and labor warranty.

[fusion_button link=”https://hoshizakiamerica.com/product/REPLACED BY DT2A-HS/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]REPLACED BY DT2A-HS[/fusion_button]

  • Dimensions: 55″ W x 33.6″ D x 82.5″ H
  • Net capacity of 22.3 cubic feet refrigerator, 22.3 cubic feet freezer
  • Nominal Compres. of 1490 BTU/hr at 1/5 HP refrigerator and 2671 BTU/hr at 2/3HP freezer
  • Electrical consumption of 12.9 kWh/day at 17 Amps, Hard-Wired Junction Box
  • Exclusive “stepped” door design to protect recessed door gasket
  • All metal torsion spring hinge design with stay open feature (field reversible with optional kit)
  • Flush mount door handles
  • Magnetic door gasket is easily removable for cleaning
  • Energy efficient thermostatic expansion valve self contained refrigeration system
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Stainless steel interior and exterior
  • EverCheck digital control system with audio and visual alarms
  • R-134a refrigerant – Refrigerator, R-404A refrigerant – Freezer
  • Dual door frame heaters with energy saving on/off switch
  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
  • Includes 6 epoxy coated wire coated shelves
  • Epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports
  • Standard with (4) 4″ HD Casters (2 with brakes)
  • Unique “ducted” air distribution system
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 59″ L x 38″ D x 85″ H at 625 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Five Years compressor warranty, Three Years parts and labor warranty
