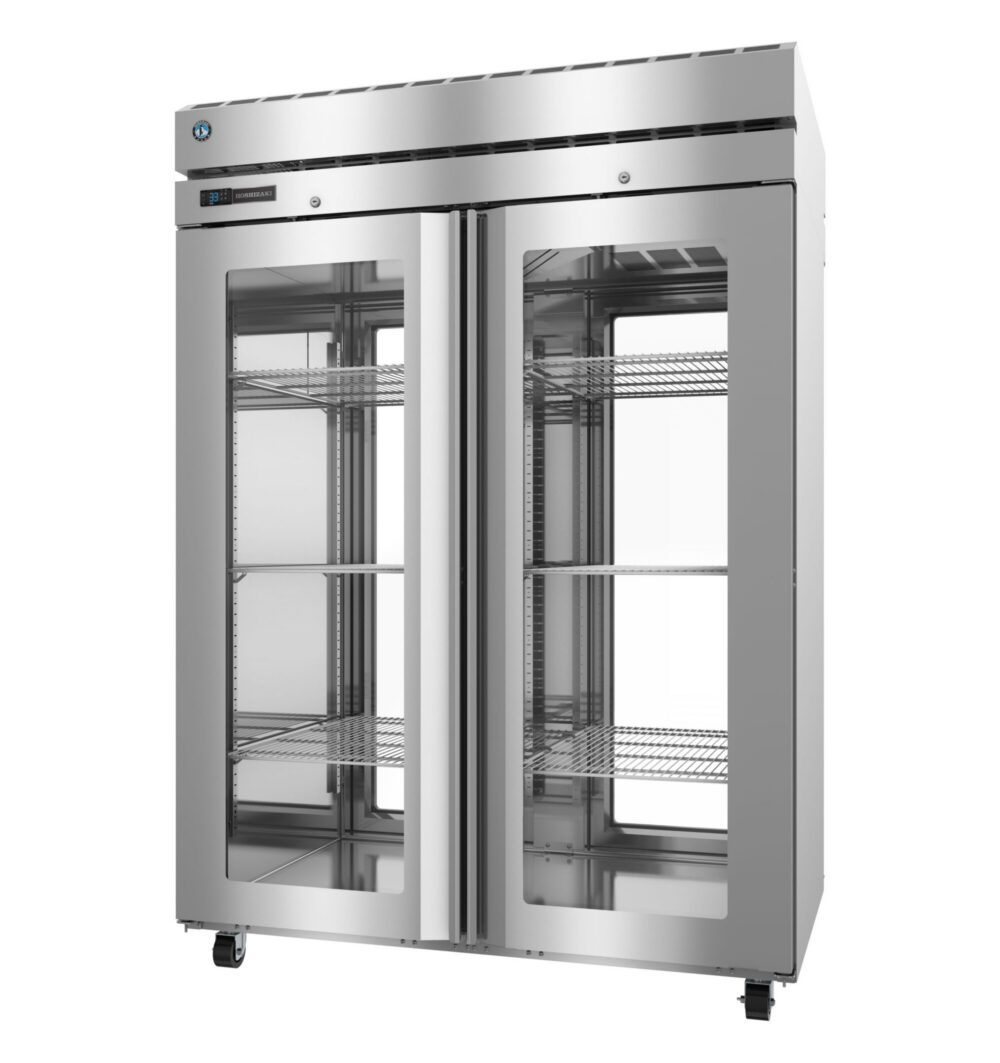

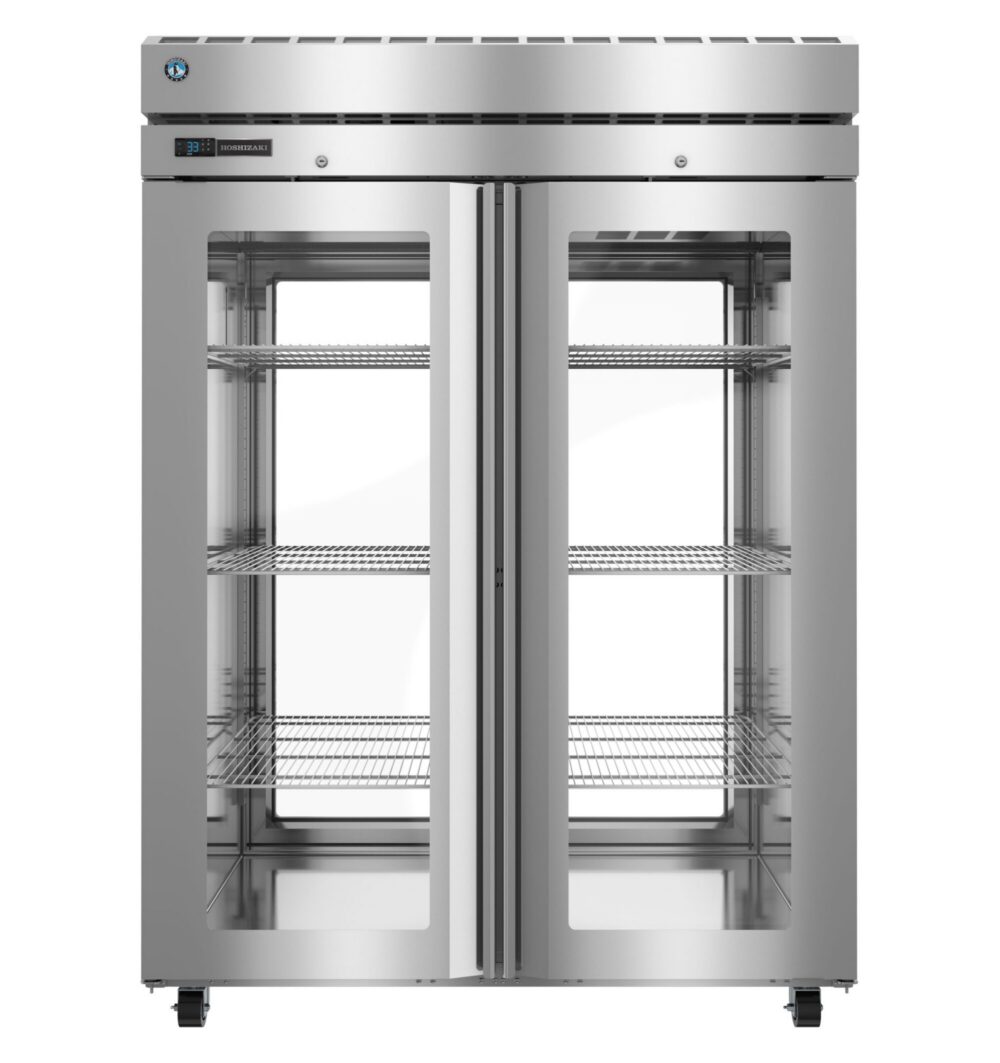

PT2A-FGE-FGE Refrigerator, Two Section Pass-Thru Reach-In, Full Glass Doors with Locks
55″ W X 35.75″ D X 79.5″ H
Volume
52.5
Electrical
115v/60/1
Sections
2
Parts and Service
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 6 kwh/day, Amperage: 8, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 31 – 52°F, Refrigerant: R290 (5.3 oz.)
Refrigeration Data
Nominal Compres. of 1545 BTU/hr at 1/2 HP, Heat Rejection: 1429 BTU/hr
Shipping Weight
681 lbs.
Storage Specs
Interior storage capacity: 52.5 ft3, Door opening: 21.75″ W (per door) x 59.25″ H, Depth with both doors fully extended: 87.25″ D, Shelves included: 6
Warranty
7 Years: Labor, 7 Years: Parts, 7 Years: Compressor
Overview and Features
The PT2A-FGE-FGE Steelheart® Series two-section glass-door pass-thru refrigerator combines dependable temperature performance with convenient dual-sided access to support efficient kitchen workflows. A solid-state digital control system with temperature alarms and an easy-to-read LED display (°F or °C) helps maintain consistent temperatures. Durable stainless steel construction withstands daily use and simplifies cleaning, while glass doors allow quick identification of stored ingredients from either side.
- Dimensions: 55″ W x 35.75″ D x 79.5″ H
- Interior capacity of 52.5 cubic feet
- Engineered to maintain NSF-7 temperatures in 100° ambient
- Unique ducted airflow ensures even cooling throughout entire cabinet
- Thermostatic Expansion Valve (TXV) system quickly and effectively regulates refrigerant flow to control temperatures
- Solid state digital controller with temperature alarms and LED display (°F or °C)
- Cabinet walls are insulated with 2-3/8” of CFC-free, foamed in place polyurethane
- Stainless steel exterior (front, back, sides, top) and a stainless steel interior
- Field-reversible, self-closing, lockable multi-pane argon-filled glass doors with 90° stay-open feature
- Extruded aluminum flush mount door handles
- Energy-efficient interior LED light
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Energy-efficient automatic hot gas condensate evaporator
- Top-mount refrigeration comes standard with a condenser filter
- Environmentally friendly R290 hydrocarbon refrigerant
- (4) 4″ stem casters (2 with brakes) are standard
- Includes (6) epoxy-coated wire shelves adjustable in 1″ increments on stainless steel supports
