KM-515MAH-E, Crescent Cuber Icemaker, Air-cooled, 50Hz Electrical / KM-515MAH-E, Crescent Cuber Icemaker, Air-cooled, 50Hz Electrical

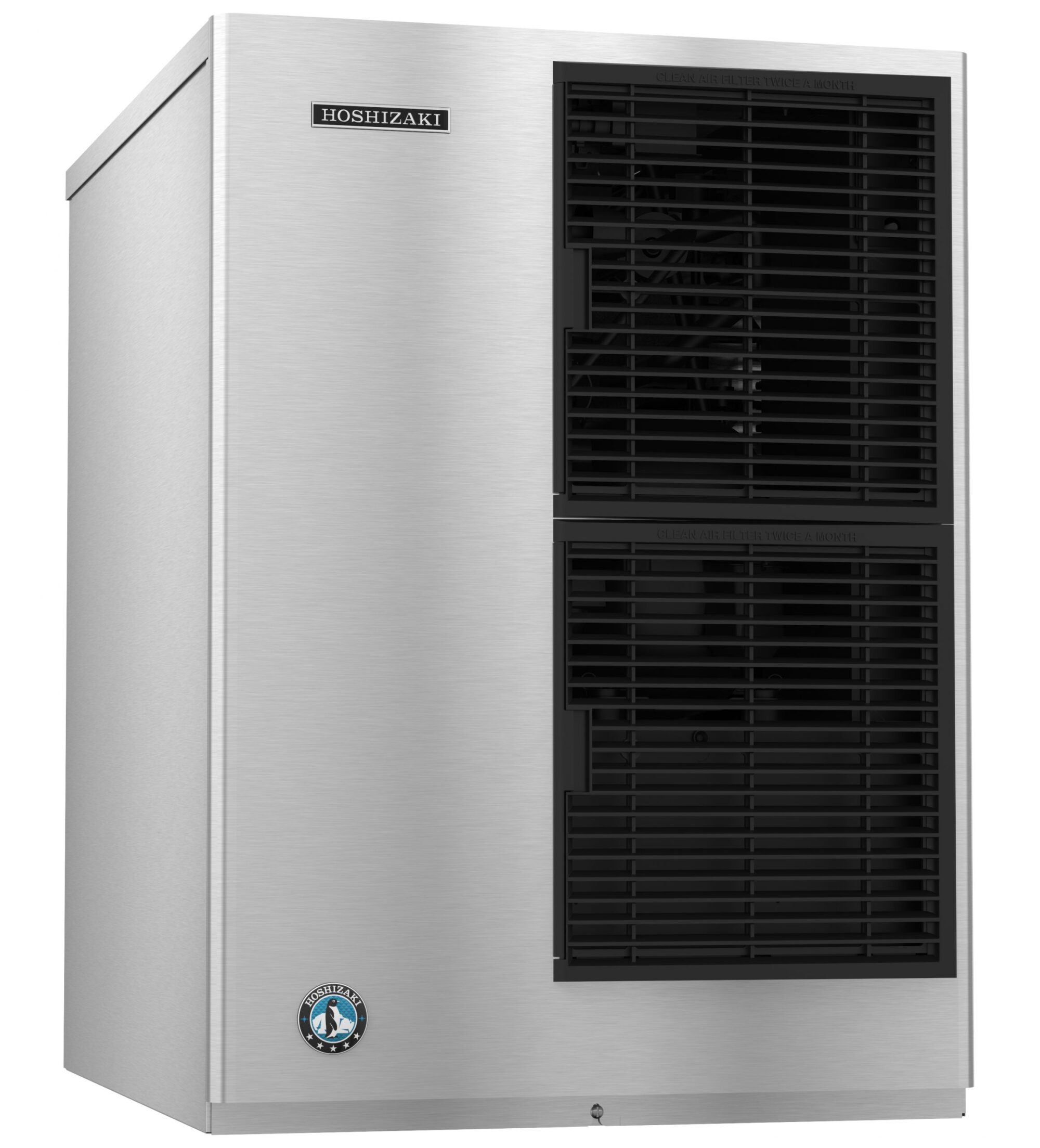

KM-515MAH-E Crescent Cuber Icemaker, Air-cooled, 50Hz Electrical

22″ W X 27″ D X 30″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
50Hz electrical, 220-240v/50/1 , Amperage: 7.14, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 7 – 38°C, Water Temp Range: 7 – 32°C, Water Pressure: 0.7 – 8 kg/cm2, Voltage Range: 198 – 254V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 2.5 oz. / 525 g)
Plumbing Specs
1/2″ FPT Inlet, Minimum 6 mm Nominal OD Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 18 mm Nominal OD Hard Pipe or Equivalent
Shipping Weight
79
Utility Consumption
7.1 kWh per 100 lbs @ 90/70, 100.3 gal of Potable Water per 100 lbs @ 90/70
Warranty
Warranty: Contact factory for warranty information.

Overview and Features

The KM-515MAH-E is capable of producing approximately 233 kg of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Slim Line Modular, 50Hz Electrical icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-515MAH-E requires a 50Hz electrical, 220-240v/50/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. Please consult the Specification Sheet for additional details.

[fusion_button link=”https://hoshizakiamerica.com/product/KM-520MAJ-E/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]REPLACED BY KM-520MAJ-E[/fusion_button]

  • Dimensions: 56cm W x 69-1/2cm D x 77cm H
  • Up to 233 kg of ice produced per 24 hours
  • Air-cooled, Slim Line Modular, 50Hz Electrical

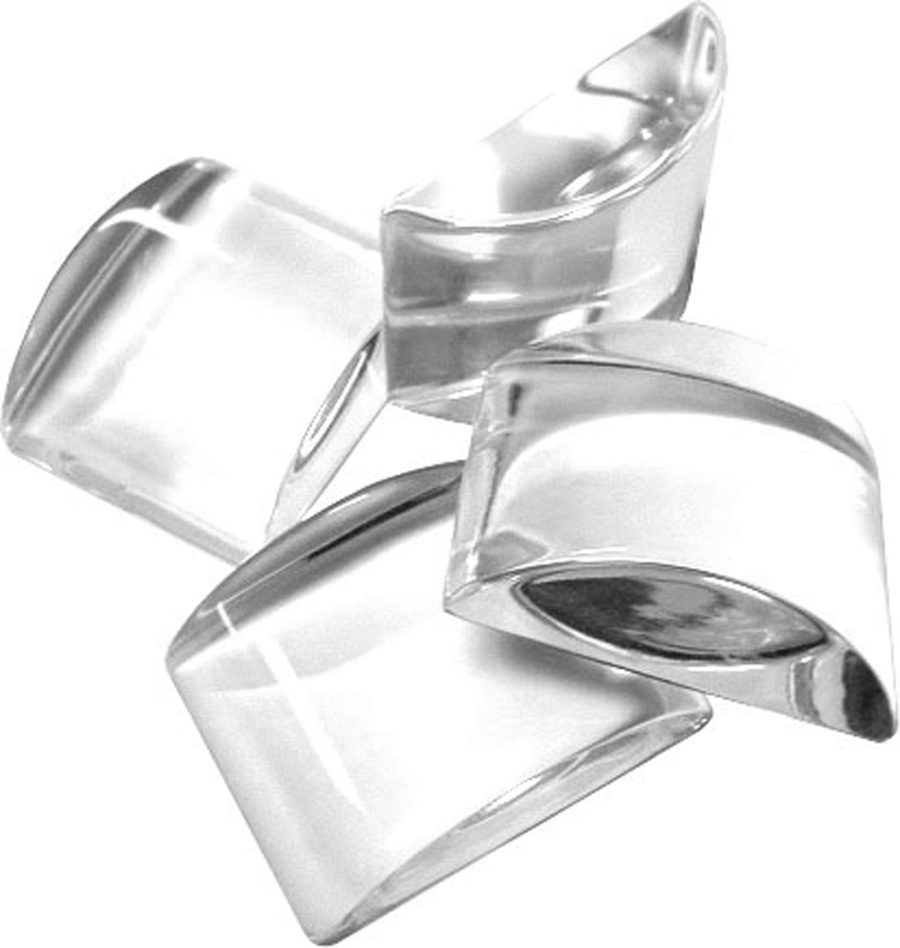

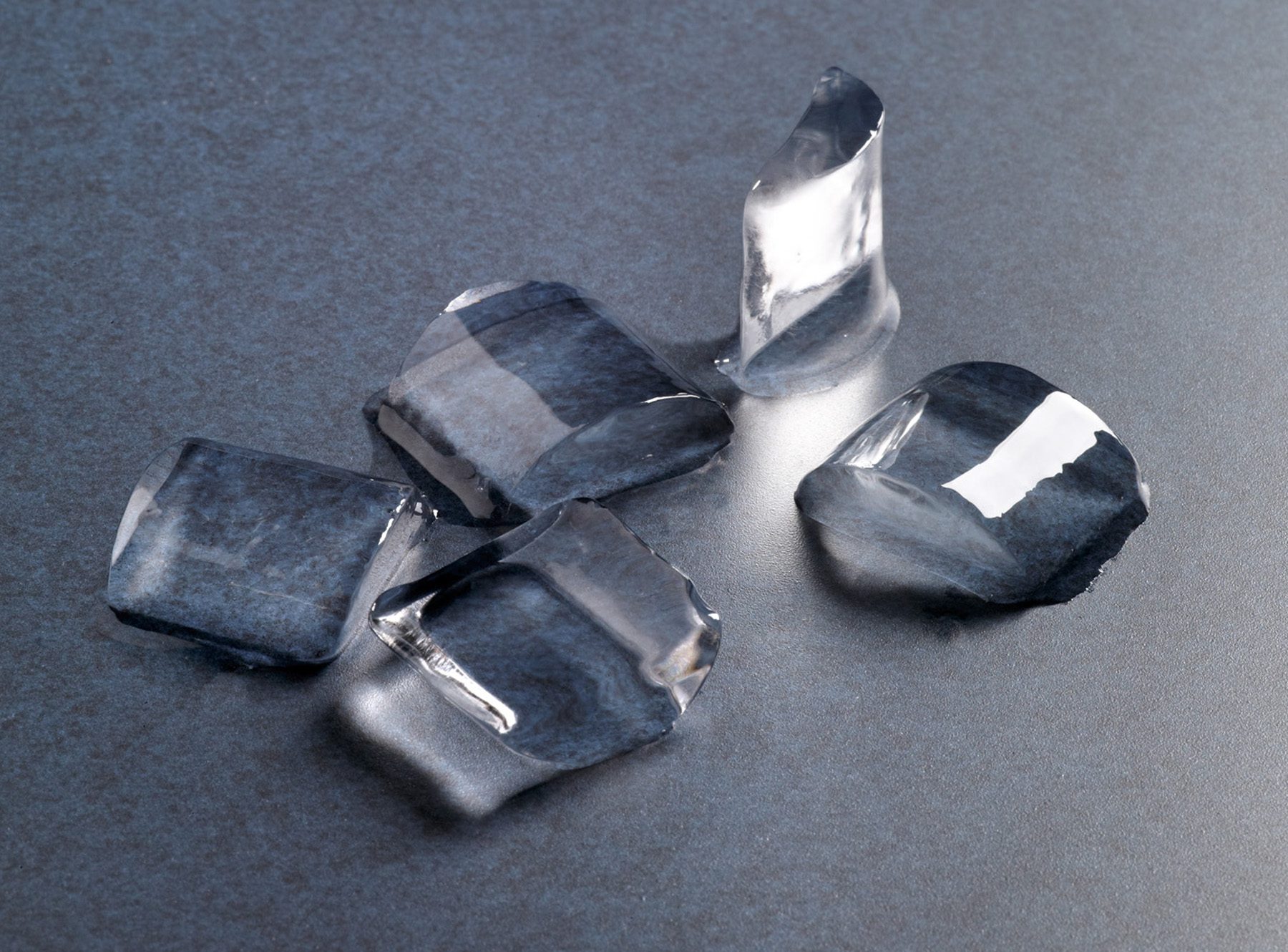

  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior

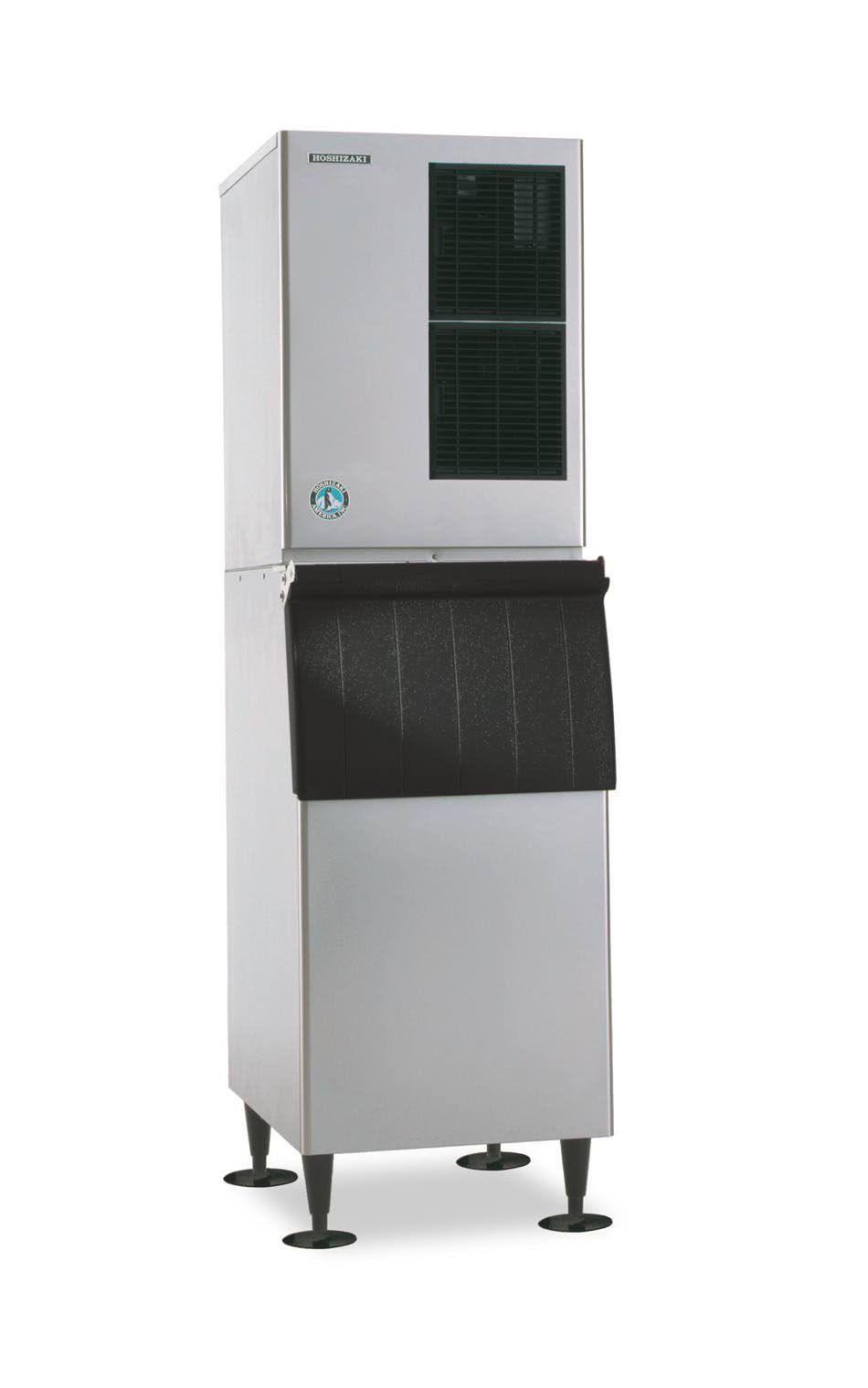

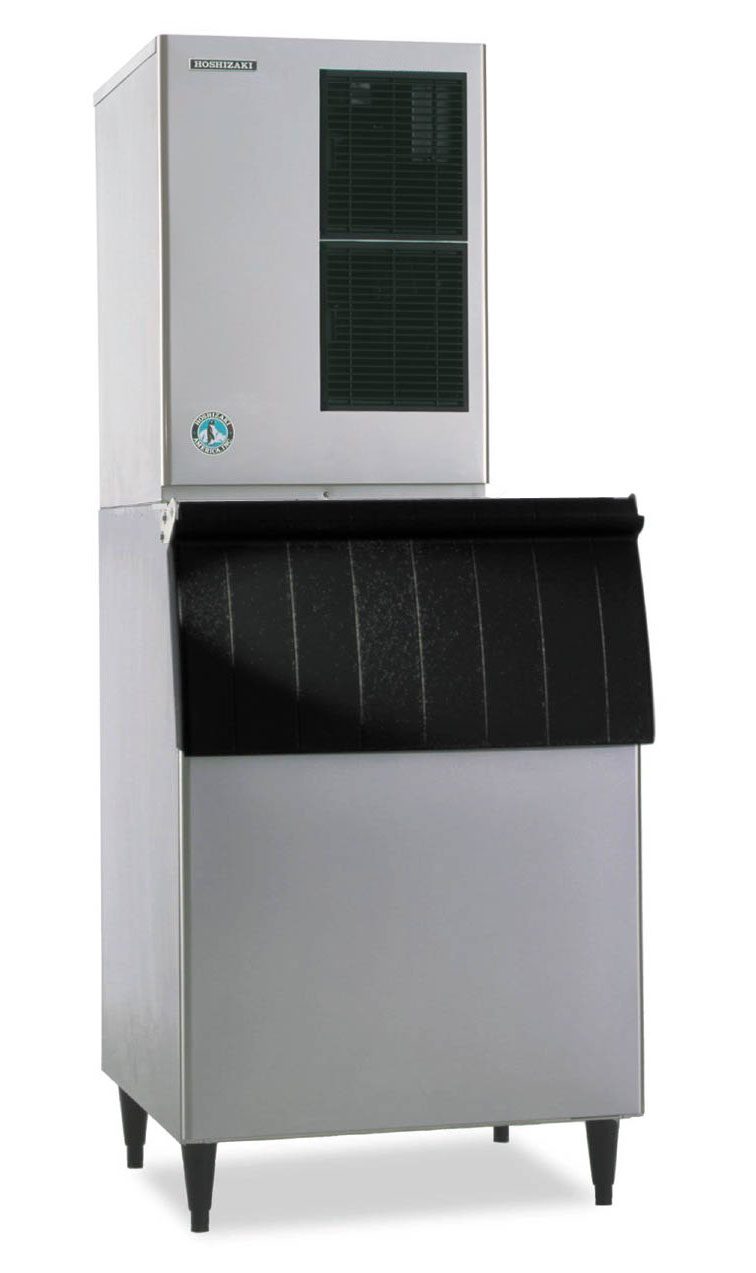

  • Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
  • EverCheck™ alert system
  • CycleSaver™ design
  • R-404A refrigerant (1 lbs. 2.5 oz. / 525 g)
  • Heat Rejection: BTU/hr
  • Ambient temperature range: 7 – 38°C
  • Water temperature range: 7 – 32°C
  • Water pressure: 0.7 – 8 kg/cm2
  • Voltage range: 198 – 254V
  • 7.14 amps (15 Amp Max fuse)
  • 7.1 kwh/100 lbs.@ 90/70
  • 50Hz electrical, 220-240v/50/1
  • Clean ice and easy maintenance lead to longer unit life span
  • Warranty: Contact factory for warranty information.
  • “-E”: 50Hz Electrical Model
