KM-1601MRJZ Crescent® Cuber Icemaker, Remote-cooled
Overview and Features
The KM-1601MRJZ is capable of producing approximately 1594 lbs of crescent cubed ice, Mount 2 units side-by-side for 2x the ice production in the same floor space! Our efficient double-sided KMEdge™ stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1601MRJZ requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required electrical connection that is hard-wired at the installation site. Please consult the Specification Sheet for additional details.
The KM-1601MRJZ is rated for use with URC-22FZ Remote Condenser; sold separately.

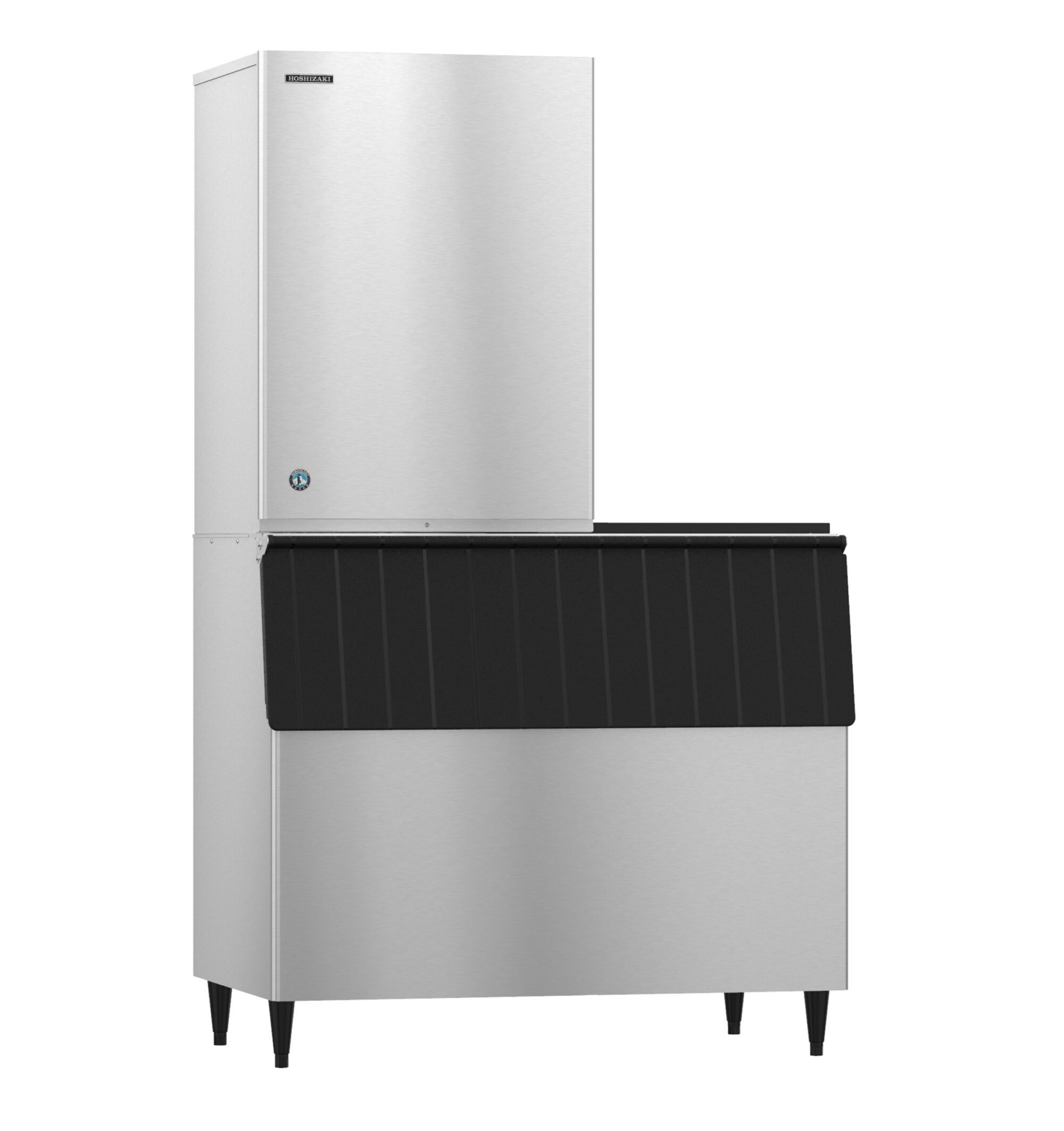

Compatible bins & dispensers: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650; sold separately. View Bins
- Dimensions: 30″ W x 27-3/8″ D x 41-5/8″ H
- Up to 1594 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
- EverCheck™ alert system
- CycleSaver™ design
- Integrated ultrasonic bin control
- Simple, one-hour cleaning and assisted cleaning process with CleanAssist
- R-404A refrigerant (8 lbs. 2.5 oz. / 3700 g)
- Heat Rejection: 24300 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 15.9 amps (20 Amp Max fuse)
- 4.35 kwh/100 lbs.@ 90/70
- Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine
- Five Years: Parts & Labor warranty on evaporator
