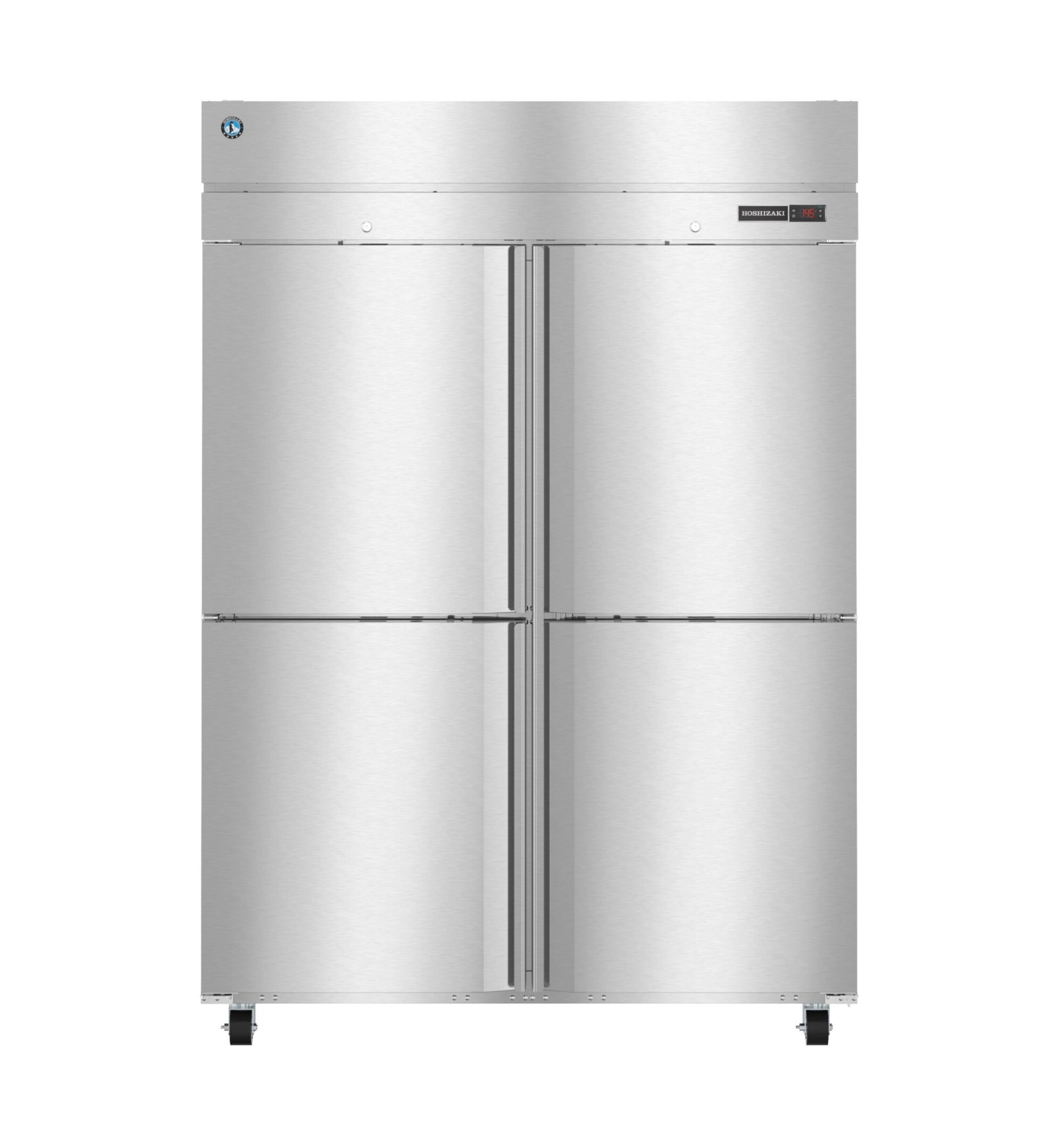

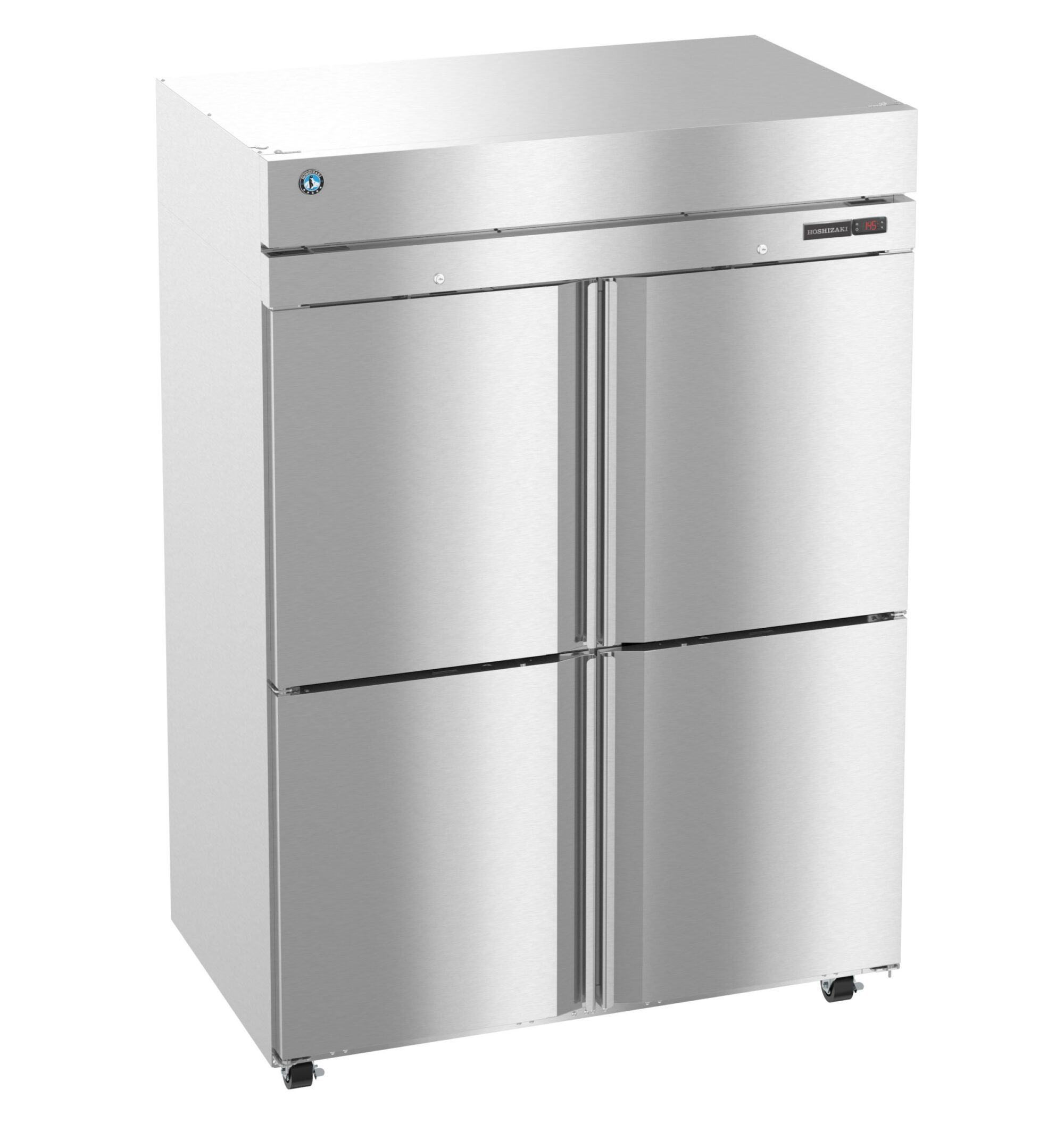

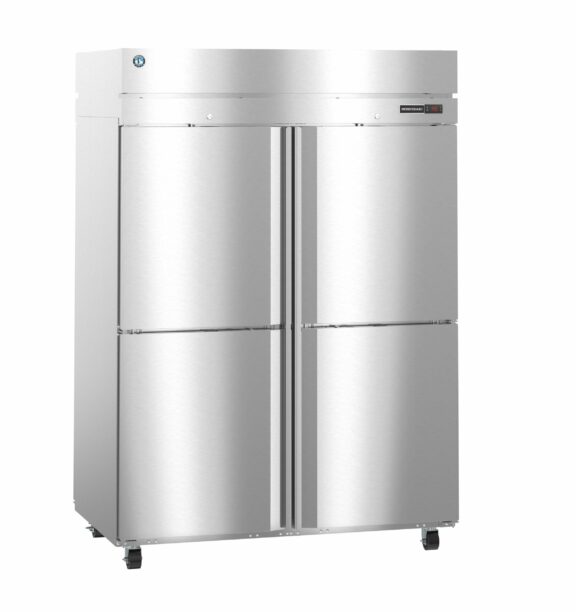

HC2A-HS Heated Cabinet, Two Section Upright, Half Stainless Doors with Lock

55″ W X 33″ D X 79″ H
Volume
49.5
Electrical
208-230v/60/1
Sections
2
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 208-230v/60/1, 10 ft. cord and plug, Amperage: 9 (208v) / 10 (230v), Max Fuse/HACR Breaker: 20 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 208 – 254V, Control Setpoint Range: 140 – 180°F
Shipping Weight
578
Storage Specs
Interior storage capacity: 49.5 ft3, Door opening: 21.75″ W x 27.75″ H, Depth with both doors fully extended: 59.25″ D, Shelves included: 3
Warranty
Five Years: Labor warranty on entire machine. Seven Years: Parts warranty on Compressor.

Overview and Features

The HC2A-HS Steelheart Series Upright two section heated cabinet with half stainless doors is a space saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C). With an interior capacity of 49.5 cubic feet this efficient upright heated cabinet provides maximum interior storage with a small external footprint. The HC2A-HS is constructed of stainless steel, which protects this unit from accidental damage and is easy to clean.

The HC2A-HS also includes Two interior LED light strips mounted vertically, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing doors with stay open feature (no kit req’d). 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Center shelves. The unit is NSF, ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified, ENERGY STAR® Qualified and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty (visit hoshizakiamerica.com/support/warranty for eligibility information).

  • Dimensions: 55″ W x 33.5″ D x 79.5″ H
  • Interior capacity of 49.5 cubic feet
  • Top-mounted heating element with fan to circulate heat through cabinet
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • Field reversible, spring assisted self closing doors with stay open feature (no kit req’d)
  • One piece, full door length, extruded aluminum flush mount door handle
  • Lockable Half Stainless Doors
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Two interior LED light strips mounted vertically
  • Solid state digital controller with temperature alarms and LED display (°F or °C)
  • (4) 4″ Stem Casters (2 with brakes) are standard
  • Includes 3 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
  • Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Center shelves
  • Additional storage fits 12 sheet pans
  • 208-230v/60/1, 10 ft. cord and plug
  • Shipping Crate: 58″ L x 37.5″ D x 81″ H at 578 lbs
  • ENERGY STAR® Qualified
  • Six Years parts warranty, Five Years labor warranty, Seven Years compressor warranty (Visit hoshizakiamerica.com/support/warranty for eligibility information)
