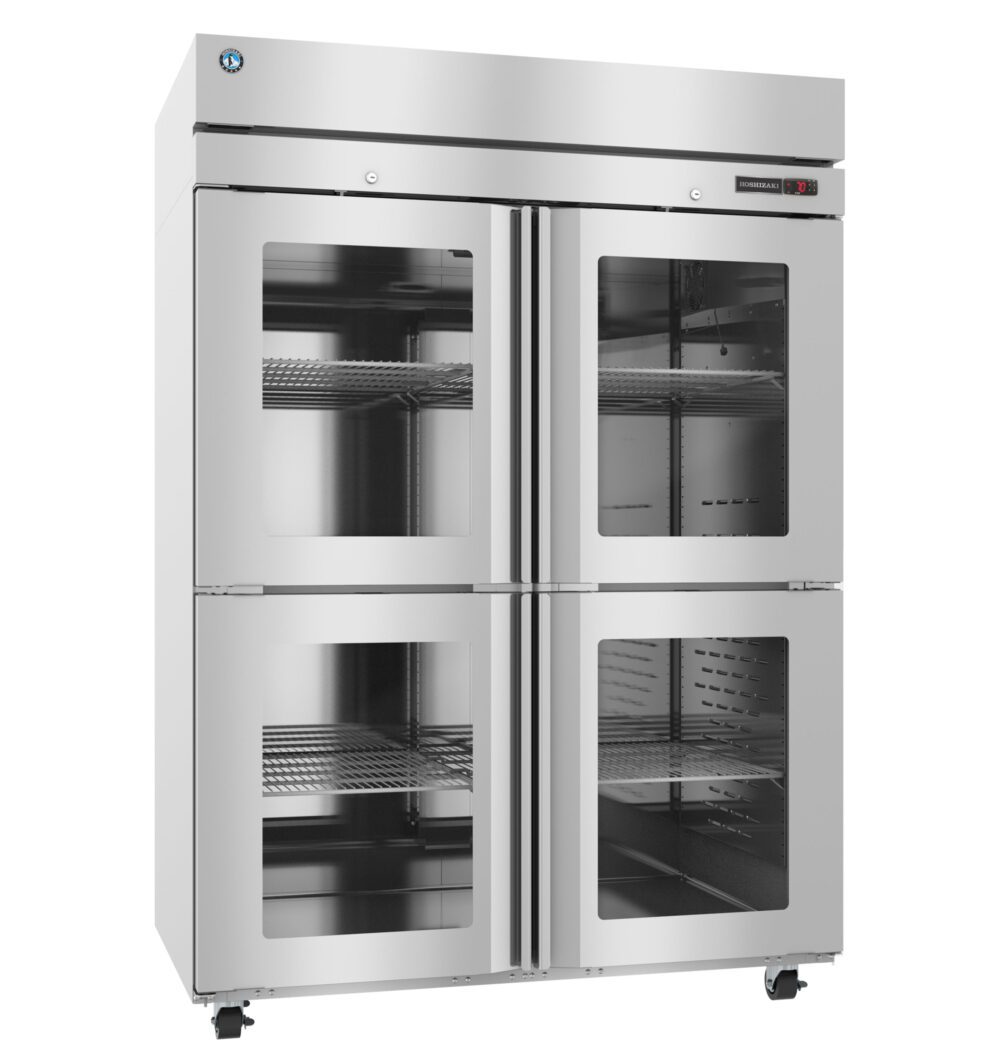

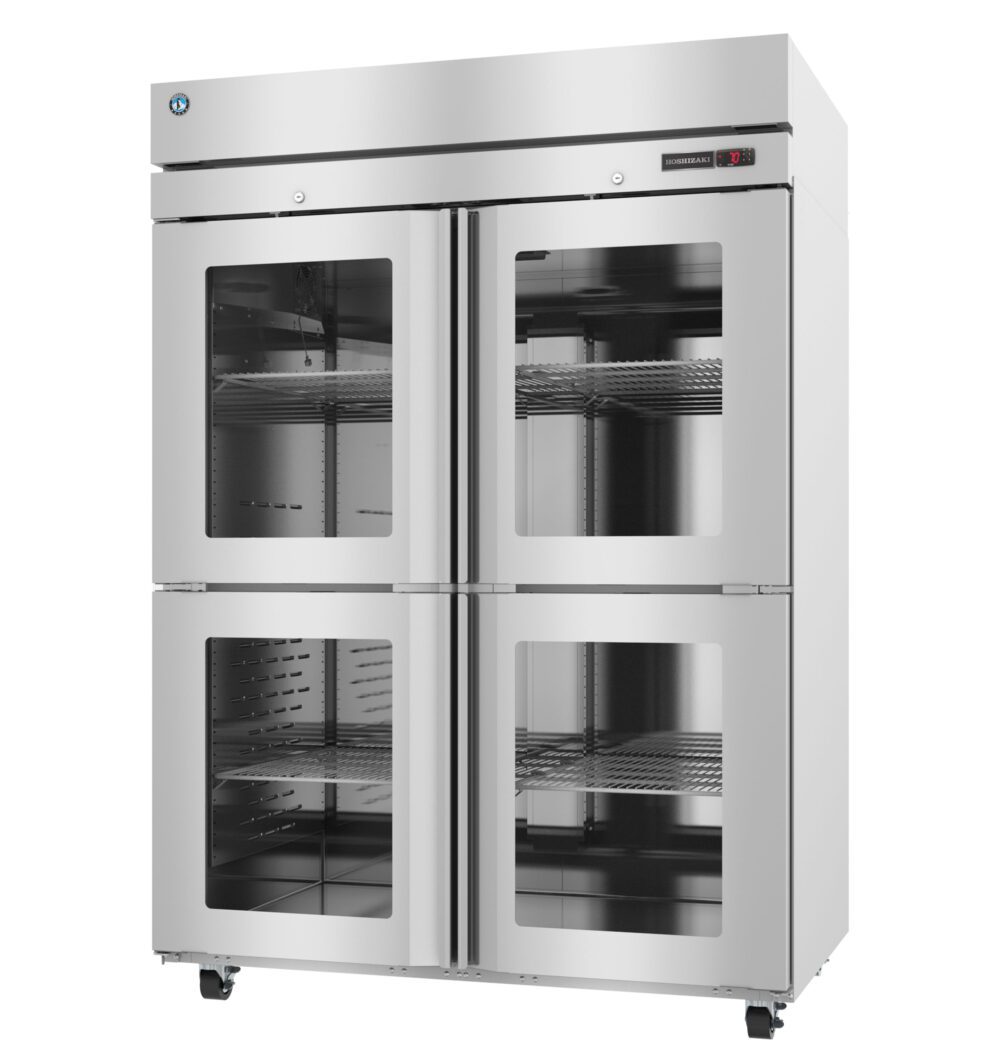

HC2A-HGE Heated Cabinet, Two Section Upright, Half Glass Doors with Lock
55″ W X 33.5″ D X 79.5″ H
Volume
49.5
Electrical
208-230v/60/1
Sections
2
Parts and Service
Alternate Configurations
Electrical Specs
Electrical Connection: L14 – 20P NEMA, 208-230v/60/1, 10 ft. cord and plug, Energy Consumption: 240.8 kwh/day, Amperage: 9 (208v) / 10 (230v), Max Fuse/HACR Breaker: 20A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 208 – 254V, Control Setpoint Range: 140 – 180°F
Shipping Weight
578 lbs.
Storage Specs
Interior storage capacity: 49.5 ft3, Door opening: 21.75″ W x 27.75″ H, Depth with doors open at 90°: 59.25″ D, Shelves included: 6
Warranty
7 Years: Labor, 7 Years: Parts, 7 Years: Compressor
Overview and Features
The HC2A-HGE Steelheart® Series two section half glass door heated cabinet delivers durable performance in a space-saving design. With 49.5 cu. ft. of interior capacity, it offers generous storage and reliable temperature control through a solid-state digital controller with alarms and an easy-to-read LED display. The stainless steel exterior and interior provide long-lasting durability and easy cleaning, while the self-closing, field-reversible glass doors feature a convenient stay-open function for ease of loading and unloading.
- Dimensions: 55″ W x 33.5″ D x 79.5″ H
- Interior capacity of 49.5 cubic feet
- Top-mounted heating element with fan to circulate heat through cabinet
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Field reversible, spring assisted self closing doors with stay open feature (no kit req’d)
- One piece, full door length, extruded aluminum flush mount door handles
- Sturdy 8 gauge stainless steel hinge plate with welded hinge pin
- Energy-efficient multi-pane, argon-filled glass doors with lock
- Insulated with 2-3/8″ CFC free, foamed in place polyurethane
- Energy-efficient interior LED light
- Exclusive stepped door design to protect recessed door gasket
- Solid state digital controller with temperature alarms and LED display (°F or °C)
- (4) 4″ Stem Casters (2 with brakes) are standard
- Includes (6) epoxy coated wire shelves (3 per section) adjustable in 1″ increments on stainless steel supports
- Each single section cabin can hold between 20-24 tray slides depending on the product
- Additional storage fits 36 sheet pans
- ENERGY STAR® Qualified
