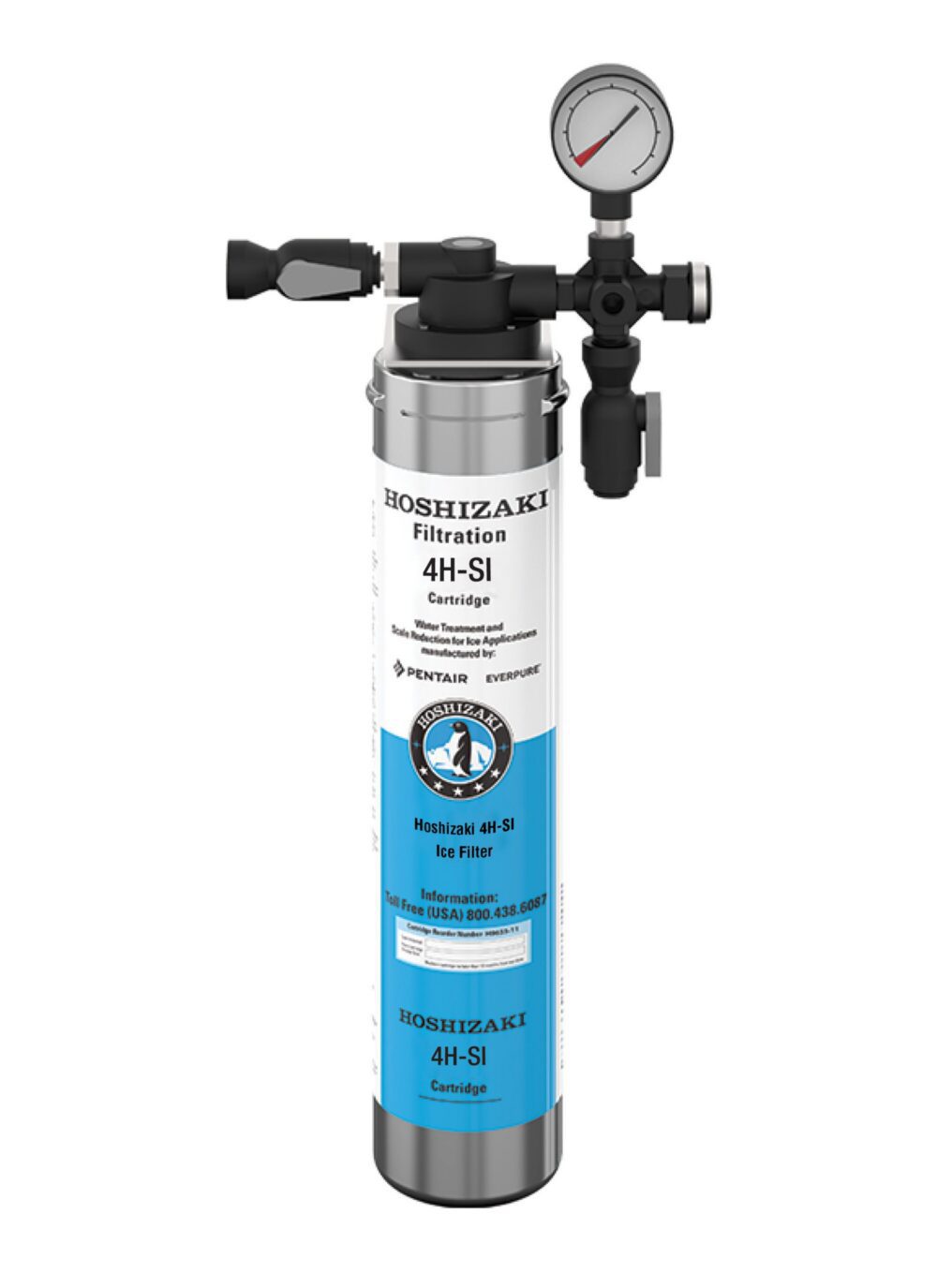

H9320-54 Single Healthcare Water Filter System with Manifold & Cartridge
7.91″ W X 5.25″ D X 18.1″ H
Parts and Service
Flow Rate
4H-SI Filter, Max. Flow Rate: 2 gpm, Working Pressure: 10 – 125 psi, Temperature: 35 – 100°F, Capacity: 15,000 gal
Rating
Rated NSF/ANSI STD 53, to reduce cysts such as Cryptosporidium and Giardia by mechanical means
Replacement Cartridges

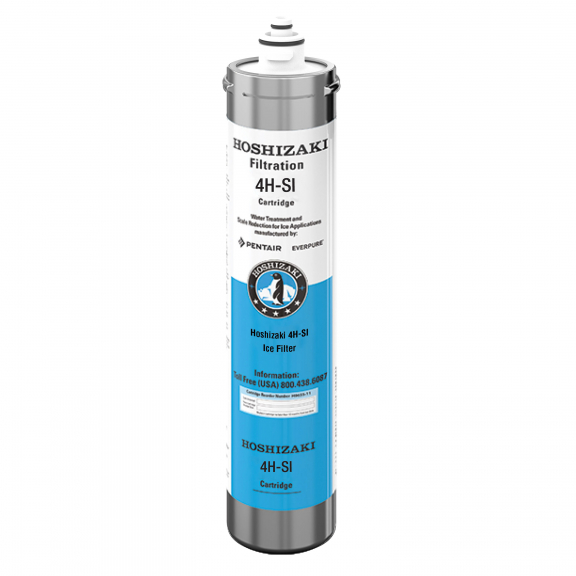

Water Filter: 1 Pack (H9655-08)
Shipping Weight
4 lbs.
Supports
AM-50, C-80, KM-81, KM-116, KM-161, KM-231, KM-301, KM-350, KM-520, KM-660, KML-325, KML-500, KML-700, KMD-410, KMD-460, KMD-530, KMS-830, DKM-500, IM-200, IM-500, All Cubelet/Flakers, All DCM/DBs
Warranty
One Year: Warranty on replaceable elements; One year: Warranty on entire system
Overview and Features
The H9320-54 healthcare water filter system is designed to help protect Hoshizaki ice machines in healthcare environments by reducing dirt and particles as small as 0.5 microns while maintaining water quality for dependable operation. Advanced Fibredyne™ media helps reduce maintenance caused by sediment and scale buildup while allowing chlorine and chloramines to remain in the water to help reduce slime growth. NSF/ANSI Standard 53 certified, the H9320-54 features a sanitary cartridge design for quick, clean replacement and includes a single manifold for easy installation.
- Dimensions: 7.91″ W x 5.25″ D x 18.1″ H
- 4H-SI Water Filter System
- Effectively filters dirt and particles as small as 1/2 micron size by mechanical means
- Utilizes depth filtration and Fibredyne™ media for superior dirt-holding capability
- NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means
- Leaves chlorine and chloramines within water that is supplied to equipment which helps to reduce slime growth in ice machine and ice bin
- Decreases machine maintenance, service costs, and downtime by reducing lime scale buildup
