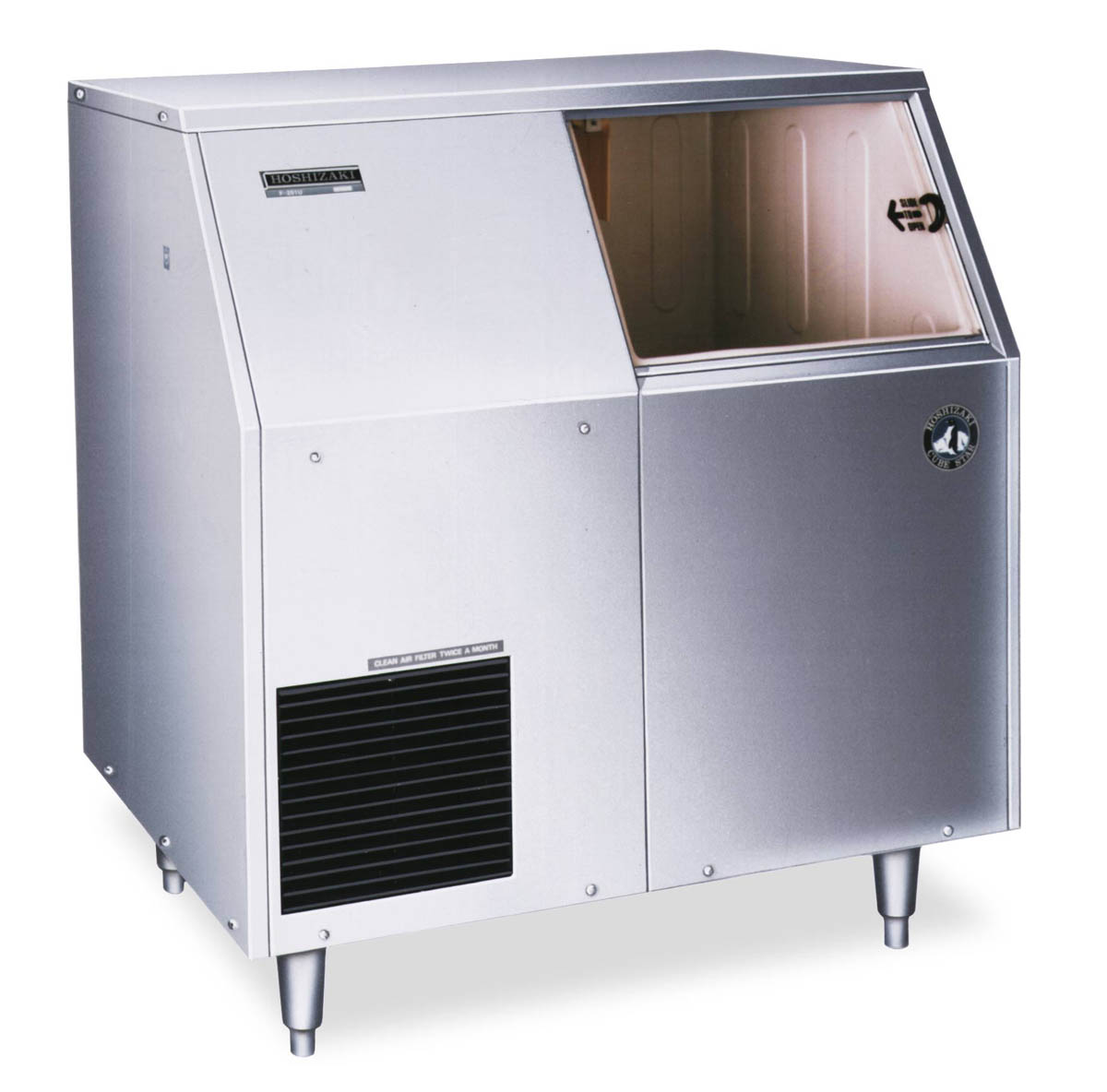

F-500BAF Flaker Icemaker, Air-cooled, Built in Storage Bin
38″ W X 29″ D X 42″ H
Parts and Service
Electrical Specs
Single phase, 115v/60/1 , Amperage: 9.98, Max Fuse/HACR Breaker: 20 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, ( / )
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
270
Utility Consumption
5.69 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Warranty
Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Overview and Features
The F-500BAF is capable of producing approximately 501 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Self Contained, Built in Storage Bin icemaker stores up to 170 lbs of ice. It features an Automatic system flush when bin control is activated plus a greaseless bearing auger construction making it simple to maintain. The F-500BAF requires a Single phase, 115v/60/1 electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.
[fusion_button link=”https://hoshizakiamerica.com/product/F-500MAJ/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]REPLACED BY F-500MAJ[/fusion_button]
- Dimensions: 38″ W x 29″ D x 42″ H
- Up to 501 lbs of ice produced per 24 hours
- Up to 170 lbs of built-in storage capacity (ft3)
- Produces flaked ice
- Durable stainless steel exterior
- Front in, front out airflow
- Gear motor protected from overload
- Automatic system flush when bin control is activated
- Designed for long life dependability
- R-404A refrigerant ( / )
- Heat Rejection: BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 9.98 amps (20 Amp Max fuse)
- 5.69 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
