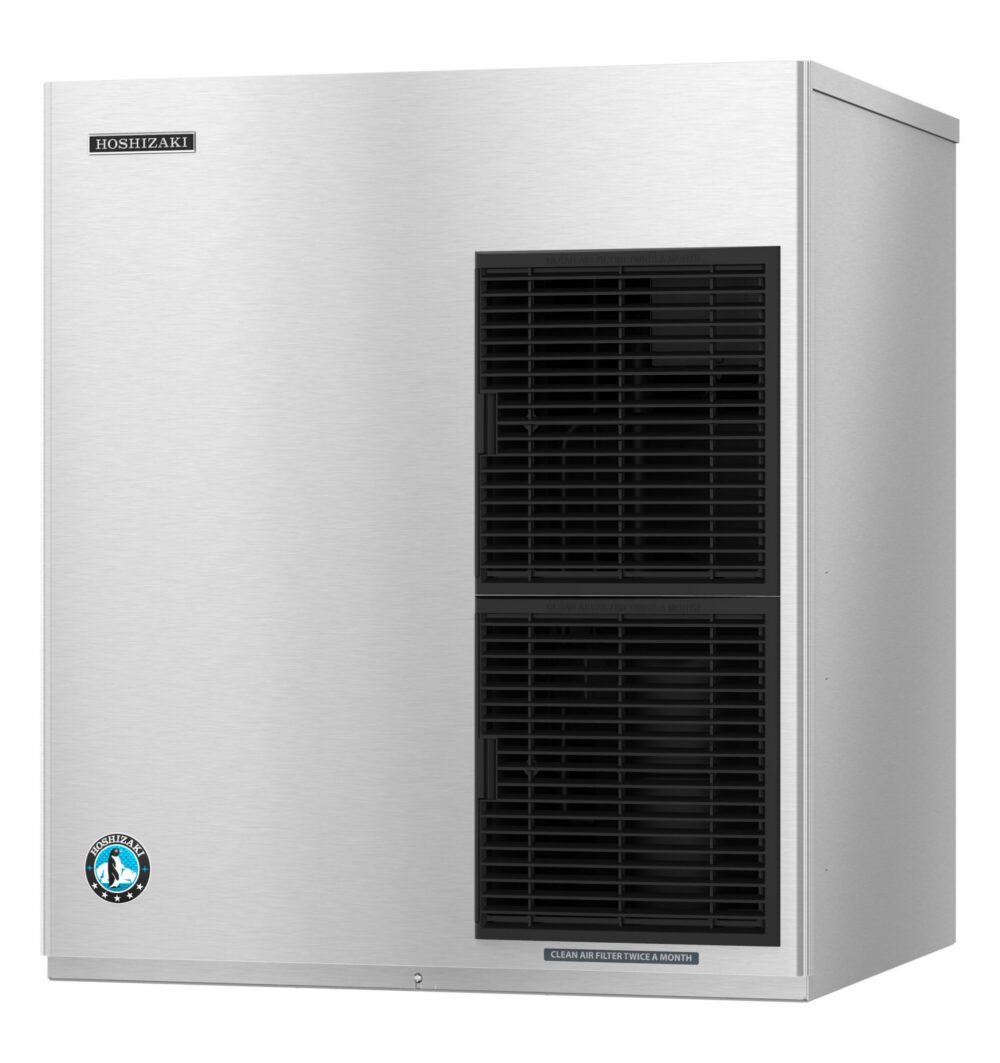

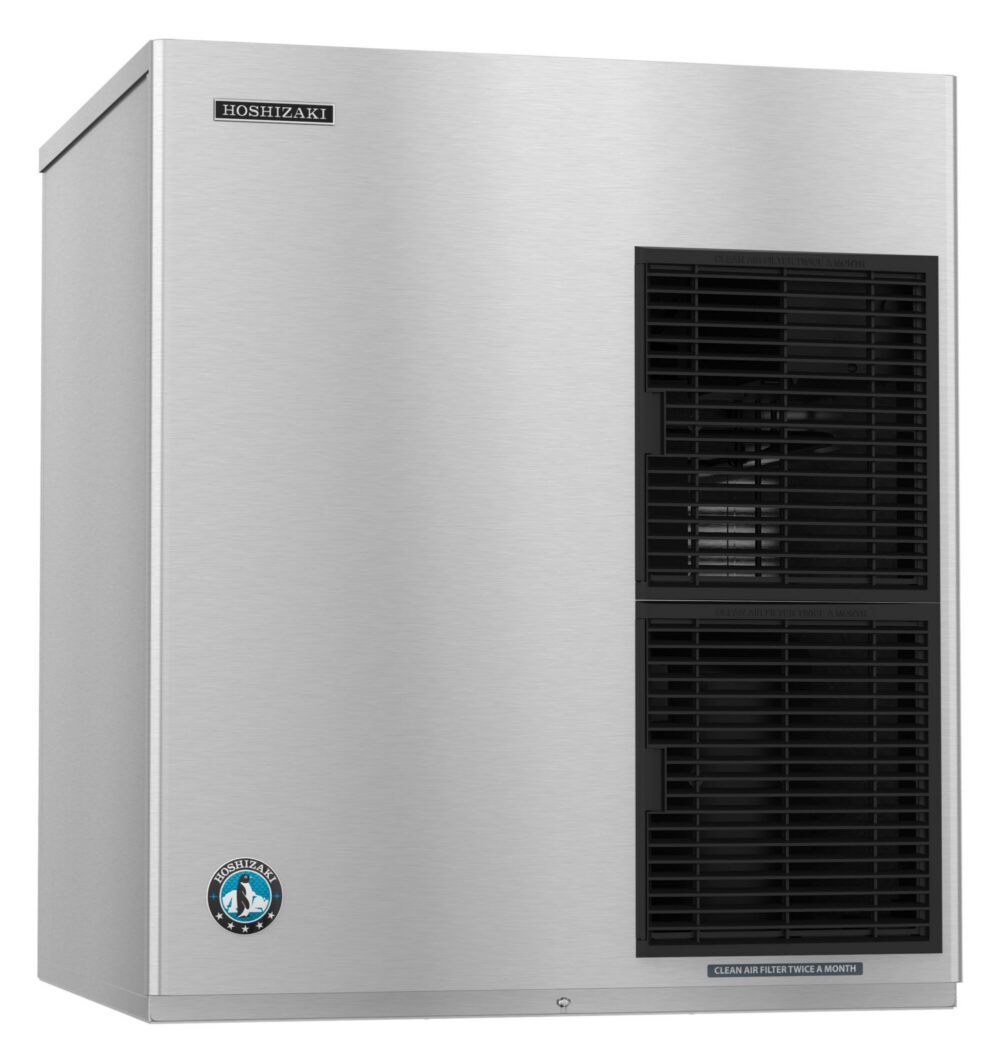

F-1530MRKZ2-C Cubelet Ice Machine, Remote-cooled
30″ W X 27.375″ D X 34.625″ H
Cooling Type
Remote-Cooled
Electrical
208-230v/60/1
Ice Type
Medium Cubelet
Daily Ice
1375
Parts and Service
Alternate Configurations
Electrical Specs
Single phase, 208-230v/60/1 4 wire, including ground, Amperage: 13.4, Max Fuse/HACR Breaker: 20A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 11,500 BTU/hr, Refrigerant Charge: R-448A (128 oz.)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Info
Shipping Weight: 345 lbs., NMFC Code: 123550-03, Freight Code: 92.5
Utility Consumption
4.45 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Warranty
Three Years: Parts & Labor warranty on entire machine; Five Years: Parts warranty on Compressor, air-cooled condenser coil
Overview and Features
The F-1530MRKZ2-C produces up to 1,375 lbs. of Cubelet nugget-style ice per day. This remote-cooled, Slim-Line modular ice machine features Advanced CleanCycle24™ for automatic hourly cleaning, a greaseless bearing auger for easy maintenance, and ultrasonic bin control for consistent ice levels.
The F-1530MRKZ2-C is rated for use with the URC-14FZ Remote Condenser; sold separately.
- Dimensions: 30″ W x 27-3/8″ D x 34-5/8″ H
- Up to 1,375 lbs. of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces medium cubelet nugget-style ice
- Durable stainless steel exterior
- Factory-installed ultrasonic bin control
- Stainless steel auger with greaseless bearing
- Advanced CleanCycle24™ design performs a 2 second purge every hour to clean itself
- R-448A refrigerant
