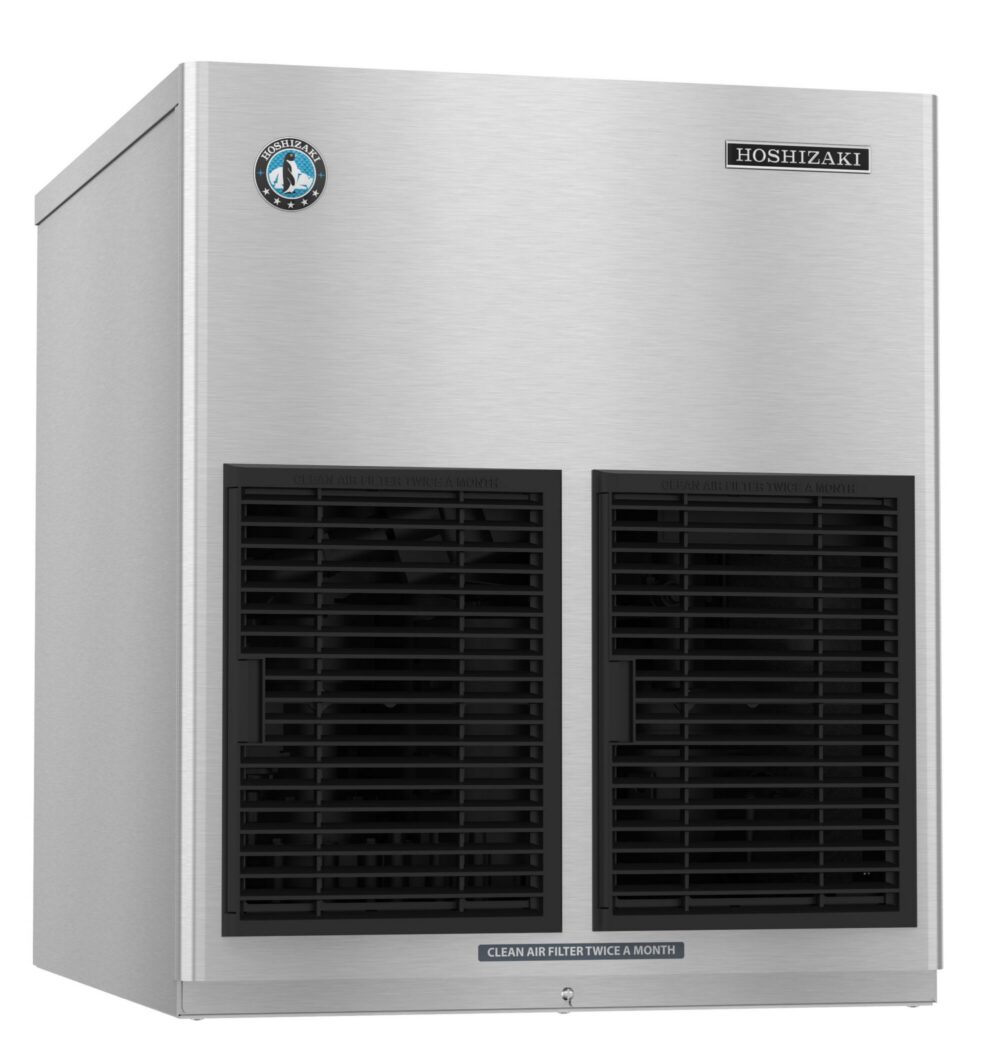

F-1022MAK Flaker Ice Machine, Air-cooled
22″ W X 24″ D X 26″ H
Cooling Type
Air-Cooled
Electrical
115v/60/1
Ice Type
Flaked
Daily Ice
915
Parts and Service

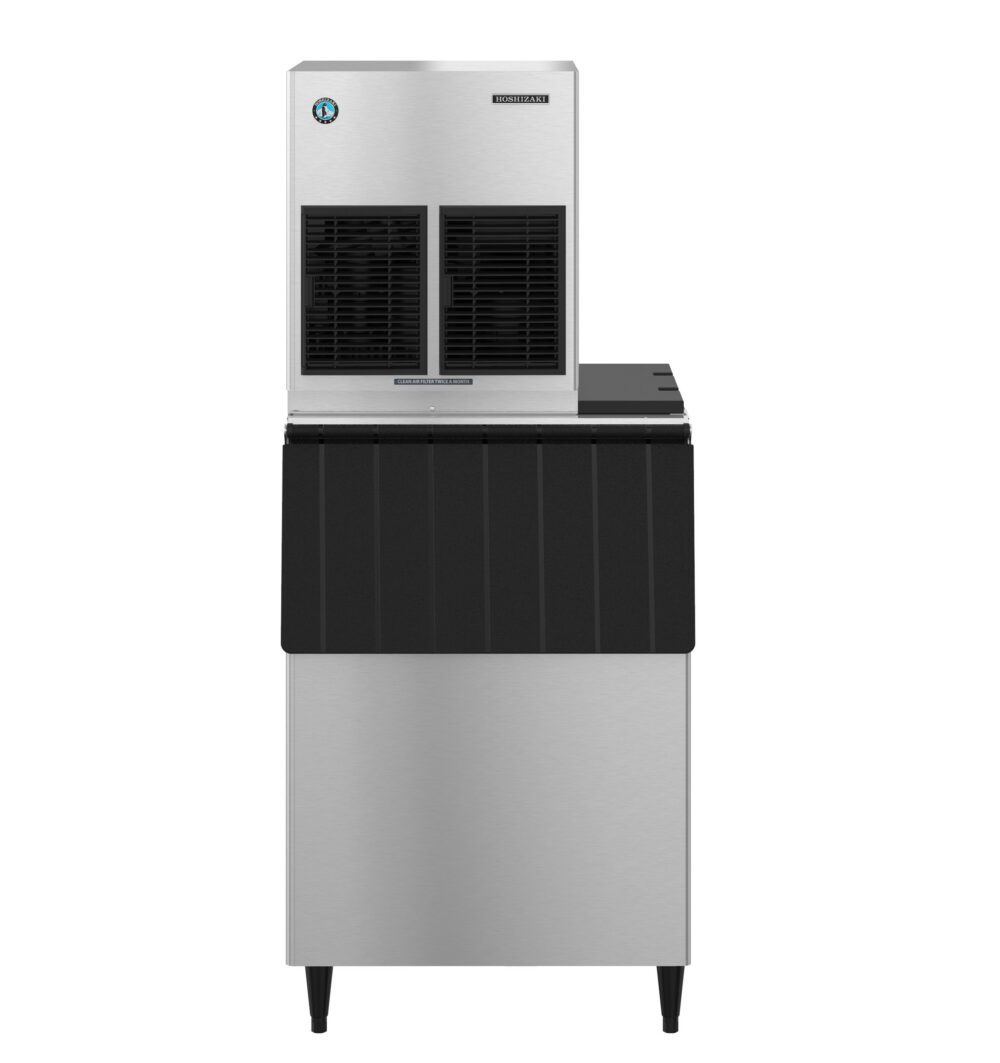

Alternate Configurations
Electrical Specs
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 12.5, Max Fuse/HACR Breaker: 20A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 108 – 127V, Heat Rejection: 10,300 BTU/hr, Refrigerant Charge: R290 (2 lbs., 4.2 oz.)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
192 lbs.
Utility Consumption
4.19 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Warranty
Three Years: Parts & Labor warranty on entire machine; Five Years: Parts warranty on Compressor, air-cooled condenser coil
Overview and Features
The F-1022MAK produces up to 915 lbs. of flaked ice per day, perfect for salad bars, seafood displays, and other applications requiring long-lasting, sanitary ice. This air-cooled, Slim-Line modular ice machine features Advanced CleanCycle24™ for automatic hourly cleaning and a greaseless bearing auger for easy maintenance, and ultrasonic bin control for consistent ice levels.
- Dimensions: 22″ W x 24″ D x 26″ H
- Up to 915 lbs. of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces flaked ice
- Durable stainless steel exterior
- Factory-installed ultrasonic bin control
- Stainless steel auger with greaseless bearing
- Advanced CleanCycle24™ design performs a 2 second purge every hour to clean itself
- Environmentally friendly R290 hydrocarbon refrigerant
