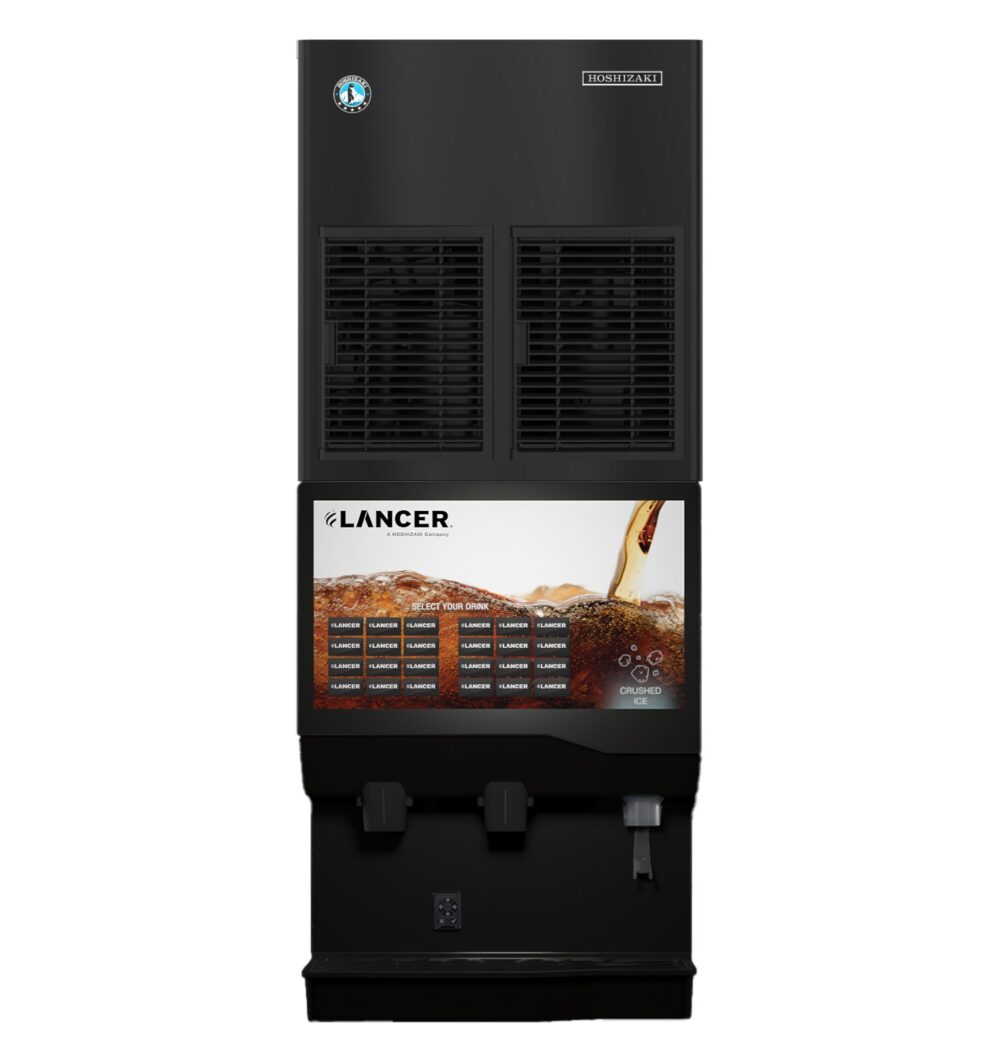

A black commercial soda fountain machine with multiple drink selection buttons, a digital display, and two dispensers.

Black and white line drawing of a rectangular object with beveled edges, labeled with dimensions: 3/4”, 1/2”, 3/8”, and 3/4”. Ideal for use in commercial refrigeration or as a part in a commercial ice machine.

Close-up of several transparent, irregularly-shaped crystals scattered on a dark surface, resembling ice produced by a commercial ice machine or other refrigeration equipment.

A glass filled with ice cubes from a commercial ice machine sits on a textured tray, with medical supplies and a stethoscope blurred in the background.

Four styrofoam cups filled with crushed ice from a commercial ice machine and colorful slush drinks—blue, yellow, orange, and red—are arranged in a cluster on a white surface.

A cluster of translucent, crystalline mineral chunks set against a white background, reminiscent of the pure ice produced by a commercial ice machine used in modern refrigeration equipment.

Close-up view of several translucent, irregularly shaped crystalline chunks clustered together, produced by a commercial ice machine.

A clear glass sits on a dark surface, partially filled with several ice cubes made from a commercial ice machine.

Three clear ice cubes, likely made using a commercial ice machine, are arranged on a white background.

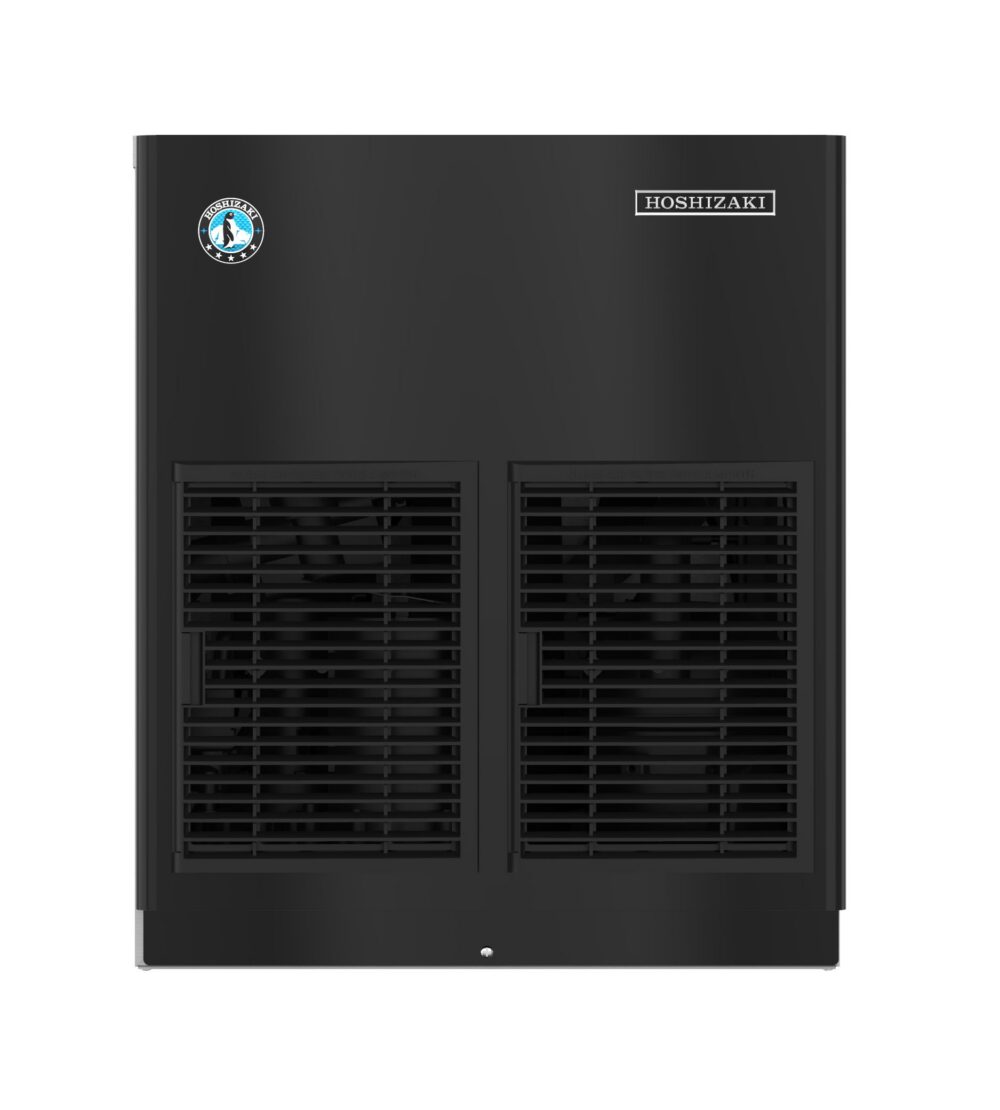

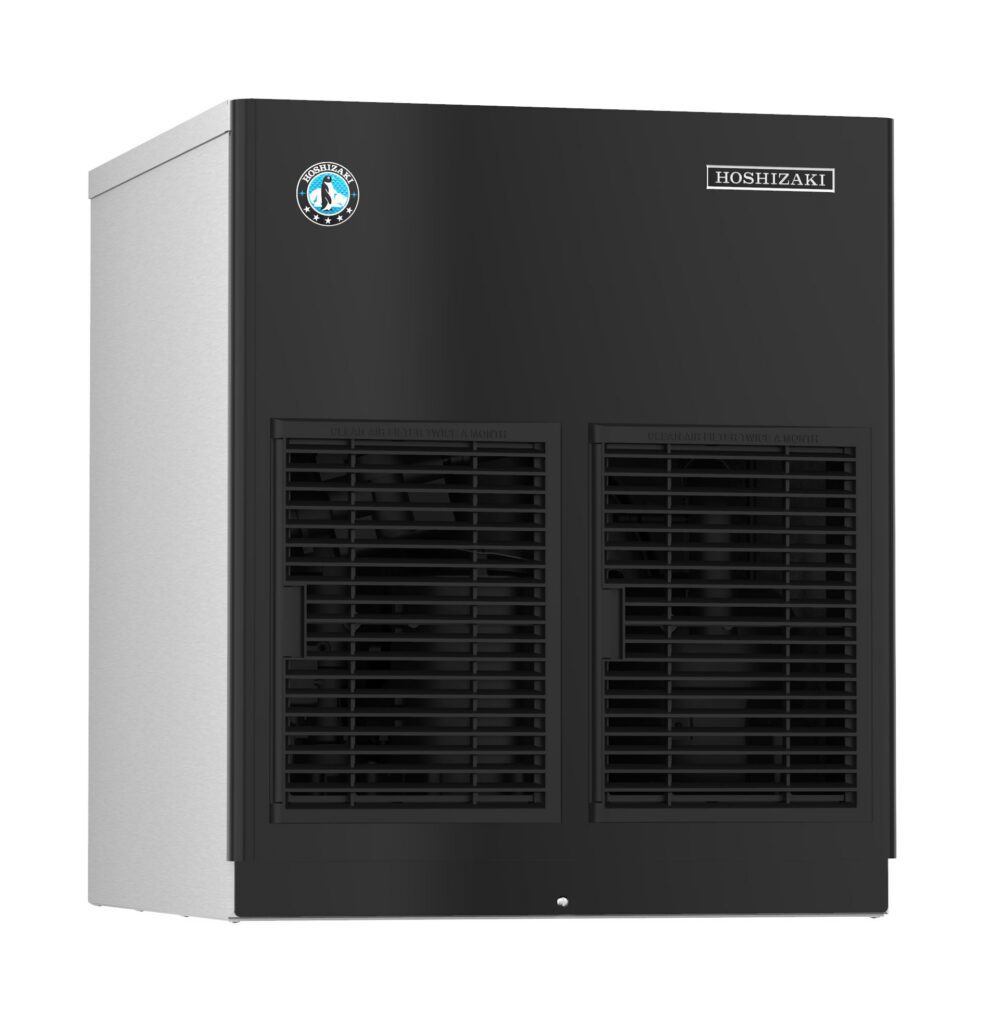

F-1022MAK-CB Cubelet Ice Machine, Air-cooled – Black Front Panel

Name: FD-650MAJ-C, Cubelet Icemaker, Air-cooled
Brand: Hoshizaki
SKU: FD-650MAJ-C

22″ W X 24″ D X 26″ H

Cooling Type

Air-Cooled

Electrical

115v/60/1

Ice Type

Small Cubelet

Daily Ice

865

Request a Quote Find a Distributor

Parts and Service

Downloads

Alternate Configurations

A stainless steel Hoshizaki commercial ice machine with front air vents and a maintenance sticker advising to clean the air filter twice a month.

A stainless steel Hoshizaki ice machine with a black vent and a label that reads "Clean air filter twice a month.

A stainless steel Hoshizaki ice maker with two black front vents and a label instructing to clean the air filter twice a month.

A stainless steel Hoshizaki ice maker with two black vent panels on the front and a maintenance label that reads “Clean air filter twice a month.”.

Electrical Specs

Single phase, 115v/60/1 3 wire, including ground, Amperage: 12.5, Max Fuse/HACR Breaker: 20A

Operating Limits

Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 108 – 127V, Heat Rejection: 10,300 BTU/hr, Refrigerant Charge: R290 (2 lbs., 4.2 oz.)

Plumbing Specs

1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent

Shipping Weight

192 lbs.

Utility Consumption

4.5 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70

Warranty

Three Years: Parts & Labor warranty on entire machine; Five Years: Parts warranty on Compressor, air-cooled condenser coil

Overview and Features

The F-1022MAK-CB produces up to 865 lbs. of Cubelet nugget-style ice per day. This air-cooled, Slim-Line modular ice machine features Advanced CleanCycle24™ for automatic hourly cleaning and a greaseless bearing auger for easy maintenance, and ultrasonic bin control for consistent ice levels.

Dimensions: 22″ W x 24″ D x 26″ H
Up to 865 lbs. of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces small cubelet nugget-style ice
Gloss black vinyl clad front cover with stainless steel top and sides
Factory-installed ultrasonic bin control
Stainless steel auger with greaseless bearing
Advanced CleanCycle24™ design performs a 2 second purge every hour to clean itself
Environmentally friendly R290 hydrocarbon refrigerant
