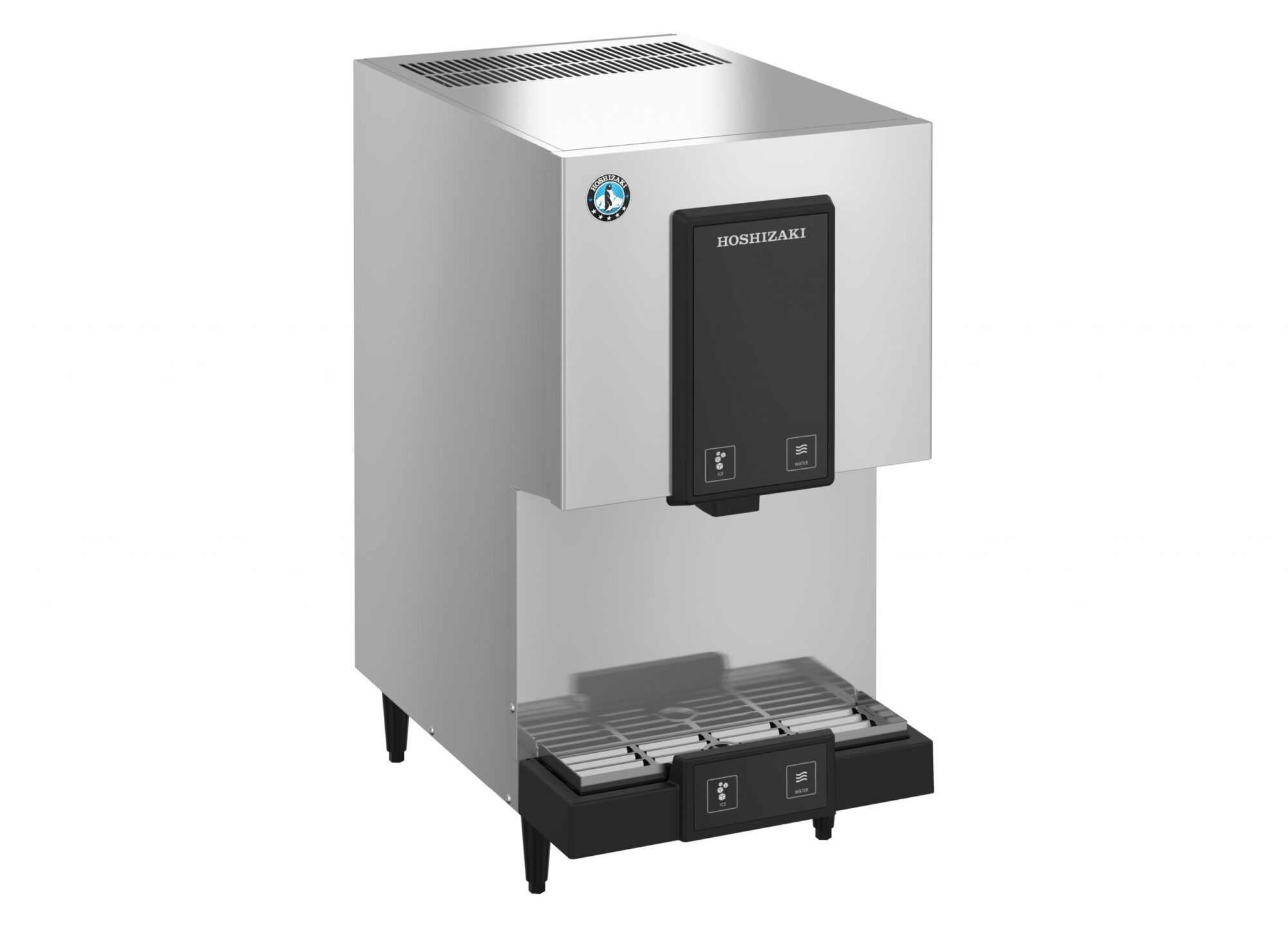

DCM-271BAH Cubelet Ice and Water Dispenser, Air-cooled, Built in Storage Bin
Overview and Features
The DCM-271BAH is capable of producing approximately 257 lbs of Cubelet nugget-style ice cubes per day, The built-in storage bin will hold up to 10 lbs of ice* at a time. This Air-cooled icemaker has an Push button operation that dispenses ice or water. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features Advanced CleanCycle24™ design – it performs a 2 second purge every hour to clean itself. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
- Dimensions: 16-5/8 ” W x 24-1/4″ D x 31-3/4 ” H
- Up to 257 lbs of ice produced per 24 hours
- Up to 10 lbs of built-in storage capacity (0.3ft3)
- Produces mini cubelet nugget-style ice
- Durable stainless steel exterior

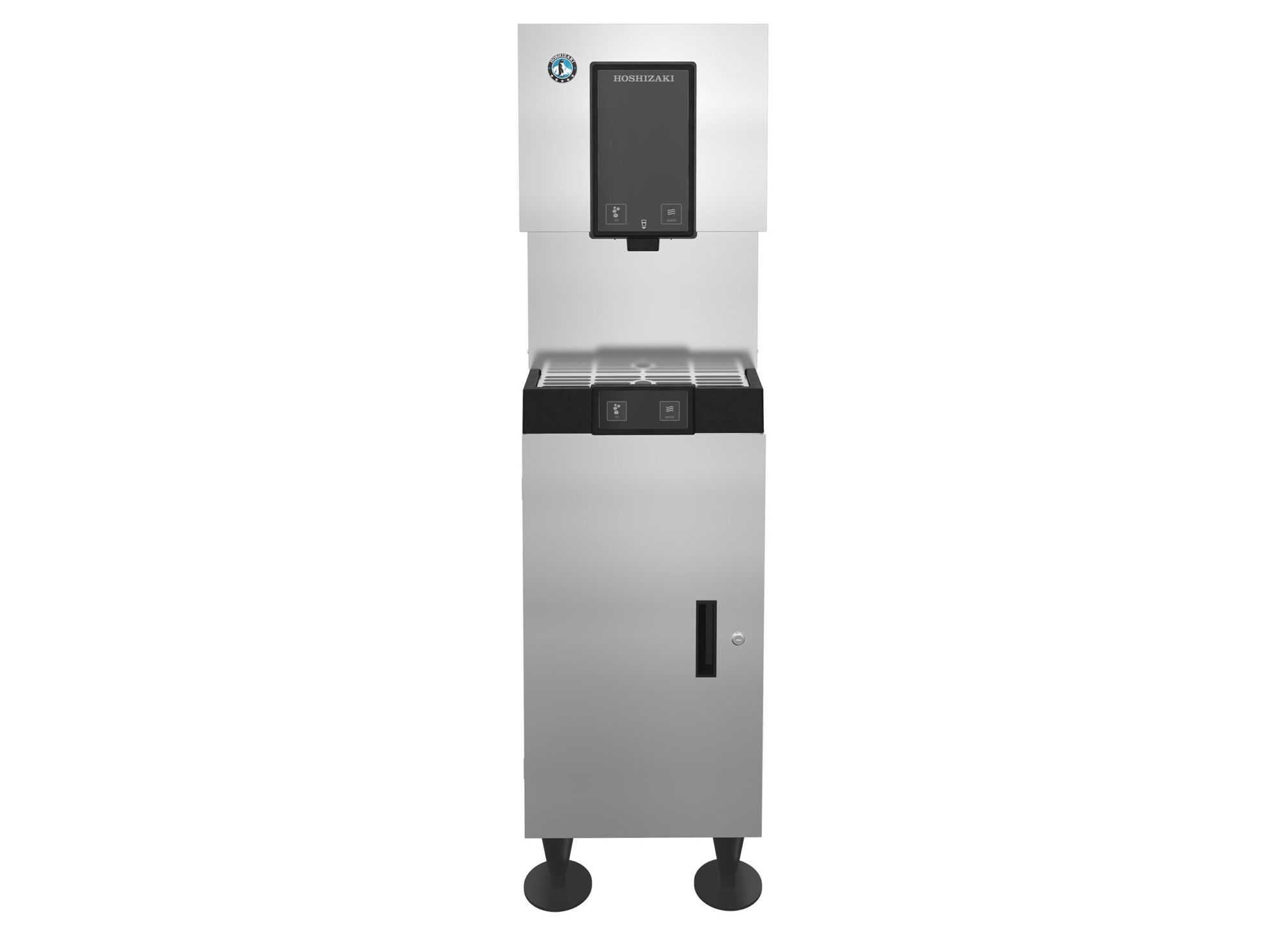

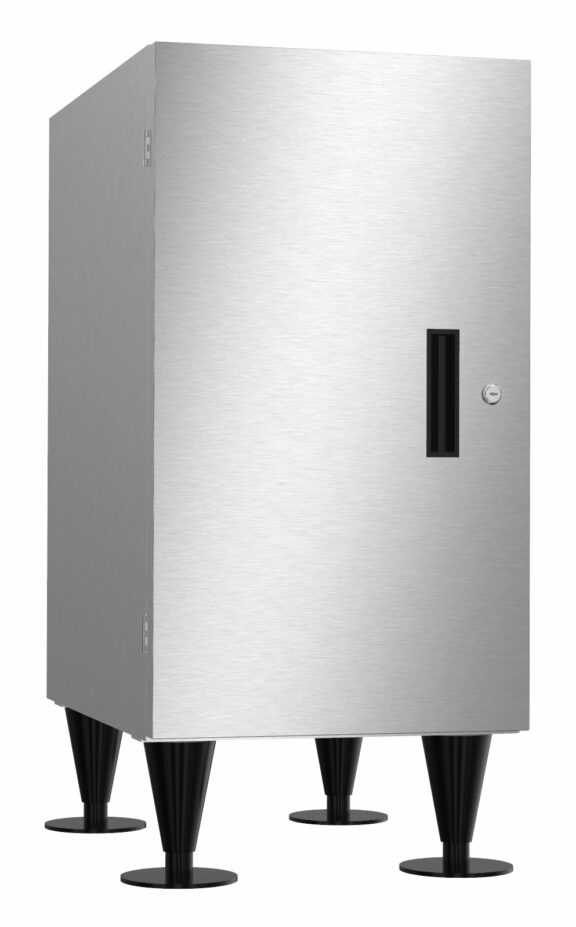

- Place on countertop or optional stand: SD-271
- Push button operation that dispenses ice or water
- Advanced CleanCycle24™ design – it performs a 2 second purge every hour to clean itself
- R-404A refrigerant (14.8 oz. / 420 g)
- Heat Rejection:3300 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 8.5 amps (15 Amp Max fuse)
- 6.9 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1 6 ft. cord with a NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
