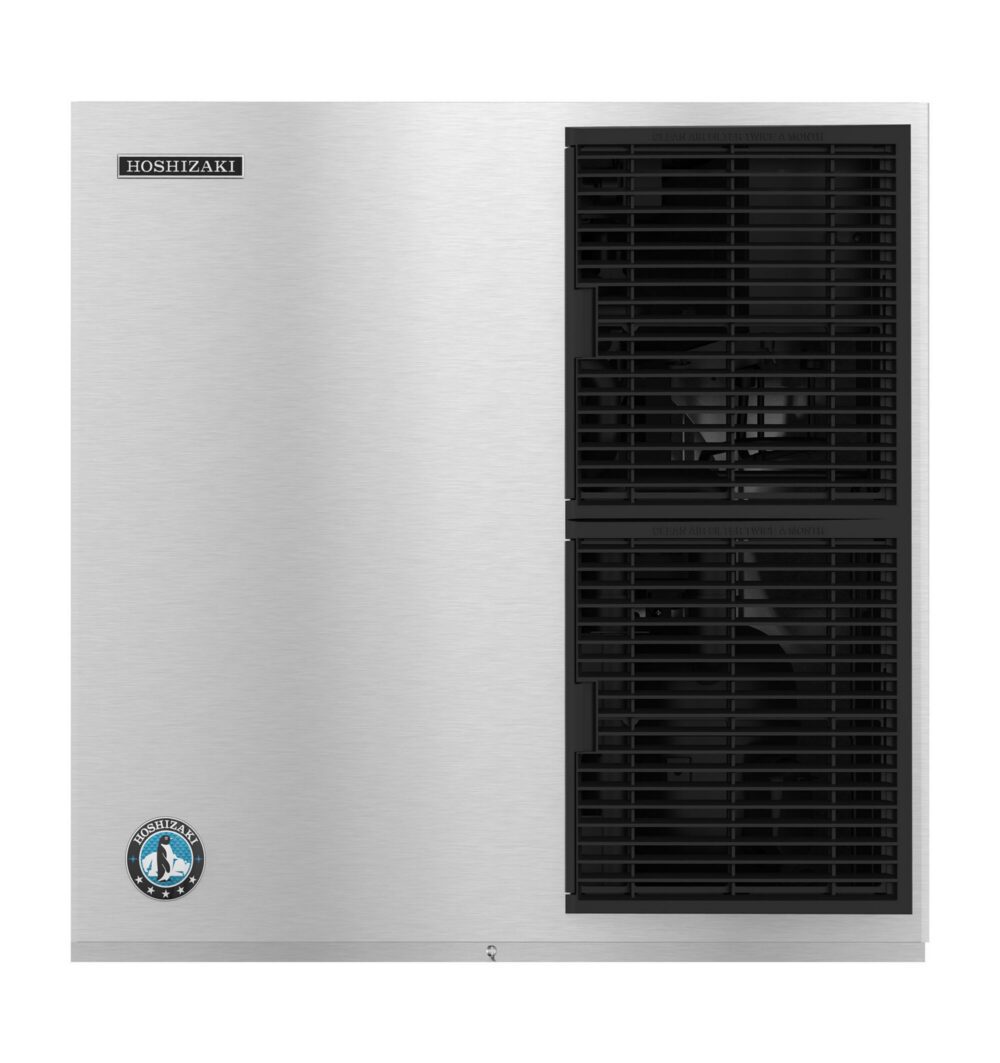

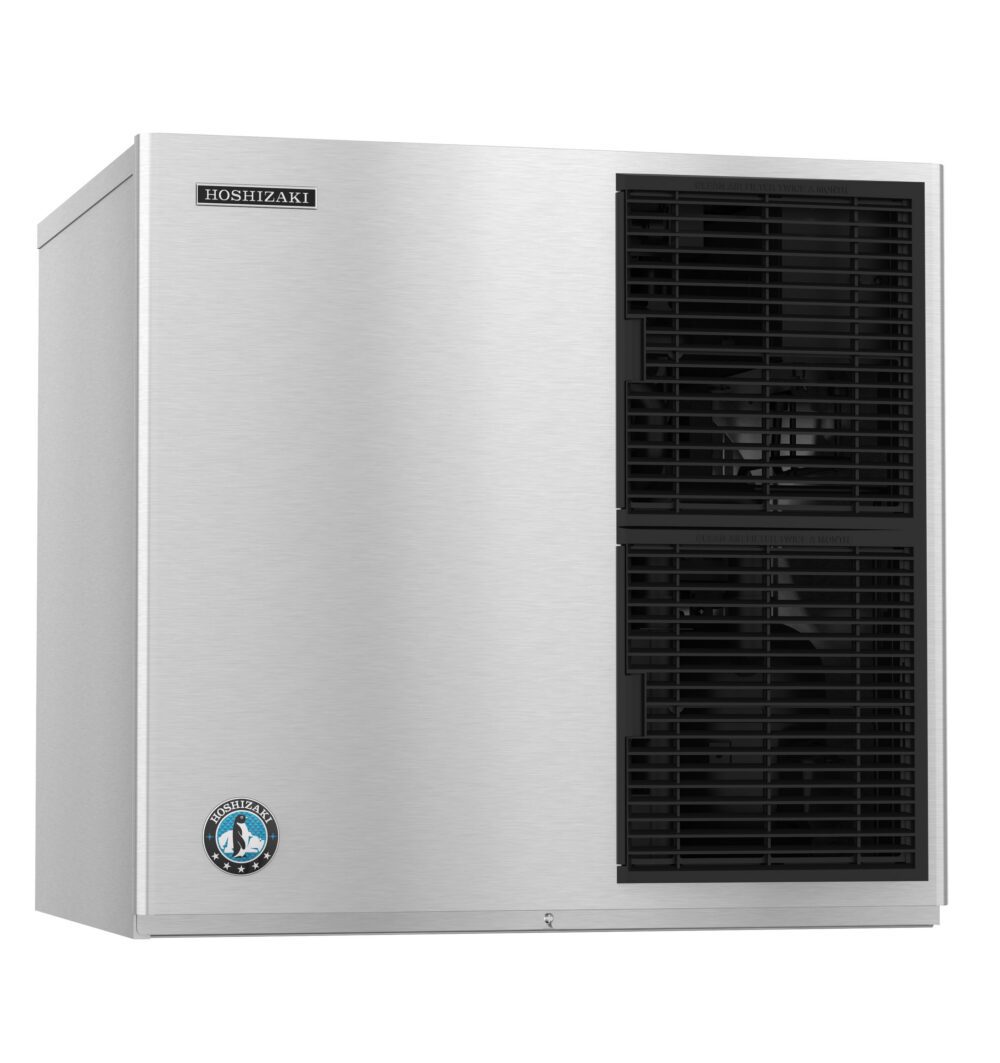

KM-830MAK2 Crescent® Cuber Ice Machine, Air-cooled
30″ W X 24.625″ D X 28″ H
Cooling Type
Air-Cooled
Electrical
208-230v/60/1
Ice Type
Crescent
Daily Ice
777
Parts and Service
Alternate Configurations
Electrical Specs
Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 6.4, Max Fuse/HACR Breaker: 20A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 10,900 BTU/hr, Refrigerant Charge: R290 (10.9 oz.)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
240 lbs.
Utility Consumption
4.4 kWh per 100 lbs. @ 90/70, 30 gal of Potable Water per 100 lbs. @ 90/70
Warranty
Three Years: Parts & Labor warranty on entire machine; Five Years: Parts warranty on Compressor, air-cooled condenser coil
Overview and Features
The KM-830MAK2 produces up to 777 lbs. of crescent ice per day, making it a strong fit for high-volume commercial operations. This air-cooled, modular unit features an efficient CycleSaver™ design and EverCheck™ alert system to support reliable performance and streamlined maintenance. Built for durability and consistency, it delivers the dependable ice production operators need to keep up with daily demand.
- Dimensions: 30″ W x 24-5/8″ D x 28″ H
- Up to 777 lbs. of ice produced per 24 hours
- Mount two units side-by-side for 2x the ice production
- Produces crescent-shaped ice
- Stainless steel double-sided evaporator
- Durable stainless steel exterior
- EverCheck™ alert system
- CycleSaver™ design
- Removable air filters
- Environmentally friendly R290 hydrocarbon refrigerant
