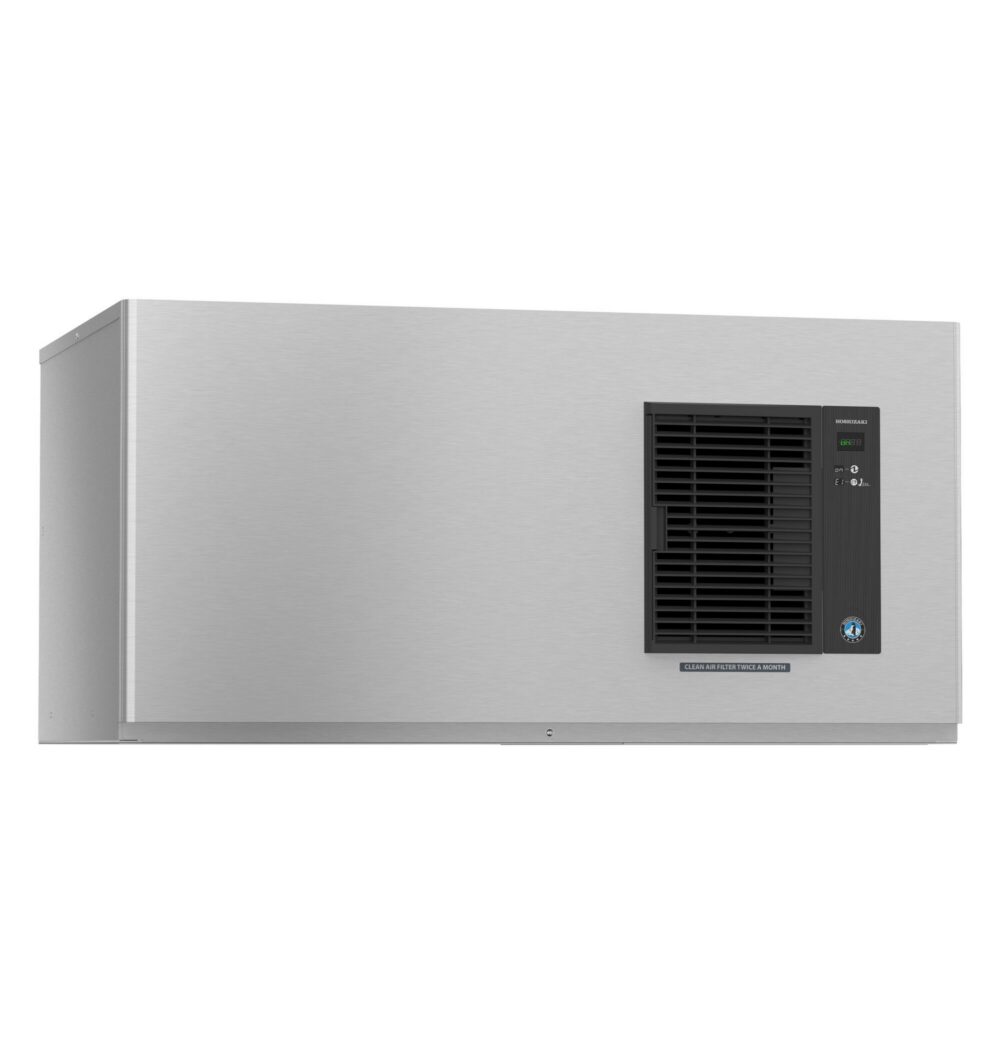

A commercial stainless steel ice machine with a black vented panel and control buttons on the front.

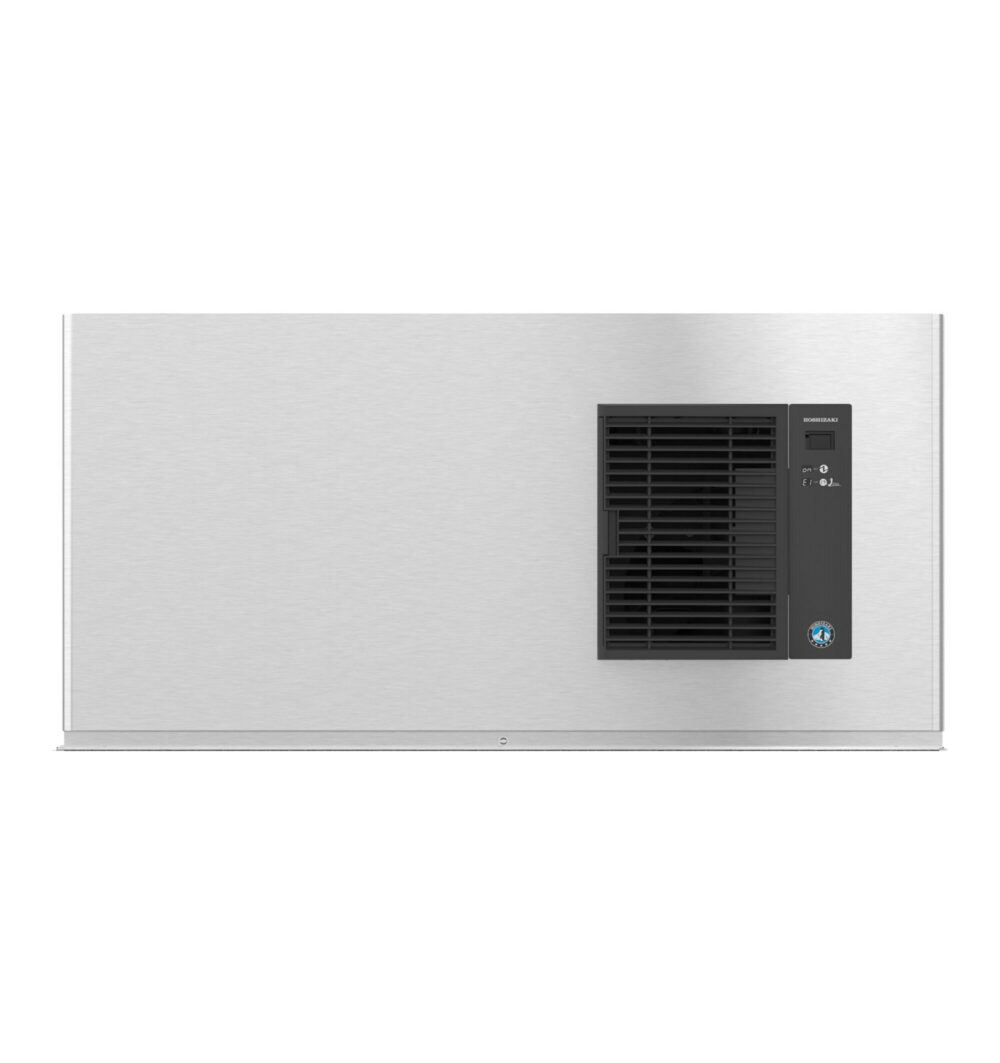

Front view of a stainless steel ice machine with a black vent and control panel on the right side.

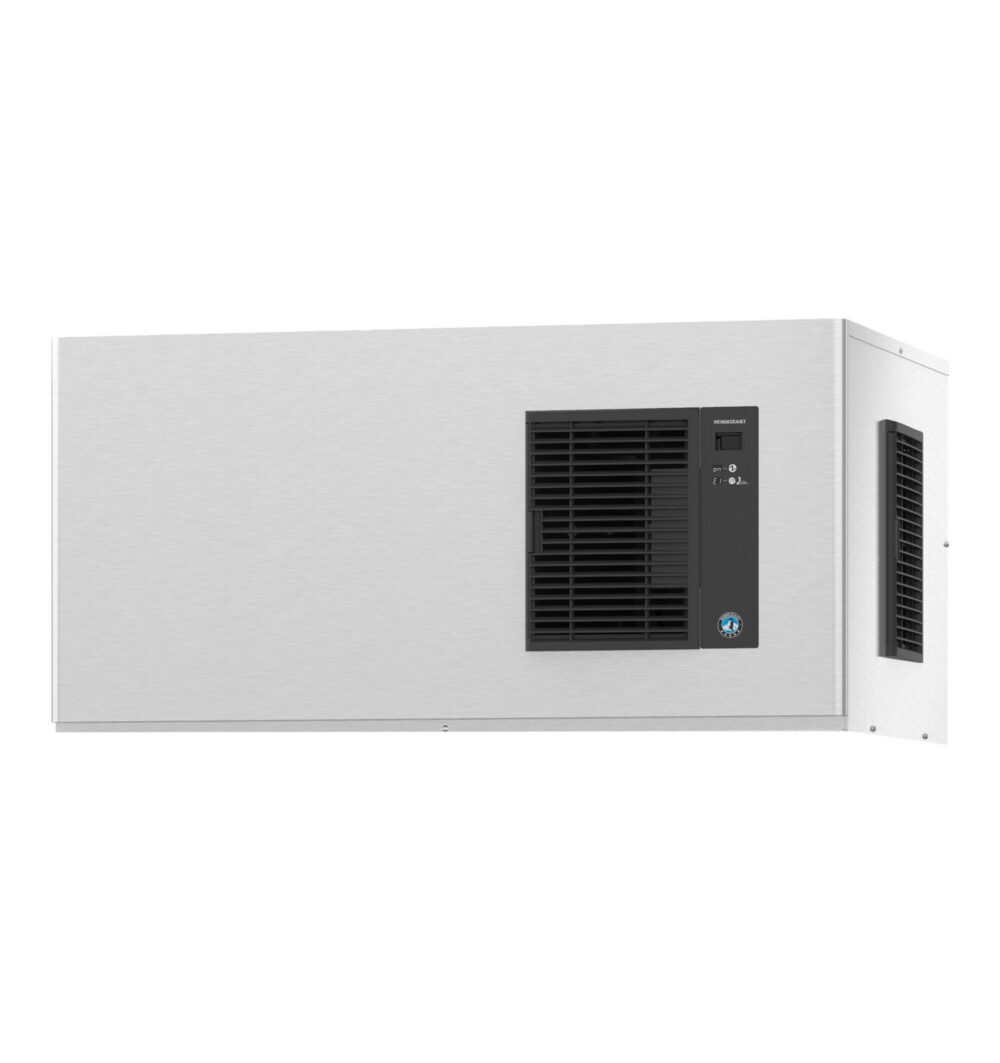

Rectangular wall-mounted air conditioning unit with a metal finish, front-facing vent, control panel, and side ventilation.

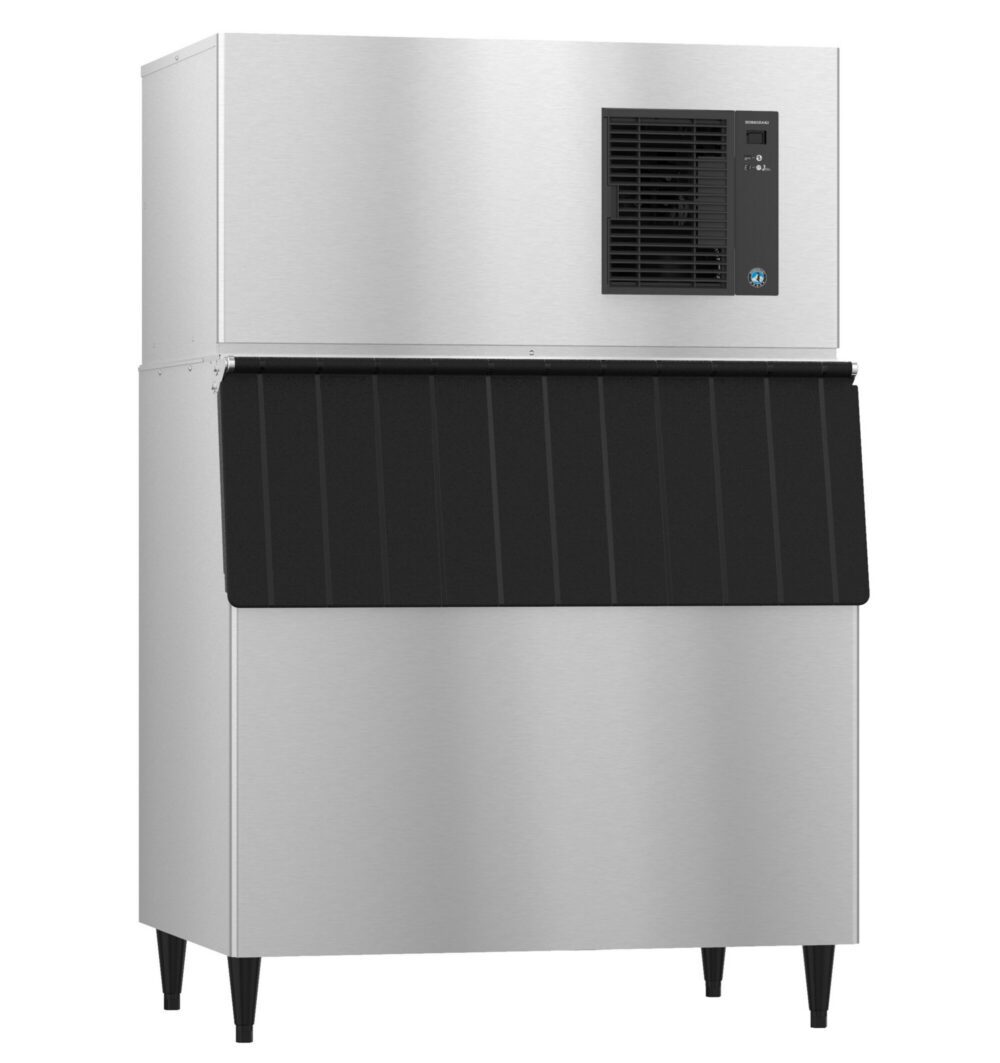

Commercial stainless steel ice machine with a black front panel and four legs, featuring a cooling vent and control panel on the upper right side.

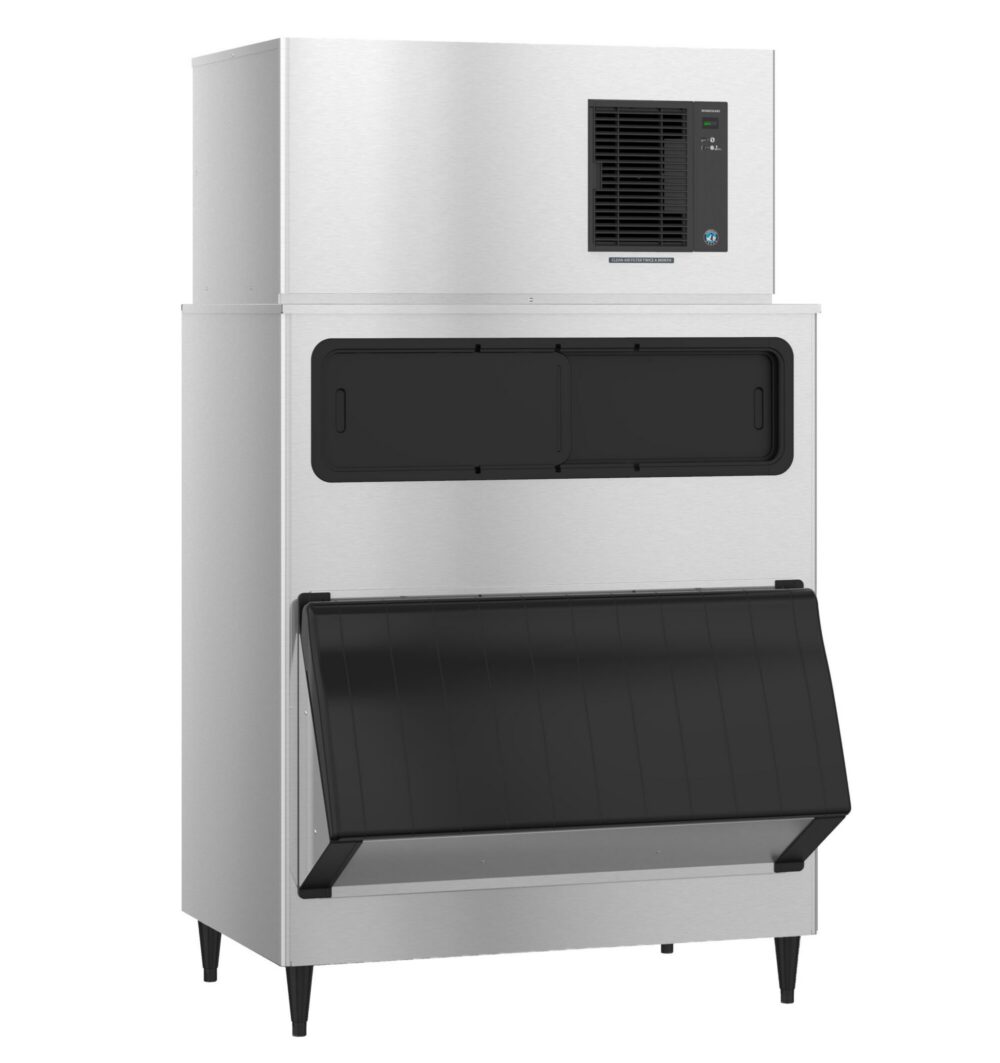

Large commercial stainless steel ice maker with a top cooling vent and a black front-access door on the storage bin, standing on four legs.

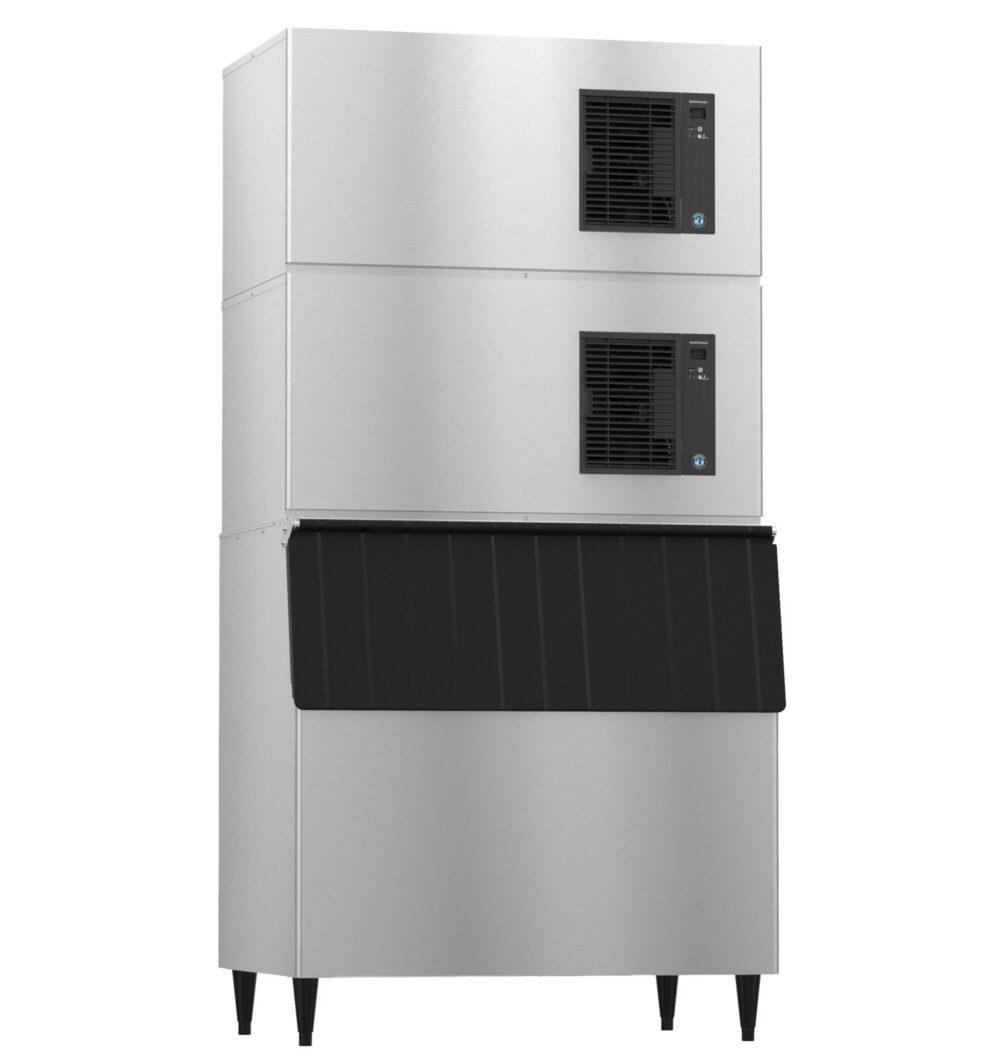

Commercial stainless steel ice machine with two stacked cooling units on top and a black ice storage bin at the bottom, standing on four legs.

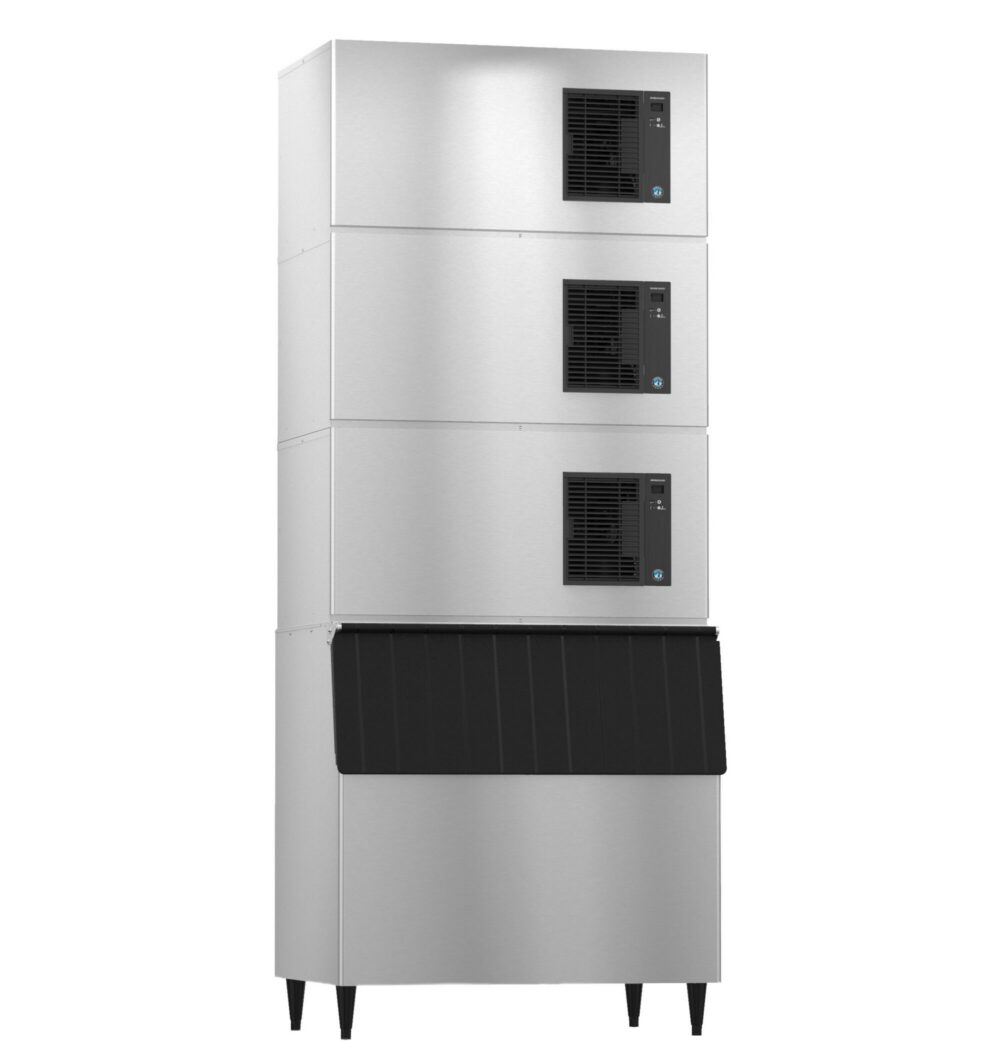

A large commercial ice machine with three stacked cooling units above a bin, all in a stainless steel finish, standing on four legs.

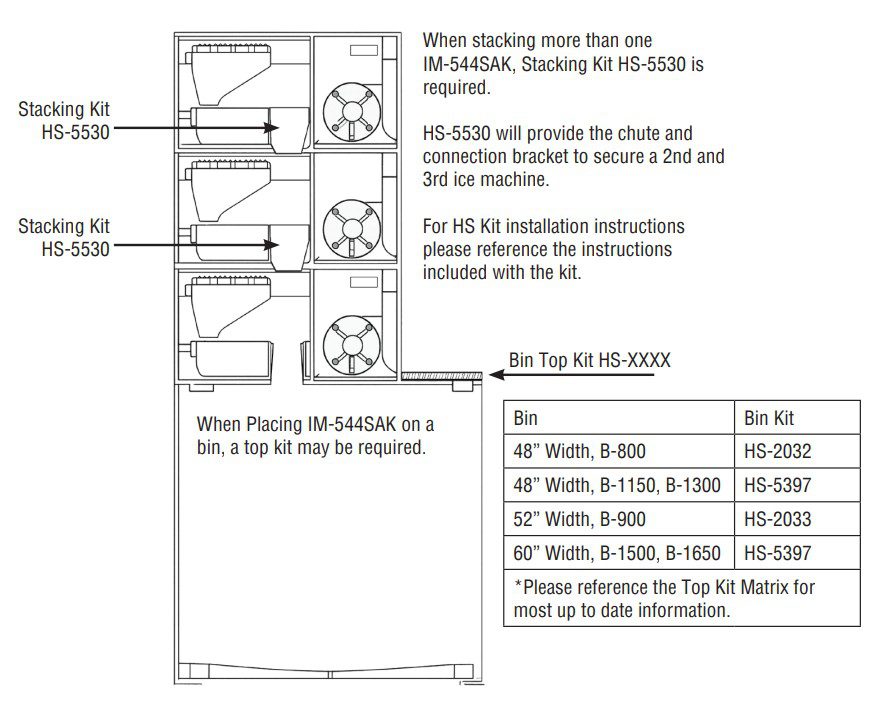

Diagram showing the stacking of IM-544SAK ice machines with HS-5530 stacking kits, bin and bin kit compatibility chart, and note on top kit requirements based on bin size.

IM-544SAK Square Cuber Ice Machine, Air-cooled

Name: IM-500SAB, Square Cuber Icemaker, Air-cooled
Brand: Hoshizaki
SKU: IM-500SAB

44″ W X 27.625″ D X 21.75″ H

Cooling Type

Air-Cooled

Electrical

115v/60/1

Ice Type

Square

Daily Ice

453

Request a Quote Find a Distributor

Parts and Service

Downloads

Alternate Configurations

Commercial stainless steel undercounter ice maker with digital display, vent, and two storage drawers, standing on four black legs.

Electrical Specs

Single phase, 115v/60/1 Must be hardwired at site, no cord/plug included, Amperage: 10.8, Max Fuse/HACR Breaker: 20A

Operating Limits

Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 108 – 127V, Heat Rejection: 1,900 BTU/hr, Refrigerant Charge: R290 (4.9 oz.)

Plumbing Specs

1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent

Shipping Weight

234 lbs.

Utility Consumption

5.77 kWh per 100 lbs. @ 90/70, 19 gal of Potable Water per 100 lbs. @ 90/70

Warranty

Three Years: Parts & Labor warranty on entire machine; Five Years: Parts warranty on Compressor, air-cooled condenser coil

Overview and Features

The IM-544SAK produces up to 453 lbs. of individual 1by1 square cubes per day, ideal for bars, restaurants, and other beverage-focused operations. Its crystal-clear, slow-melting cubes deliver a clean, premium presentation that enhances any drink—from cocktails and spirits to soft drinks and iced coffee. This air-cooled, stackable unit allows for stacking up to three units for three times the ice production in the same floor space, and its sleek stainless steel design is built for durability and easy maintenance. The IM-544SAK offers reliable performance and elevated quality for versatile, everyday ice service.

PFAS Warning: This product contains: PTFE and Propane, 1,1,1,2,2,3,3-heptafluoro-3-[(1,2,2-trifluoroethenyl) oxy]-, polymer with 1,1,2,2-tetrafluoroethene. For more information about PFAS chemicals in this product, visit the California Safer Consumer Products website.
