F-422MAK Flaker Ice Machine, Air-cooled
24″ W X 26″ D X 39″ H
Cooling Type
Air-Cooled
Electrical
115v/60/1
Ice Type
Flaked
Daily Ice
485
Parts and Service
Electrical Specs
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 8.8, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 108 – 127V, Heat Rejection: 3400 BTU/hr, Refrigerant Charge: R290 (2.8 oz.)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
175 lbs.
Utility Consumption
4.9 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Warranty
Three Years: Parts & Labor warranty on entire machine; Five Years: Parts warranty on Compressor, air-cooled condenser coil
Overview and Features
The F-422MAK produces up to 485 lbs. of flaked ice per day, perfect for salad bars, seafood displays, and other applications requiring long-lasting, sanitary ice. This air-cooled, Slim Line modular ice machine features Advanced CleanCycle24™ for automatic hourly cleaning and a greaseless bearing auger for easy maintenance, and ultrasonic bin control for consistent ice levels.

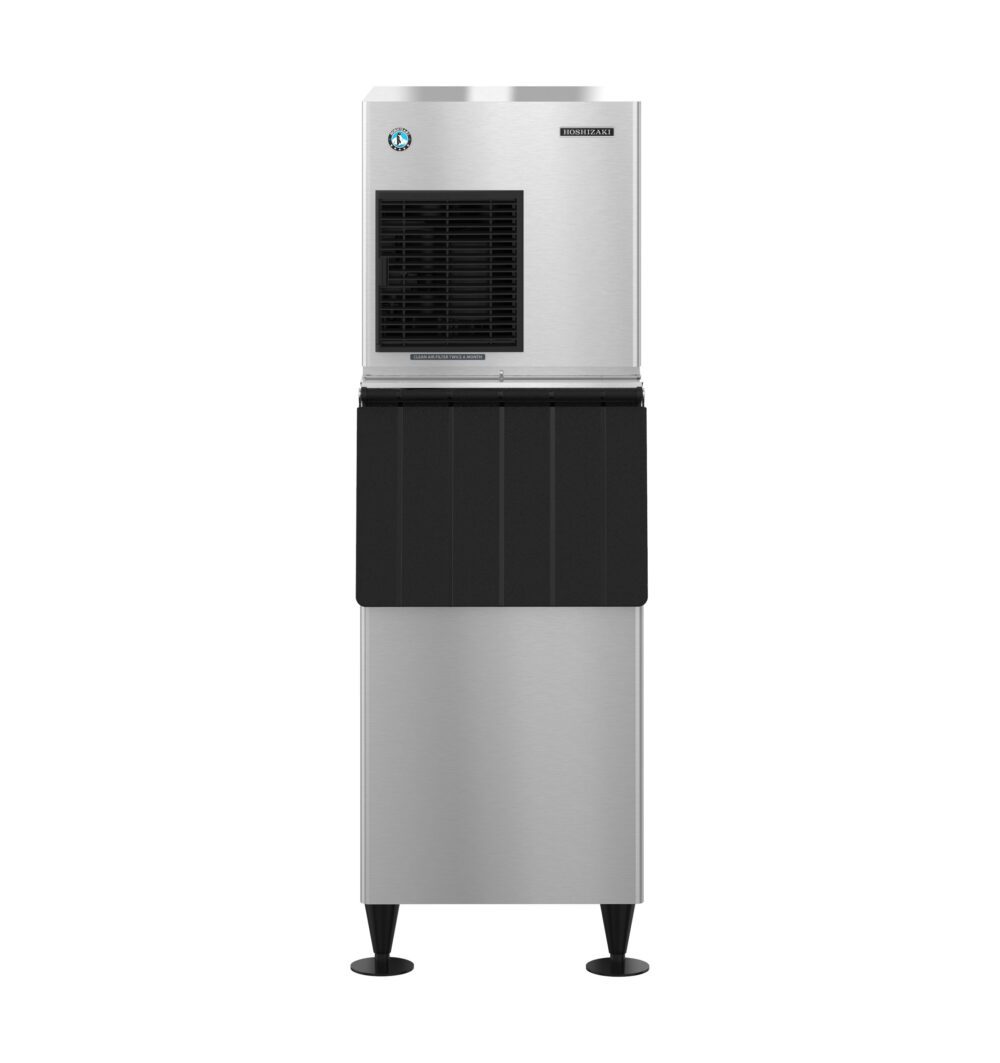

Compatible bins: B-250SF, B-300SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS, B-1500SS, B-1650SS; sold separately. View Bins
- Dimensions: 24″ W x 26″ D x 39″ H
- Up to 485 lbs. of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces flaked ice
- Durable stainless steel exterior
- Factory-installed ultrasonic bin control
- Stainless steel auger with greaseless bearing
- Advanced CleanCycle24™ design performs a 2 second purge every hour to clean itself
- Environmentally friendly R290 hydrocarbon refrigerant
