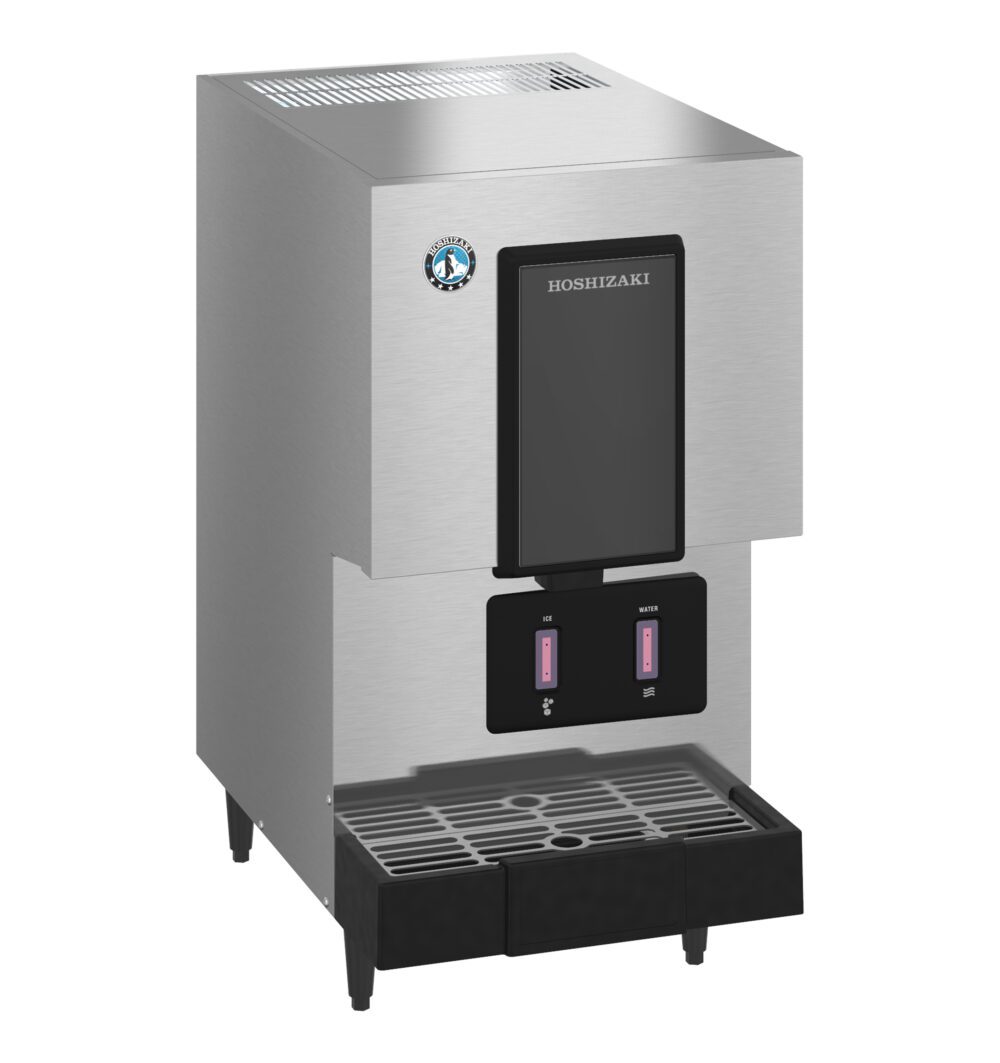

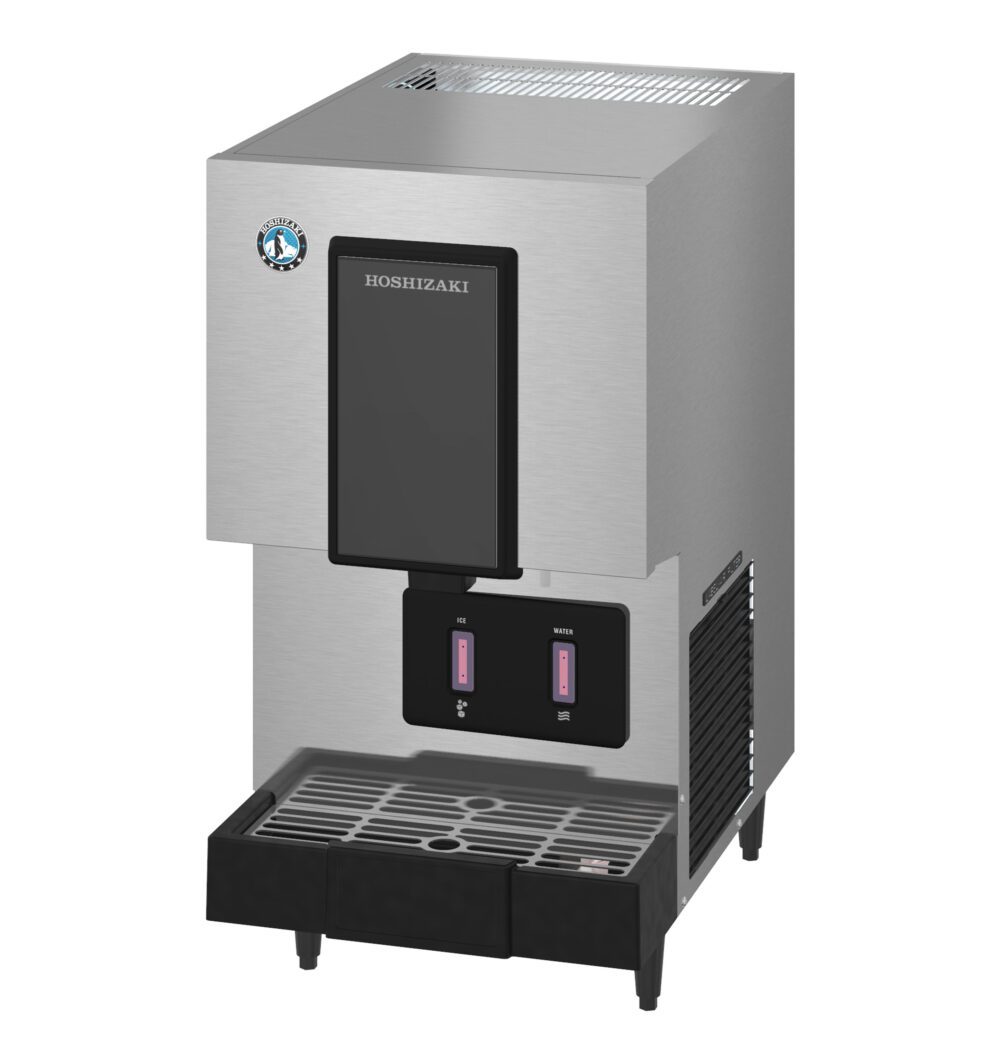

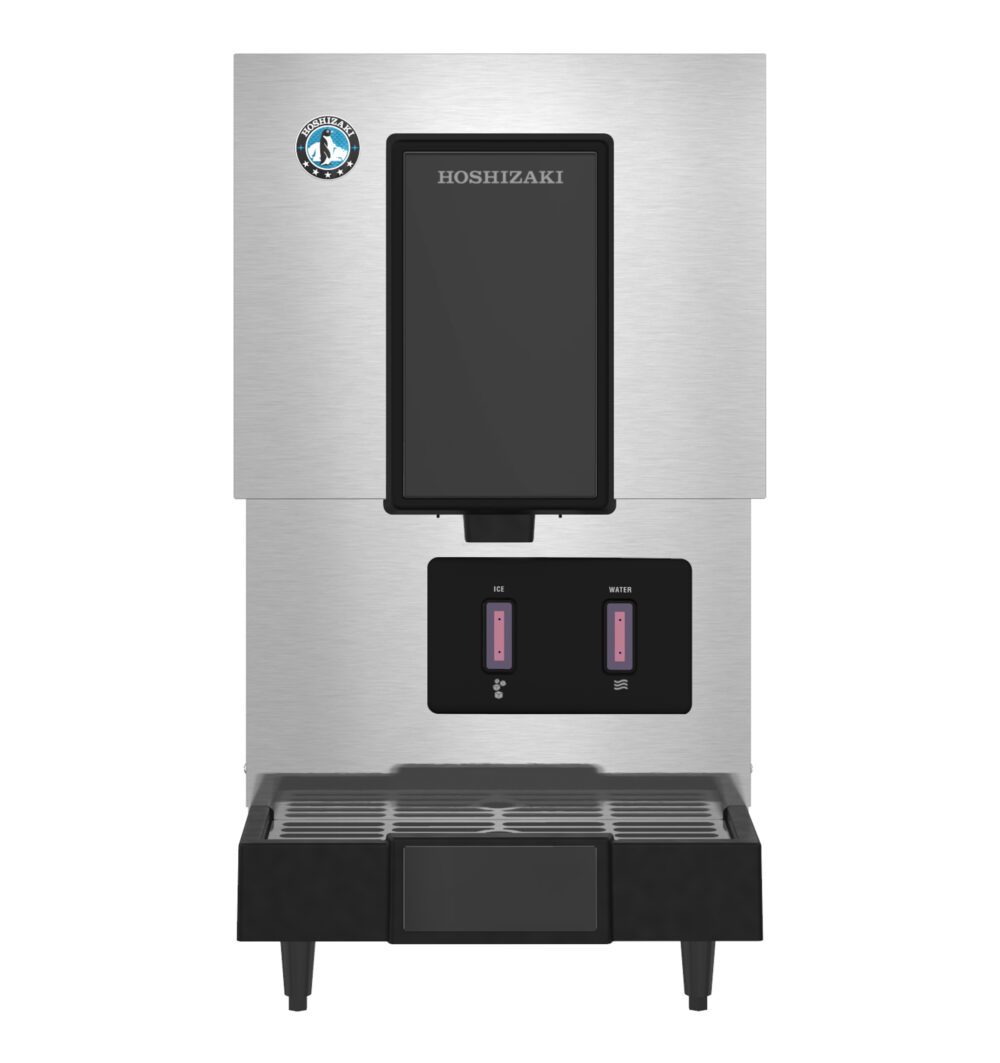

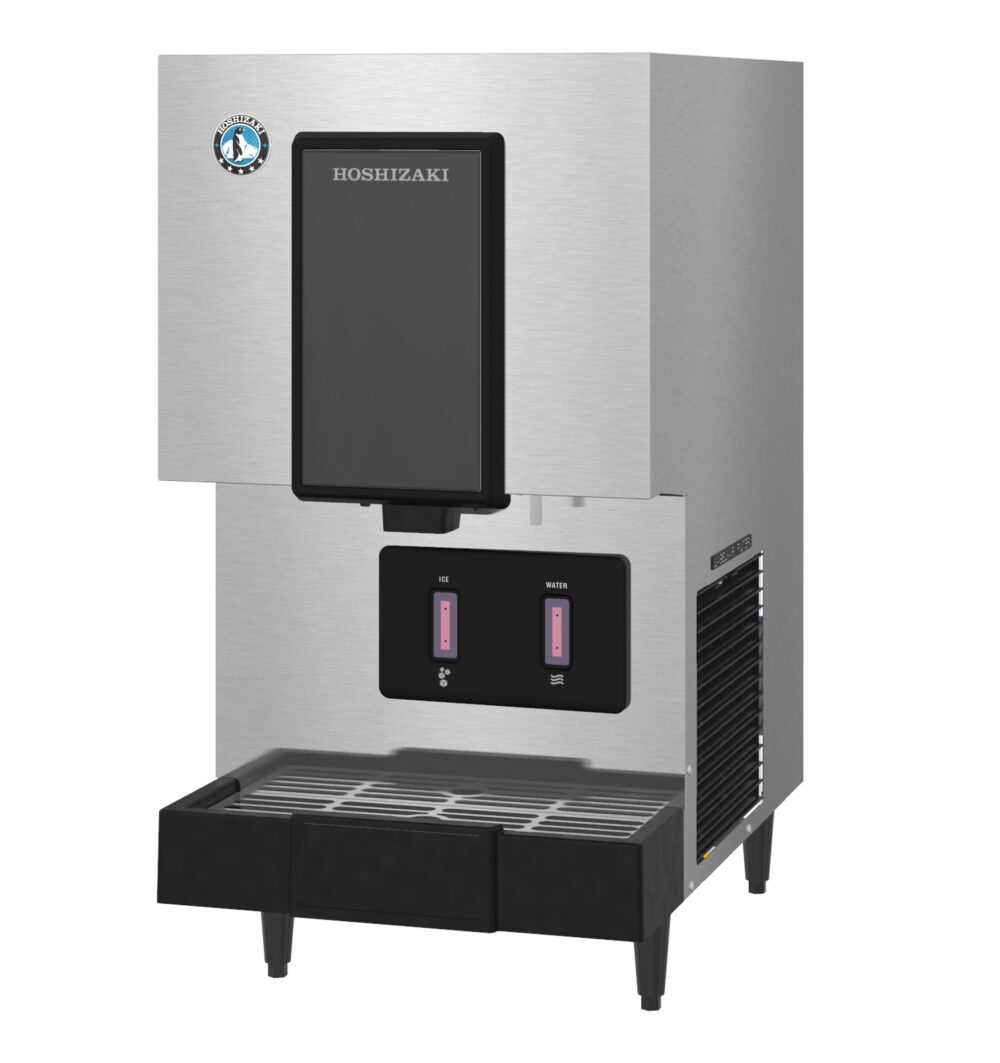

DCM-271BAK-OS Cubelet Ice Machine and Water Dispenser, Air-cooled, Hands Free, Built-in Storage Bin
16.625″ W X 24.25″ D X 31.75″ H
Cooling Type
Air-Cooled
Electrical
115v/60/1
Ice Type
Mini Cubelet
Daily Ice
286
Parts and Service
Alternate Configurations
Electrical Specs
Single phase, 115v/60/1 6 ft. cord with a NEMA 5-15 plug, Amperage: 6.4, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 108 – 127V, Heat Rejection: 3000 BTU/hr, Refrigerant Charge: R290, 5.3 oz.
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight
154 lbs.
Utility Consumption
5.3 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Warranty
Three Years: Parts & Labor warranty on entire machine; Five Years: Parts warranty on Compressor, air-cooled condenser coil
Overview and Features
The DCM-271BAK-OS produces up to 286 lbs. of Cubelet nugget-style ice per day with a built-in storage bin that holds up to 10 lbs. of ice at a time*. This air-cooled dispenser provides ice or water with hands-free operation, with a user-friendly design that keeps ice contained and sanitary until it’s needed. The Advanced CleanCycle24™ design automatically performs a two-second purge every hour to maintain cleanliness. Designed for versatility, it can be placed on a countertop or paired with an optional stand.
*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb./ft³ average ice density.
- Dimensions: 16-5/8″ W x 24-1/4″ D x 31-3/4″ H
- Up to 286 lbs. of ice produced per 24 hours
- Up to 10 lbs. of built-in storage capacity (0.3ft3)
- Produces mini cubelet nugget-style ice
- Durable stainless steel exterior

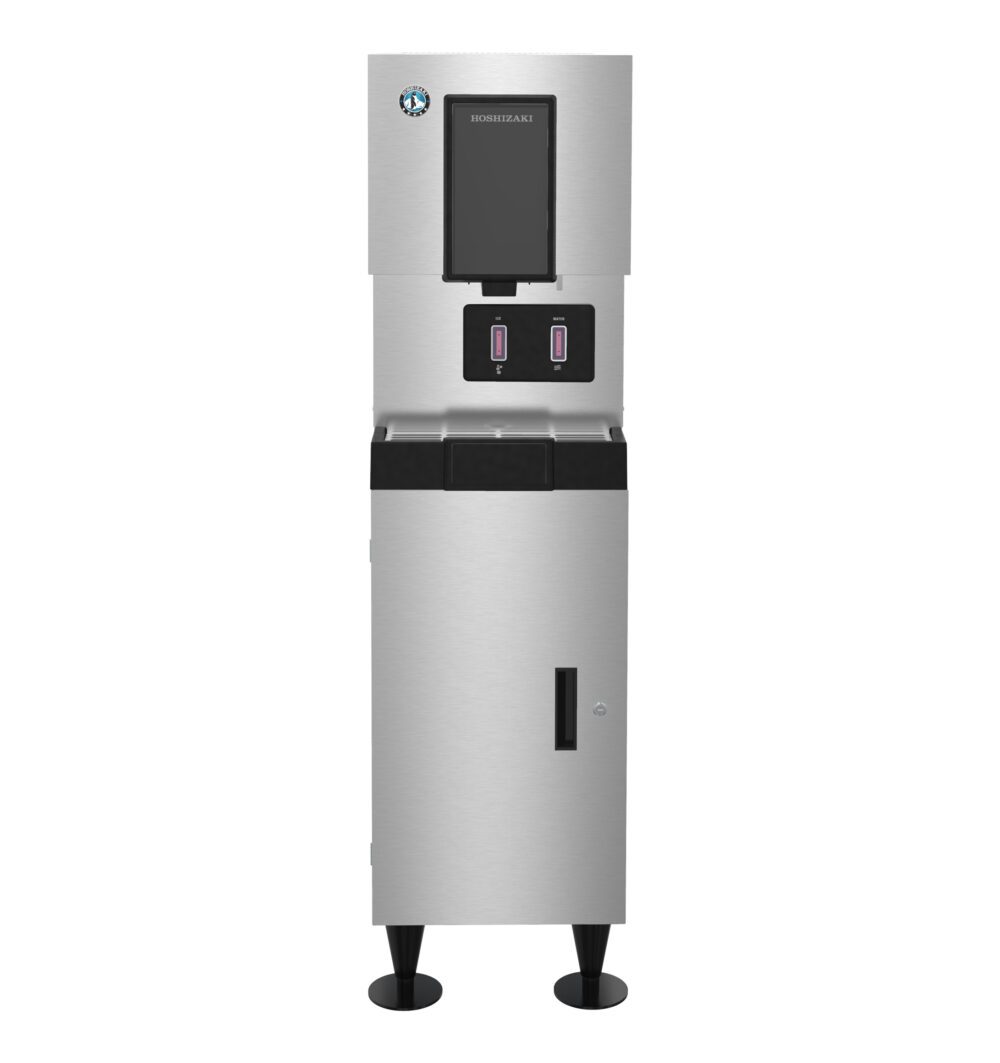

- Place on countertop or optional stand: SD-271
- LED remote sensors for hands-free operation with opaque containers
- 10-1/4” cup clearance
- Durable stainless steel drain pan grate
- Easy-cleaning removable spout
- Advanced CleanCycle24™ design performs a 2 second purge every hour to clean itself
- Environmentally friendly R290 hydrocarbon refrigerant
- ADA compliant
