WR36A-01, Refrigerator, Single Section Worktop, Stainless Door with Lock / WR36A-01, Refrigerator, Single Section Worktop, Stainless Door with Lock

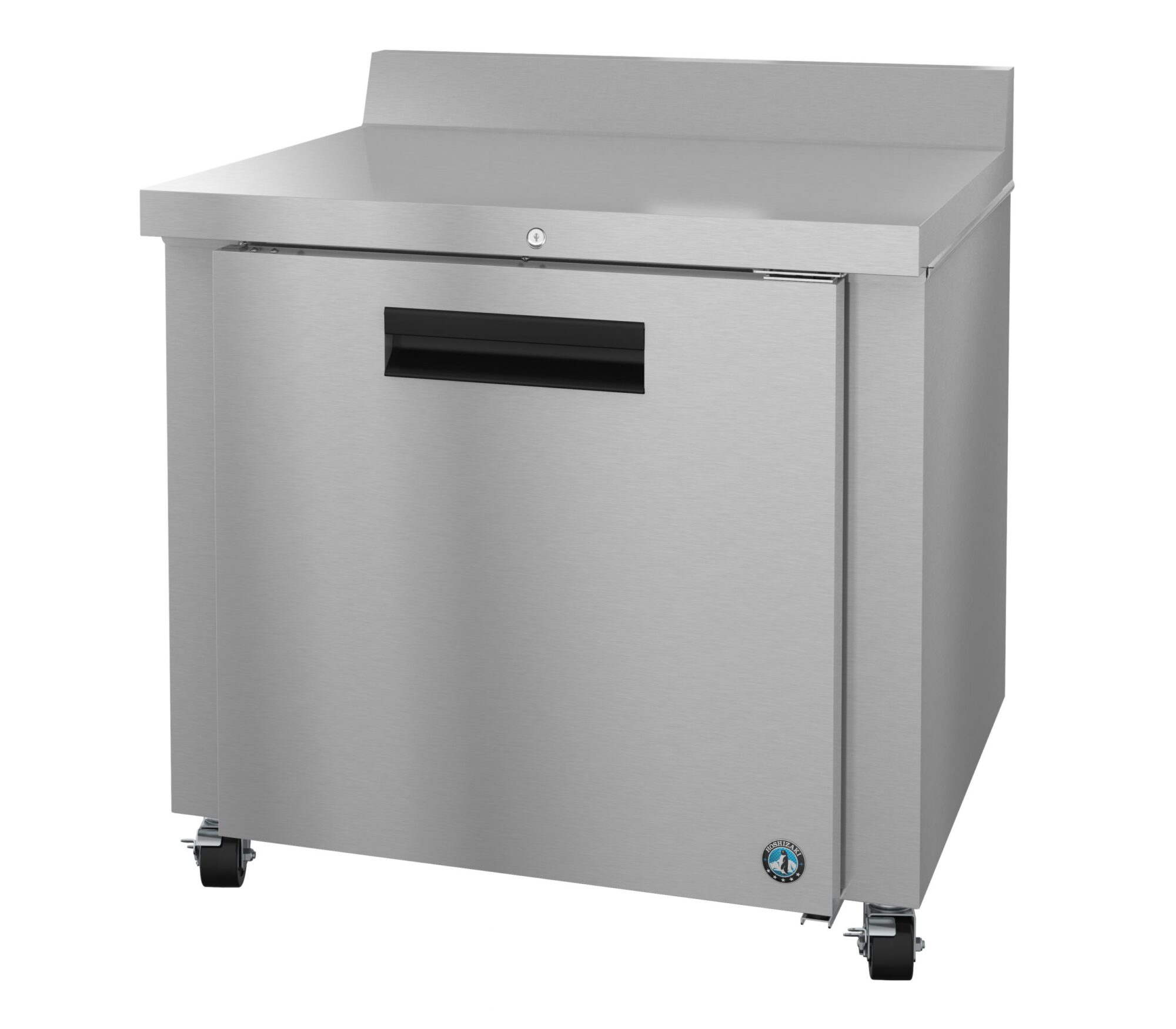

WR36A-01 Refrigerator, Single Section Worktop, Stainless Door with Lock

36″ W X 30″ D X 40″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 0.54 kwh/day, Amperage: 2.4, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R290
Refrigeration Data
Nominal Compres. of 1029 BTU/hr at 1/6 HP, Heat Rejection: 222 BTU/hr
Shipping Weight
215
Storage Specs
Nominal storage capacity: 9.9 ft3, Interior storage capacity: 8.7 ft3, Door opening: 25.5″ W x 23″ H, Depth with door fully extended: 58.5″ D, Shelves included: 1
Warranty
Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The WR36A-01 Steelheart Series Worktop single section refrigerator with a stainless door is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 8.7 cubic feet this efficient worktop refrigerator and front air flow design is perfect for hot/tight kitchens. The WR36A-01 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

The WR36A-01 also includes (1) epoxy coated wire shelf adjustable in 1/2″ increments on anodized aluminum supports, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 0.54 kWh/day at 2.4 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Includes cylinder locks (-01) (factory installed). The unit is ETL Safety (US & C) Listed, ETL Sanitation, ENERGY STAR® Qualified and includes a five years compressor warranty / three years parts and labor warranty.

[fusion_button link=”https://hoshizakiamerica.com/product/WR36B-01/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]REPLACED BY WR36B-01[/fusion_button]

  • Dimensions: 36″ W x 30″ D x 40″ H
  • Net capacity of 8.7 cubic feet
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
  • Extruded aluminum flush mount door handle
  • (1) stainless steel door with ABS interior liner
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • (1) epoxy coated wire shelf adjustable in 1/2″ increments on anodized aluminum supports
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R290 refrigerant
  • (4) 4″ Stem Casters (2 with brakes) are standard
  • Automatic off-cycle defrost
  • Includes cylinder locks (-01) (factory installed)
  • Nominal Compres. of 1029 BTU/hr at 1/6 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 38″ L x 32″ D x 40.25″ H at 215 lbs
  • ENERGY STAR® qualified
  • Five Years compressor warranty, Three Years parts and labor warranty
