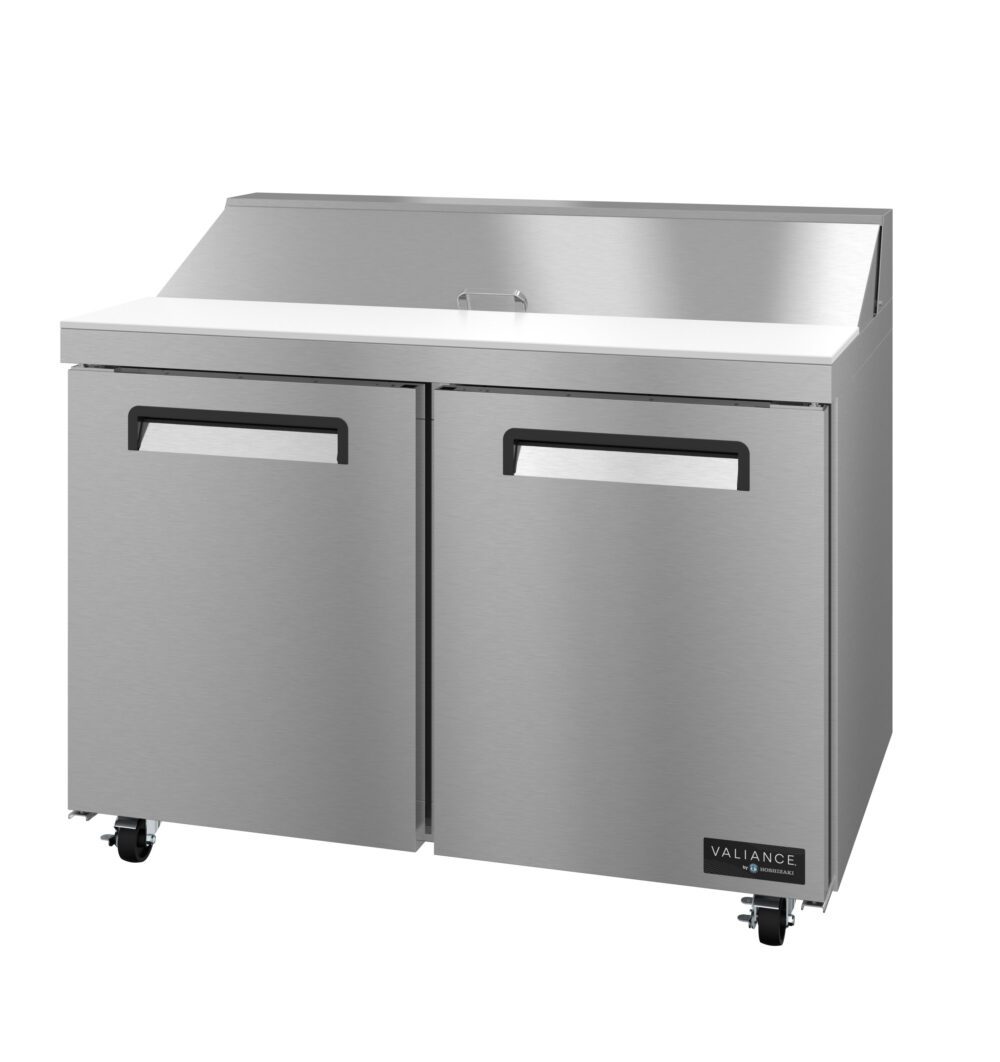

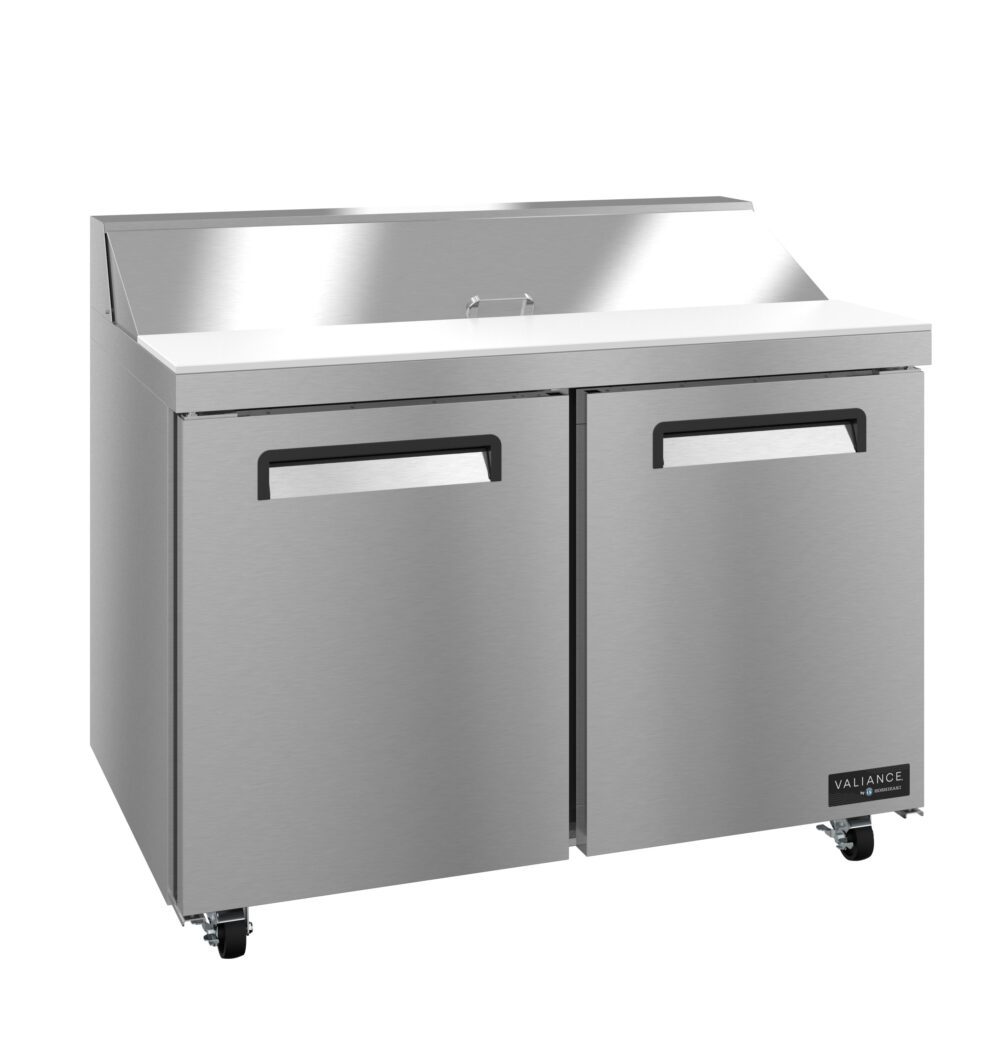

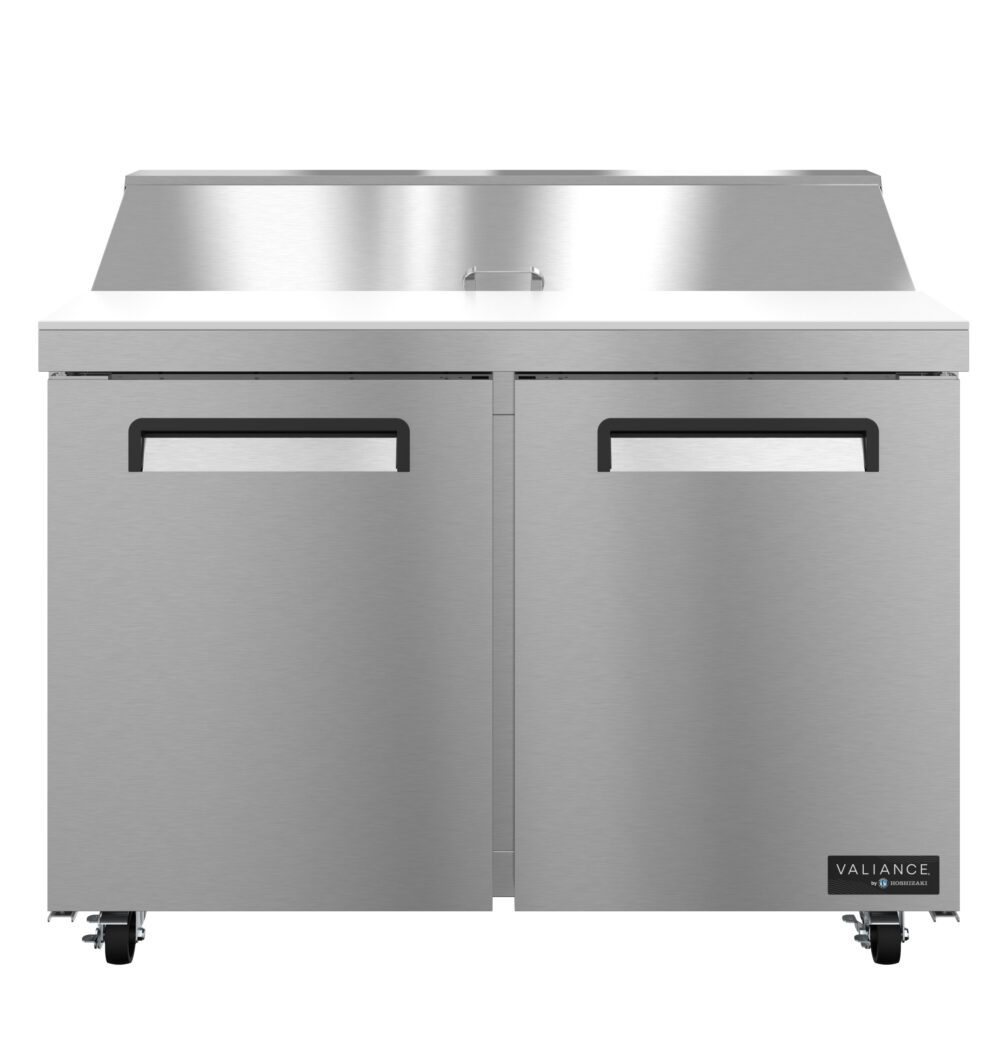

VSR48A-12 Refrigerator, Two Section Sandwich Prep Table, Stainless Doors

47″ W X 30″ D X 40″ H
Volume
12.09
Electrical
115v/60/1
Sections
2
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 9 ft. cord and plug, Energy Consumption: 2.16 kwh/day, Amperage: 3.3, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 103 – 127V, Control Setpoint Range: 32.5 – 36.5°F, Refrigerant: R290
Refrigeration Data
Nominal Compres. of 2130 BTU/hr at 1/6 HP, Heat Rejection: BTU/hr
Shipping Weight
290
Storage Specs
Nominal storage capacity: 12.09 ft3, Interior storage capacity: 12.09 ft3, Door opening: 19.75″ W x 22.88″ H, Depth with door fully extended: 51.76″ D, Shelves included: 2
Warranty
3 Years: Labor, 4 Years: Parts, 5 Years: Compressor

Overview and Features

The VSR48A-12 Valiance® Series two section sandwich prep refrigerator with stainless doors is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions and with a net capacity of 12.09 cubic feet, this efficient sandwich prep refrigerator with front airflow design is perfect for hot/tight kitchens. The VSR48A-12’s exterior is constructed of stainless steel, which protects the unit from accidental damage and rust. Plus, it is easy to clean.

The VSR48A-12 also includes (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports, (4) 4″ stem casters (2 with brakes) are standard, plus field reversible, spring assisted self-closing doors with stay open feature (no kit req’d). Electrical consumption of 2.16 kWh/day at 3.3 Amps, 9 ft long cord with a 5 – 15P NEMA plug. White polyethylene cutting board and (12) polycarbonate plastic 1/6th size pans are standard. The unit is UL EPH Listed, UL Listed, and includes a 3-4-5 Warranty (three years labor, four years parts, five years compressor).

  • Dimensions: 47.75″ W x 30.13″ D x 40.69″ H
  • Net capacity of 12.09 cubic feet
  • Stainless steel exterior doors and interior floor with aluminum sides, rear, and top)
  • Field reversible, spring assisted self-closing doors with stay open feature (no kit req’d)
  • (4) 4″ Stem Casters (2 with brakes) are standard
  • Includes (2) heavy duty grey epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
  • Includes (12) polycarbonate plastic 1/6th size pans, 4″ deep
  • White polyethylene cutting board is standard
  • Time initiated automatic defrost
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • Environmentally friendly R290 refrigerant
  • Optional kits: Rearmount shelves; Single and double overshelves
  • Nominal Compression of 2130 BTU/hr at 1/6 HP
  • 115v/60/1, 9 ft. cord and plug
  • Shipping Crate: 52.13″ L x 34.5″ D x 45.5″ H at 290 lbs
  • 3-4-5 Warranty (three years labor, four years parts, five years compressor)
