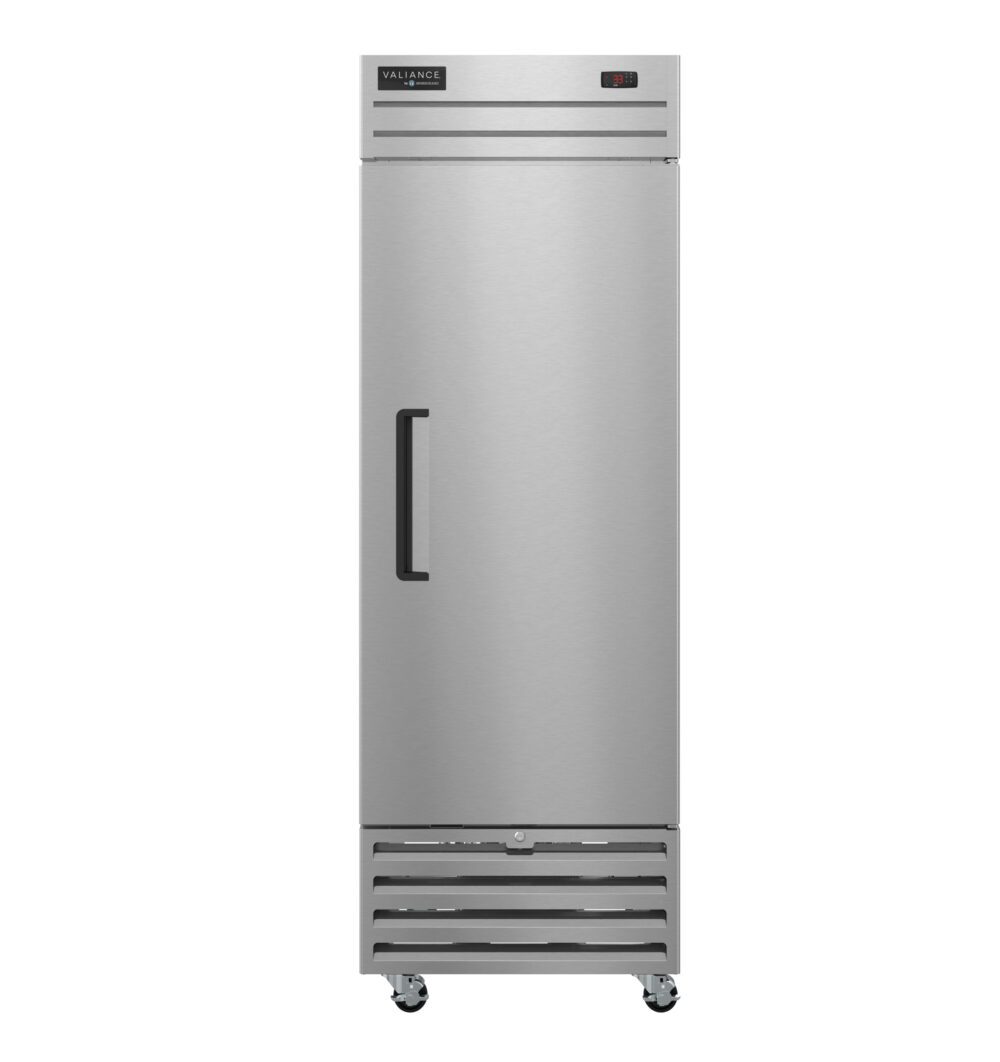

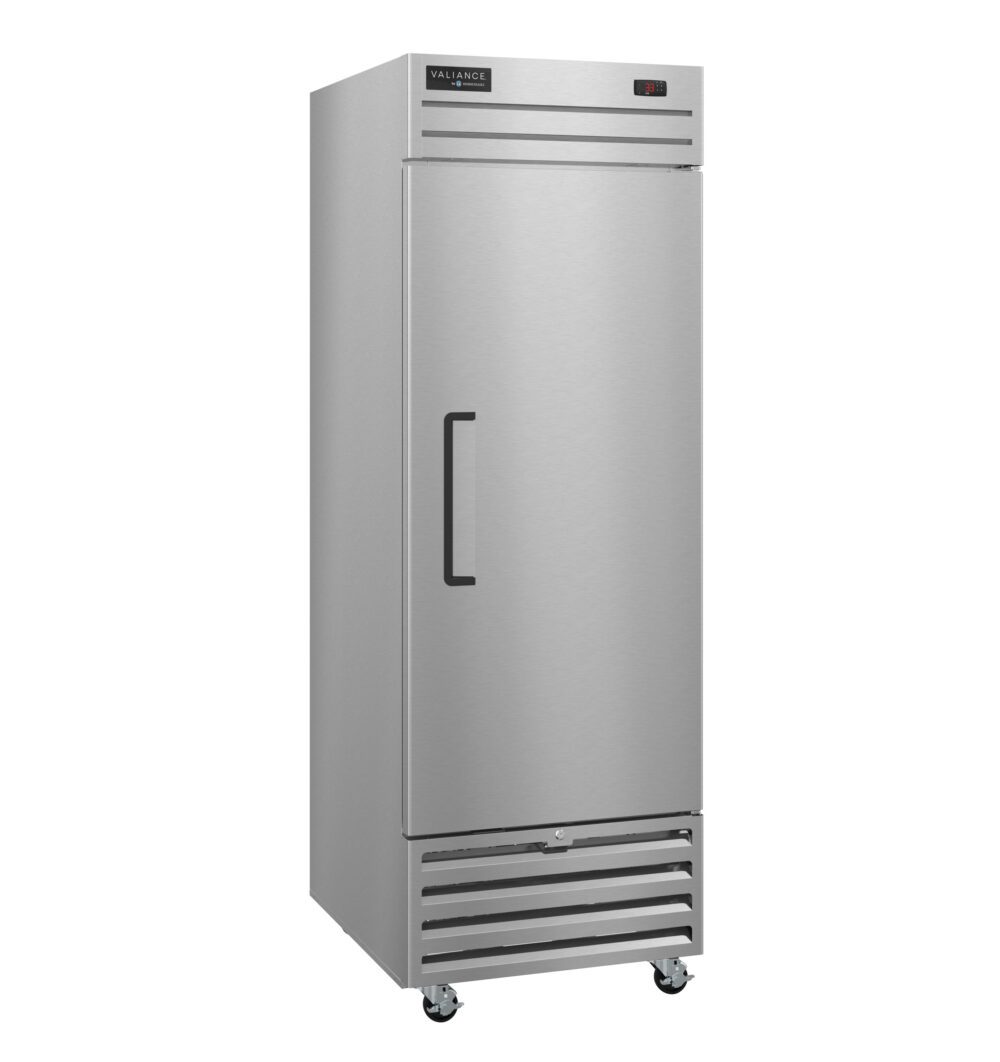

VF1A-FS Freezer, Single Section Upright, Full Stainless Door with Lock

26.88″ W X 32″ D X 81.7″ H
Volume
19.07
Electrical
115v/60/1
Sections
1
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 9 ft. cord and plug, Energy Consumption: 3.89 kwh/day, Amperage: 4.1, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 103 – 127V, Control Setpoint Range: -4 – 4°F, Refrigerant: R290
Refrigeration Data
Nominal Compres. of 1115 BTU/hr at 1/5 HP
Shipping Weight
310 lbs.
Storage Specs
Interior storage capacity: 19.07 ft3, Door opening: 22.25″ W x 52.31″ H, Depth with door fully extended: 57.87″ D, Shelves included: 3
Warranty
3 Years: Labor, 4 Years: Parts, 5 Years: Compressor

Overview and Features

The VF1A-FS Valiance® Series upright single section freezer with a full stainless door is ready to get the job done. The dependable 1/5 HP motor that powers the compressor in the bottom of this unit provides the cabinet with a continuous stream of cold air.

Featuring a stainless steel door, DualGuard™ coated steel exterior sides, and a stainless steel floor with aluminum interior surfaces, this cabinet offers lasting durability and an attractive professional appearance. Plus, it is easy to clean! The VF1A-FS includes (3) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports, energy efficient interior led light, and (4) 4″ stem casters (2 with brakes) are standard. It features a self-closing, lockable full stainless door that is field reversible (no kit req’d). The unit is UL EPH Listed, UL Listed, ENERGY STAR® Qualified and includes a 3-4-5 Warranty (three years labor, four years parts, five years compressor).

  • Dimensions: 26.88″ W x 32″ D x 81.70″ H
  • Net capacity of 19.07 cubic feet
  • Rear-ducted airflow ensures even cooling throughout entire cabinet
  • Energy efficient interior LED light
  • Fits full-size tray pans
  • Stainless steel door; DualGuard™ coated steel exterior sides; stainless steel floor with aluminum interior sides, rear and top
  • Built-in pocket door handle with black plastic trim
  • Self-closing, lockable full stainless door is field reversible (no kit req’d)
  • Cabinet and door are insulated with 2 5/16” of CFC-free, foamed in place polyurethane
  • Solid state digital controller with temperature alarms and LED display (°F or °C)
  • (4) 4″ Stem Casters (2 with brakes) are standard

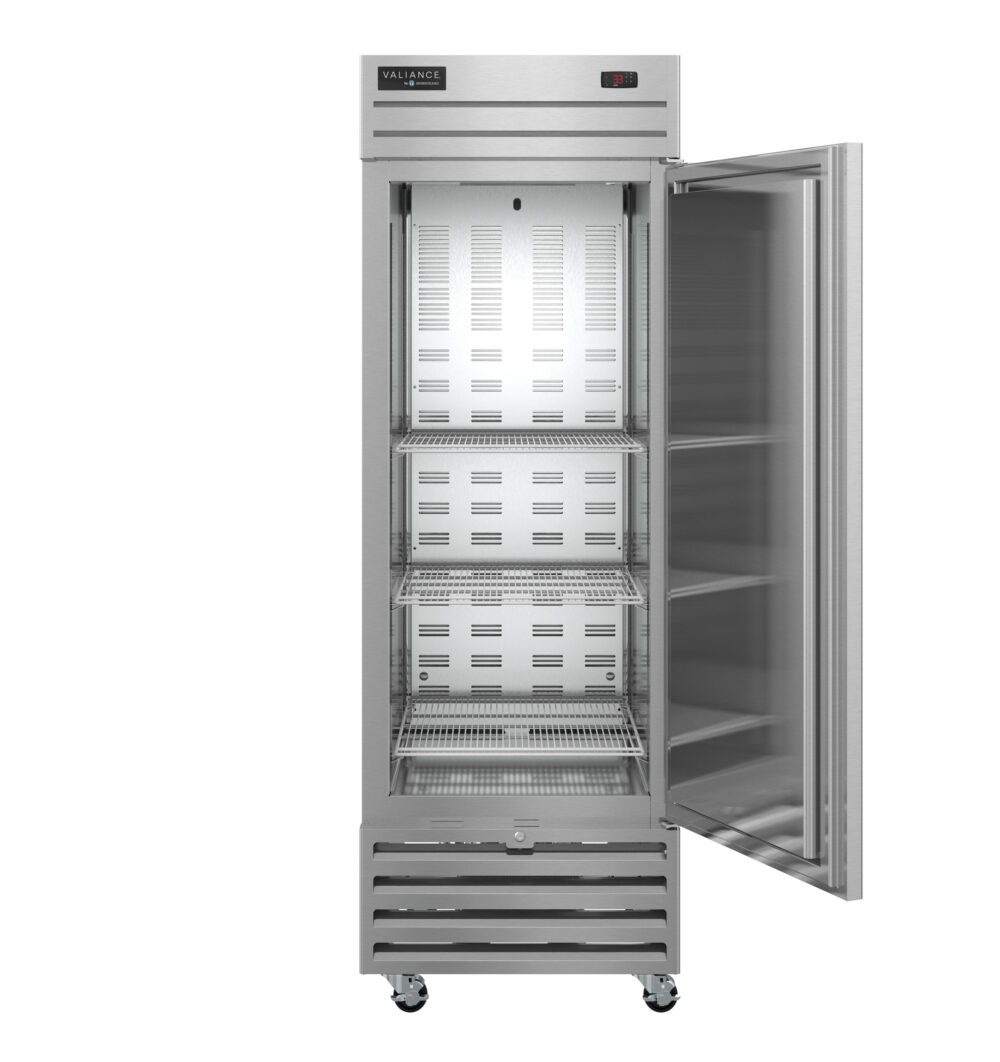

  • Includes (3) heavy duty grey epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
  • SmartCheck™ time initiated and time or temperature terminated automatic defrost
  • Energy efficient heated condensate removal
  • Environmentally friendly R290 refrigerant
  • ENERGY STAR® Qualified
