UR60A-D2, Refrigerator, Two Section Undercounter, Drawer/Door Combo / UR60A-D2, Refrigerator, Two Section Undercounter, Drawer/Door Combo

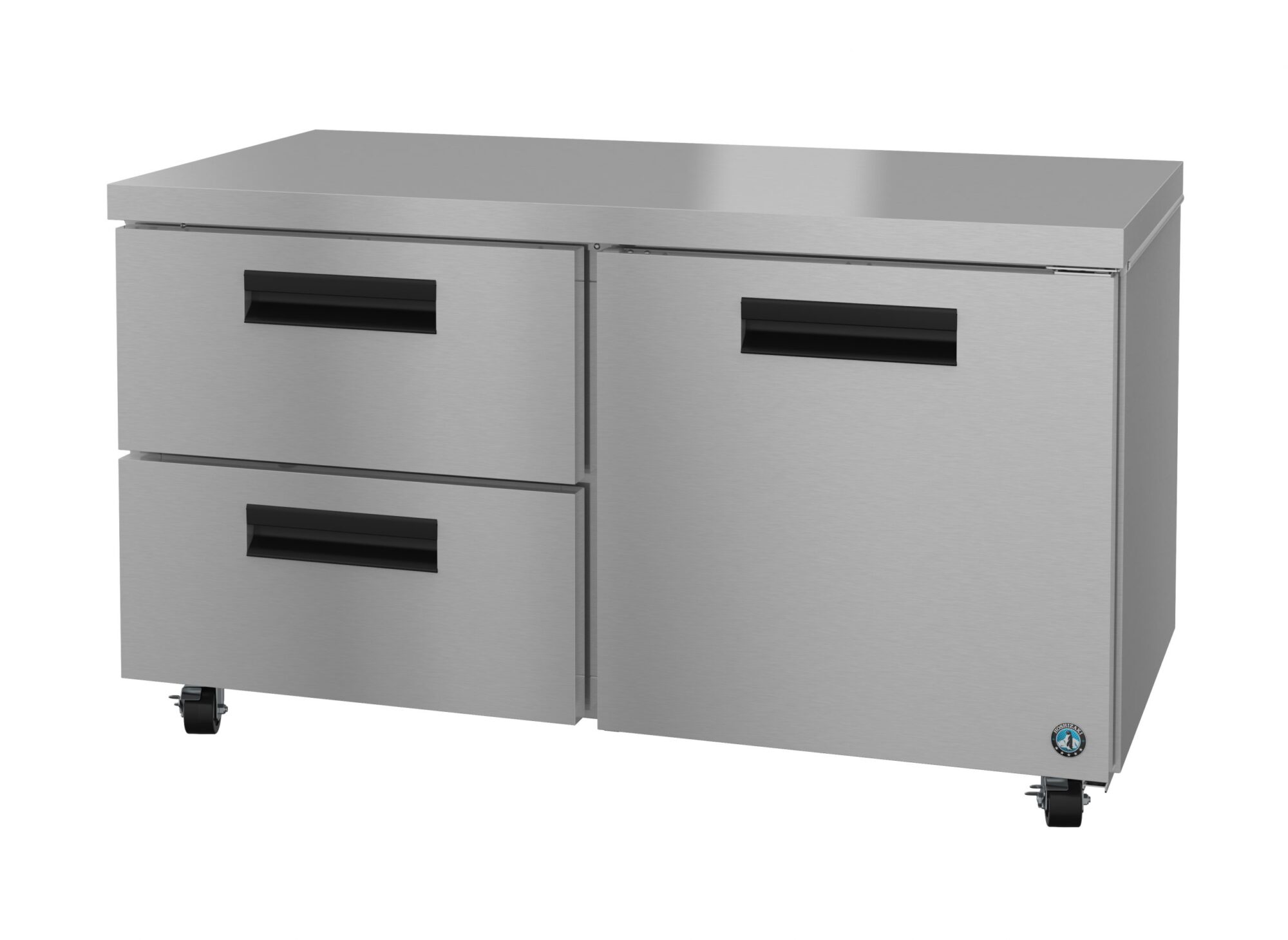

UR60A-D2 Refrigerator, Two Section Undercounter, Drawer/Door Combo

60″ W X 30″ D X 33″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 2.6 kwh/day, Amperage: 3.3, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R290
Refrigeration Data
Nominal Compres. of 1354 BTU/hr at 1/5 HP, Heat Rejection: 370 BTU/hr
Shipping Weight
288
Storage Specs
Nominal storage capacity: 17.55 ft3, Interior storage capacity: 15.38 ft3, Door opening: 25.5″ W x 23″ H, Depth with door fully extended: 58.5″ D, Shelves included: 2
Warranty
Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The UR60A-D2 Steelheart Series Undercounter two section refrigerator with drawer/door combo is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 15.38 cubic feet this efficient undercounter refrigerator and front air flow design is perfect for hot/tight kitchens. The UR60A-D2 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

The UR60A-D2 also includes (1) epoxy coated wire shelves and (2) stainless steel drawers each with (1) divider bar, (4) 4″ stem casters (2 with brakes) are standard, plus a the drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers. Electrical consumption of 2.6 kWh/day at 3.3 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2.25″ or 6″ casters, Short drawer divider bar, Stainless steel back, Overshelves, Lock. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a five years compressor warranty / three years parts and labor warranty.

[fusion_button link=”https://hoshizakiamerica.com/product/UR60B-D2/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]REPLACED BY UR60B-D2[/fusion_button]

  • Dimensions: 60″ W x 30″ D x 33.63″ H
  • Net capacity of 15.38 cubic feet
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • The drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers
  • Extruded aluminum flush mount drawer/door handles
  • (1) stainless steel door and (2) stainless steel drawers
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • (1) epoxy coated wire shelves and (2) stainless steel drawers each with (1) divider bar
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R290 refrigerant
  • (4) 4″ Stem Casters (2 with brakes) are standard
  • Optional kits: 2.25″ or 6″ casters, Short drawer divider bar, Stainless steel back, Overshelves, Lock
  • Nominal Compres. of 1354 BTU/hr at 1/5 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 62″ L x 34″ D x 36″ H at 288 lbs
  • Automatic off-cycle defrost
  • Five Years compressor warranty, Three Years parts and labor warranty
