UR36B-D2 Refrigerator, Single Section Undercounter, Stainless Drawers
36″ W X 30″ D X 33.75″ H
Volume
8.64
Electrical
115v/60/1
Sections
1
Parts and Service
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 0.69 kwh/day, Amperage: 3, Max Fuse/HACR Breaker: 15A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R290 (2.3 oz.)
Refrigeration Data
Nominal Compres. of 988 BTU/hr at 1/6 HP, Heat Rejection: 184 BTU/hr
Shipping Weight
232 lbs.
Storage Specs
Interior storage capacity: 8.64 ft3, Drawer opening: 25.5″ W x 23″ H, Depth with drawer fully extended: 52″ D, Drawers included: 2
Warranty
7 Years: Labor, 7 Years: Parts, 7 Years: Compressor
Overview and Features

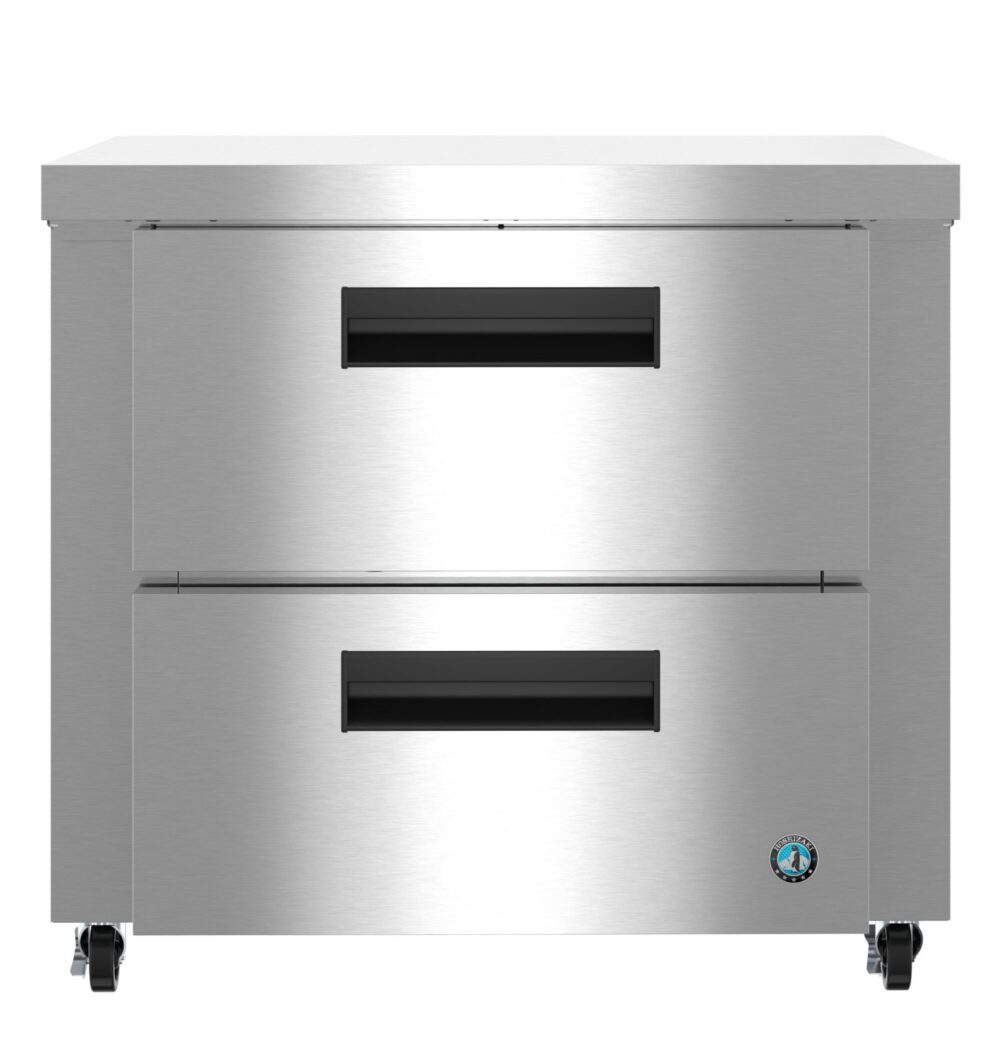

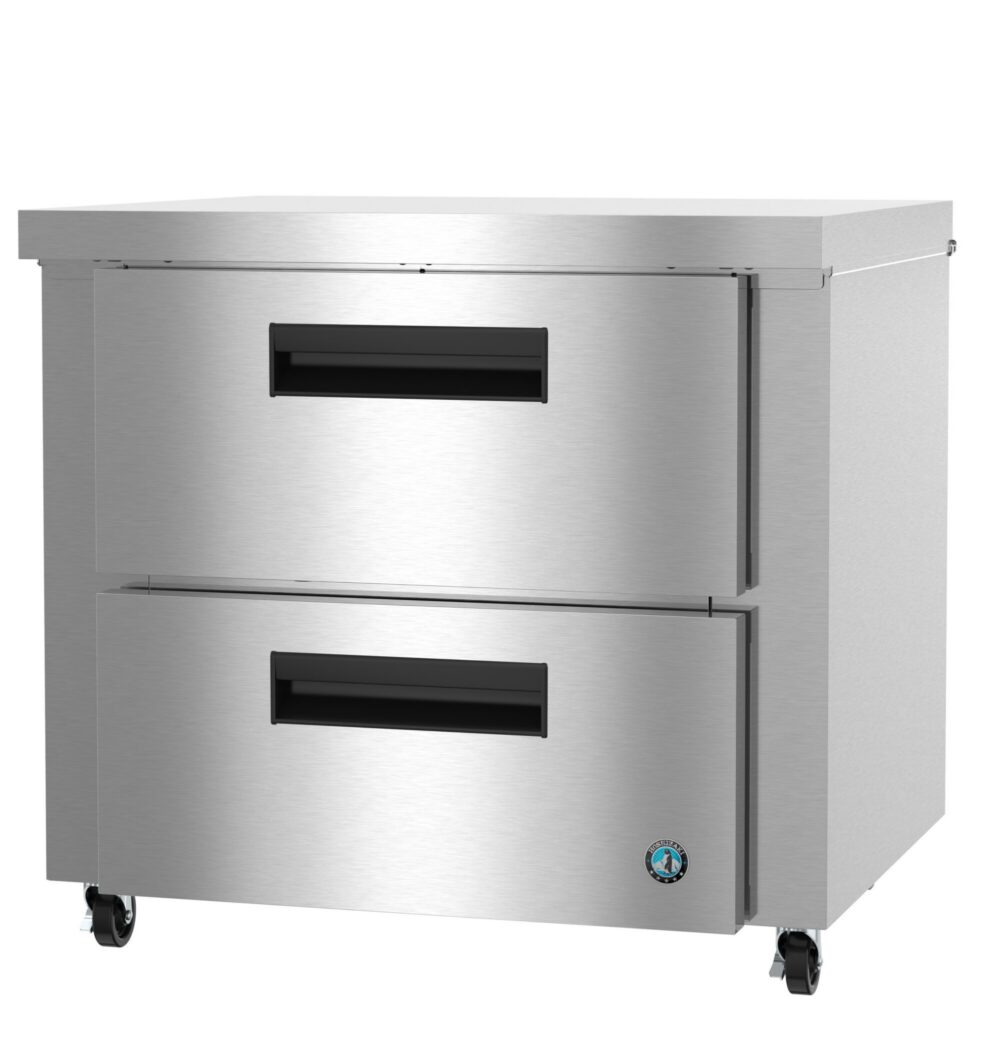

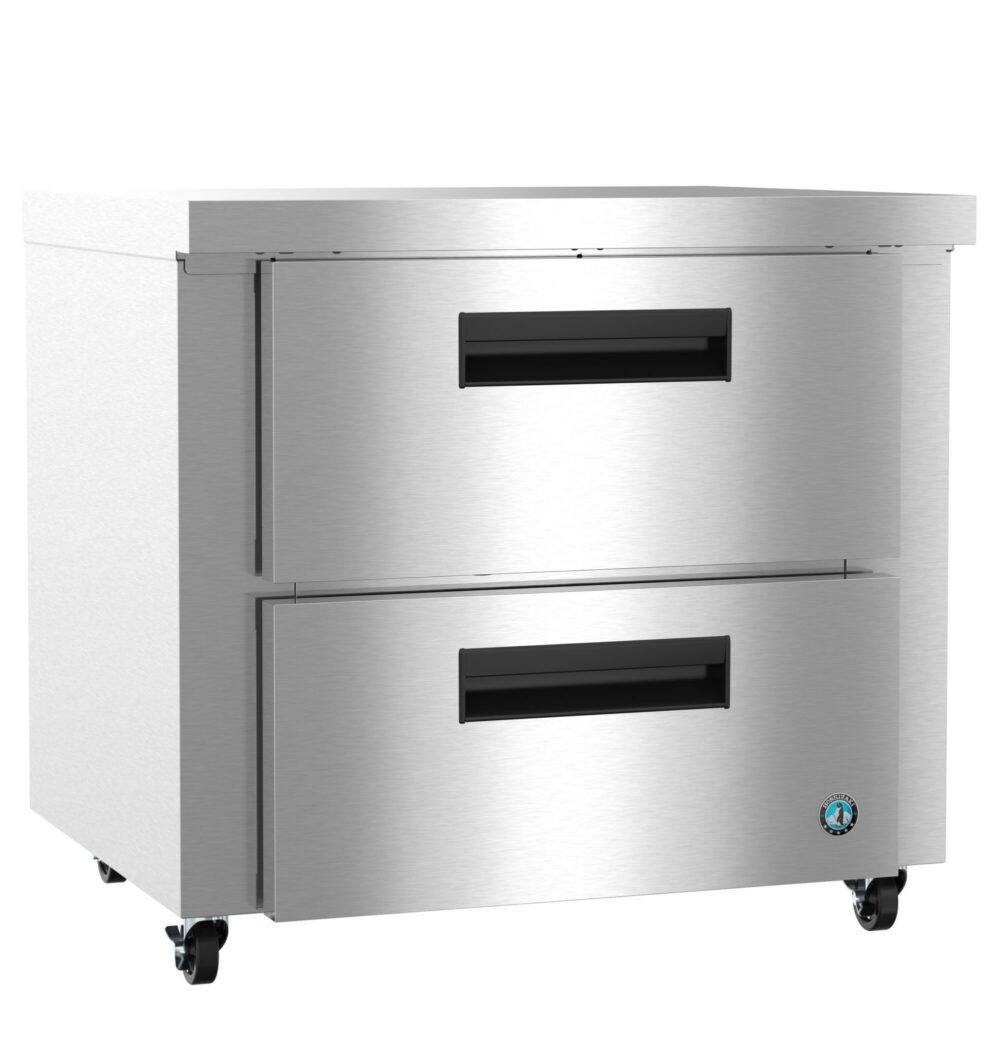

The UR36B-D2 Steelheart® Series undercounter two drawer refrigerator provides dependable refrigerated storage in a compact footprint. Designed for commercial kitchens, it maintains food safe temperatures in 100°F ambient conditions for reliable performance during demanding service. With 8.64 cubic feet of net capacity and a front airflow design, this unit fits easily into a variety of kitchen layouts. The UR36B-D2 features durable stainless steel construction that helps protect against corrosion while remaining easy to clean.
- Dimensions: 36″ W x 30″ D x 33.75″ H
- Net capacity of 8.64 cubic feet
- Innovative air distribution system distributes air evenly to maintain product temperature
- Engineered to maintain NSF-7 temperatures in 100° F ambient conditions
- Front-breathing air flow design
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Insulated with 2″ CFC-free, foamed in place polyurethane
- (2) stainless steel drawers, fully welded construction and securely fastened in the cabinet
- The drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers
- Drawers have a 150-lb. dynamic load rating
- Drawer capacity: Top: (1) 12″ x 20″ full size pan and (3) 1/6 size pans. Bottom: (1) full size pan (pans by others)
- Extruded aluminum flush mount drawer handles
- Hot gas condensate removal
- Enamel coated evaporator coil for extended life
- Environmentally friendly R290 refrigerant
- (4) 4″ stem casters (2 with brakes) are standard
